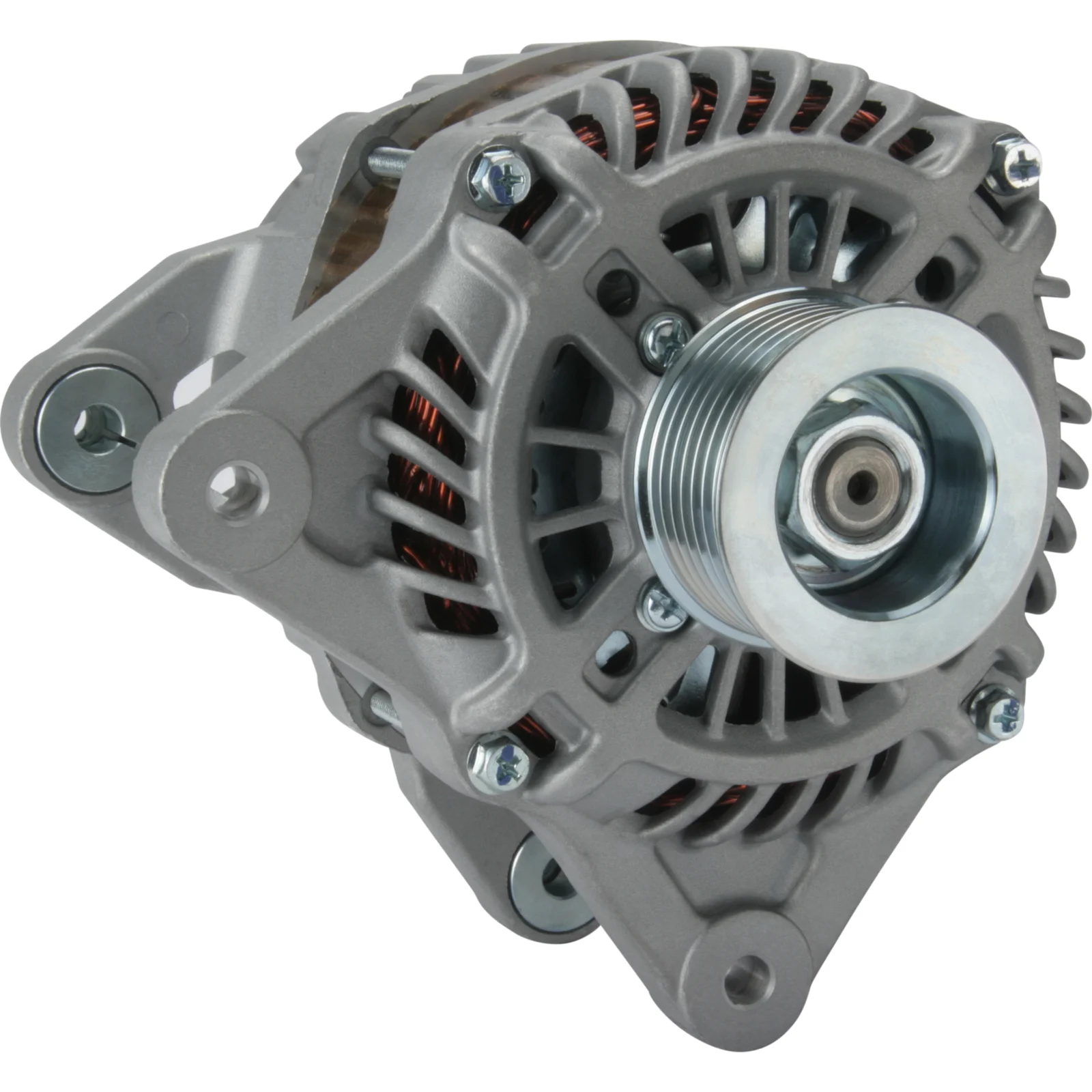

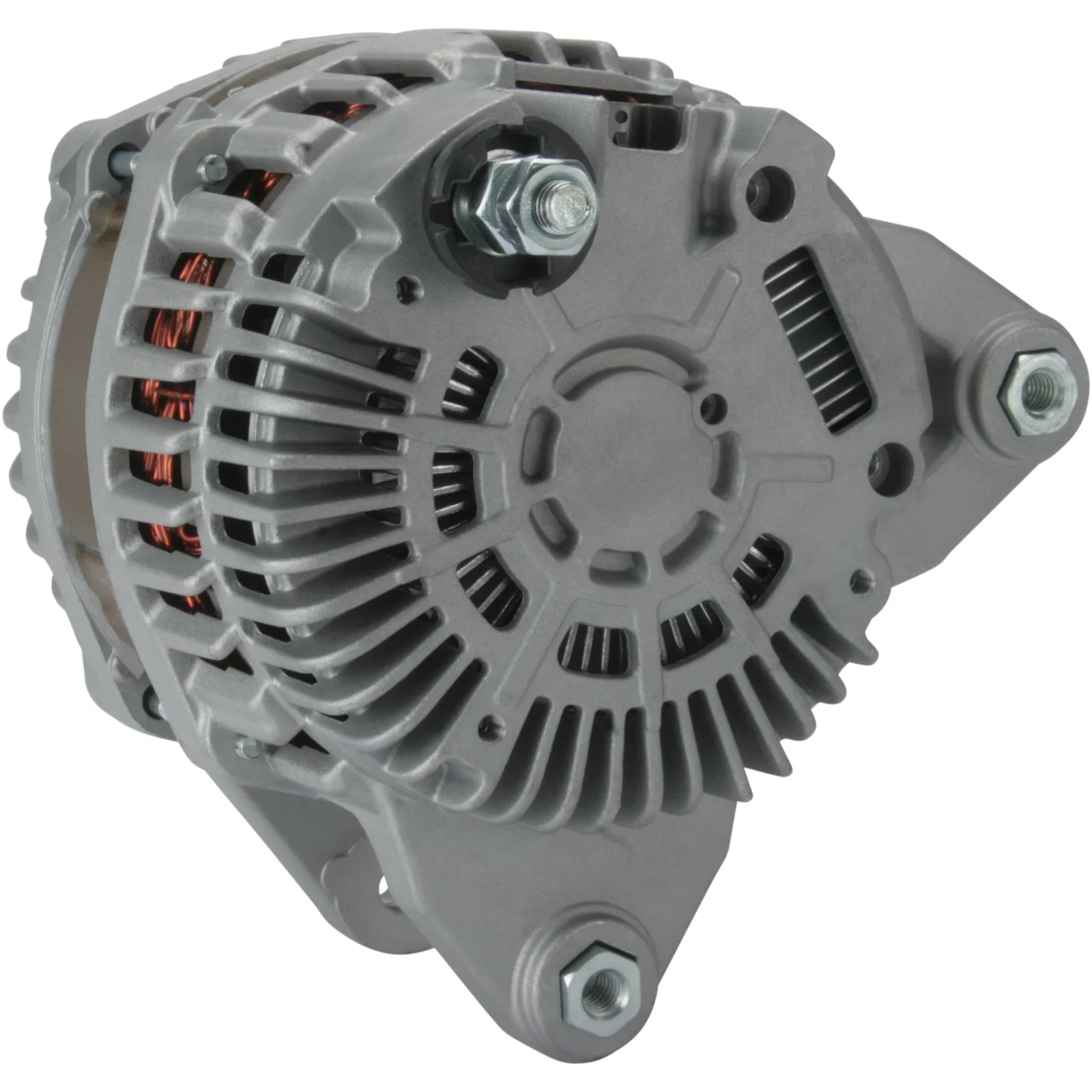

HC-Cargo Generator
HC-Cargo Generator
Artikelnr: F032115548

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 120, Rotation: CW, Mount. bracket dist.: 59.00

Beskrivning

Voltage: 14
Amp: 120
Pulley dist.: 32.50
Width/holder arm: 14.50
Mount. bracket dist.: 59.00
Bracket hole: 8.50
Belt. adj. brackethole pos.: 45
Belt. adj. bracket hole 1: 8.50
Belt. adj. bracket hole 2: M8
Pulley dia.: 55.30
Grooves/pulley: 7
Radius: 90.00
Radius 2: 90.00
B+: M8
Position/B+ in min.: 55
D+ Size: Plug
Rotation: CW
Plug no.: PL85
Total length mm: 183.00
Pulley: SP
Fan: IF
Regulator type: IR
Prod. info: BN

Filer

Specifikation

B+ M8
Mount. bracket dist. 59.00
Belt. adj. bracket hole 1 8.50
Belt. adj. bracket hole 2 M8
Belt. adj. brackethole pos. 45
Plug no. PL85
Bracket hole 8.50
Position/B+ in min. 55
Prod. info BN
Pulley SP
Pulley dia. 55.30
Pulley dist. 32.50
Radius 90.00
D+ Size Plug
Radius 2 90.00
Regulator type IR
Rotation CW
Fan IF
Grooves/pulley 7
Voltage 14
Total length 183.00 mm
Width/holder arm 14.50
Amp 120

  • OEM
    A002TJ0291, A002TJ0291ZE, A2TJ0291, A2TJ0291ZC, A2TJ0291ZE, F032115548, 1957ir, 1986A00645, 23100-1HS1A, 23100-BC00A, 23100-BC400, 23100-em01a, 23100-EM01AR, 23110-BC00A

  • Konkurrentreferens
    A5129, CAL35244, DRA0394, J5111116, 8EL011712-151, 28-5872, 28-7575, 11344N, 11344R, 209347, 209347A, 301957RI, 440541, 446535, 9090719, 12060914, 0986081220

  • Normaliserat artikelnummer
    a002tj0291, a002tj0291ze, a2tj0291, a2tj0291zc, a2tj0291ze, a5129, cal35244, dra0394, f032115548, j5111116, 8el011712151, 1957ir, 1986a00645, 11344n, 11344r, 23100bc00a, 23100bc400, 23100em01a, 23100em01ar, 23110bc00a, 209347, 209347a, 231001hs1a, 285872, 287575, 301957ri, 440541, 446535, 9090719, 12060914, 0986081220

  • Passar modeller
    Nissan Model: Micra Model series: Micra Model type: 160 SR Size of motor: 1.6 Brand of engine: HR16DE Body: Convertible From date: 01-08-2005 Fuel: Gasoline Approved: Yes Manufacture type: C+C
    Nissan Model: Micra Model series: Micra Model type: 160 SR Size of motor: 1.6 Brand of engine: HR16DE Type description: K12 Body: Hatchback From date: 01-05-2005 To date: 01-06-2010 Fuel: Gasoline Approved: Yes
    Nissan Model: Micra Model series: Micra Size of motor: 1.5 Brand of engine: HR15DE Type description: K13K Body: Hatchback From date: 01-12-2011 To date: 01-09-2015 Fuel: Petrol Approved: Yes
    Nissan Model: Note Model series: Note Size of motor: 1.6 Brand of engine: HR16DE Body: MPV From date: 01-03-2006 To date: 01-06-2012 Fuel: Gasoline Approved: Yes
    Nissan Model: NV 200 Model series: NV 200 Type of engine: 16V Size of motor: 1.6 Brand of engine: HR16DE Body: Bus From date: 01-07-2010 Fuel: Gasoline Approved: Yes
    Nissan Model: NV 200 Model series: NV 200 Type of engine: 16V Size of motor: 1.6 Brand of engine: HR16DE Type description: M20 Body: Van From date: 01-02-2010 Fuel: Gasoline Approved: Yes
    Nissan Model: Tiida Model series: Tiida Size of motor: 1.6 Brand of engine: HR16DE Type description: C11X Body: Hatchback From date: 01-09-2007 To date: 01-12-2011 Fuel: Gasoline Approved: Yes
    Nissan Model: Tiida Model series: Tiida Size of motor: 1.6 Brand of engine: HR16DE Type description: SC11X From date: 01-09-2007 To date: 01-12-2012 Fuel: Gasoline Approved: Yes
    Nissan Model: Versa Model series: Versa Size of motor: 1.6 Brand of engine: HR16DE Body: Saloon From date: 01-09-2008 To date: 01-06-2013 Fuel: Petrol Approved: Yes
