Artikelnr: F032116355

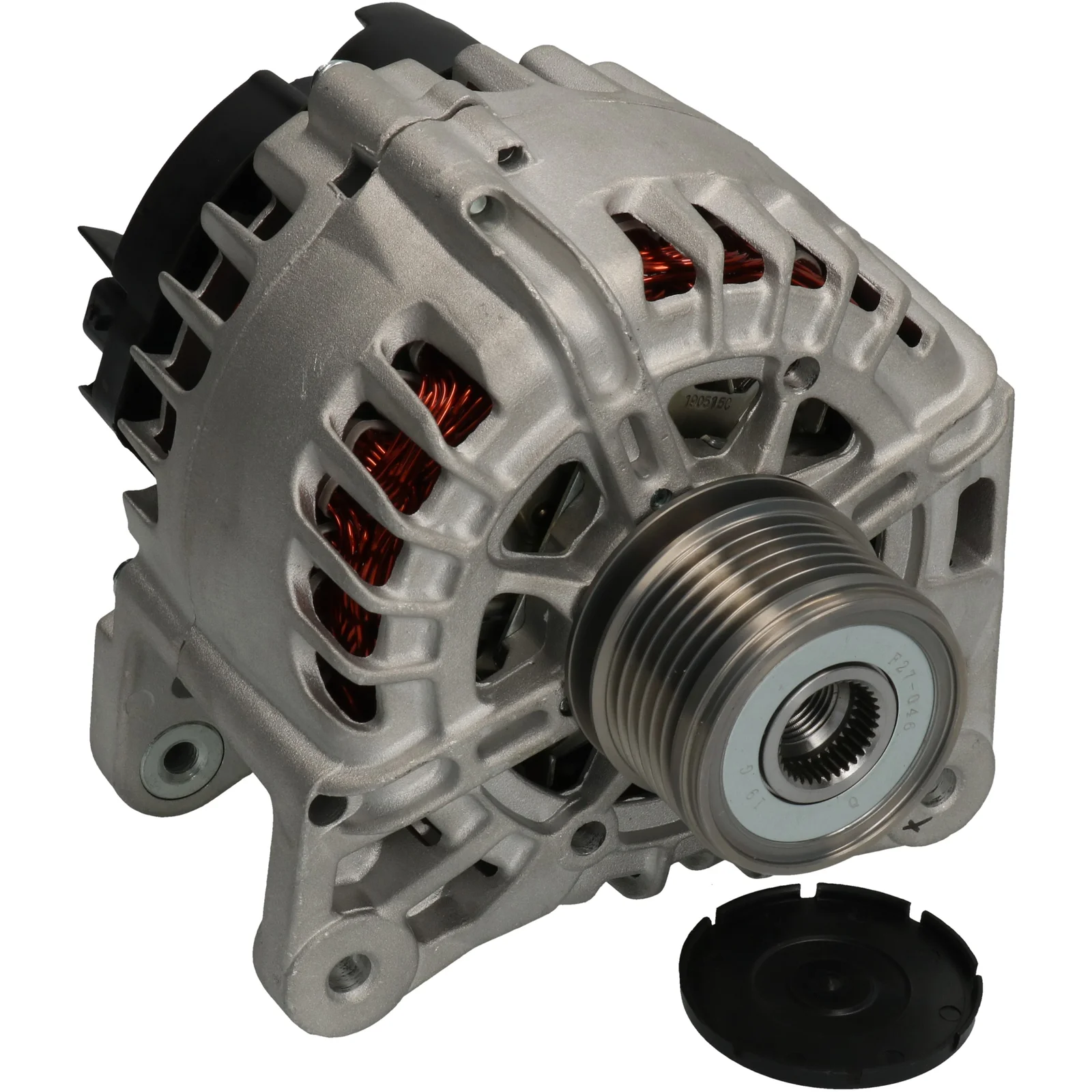

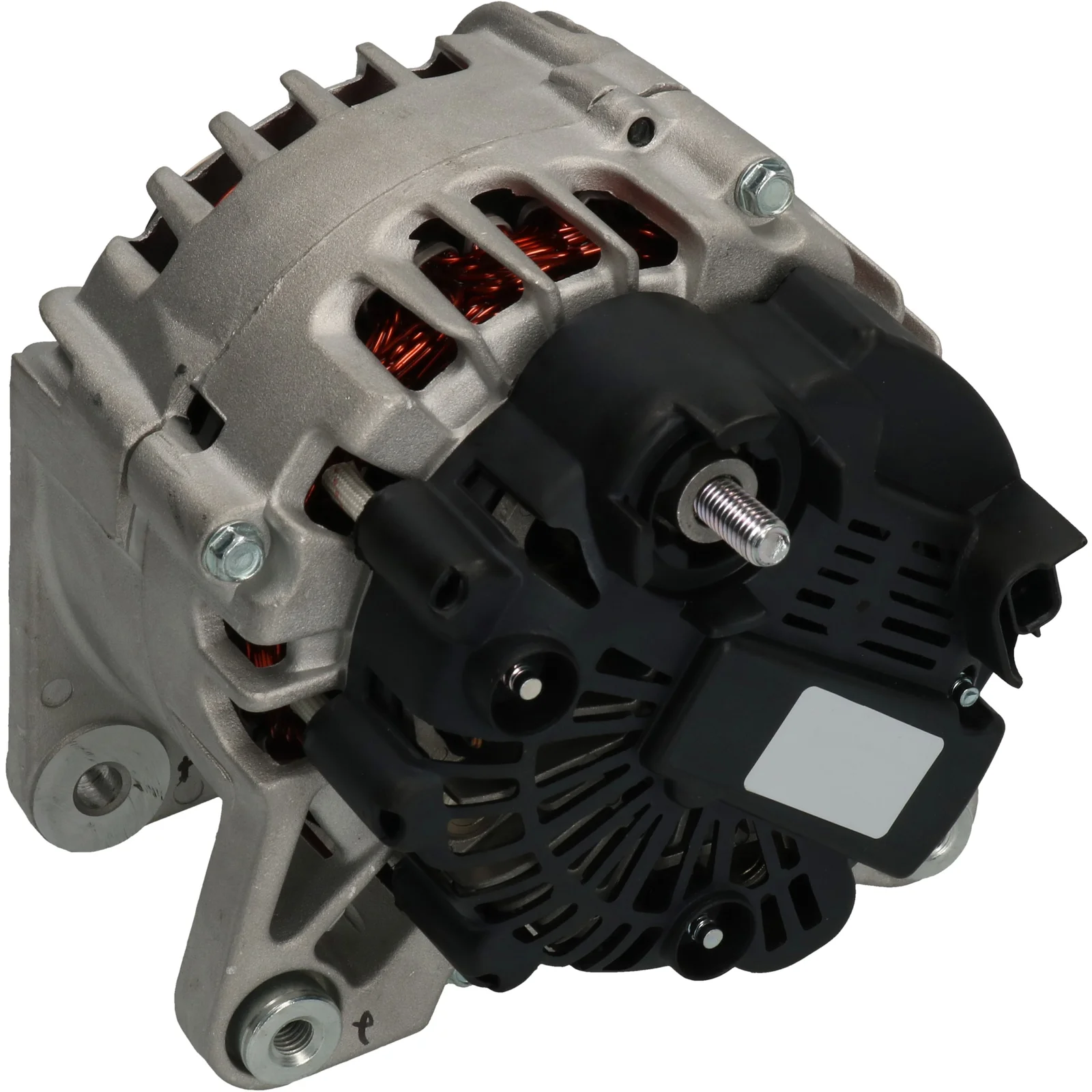

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 150, Rotation: CW, Mount. bracket dist.: 61.00

Beskrivning

HC-Cargo Generator 12V - 150A, 6gr.frg, (BSS) ID kod 34

Voltage: 14
Amp: 150
Pulley dist.: 38.70
Width/holder arm: 14.20
Mount. bracket dist.: 61.00
Bracket hole: 8.50
Belt. adj. brackethole pos.: 45
Belt. adj. bracket hole 1: 8.50
Belt. adj. bracket hole 2: M8
Pulley dia.: 55.00
Grooves/pulley: 6
Radius: 90.00
Radius 2: 90.00
B+: M8
Position/B+ in min.: 52
Rotation: CW
Plug no.: PL131
Total length mm: 196.00
Terminal type: COM
Communication: BSS
Pulley: SP/FW
Fan: IF
Regulator type: IR
Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

Specifikation

B+ M8
Communication BSS
Mount. bracket dist. 61.00
Belt. adj. bracket hole 1 8.50
Belt. adj. bracket hole 2 M8
Belt. adj. brackethole pos. 45
Plug no. PL131
Bracket hole 8.50
Position/B+ in min. 52
Pulley SP/FW
Pulley dia. 55.00
Pulley dist. 38.70
Radius 90.00
Radius 2 90.00
Regulator type IR
Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Fan IF
Grooves/pulley 6
Terminal type COM
Voltage 14
Total length 196.00 mm
Width/holder arm 14.20
Amp 150
  • OEM

    A415 9063500, a4159063500, F000BL08UC, F032116355, FG15T 056, FG15T056, 415 906 3500, 1986 A00 621, 1986A00621, 23100-4554R, 23100-7239R, 2612716, 2612716A, 231004554, 231004554R, 4159063500
  • Konkurrentreferens

    A3552S, CAL15575, 8EL015637-401, 28-6862, 575.940.150, 20355N, 209265, 209265A, 439808, 440462, 553690RI, 12090656, 32439808, 0986084870
  • Bilmärken

    Mercedes Benz, Renault
  • Normaliserat artikelnummer

    a3552s, a4159063500, cal15575, f000bl08uc, f032116355, fg15t056, 8el015637401, 1986a00621, 20355n, 209265, 209265a, 286862, 439808, 440462, 553690ri, 2612716, 2612716a, 12090656, 32439808, 231004554, 231004554r, 231007239r, 575940150, 0986084870, 4159063500
  • Passar modeller

    Dacia Model: Duster Model series: Duster Model type: 110 4x4 Type of engine: DCI Size of motor: 1.5 Brand of engine: H5F408 Type description: HM_ From date: 01-10-2017 Fuel: Diesel Approved: Yes
    Dacia Model: Duster Model series: Duster Model type: 110 Type of engine: DCI Size of motor: 1.5 Brand of engine: K9K656 Type description: HM_ From date: 01-10-2017 Fuel: Diesel Approved: Yes
    Mercedes Benz Series: CITAN Kombi (415) Model: 1.5 108 CDI Engine volume: 1.5 Engine type: OM 607.951 Year: 11.12-
    Mercedes Benz Series: CITAN Kombi (415) Model: 1.5 109 CDI Engine volume: 1.5 Engine type: OM 607.951 Year: 11.12-
    Mercedes Benz Series: CITAN Kombi (415) Model: 1.5 111 CDI Engine volume: 1.5 Engine type: OM 607.951 Year: 06.13-
    Mercedes Benz Series: CITAN Mixto Model: 109 CDI Engine volume: 1.5 Engine type: OM 607.951 (K9K) Year: 11.12-08.21
    Mercedes Benz Series: CITAN Mixtoi (415) Model: 1.5 111 CDI Engine volume: 1.5 Engine type: OM 607.951 (K9K)) Year: 06.13-08.21
    Mercedes Benz Series: CITAN Skåp Model: 1.5 108 CDI Engine volume: 1.5 Engine type: OM 607.951 (K9K) Year: 11.12-08.21
    Mercedes Benz Series: CITAN Skåp Model: 1.5 111 CDI Engine volume: 1.5 Engine type: OM 607.951 (K9K) Year: 06.13-08.21
    Mercedes Benz Series: CITAN Skåp Model: 109 CDI Engine volume: 1.5 Engine type: OM 607.951 Year: 11.12-
    Mercedes-Benz Model: Citan Model series: Citan 111 Type of engine: CDi Size of motor: 1.5 Brand of engine: OM607.951 Type description: 415 Body: Estate From date: 01-06-2013 Fuel: Diesel Approved: Yes Manufacture type: Combi
    Mercedes-Benz Model: Citan Model series: Citan 111 Type of engine: CDi Size of motor: 1.5 Brand of engine: OM607.951 Type description: 415 Body: Twin Cab From date: 01-06-2013 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: Citan Model series: Citan 111 Type of engine: CDi Size of motor: 1.5 Brand of engine: OM607.951 Type description: 415 Body: Van From date: 01-06-2013 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: Citan Model series: Citan Mixto Type of engine: CDI Size of motor: 1.5 Brand of engine: OM607.951 Type description: 415 Body: Twin Cab From date: 01-11-2012 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: Citan Model series: Citan Type of engine: CDI Size of motor: 1.5 Brand of engine: OM607.951 Type description: 415 Body: Estate From date: 01-11-2012 Fuel: Diesel Approved: Yes Manufacture type: Combi
    Mercedes-Benz Model: Citan Model series: Citan Type of engine: CDI Size of motor: 1.5 Brand of engine: OM607.951 Type description: 415 Body: Van From date: 01-11-2012 Fuel: Diesel Approved: Yes
    Renault Model: Duster Model series: Duster Model type: 110 Type of engine: DCI Size of motor: 1.5 Brand of engine: K9K658 Type description: HM_ Body: Closed Off-Road Vehicle From date: 01-07-2019 Fuel: Diesel Approved: Yes
    Renault Model: Duster Model series: Duster Model type: dCi 110 (HMAB) Type of engine: dCi Size of motor: 1.5 Brand of engine: K9K656 Type description: HM_ Body: SUV From date: 01-07-2019 Fuel: Diesel Approved: Yes
    Renault Model: Kangoo Model series: Grand Kangoo Model type: 110 Type of engine: DCi Size of motor: 1.5 Brand of engine: K9K636 Type description: KW0/1_ Body: MPV From date: 01-03-2013 Fuel: Diesel Approved: Yes
    Renault Model: Kangoo Model series: Kangoo / Grand Kangoo Model type: dCi 90 (KW18) Type of engine: dCi Size of motor: 1.5 Brand of engine: K9K647 Type description: KW0/1_ Body: MPV From date: 01-08-2017 Fuel: Diesel Approved: Yes
    Renault Model: Kangoo Model series: Kangoo Express Model type: 90 (FW18) Type of engine: DCI Size of motor: 1.5 Brand of engine: K9K647 Type description: FW0/1_ Body: Van From date: 01-08-2017 Fuel: Diesel Approved: Yes
    Renault Model: Megane Model series: Megane Grand Coupe Model type: 110 Type of engine: DCI Size of motor: 1.5 Brand of engine: K9K656 From date: 01-10-2016 Fuel: Diesel Approved: Yes
    Renault Model: Megane Model series: Megane Type of engine: DCI Size of motor: 1.5 Brand of engine: K9K834 Type description: KZ0/1 Body: Box Body / Estate From date: 01-03-2010 To date: 01-08-2015 Fuel: Diesel Approved: Yes
    Renault Model: Megane Model series: Megane Type of engine: DCI Size of motor: 1.5 Brand of engine: K9K836,K9K846 Type description: BZ_ Body: Box Body / Hatchback From date: 01-02-2009 To date: 01-08-2015 Fuel: Diesel Approved: Yes
    Renault Model: Talisman Model series: Talisman Model type: 110 Type of engine: DCi Size of motor: 1.5 Brand of engine: K9K646 From date: 01-11-2015 Fuel: Diesel Approved: Yes
    Renault Model: Talisman Model series: Talisman Model type: 110 Type of engine: DCi Size of motor: 1.5 Brand of engine: K9K647 From date: 01-11-2015 Fuel: Diesel Approved: Yes
    Renault Series: KANGOO / GRAND KANG Model: 1.5 DCI 119 Engine volume: 1.5 Engine type: K9K 639/646/647/648 Year: 03.13-
    Renault Series: KANGOO / GRAND KANGO Model: 1.5 DCI 90 Engine volume: 1.5 Engine type: K9K 647 Year: 08.17-
    Renault Series: KANGOO Express Model: 1.5 dCi 90 (FW18) Engine volume: 1.5 Engine type: K9K 647 Year: 08.17-
    1 / 6
