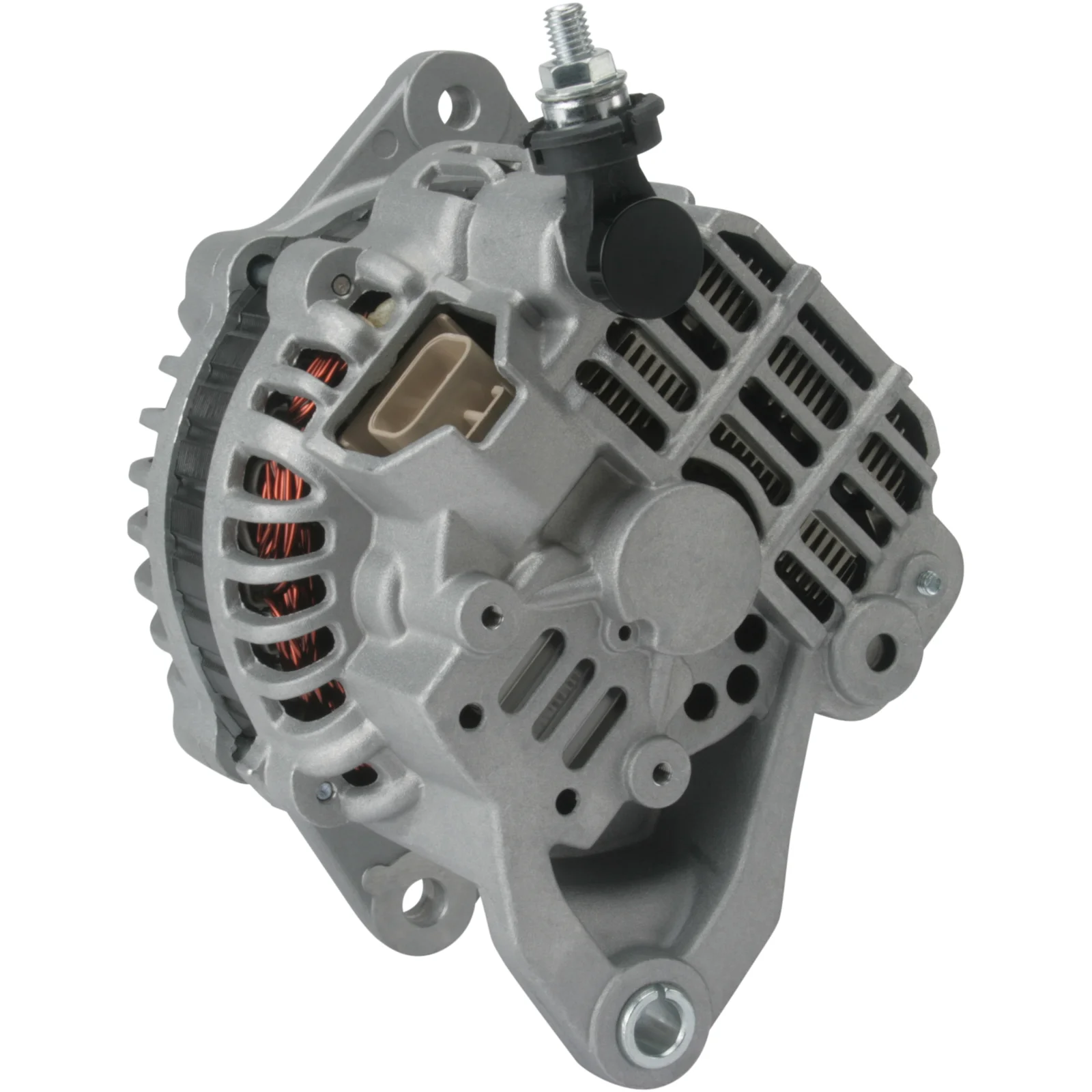

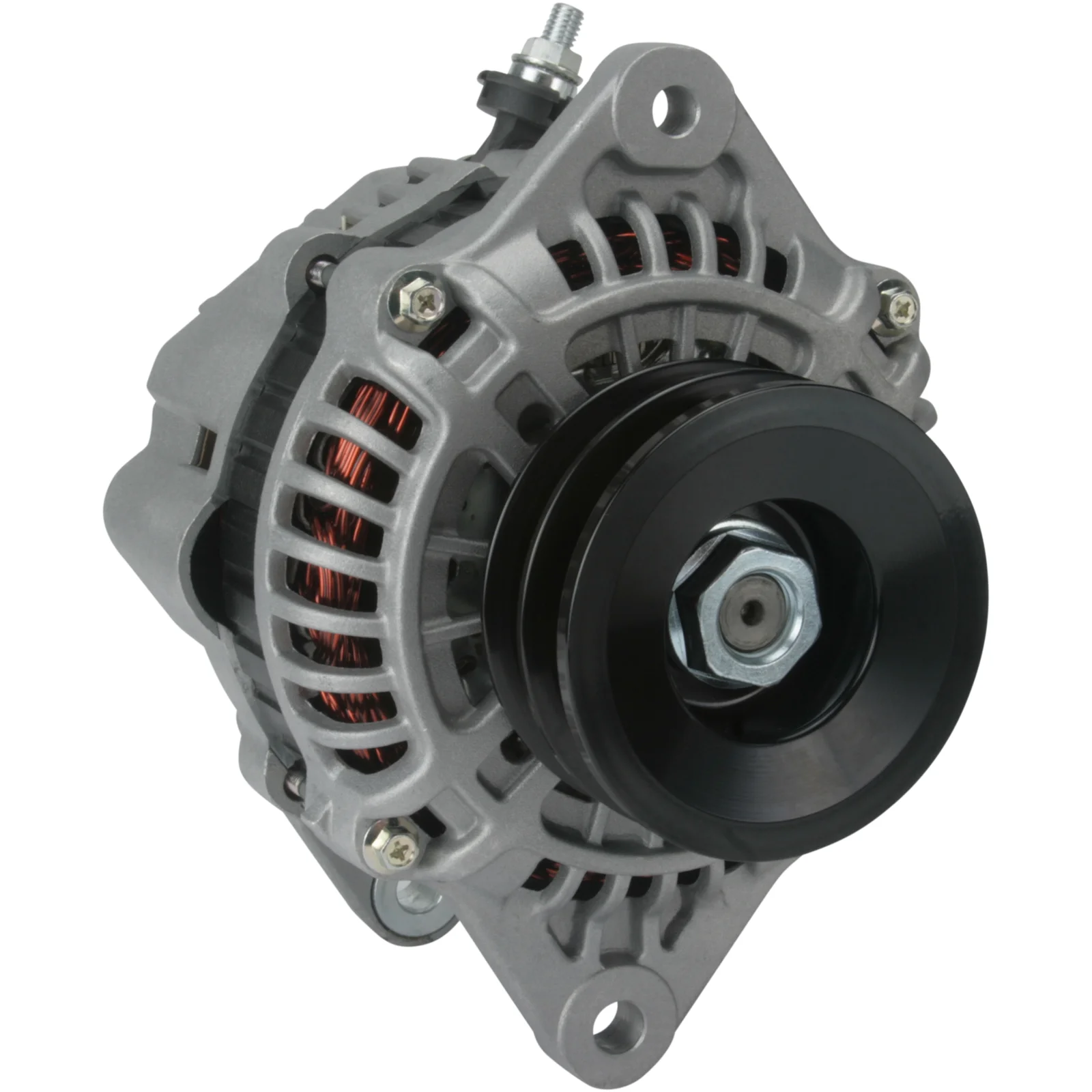

HC-Cargo Generator
HC-Cargo Generator
Artikelnr: F032115550

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 90, Rotation: CW, Mount. bracket dist.: 81.00

Beskrivning

Nissan Pickup Gen. 12V-90A 12V - 90A, 2V, (S, L) 12V - 90A, double pulley Gen. med 1spår remskiva = 90-400-5312. För Yourex produkt order 90-400-5099

Voltage: 14
Amp: 90
Pulley dist.: 37.50
Width/holder arm: 13.00
Mount. bracket dist.: 81.00
Bracket hole: 10.50
Belt. adj. brackethole pos.: 60
Pulley dia.: 86.00
Grooves/pulley: 2
Radius: 90.00
Radius 2: 85.00
B+: M8
Position/B+ in min.: 58
Rotation: CW
Plug no.: PL07
Total length mm: 178.50
Pulley: DP
Regulator type: IR
Prod. info: BN

Filer

Specifikation

B+ M8
Mount. bracket dist. 81.00
Belt. adj. brackethole pos. 60
Plug no. PL07
Bracket hole 10.50
Position/B+ in min. 58
Prod. info BN
Pulley DP
Pulley dia. 86.00
Pulley dist. 37.50
Radius 90.00
Radius 2 85.00
Regulator type IR
Rotation CW
Grooves/pulley 2
Voltage 14
Total length 178.50 mm
Width/holder arm 13.00
Amp 90

  • OEM
    A003TB5099, A3T-B5099, A3TB0699, A3TB5099, F032115550, 1983ir, 1986A01416, 23100-VK010, 23100-VK0R0, 115550

  • Konkurrentreferens
    A5043, ALT-3520, CAL35163, DRA0145, DRA0145N, F042303120, F042A03120, 165.536.090, 23308N, 23308R, 440539, 12060911, 0986080740

  • Bilmärken
    Nissan

  • Normaliserat artikelnummer
    a003tb5099, a3tb0699, a3tb5099, a5043, alt3520, cal35163, dra0145, dra0145n, f032115550, f042303120, f042a03120, 1983ir, 1986a01416, 23100vk010, 23100vk0r0, 23308n, 23308r, 115550, 440539, 12060911, 165536090, 0986080740

  • Passar modeller
    Nissan Model: NP 300 Model series: NP 300 Model type: 4x4 Type of engine: DCi Size of motor: 2.5 Brand of engine: YD25DDTI Body: Pick Up From date: 01-04-2008 Fuel: Diesel Approved: Yes
    Nissan Model: NP 300 Model series: NP 300 Type of engine: DCi Size of motor: 2.5 Brand of engine: YD25DDTi Body: Pick Up From date: 01-04-2008 Fuel: Diesel Approved: Yes
    Nissan Model: Pick Up Model series: Pick Up Model type: 4WD Type of engine: dCi Size of motor: 2.5 Brand of engine: YD25DDTi Type description: D22 Body: Pickup From date: 01-03-2002 Fuel: Diesel Approved: Yes
    Nissan Model: Pick Up Model series: Pick Up Model type: dCi Type of engine: dci Size of motor: 2.5 Brand of engine: YD25DDTi Type description: D22G Body: Platform/Chassis Fuel: Diesel Approved: Yes
    Nissan Model: Pick-Up Model series: Pick-Up Type of engine: TD Size of motor: 2.5 Brand of engine: YD25DDTi Type description: D22 Body: Pick Up From date: 01-03-2002 To date: 01-12-2010 Fuel: Diesel Approved: Yes
    Nissan Series: Navara (D22) Model: 2.5 D 4x4 Engine volume: 2.5 Engine type: YD 25 DDTi Year: 11.01-01.08
    Nissan Series: Pick-Up (D22) Model: 2.5 dCi 4x4 Engine volume: 2.5 Engine type: YD 25 DDTi Year: 04.08-
    Nissan Series: Pick-Up (D22) Model: 2.5 dCi Engine volume: 2.5 Year: 04.08-
    Nissan Series: Pick-Up (D22) Model: 2.5 TD 4WD Engine volume: 2.5 Engine type: TD 25 TI Year: 01.00-
    1 / 2
  • Beskrivning
    Nissan Pickup Gen. 12V-90A 12V - 90A, 2V, (S, L) 12V - 90A, double pulley Gen. med 1spår remskiva = 90-400-5312. För Yourex produkt order 90-400-5099

    Voltage: 14
    Amp: 90
    Pulley dist.: 37.50
    Width/holder arm: 13.00
    Mount. bracket dist.: 81.00
    Bracket hole: 10.50
    Belt. adj. brackethole pos.: 60
    Pulley dia.: 86.00
    Grooves/pulley: 2
    Radius: 90.00
    Radius 2: 85.00
    B+: M8
    Position/B+ in min.: 58
    Rotation: CW
    Plug no.: PL07
    Total length mm: 178.50
    Pulley: DP
    Regulator type: IR
    Prod. info: BN

    Filer

  • Specifikation
    B+ M8
    Mount. bracket dist. 81.00
    Belt. adj. brackethole pos. 60
    Plug no. PL07
    Bracket hole 10.50
    Position/B+ in min. 58
    Prod. info BN
    Pulley DP
    Pulley dia. 86.00
    Pulley dist. 37.50
    Radius 90.00
    Radius 2 85.00
    Regulator type IR
    Rotation CW
    Grooves/pulley 2
    Voltage 14
    Total length 178.50 mm
    Width/holder arm 13.00
    Amp 90
  • Fordonsmatchning

    • OEM
      A003TB5099, A3T-B5099, A3TB0699, A3TB5099, F032115550, 1983ir, 1986A01416, 23100-VK010, 23100-VK0R0, 115550

    • Konkurrentreferens
      A5043, ALT-3520, CAL35163, DRA0145, DRA0145N, F042303120, F042A03120, 165.536.090, 23308N, 23308R, 440539, 12060911, 0986080740

    • Bilmärken
      Nissan

    • Normaliserat artikelnummer
      a003tb5099, a3tb0699, a3tb5099, a5043, alt3520, cal35163, dra0145, dra0145n, f032115550, f042303120, f042a03120, 1983ir, 1986a01416, 23100vk010, 23100vk0r0, 23308n, 23308r, 115550, 440539, 12060911, 165536090, 0986080740

    • Passar modeller
      Nissan Model: NP 300 Model series: NP 300 Model type: 4x4 Type of engine: DCi Size of motor: 2.5 Brand of engine: YD25DDTI Body: Pick Up From date: 01-04-2008 Fuel: Diesel Approved: Yes
      Nissan Model: NP 300 Model series: NP 300 Type of engine: DCi Size of motor: 2.5 Brand of engine: YD25DDTi Body: Pick Up From date: 01-04-2008 Fuel: Diesel Approved: Yes
      Nissan Model: Pick Up Model series: Pick Up Model type: 4WD Type of engine: dCi Size of motor: 2.5 Brand of engine: YD25DDTi Type description: D22 Body: Pickup From date: 01-03-2002 Fuel: Diesel Approved: Yes
      Nissan Model: Pick Up Model series: Pick Up Model type: dCi Type of engine: dci Size of motor: 2.5 Brand of engine: YD25DDTi Type description: D22G Body: Platform/Chassis Fuel: Diesel Approved: Yes
      Nissan Model: Pick-Up Model series: Pick-Up Type of engine: TD Size of motor: 2.5 Brand of engine: YD25DDTi Type description: D22 Body: Pick Up From date: 01-03-2002 To date: 01-12-2010 Fuel: Diesel Approved: Yes
      Nissan Series: Navara (D22) Model: 2.5 D 4x4 Engine volume: 2.5 Engine type: YD 25 DDTi Year: 11.01-01.08
      Nissan Series: Pick-Up (D22) Model: 2.5 dCi 4x4 Engine volume: 2.5 Engine type: YD 25 DDTi Year: 04.08-
      Nissan Series: Pick-Up (D22) Model: 2.5 dCi Engine volume: 2.5 Year: 04.08-
      Nissan Series: Pick-Up (D22) Model: 2.5 TD 4WD Engine volume: 2.5 Engine type: TD 25 TI Year: 01.00-
