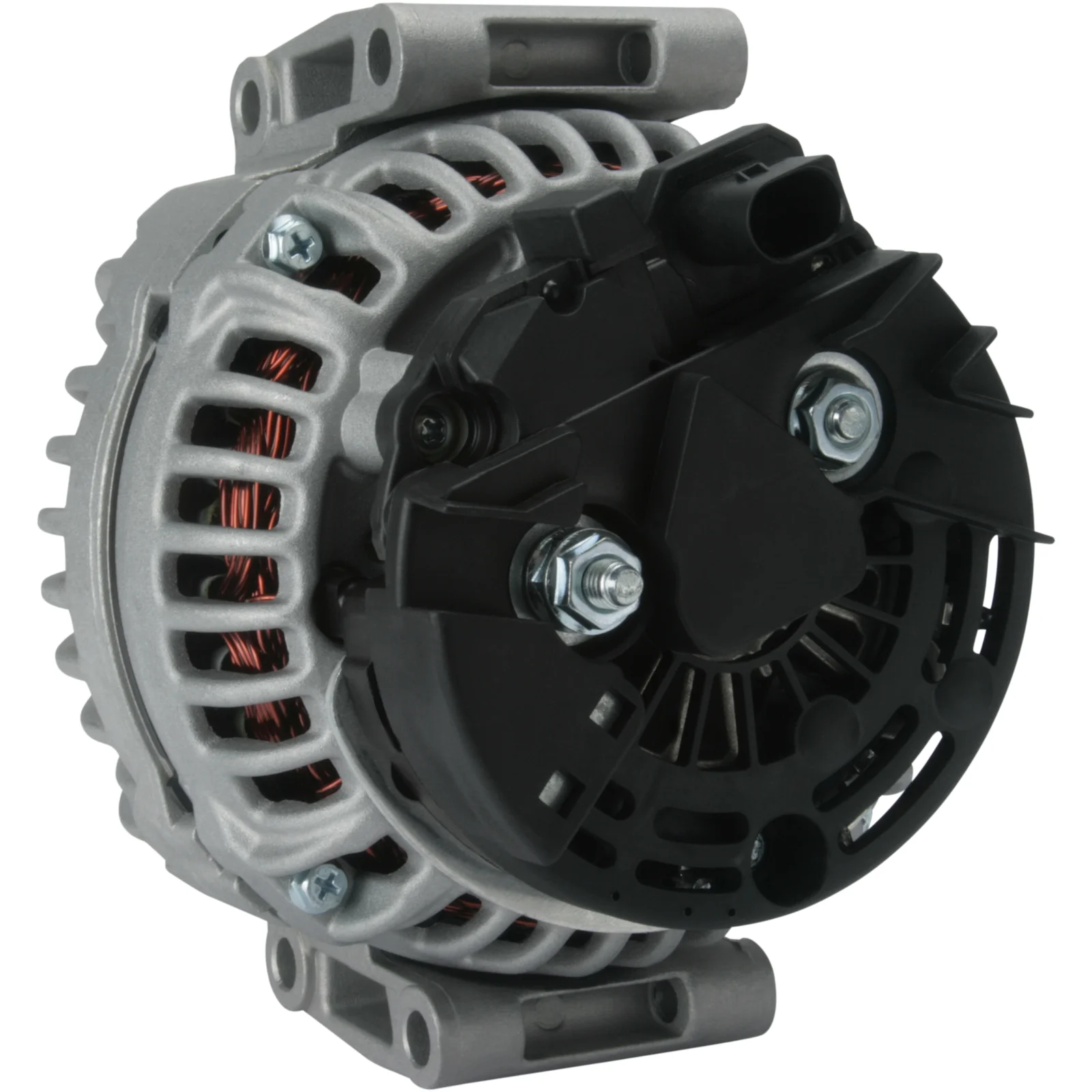

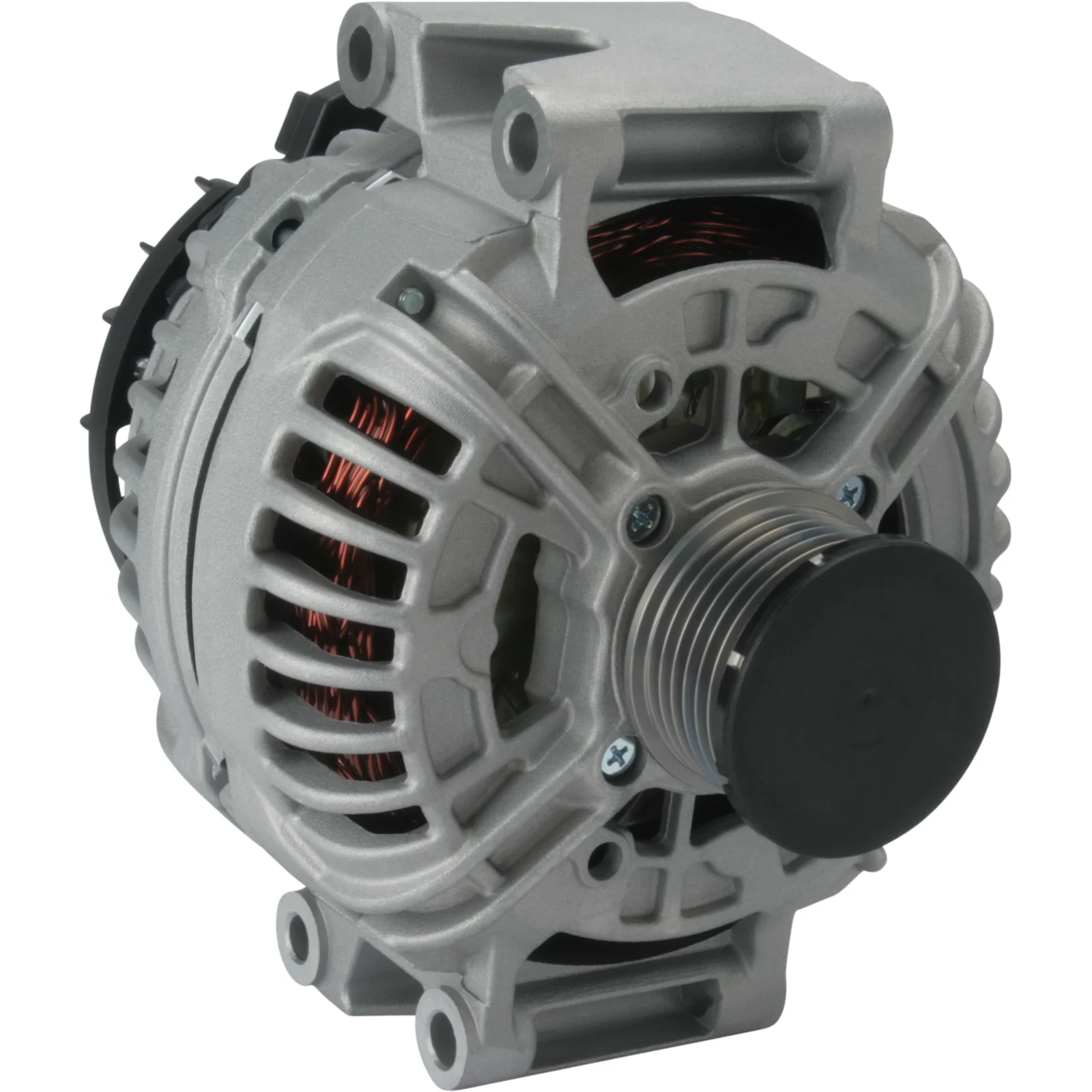

HC-Cargo Generator
HC-Cargo Generator
Artikelnr: F032115383

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 200, Rotation: CW, Mount. bracket dist.: 57.00

Beskrivning

Gen. passar MB Vito 12V-200A 12V - 200A, 6gr. fw pulley, (COM-DFM) 6gr. fw pulley, (COM-DFM) Bilar med automatväxellåda För Yourex produkt order 90-365-4749

Voltage: 14
Amp: 200
Pulley dist.: 30.50
Width/holder arm: 70.00
Mount. bracket dist.: 57.00
Bracket hole: 10.00
Belt. adj. bracket hole 1: 9.50
Pulley dia.: 50.00
Grooves/pulley: 6
B+: M8
Position/B+ in min.: 43
Rotation: CW
Plug no.: PL114
Total length mm: 193.00
Terminal type: COM
Communication: BSS
Pulley: SP/FW
Regulator type: IR
Prod. info: BN
Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

Filer

Specifikation

B+ M8
Communication BSS
Mount. bracket dist. 57.00
Belt. adj. bracket hole 1 9.50
Plug no. PL114
Bracket hole 10.00
Position/B+ in min. 43
Prod. info BN
Pulley SP/FW
Pulley dia. 50.00
Pulley dist. 30.50
Regulator type IR
Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Grooves/pulley 6
Terminal type COM
Voltage 14
Total length 193.00 mm
Width/holder arm 70.00
Amp 200

  • OEM
    A013154 2102, A0131542102, A013154210280, F032115383, 013 154 2102, 0124 625 022, 0986 047 490, 1840ir, 1986A00951, 115383, 0124625022, 0124625207, 0131542102, 013154210280

  • Konkurrentreferens
    A0207, CAL10256, DRB7490, 8EL011712-211, 8EL738211-351, 28-5618, 225.177.2002, 4814, 23248N, 111840, 209050, 209050A, 301840RI, 443468, 9047490, 12047490, 32047490, 944390474, 0986047490, 0986047493, 944390474900

  • Bilmärken
    Mercedes Benz, Mercedes Benz Trucks & Buses

  • Normaliserat artikelnummer
    a0131542102, a013154210280, a0207, cal10256, drb7490, f032115383, 8el011712211, 8el738211351, 1840ir, 1986a00951, 4814, 23248n, 111840, 115383, 209050, 209050a, 285618, 301840ri, 443468, 9047490, 12047490, 32047490, 0124625022, 0124625207, 0131542102, 944390474, 0986047490, 0986047493, 2251772002, 013154210280, 944390474900

  • Passar modeller
    Mercedes Benz Series: Viano (W639) Model: 2.0 4-matic Engine volume: 2.0 Engine type: OM 646.982 Year: 03.06-
    Mercedes Benz Series: Viano (W639) Model: 2.0 CDI Engine volume: 2.0 Engine type: OM 646.982 Year: 08.05-
    Mercedes Benz Series: Viano (W639) Model: 2.0 CDI Engine volume: 2.0 Engine type: OM 646.982 Year: 09.03-
    Mercedes Benz Series: Viano (W639) Model: 2.2 CDI Engine volume: 2.1 Engine type: OM 646.982 Year: 09.03-12.10
    Mercedes Benz Series: Viano (W639) Model: 2.2 CDI Engine volume: 2.2 Engine type: OM 646.982 Year: 09.03-10.06
    Mercedes Benz Series: Vito / Mixto Model: 115 CDI 4x4 Engine volume: 2.1 Engine type: OM 646.982 Year: 09.07-07.10
    Mercedes Benz Series: VITO / MIXTO Skåp Model: 111 CDI 4x4 Engine volume: 2.2 Engine type: OM 646.982 Year: 09.07-
    Mercedes Benz Series: Vito Model: 109 CDI AUT Engine volume: 2.2 Engine type: OM 646.983 Year: 10.03-10.06
    Mercedes Benz Series: Vito Model: 109 CDI Engine volume: 2.2 Engine type: OM 646.983 Year: 10.03-10.06
    Mercedes Benz Series: Vito Model: 111 CDI 4x4 Engine volume: 2.2 Engine type: OM 646.982 Year: 09.07-08.14
    Mercedes Benz Series: Vito Model: 111 CDI AUT Engine volume: 2.1 Engine type: OM 646.982 Year: 09.07-
    Mercedes Benz Series: Vito Model: 111 CDI AUT Engine volume: 2.2 Engine type: OM 646.982 Year: 10.03-10.06
    Mercedes Benz Series: Vito Model: 111 CDI Engine volume: 2.2 Engine type: OM 646.982 Year: 09.07-
    Mercedes Benz Series: Vito Model: 111 CDI Engine volume: 2.2 Engine type: OM 646.982 Year: 10.03-10.06
    Mercedes Benz Series: Vito Model: 115 CDI 4x4 Engine volume: 2.1 Engine type: OM 646.982 Year: 09.07-07.10
    Mercedes Benz Series: Vito Model: 115 CDI AUT Engine volume: 2.2 Engine type: OM 646.982 Year: 10.03-
    Mercedes Benz Series: Vito Model: 115 CDI Engine volume: 2.2 Engine type: OM 646.982 Year: 10.03-07.10
    Mercedes Benz Trucks & Buses Series: VIANO (W639) Model: CDI 2.0 4-matic Engine volume: 2 Engine type: OM 646.982 Year: 07.05-
    Mercedes Benz Trucks & Buses Series: VIANO (W639) Model: CDI 2.2 4-matic Engine volume: 2.2 Engine type: OM 646.982 Year: 07.05-
    Mercedes-Benz Model: Viano Model series: Viano Model type: 4 Matic Type of engine: CDi Size of motor: 2.1 Brand of engine: OM642.982 Type description: 639 Body: MPV From date: 01-07-2005 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: Viano Model series: Viano Model type: 4 Matic Type of engine: CDi Size of motor: 2.1 Brand of engine: OM646.982 Type description: 639 Body: MPV From date: 01-07-2005 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: Viano Model series: Viano Type of engine: CDi Size of motor: 2.2 Brand of engine: OM646.982 Type description: 639 Body: MPV From date: 01-09-2003 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: Vito Model series: Vito 109 Type of engine: CDi Size of motor: 2.1 Brand of engine: OM646.980 Type description: 639 Body: Bus From date: 01-09-2006 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: Vito Model series: Vito 109 Type of engine: CDi Size of motor: 2.1 Brand of engine: OM646.983 Type description: 639 Body: Bus From date: 01-09-2003 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: Vito Model series: Vito 109 Type of engine: CDi Size of motor: 2.1 Brand of engine: OM646.983 Type description: 639 Body: Van From date: 01-09-2003 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: Vito Model series: Vito 111 Type of engine: CDi Size of motor: 2.2 Brand of engine: OM646.982 Type description: 639 Body: Bus From date: 01-09-2003 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: Vito Model series: Vito 111 Type of engine: CDi Size of motor: 2.2 Brand of engine: OM646.982 Type description: 639 Body: Van From date: 01-09-2003 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: Vito Model series: Vito 115 Type of engine: CDi Size of motor: 2.2 Brand of engine: OM646.982 Type description: 639 Body: Bus From date: 01-09-2003 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: Vito Model series: Vito 115 Type of engine: CDi Size of motor: 2.2 Brand of engine: OM646.982 Type description: 639 Body: Van From date: 01-09-2003 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: Vito Model series: Vito Model type: 4x4 Type of engine: CDi Size of motor: 2.2 Brand of engine: OM646.981 Type description: W639 Body: Bus From date: 01-09-2007 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: Vito Model series: Vito Model type: 4x4 Type of engine: CDi Size of motor: 2.2 Brand of engine: OM646.982 Type description: W639 Body: Bus From date: 01-09-2007 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: Vito Model series: Vito Model type: 4x4 Type of engine: CDi Size of motor: 2.2 Brand of engine: OM646.982 Type description: W639 Body: Van From date: 01-07-2006 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: Vito Model series: Vito Model type: 4x4 Type of engine: CDi Size of motor: 2.2 Brand of engine: OM646.982 Type description: W639 Body: Van From date: 01-09-2007 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: Vito Model series: Vito Type of engine: CDi Size of motor: 2.1 Brand of engine: OM646.980 Type description: W639 Body: Van From date: 01-08-2006 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: Vito Model series: Vito Type of engine: CDi Size of motor: 2.2 Brand of engine: OM646.980 Type description: W639 Body: Bus From date: 01-09-2007 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: Vito Model series: Vito Type of engine: CDi Size of motor: 2.2 Brand of engine: OM646.980 Type description: W639 Body: Van From date: 01-09-2007 Fuel: Diesel Approved: Yes
    1 / 8
  • Beskrivning
    Gen. passar MB Vito 12V-200A 12V - 200A, 6gr. fw pulley, (COM-DFM) 6gr. fw pulley, (COM-DFM) Bilar med automatväxellåda För Yourex produkt order 90-365-4749

    Voltage: 14
    Amp: 200
    Pulley dist.: 30.50
    Width/holder arm: 70.00
    Mount. bracket dist.: 57.00
    Bracket hole: 10.00
    Belt. adj. bracket hole 1: 9.50
    Pulley dia.: 50.00
    Grooves/pulley: 6
    B+: M8
    Position/B+ in min.: 43
    Rotation: CW
    Plug no.: PL114
    Total length mm: 193.00
    Terminal type: COM
    Communication: BSS
    Pulley: SP/FW
    Regulator type: IR
    Prod. info: BN
    Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Filer

  • Specifikation
    B+ M8
    Communication BSS
    Mount. bracket dist. 57.00
    Belt. adj. bracket hole 1 9.50
    Plug no. PL114
    Bracket hole 10.00
    Position/B+ in min. 43
    Prod. info BN
    Pulley SP/FW
    Pulley dia. 50.00
    Pulley dist. 30.50
    Regulator type IR
    Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
    Rotation CW
    Grooves/pulley 6
    Terminal type COM
    Voltage 14
    Total length 193.00 mm
    Width/holder arm 70.00
    Amp 200
  • Fordonsmatchning

    • OEM
      A013154 2102, A0131542102, A013154210280, F032115383, 013 154 2102, 0124 625 022, 0986 047 490, 1840ir, 1986A00951, 115383, 0124625022, 0124625207, 0131542102, 013154210280

    • Konkurrentreferens
      A0207, CAL10256, DRB7490, 8EL011712-211, 8EL738211-351, 28-5618, 225.177.2002, 4814, 23248N, 111840, 209050, 209050A, 301840RI, 443468, 9047490, 12047490, 32047490, 944390474, 0986047490, 0986047493, 944390474900

    • Bilmärken
      Mercedes Benz, Mercedes Benz Trucks & Buses

    • Normaliserat artikelnummer
      a0131542102, a013154210280, a0207, cal10256, drb7490, f032115383, 8el011712211, 8el738211351, 1840ir, 1986a00951, 4814, 23248n, 111840, 115383, 209050, 209050a, 285618, 301840ri, 443468, 9047490, 12047490, 32047490, 0124625022, 0124625207, 0131542102, 944390474, 0986047490, 0986047493, 2251772002, 013154210280, 944390474900

    • Passar modeller
      Mercedes Benz Series: Viano (W639) Model: 2.0 4-matic Engine volume: 2.0 Engine type: OM 646.982 Year: 03.06-
      Mercedes Benz Series: Viano (W639) Model: 2.0 CDI Engine volume: 2.0 Engine type: OM 646.982 Year: 08.05-
      Mercedes Benz Series: Viano (W639) Model: 2.0 CDI Engine volume: 2.0 Engine type: OM 646.982 Year: 09.03-
      Mercedes Benz Series: Viano (W639) Model: 2.2 CDI Engine volume: 2.1 Engine type: OM 646.982 Year: 09.03-12.10
      Mercedes Benz Series: Viano (W639) Model: 2.2 CDI Engine volume: 2.2 Engine type: OM 646.982 Year: 09.03-10.06
      Mercedes Benz Series: Vito / Mixto Model: 115 CDI 4x4 Engine volume: 2.1 Engine type: OM 646.982 Year: 09.07-07.10
      Mercedes Benz Series: VITO / MIXTO Skåp Model: 111 CDI 4x4 Engine volume: 2.2 Engine type: OM 646.982 Year: 09.07-
      Mercedes Benz Series: Vito Model: 109 CDI AUT Engine volume: 2.2 Engine type: OM 646.983 Year: 10.03-10.06
      Mercedes Benz Series: Vito Model: 109 CDI Engine volume: 2.2 Engine type: OM 646.983 Year: 10.03-10.06
      Mercedes Benz Series: Vito Model: 111 CDI 4x4 Engine volume: 2.2 Engine type: OM 646.982 Year: 09.07-08.14
      Mercedes Benz Series: Vito Model: 111 CDI AUT Engine volume: 2.1 Engine type: OM 646.982 Year: 09.07-
      Mercedes Benz Series: Vito Model: 111 CDI AUT Engine volume: 2.2 Engine type: OM 646.982 Year: 10.03-10.06
      Mercedes Benz Series: Vito Model: 111 CDI Engine volume: 2.2 Engine type: OM 646.982 Year: 09.07-
      Mercedes Benz Series: Vito Model: 111 CDI Engine volume: 2.2 Engine type: OM 646.982 Year: 10.03-10.06
      Mercedes Benz Series: Vito Model: 115 CDI 4x4 Engine volume: 2.1 Engine type: OM 646.982 Year: 09.07-07.10
      Mercedes Benz Series: Vito Model: 115 CDI AUT Engine volume: 2.2 Engine type: OM 646.982 Year: 10.03-
      Mercedes Benz Series: Vito Model: 115 CDI Engine volume: 2.2 Engine type: OM 646.982 Year: 10.03-07.10
      Mercedes Benz Trucks & Buses Series: VIANO (W639) Model: CDI 2.0 4-matic Engine volume: 2 Engine type: OM 646.982 Year: 07.05-
      Mercedes Benz Trucks & Buses Series: VIANO (W639) Model: CDI 2.2 4-matic Engine volume: 2.2 Engine type: OM 646.982 Year: 07.05-
      Mercedes-Benz Model: Viano Model series: Viano Model type: 4 Matic Type of engine: CDi Size of motor: 2.1 Brand of engine: OM642.982 Type description: 639 Body: MPV From date: 01-07-2005 Fuel: Diesel Approved: Yes
      Mercedes-Benz Model: Viano Model series: Viano Model type: 4 Matic Type of engine: CDi Size of motor: 2.1 Brand of engine: OM646.982 Type description: 639 Body: MPV From date: 01-07-2005 Fuel: Diesel Approved: Yes
      Mercedes-Benz Model: Viano Model series: Viano Type of engine: CDi Size of motor: 2.2 Brand of engine: OM646.982 Type description: 639 Body: MPV From date: 01-09-2003 Fuel: Diesel Approved: Yes
      Mercedes-Benz Model: Vito Model series: Vito 109 Type of engine: CDi Size of motor: 2.1 Brand of engine: OM646.980 Type description: 639 Body: Bus From date: 01-09-2006 Fuel: Diesel Approved: Yes
      Mercedes-Benz Model: Vito Model series: Vito 109 Type of engine: CDi Size of motor: 2.1 Brand of engine: OM646.983 Type description: 639 Body: Bus From date: 01-09-2003 Fuel: Diesel Approved: Yes
      Mercedes-Benz Model: Vito Model series: Vito 109 Type of engine: CDi Size of motor: 2.1 Brand of engine: OM646.983 Type description: 639 Body: Van From date: 01-09-2003 Fuel: Diesel Approved: Yes
      Mercedes-Benz Model: Vito Model series: Vito 111 Type of engine: CDi Size of motor: 2.2 Brand of engine: OM646.982 Type description: 639 Body: Bus From date: 01-09-2003 Fuel: Diesel Approved: Yes
      Mercedes-Benz Model: Vito Model series: Vito 111 Type of engine: CDi Size of motor: 2.2 Brand of engine: OM646.982 Type description: 639 Body: Van From date: 01-09-2003 Fuel: Diesel Approved: Yes
      Mercedes-Benz Model: Vito Model series: Vito 115 Type of engine: CDi Size of motor: 2.2 Brand of engine: OM646.982 Type description: 639 Body: Bus From date: 01-09-2003 Fuel: Diesel Approved: Yes
      Mercedes-Benz Model: Vito Model series: Vito 115 Type of engine: CDi Size of motor: 2.2 Brand of engine: OM646.982 Type description: 639 Body: Van From date: 01-09-2003 Fuel: Diesel Approved: Yes
      Mercedes-Benz Model: Vito Model series: Vito Model type: 4x4 Type of engine: CDi Size of motor: 2.2 Brand of engine: OM646.981 Type description: W639 Body: Bus From date: 01-09-2007 Fuel: Diesel Approved: Yes
      Mercedes-Benz Model: Vito Model series: Vito Model type: 4x4 Type of engine: CDi Size of motor: 2.2 Brand of engine: OM646.982 Type description: W639 Body: Bus From date: 01-09-2007 Fuel: Diesel Approved: Yes
      Mercedes-Benz Model: Vito Model series: Vito Model type: 4x4 Type of engine: CDi Size of motor: 2.2 Brand of engine: OM646.982 Type description: W639 Body: Van From date: 01-07-2006 Fuel: Diesel Approved: Yes
      Mercedes-Benz Model: Vito Model series: Vito Model type: 4x4 Type of engine: CDi Size of motor: 2.2 Brand of engine: OM646.982 Type description: W639 Body: Van From date: 01-09-2007 Fuel: Diesel Approved: Yes
      Mercedes-Benz Model: Vito Model series: Vito Type of engine: CDi Size of motor: 2.1 Brand of engine: OM646.980 Type description: W639 Body: Van From date: 01-08-2006 Fuel: Diesel Approved: Yes
      Mercedes-Benz Model: Vito Model series: Vito Type of engine: CDi Size of motor: 2.2 Brand of engine: OM646.980 Type description: W639 Body: Bus From date: 01-09-2007 Fuel: Diesel Approved: Yes
      Mercedes-Benz Model: Vito Model series: Vito Type of engine: CDi Size of motor: 2.2 Brand of engine: OM646.980 Type description: W639 Body: Van From date: 01-09-2007 Fuel: Diesel Approved: Yes
