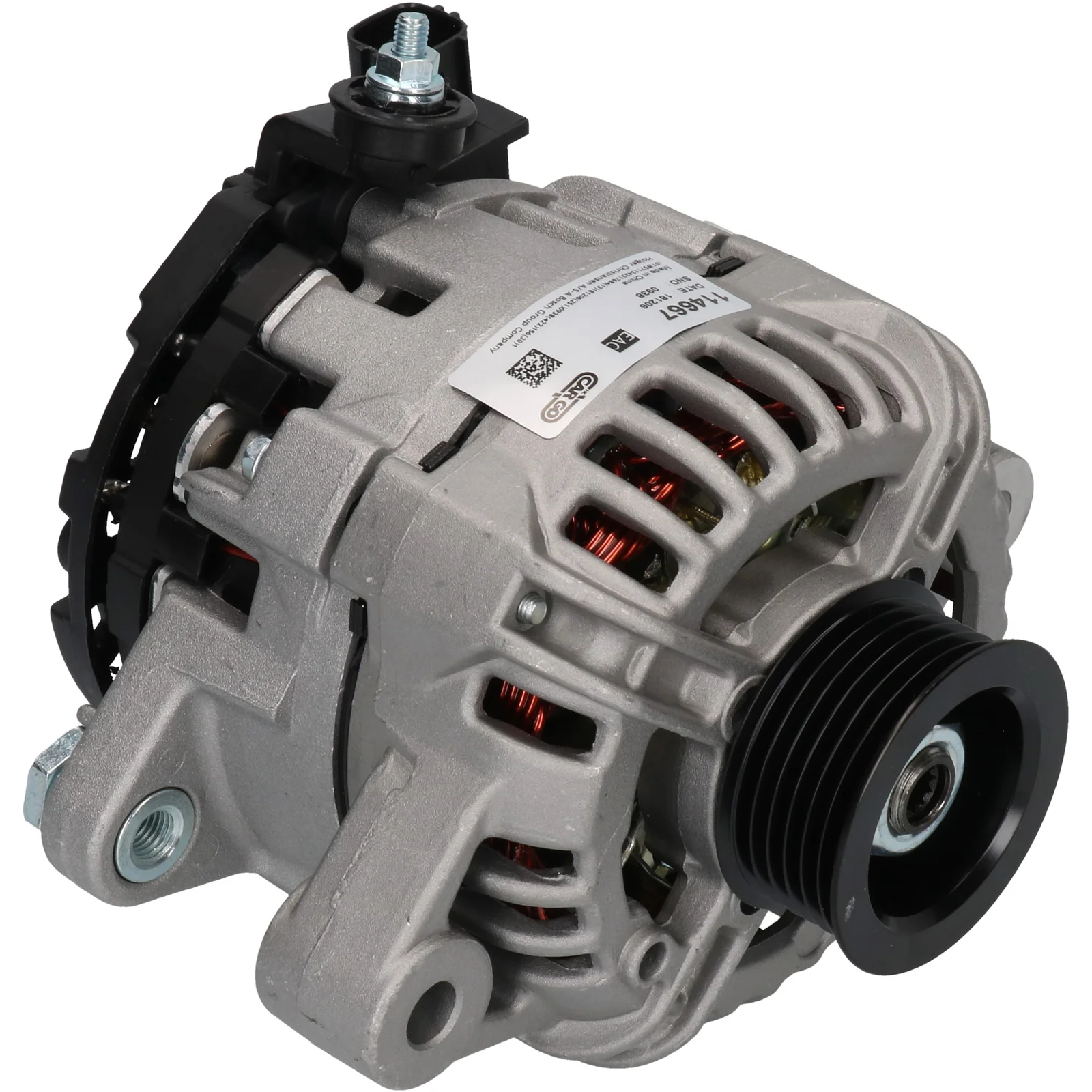

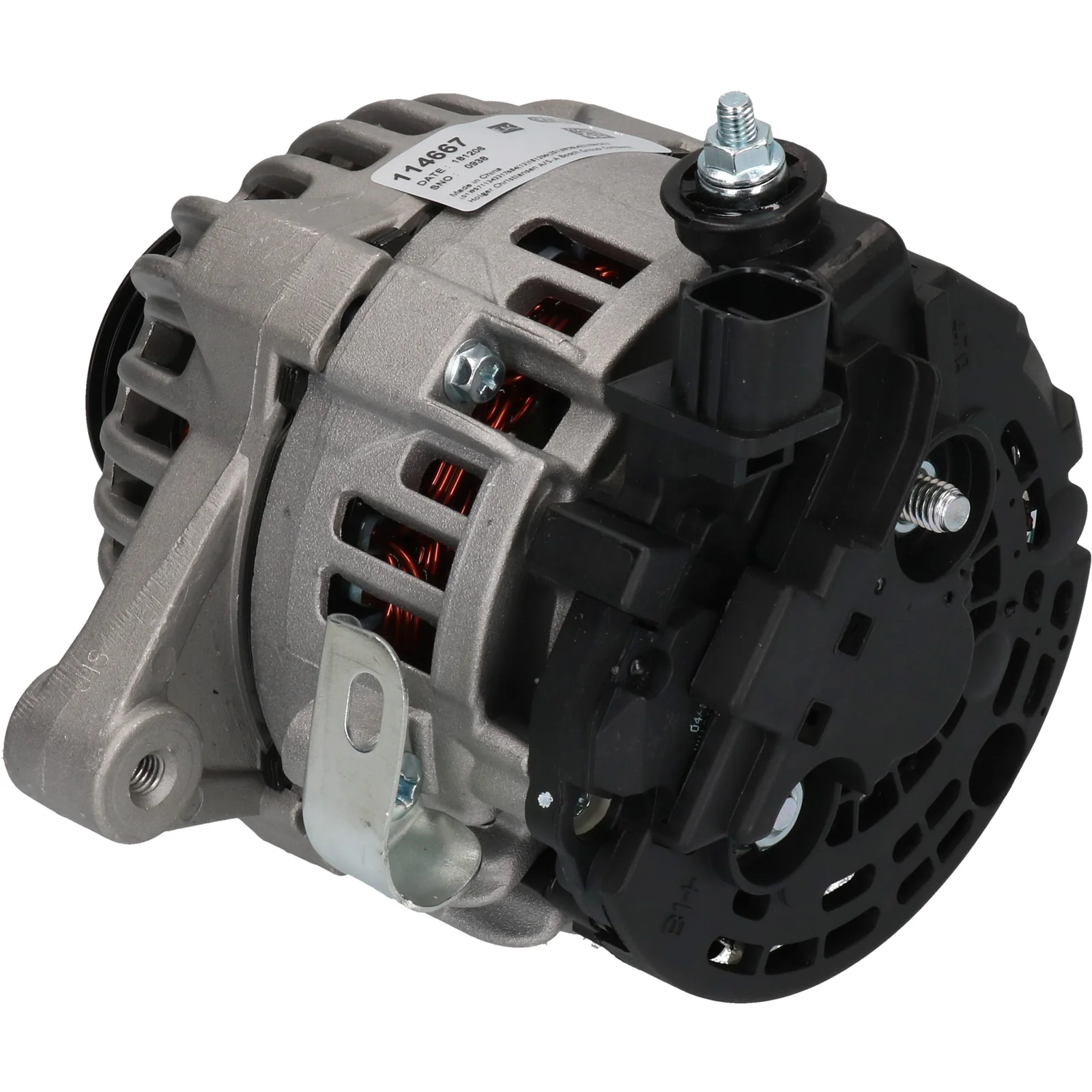

HC-Cargo Generator
HC-Cargo Generator
Artikelnr: F032114667

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 90, Rotation: CW, Mount. bracket dist.: 39.00

Beskrivning

Toyota Yaris Gen. 12V-90A 12V - 90A (IG, L, S, DFM) (IG, L, S, DFM) För Yourex produkt order 90-555-5053

Voltage: 14
Amp: 90
Pulley dist.: 48.00
Width/holder arm: 27.00
Mount. bracket dist.: 39.00
Bracket hole: 10.50
Belt. adj. brackethole pos.: 4
Belt. adj. bracket hole 1: M8
Pulley dia.: 55.00
Grooves/pulley: 6
Radius: 80.00
Radius 2: 90.00
B+: M6
Position/B+ in min.: 12
D+ Size: Plug
Rotation: CW
Plug no.: PL78
Total length mm: 170.00
Pulley: SP
Regulator: w/
Regulator type: IR

Filer

Specifikation

B+ M6
Mount. bracket dist. 39.00
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 4
Plug no. PL78
Bracket hole 10.50
Position/B+ in min. 12
Pulley SP
Pulley dia. 55.00
Pulley dist. 48.00
Radius 80.00
D+ Size Plug
Radius 2 90.00
Regulator w/
Regulator type IR
Rotation CW
Grooves/pulley 6
Voltage 14
Total length 170.00 mm
Width/holder arm 27.00
Amp 90

  • OEM
    F032114667, 0124 225 053, 0986 080 460, 1942ir, 1986A01669, 27060-0J061, 27060-0j061, 114667, 0124225033, 0124225053

  • Konkurrentreferens
    A0328, A0328PR, A0329, A6302, CAL10403, DRA0622, LRA03188, 8EL738212-821, 28-5800, 195.929.090, 235.326.902, 20327R, 113246, 210941, 210941A, 444202, 849162, 12060908, 0986080460

  • Bilmärken
    Toyota

  • Normaliserat artikelnummer
    a0328, a0328pr, a0329, a6302, cal10403, dra0622, f032114667, lra03188, 8el738212821, 1942ir, 1986a01669, 20327r, 113246, 114667, 210941, 210941a, 270600j061, 285800, 444202, 849162, 12060908, 0124225033, 0124225053, 195929090, 235326902, 0986080460

  • Passar modeller
    Toyota Model: Yaris Model series: Yaris Type of engine: VVTi Size of motor: 1.3 Brand of engine: 2SZ-FE Body: Hatchback From date: 01-08-2005 To date: 01-11-2010 Fuel: Gasoline Approved: Yes
    Toyota Series: Yaris (_CP10) Model: 1.3 Engine volume: 1.3 Engine type: 2SZ-FE Year: 04.02-
    Toyota Series: Yaris (_P9_) Model: 1.3 VVT-i Engine volume: 1.3 Engine type: 2SZ-FE Year: 01.06-
  • Beskrivning
    Toyota Yaris Gen. 12V-90A 12V - 90A (IG, L, S, DFM) (IG, L, S, DFM) För Yourex produkt order 90-555-5053

    Voltage: 14
    Amp: 90
    Pulley dist.: 48.00
    Width/holder arm: 27.00
    Mount. bracket dist.: 39.00
    Bracket hole: 10.50
    Belt. adj. brackethole pos.: 4
    Belt. adj. bracket hole 1: M8
    Pulley dia.: 55.00
    Grooves/pulley: 6
    Radius: 80.00
    Radius 2: 90.00
    B+: M6
    Position/B+ in min.: 12
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL78
    Total length mm: 170.00
    Pulley: SP
    Regulator: w/
    Regulator type: IR

    Filer

  • Specifikation
    B+ M6
    Mount. bracket dist. 39.00
    Belt. adj. bracket hole 1 M8
    Belt. adj. brackethole pos. 4
    Plug no. PL78
    Bracket hole 10.50
    Position/B+ in min. 12
    Pulley SP
    Pulley dia. 55.00
    Pulley dist. 48.00
    Radius 80.00
    D+ Size Plug
    Radius 2 90.00
    Regulator w/
    Regulator type IR
    Rotation CW
    Grooves/pulley 6
    Voltage 14
    Total length 170.00 mm
    Width/holder arm 27.00
    Amp 90
  • Fordonsmatchning

    • OEM
      F032114667, 0124 225 053, 0986 080 460, 1942ir, 1986A01669, 27060-0J061, 27060-0j061, 114667, 0124225033, 0124225053

    • Konkurrentreferens
      A0328, A0328PR, A0329, A6302, CAL10403, DRA0622, LRA03188, 8EL738212-821, 28-5800, 195.929.090, 235.326.902, 20327R, 113246, 210941, 210941A, 444202, 849162, 12060908, 0986080460

    • Bilmärken
      Toyota

    • Normaliserat artikelnummer
      a0328, a0328pr, a0329, a6302, cal10403, dra0622, f032114667, lra03188, 8el738212821, 1942ir, 1986a01669, 20327r, 113246, 114667, 210941, 210941a, 270600j061, 285800, 444202, 849162, 12060908, 0124225033, 0124225053, 195929090, 235326902, 0986080460

    • Passar modeller
      Toyota Model: Yaris Model series: Yaris Type of engine: VVTi Size of motor: 1.3 Brand of engine: 2SZ-FE Body: Hatchback From date: 01-08-2005 To date: 01-11-2010 Fuel: Gasoline Approved: Yes
      Toyota Series: Yaris (_CP10) Model: 1.3 Engine volume: 1.3 Engine type: 2SZ-FE Year: 04.02-
      Toyota Series: Yaris (_P9_) Model: 1.3 VVT-i Engine volume: 1.3 Engine type: 2SZ-FE Year: 01.06-
