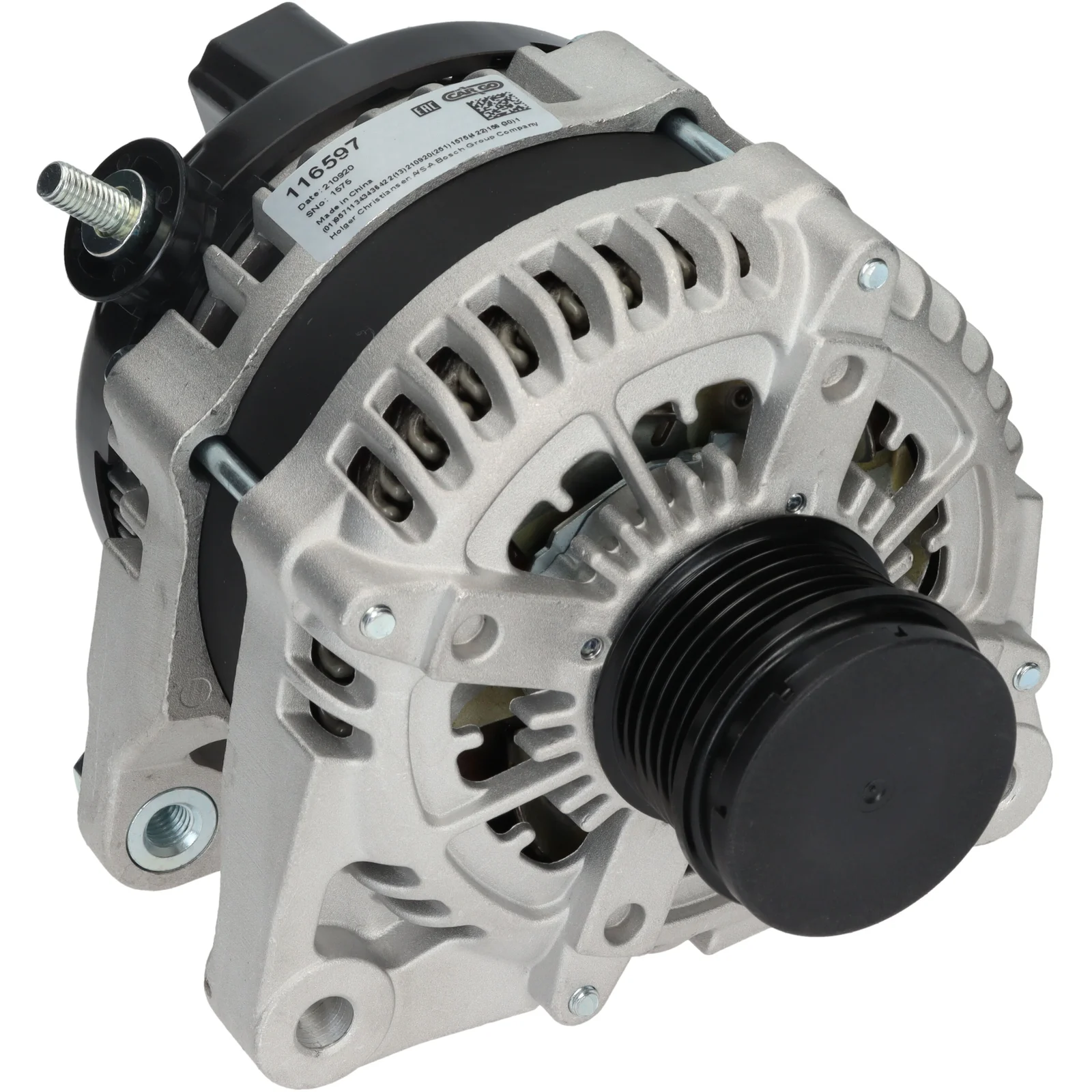

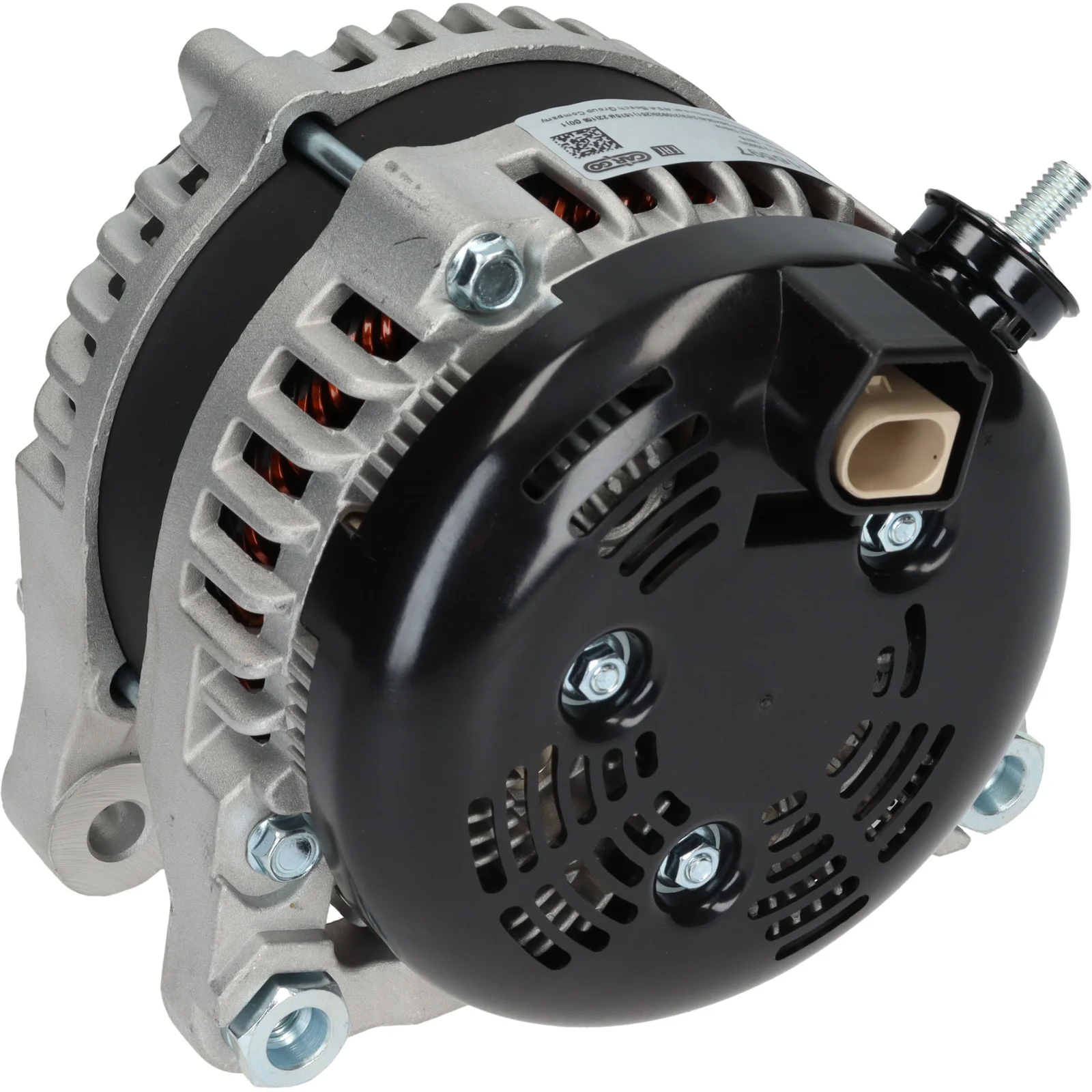

HC-Cargo Generator
HC-Cargo Generator
Artikelnr: F032116597

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 180, Mount. bracket dist.: 44.50, Pulley dia.: 54.00

Beskrivning

Generator 12V-180A 12V - 180A, 6gr.frg, (LIN) Frigångsremskiva = 45-252-0263 För Yourex produkt order 90-258-4636

Voltage: 14
Amp: 180
Pulley dist.: 43.00
Mount. bracket dist.: 44.50
Bracket hole: 10.20
Belt. adj. brackethole pos.: 47
Belt. adj. bracket hole 1: 10.50
Pulley dia.: 54.00
Grooves/pulley: 6
Radius: 90.00
Radius 2: 93.00
B+: M8
Position/B+ in min.: 60
Plug no.: PL174
Total length mm: 189.00
ID Code: 28
Communication: LIN_1
Pulley: SP/FW
Fan: IF
Regulator type: IR

Filer

Specifikation

B+ M8
Communication LIN_1
Mount. bracket dist. 44.50
Belt. adj. bracket hole 1 10.50
Belt. adj. brackethole pos. 47
Plug no. PL174
Bracket hole 10.20
Position/B+ in min. 60
Pulley SP/FW
Pulley dia. 54.00
Pulley dist. 43.00
Radius 90.00
Radius 2 93.00
Regulator type IR
Fan IF
Grooves/pulley 6
ID Code 28
Voltage 14
Total length 189.00 mm
Amp 180

  • OEM
    A6434(DENSO), A6434S, BJ32-10300AC, BJ32-10300AD, BJ3210300AC, BJ3210300AD, C2Z-17063, C2Z-31658, C2Z17063, C2Z31658, CAL40399, CZ231658, DAN 1111, DAN1111, DRA1326, F032116597, LR 028116, LR 031026, LR028116, LR0281166, LR031026, LR088854, LRA03624, 8EL011713-181, 28-6734, 214.179.1802, 455.532.180, 0986 085 120, 1986A00640, 104210-6360, 104210-6361, 116597, 209324, 209324A, 440763, 553760RI, 12090755, 32118821, 0986085120

  • Konkurrentreferens
    A6434(DENSO), A6434S, CAL40399, DAN1111, DRA1326, LRA03624, 8EL011713-181, 28-6734, 214.179.1802, 455.532.180, 209324, 209324A, 440763, 553760RI, 12090755, 32118821, 0986085120

  • Bilmärken
    JAGUAR, LAND ROVER

  • Normaliserat artikelnummer
    a6434denso, a6434s, bj3210300ac, bj3210300ad, c2z17063, c2z31658, cal40399, cz231658, dan1111, dra1326, f032116597, lr028116, lr0281166, lr031026, lr088854, lra03624, 8el011713181, 1986a00640, 116597, 209324, 209324a, 286734, 440763, 553760ri, 12090755, 32118821, 455532180, 0986085120, 1042106360, 1042106361, 2141791802

  • Passar modeller
    JAGUAR XF I (X250) 2.2 D Engine volume: 2.2 Engine type: 224DT(DW12C) Year: 03.12-04.15
    JAGUAR XF I (X250) 2.2 D Engine volume: 2.2 Engine type: 224DT(DW12C) Year: 04.11-04.15
    JAGUAR XF I (X250) 2.2 D Engine volume: 2.2 Engine type: 224DT(DW12C) Year: 05.11-04.15
    JAGUAR XF SPORTBRAKE (X250) 2.2 D Engine volume: 2.2 Engine type: 224DT(DW12C) Year: 09.12-04.14
    LAND ROVER RANGE ROVER EVOQUE (L538) 2.2 D 4x4 Engine volume: 2.2 Engine type: 224DT(DW12BTED4) Year: 05.11-12.19
    LAND ROVER RANGE ROVER EVOQUE (L538) 2.2 D 4x4 Engine volume: 2.2 Engine type: 224DT(DW12BTED4) Year: 06.11-12.19
    LAND ROVER RANGE ROVER EVOQUE (L538) 2.2 D Engine volume: 2.2 Engine type: 224DT(DW12BTED4) Year: 06.11-12.19
    LAND ROVER RANGE ROVER EVOQUE VAN (L538) SD4 4x4 Engine volume: 2.2 Engine type: 224DT(DW12BTED4) Year: 05.15-12.19
    LAND ROVER RANGE ROVER EVOQUE VAN (L538) TD4 4x4 Engine volume: 2.2 Engine type: 224DT(DW12BTED4) Year: 05.15-12.19
    LAND ROVER RANGE ROVER EVOQUE VAN (L538) TD4 Engine volume: 2.2 Engine type: 224DT(DW12BTED4) Year: 05.15-12.19
