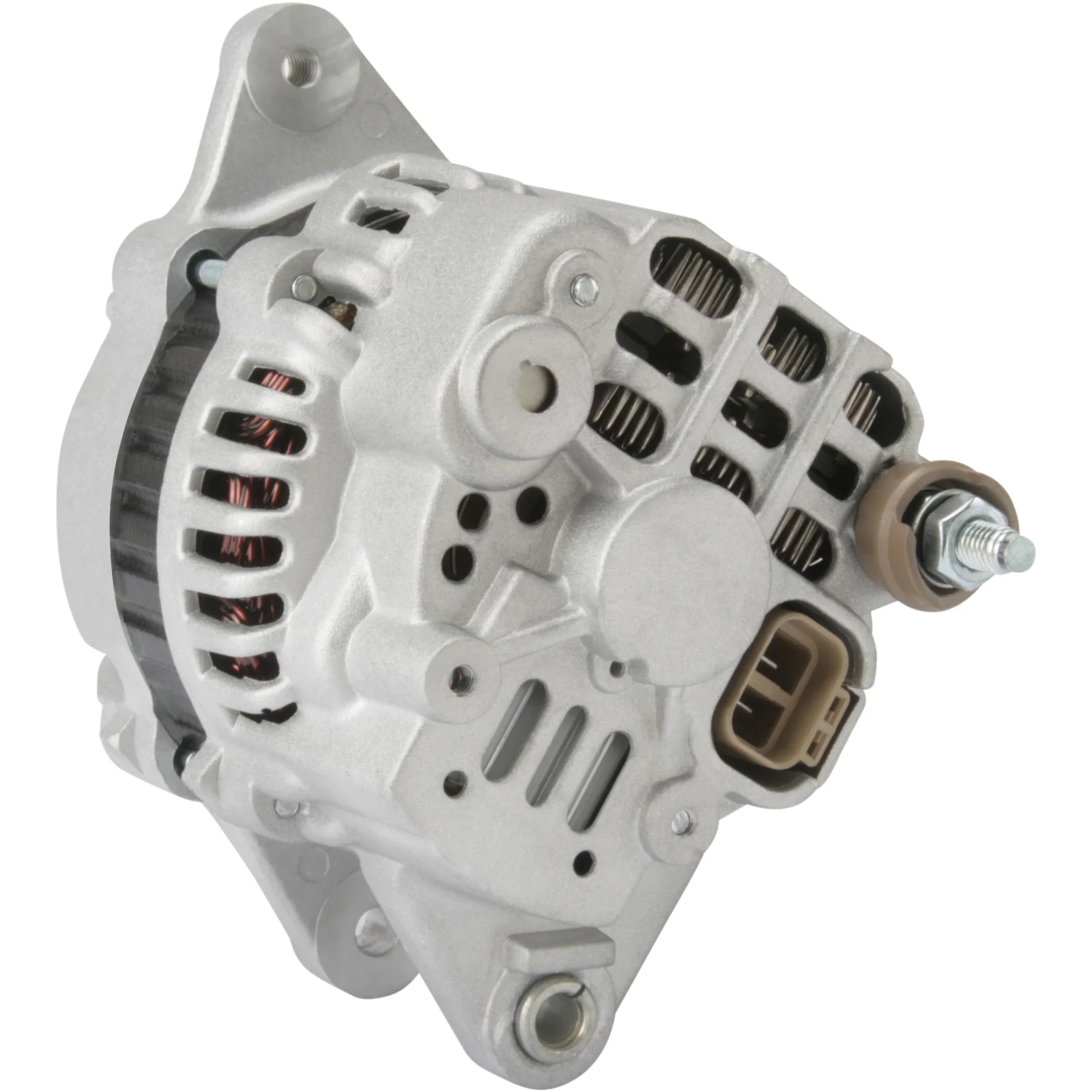

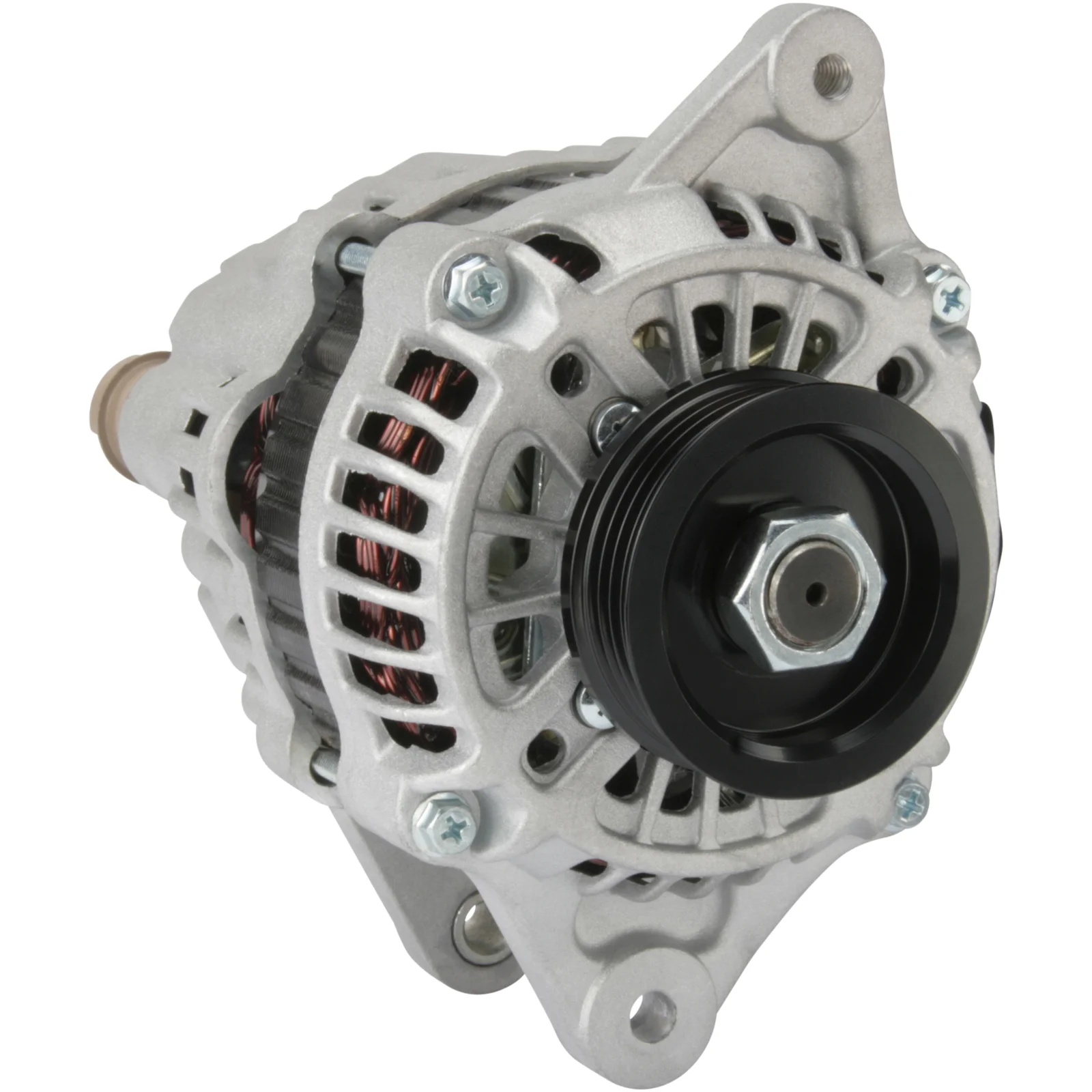

HC-Cargo Generator
HC-Cargo Generator
Artikelnr: F032113518

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 60, Rotation: CW, Mount. bracket dist.: 48.30

Beskrivning

Voltage: 14
Amp: 60
Pulley dist.: 38.00
Width/holder arm: 13.00
Mount. bracket dist.: 48.30
Bracket hole: 8.80
Belt. adj. brackethole pos.: 3
Belt. adj. bracket hole 1: M8
Pulley dia.: 59.50
Grooves/pulley: 4
Radius: 78.00
Radius 2: 80.00
B+: M8
Position/B+ in min.: 15
D+ Size: Plug
Rotation: CW
Plug no.: PL89
Total length mm: 171.00
Pulley: SP
Regulator type: IR
Prod. info: BN
Servicing: Hyundai

Filer

Specifikation

B+ M8
Mount. bracket dist. 48.30
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 3
Plug no. PL89
Bracket hole 8.80
Position/B+ in min. 15
Prod. info BN
Pulley SP
Pulley dia. 59.50
Pulley dist. 38.00
Radius 78.00
D+ Size Plug
Radius 2 80.00
Regulator type IR
Rotation CW
Servicing Hyundai
Grooves/pulley 4
Voltage 14
Total length 171.00 mm
Width/holder arm 13.00
Amp 60

  • OEM
    ab160108, F032113518, ja1715ir, TA000A17301, 37300-02503

  • Konkurrentreferens
    A9006, ALT-7231, ALT35005, CAL32100, DRA3846, DRA3846N, F042A0B038, J5110514, LEA0201, LRA02039, 8EL011711-251, 8EL738102-001, 28-3958, 226.154.602, 23039N, 23039R, 111624, 210081, 210081A, 401715RI, 437337, 439384, 600266, 608377, 747903, 9213303, 12060790, 063532613, 0986049201, 063532613010, 944390605140

  • Normaliserat artikelnummer
    a9006, ab160108, alt35005, alt7231, cal32100, dra3846, dra3846n, f032113518, f042a0b038, j5110514, ja1715ir, lea0201, lra02039, ta000a17301, 8el011711251, 8el738102001, 23039n, 23039r, 111624, 210081, 210081a, 283958, 401715ri, 437337, 439384, 600266, 608377, 747903, 9213303, 12060790, 063532613, 226154602, 0986049201, 3730002503, 063532613010, 944390605140

  • Passar modeller
    Hyundai Model: Atos Model series: Atos Size of motor: 0.8 Brand of engine: G4HA Type description: MX Body: Hatchback Fuel: Petrol Approved: Yes
    Hyundai Model: Atos Model series: Atos Type of engine: i Size of motor: 1.0 Brand of engine: G4HC Body: MPV From date: 01-02-1998 To date: 01-12-2000 Fuel: Gasoline Approved: Yes
    Hyundai Model: Atos Model series: Atos Type of engine: i Size of motor: 1.0 Brand of engine: G4HC-E Type description: MX Body: MPV From date: 01-03-2001 To date: 01-07-2003 Fuel: Gasoline Approved: Yes
  • Beskrivning
    Voltage: 14
    Amp: 60
    Pulley dist.: 38.00
    Width/holder arm: 13.00
    Mount. bracket dist.: 48.30
    Bracket hole: 8.80
    Belt. adj. brackethole pos.: 3
    Belt. adj. bracket hole 1: M8
    Pulley dia.: 59.50
    Grooves/pulley: 4
    Radius: 78.00
    Radius 2: 80.00
    B+: M8
    Position/B+ in min.: 15
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL89
    Total length mm: 171.00
    Pulley: SP
    Regulator type: IR
    Prod. info: BN
    Servicing: Hyundai

    Filer

  • Specifikation
    B+ M8
    Mount. bracket dist. 48.30
    Belt. adj. bracket hole 1 M8
    Belt. adj. brackethole pos. 3
    Plug no. PL89
    Bracket hole 8.80
    Position/B+ in min. 15
    Prod. info BN
    Pulley SP
    Pulley dia. 59.50
    Pulley dist. 38.00
    Radius 78.00
    D+ Size Plug
    Radius 2 80.00
    Regulator type IR
    Rotation CW
    Servicing Hyundai
    Grooves/pulley 4
    Voltage 14
    Total length 171.00 mm
    Width/holder arm 13.00
    Amp 60
  • Fordonsmatchning

    • OEM
      ab160108, F032113518, ja1715ir, TA000A17301, 37300-02503

    • Konkurrentreferens
      A9006, ALT-7231, ALT35005, CAL32100, DRA3846, DRA3846N, F042A0B038, J5110514, LEA0201, LRA02039, 8EL011711-251, 8EL738102-001, 28-3958, 226.154.602, 23039N, 23039R, 111624, 210081, 210081A, 401715RI, 437337, 439384, 600266, 608377, 747903, 9213303, 12060790, 063532613, 0986049201, 063532613010, 944390605140

    • Normaliserat artikelnummer
      a9006, ab160108, alt35005, alt7231, cal32100, dra3846, dra3846n, f032113518, f042a0b038, j5110514, ja1715ir, lea0201, lra02039, ta000a17301, 8el011711251, 8el738102001, 23039n, 23039r, 111624, 210081, 210081a, 283958, 401715ri, 437337, 439384, 600266, 608377, 747903, 9213303, 12060790, 063532613, 226154602, 0986049201, 3730002503, 063532613010, 944390605140

    • Passar modeller
      Hyundai Model: Atos Model series: Atos Size of motor: 0.8 Brand of engine: G4HA Type description: MX Body: Hatchback Fuel: Petrol Approved: Yes
      Hyundai Model: Atos Model series: Atos Type of engine: i Size of motor: 1.0 Brand of engine: G4HC Body: MPV From date: 01-02-1998 To date: 01-12-2000 Fuel: Gasoline Approved: Yes
      Hyundai Model: Atos Model series: Atos Type of engine: i Size of motor: 1.0 Brand of engine: G4HC-E Type description: MX Body: MPV From date: 01-03-2001 To date: 01-07-2003 Fuel: Gasoline Approved: Yes
