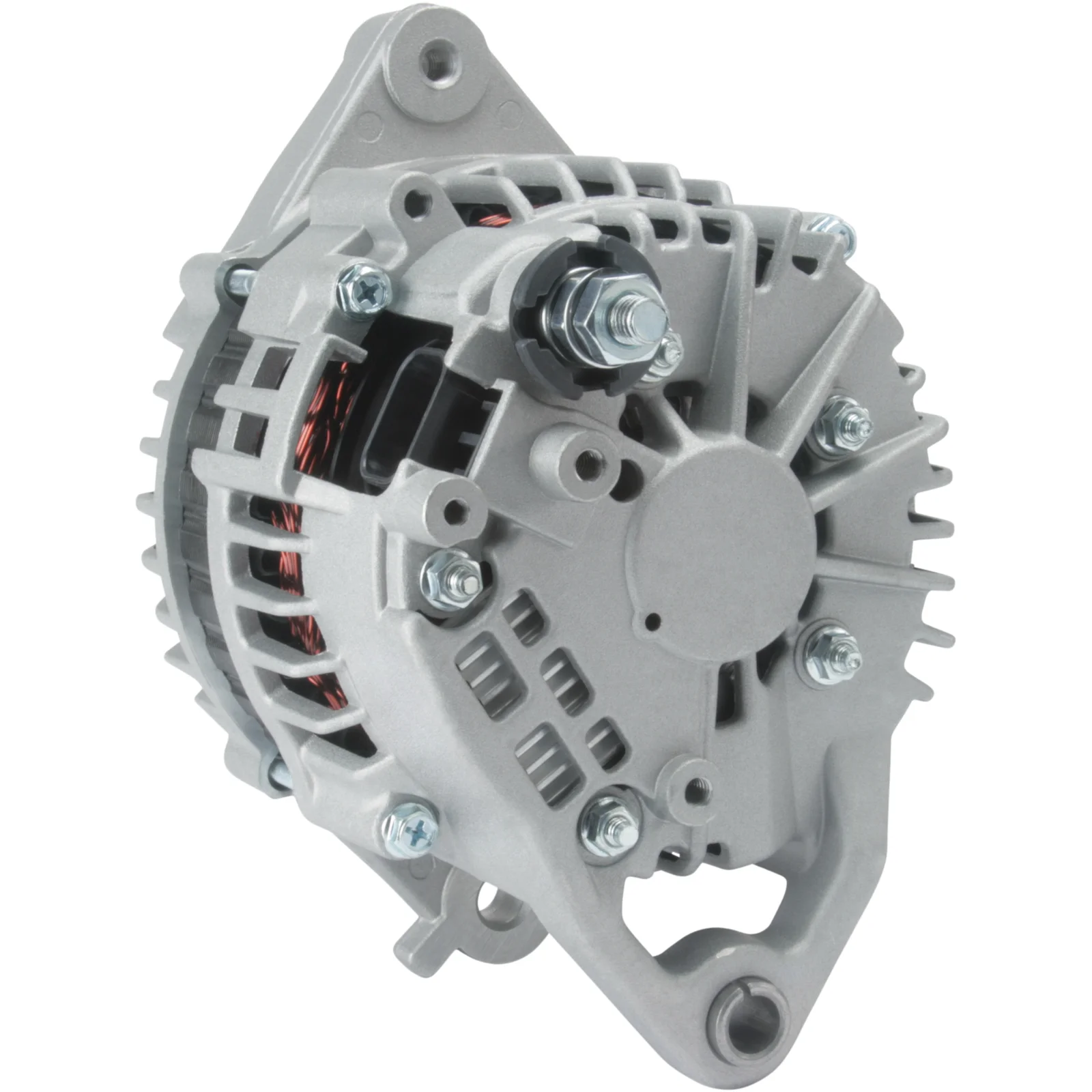

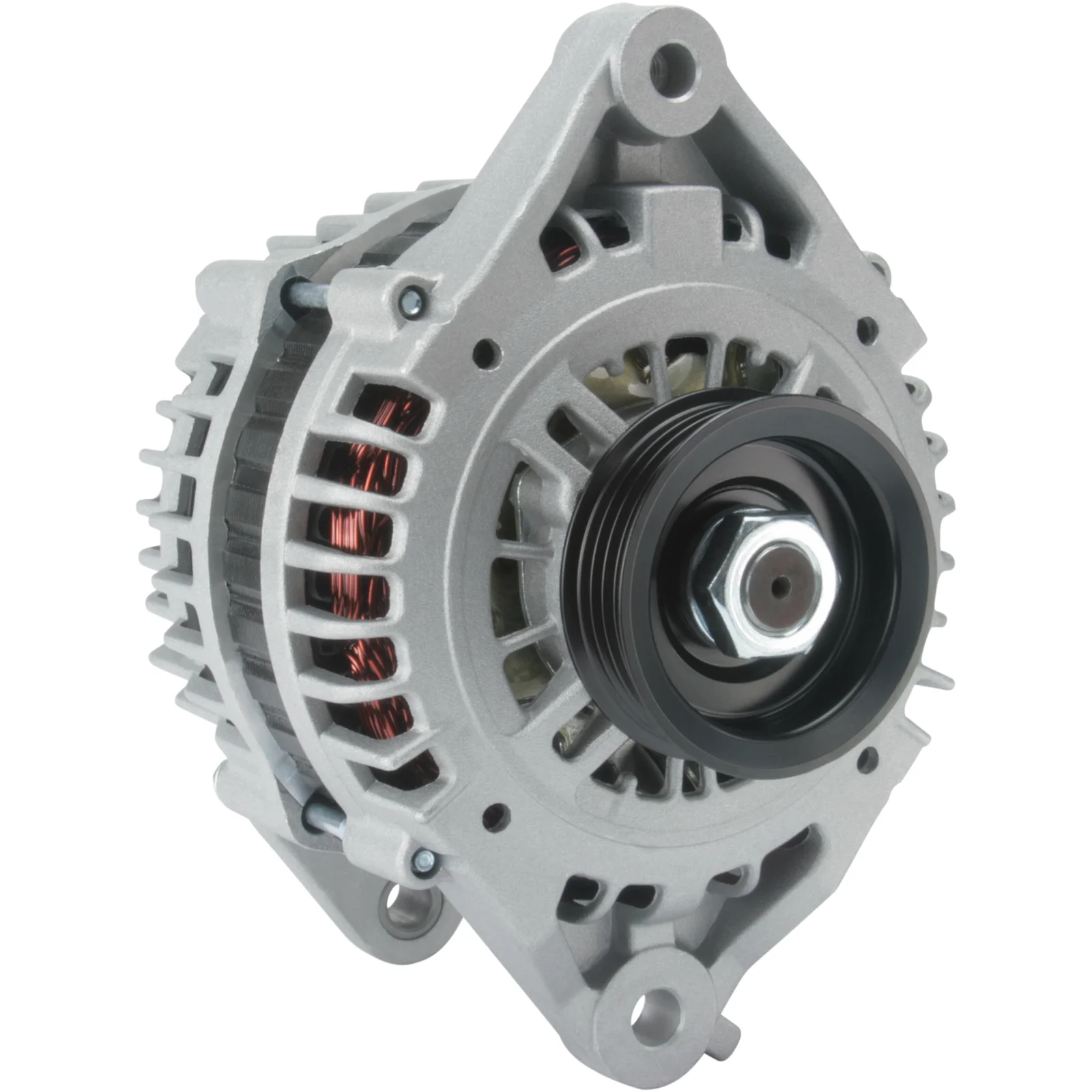

HC-Cargo Generator
HC-Cargo Generator
Artikelnr: F032111704

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 70, Rotation: CW, Mount. bracket dist.: 81.00

Beskrivning

Voltage: 14
Amp: 70
Pulley dist.: 38.00
Width/holder arm: 13.00
Mount. bracket dist.: 81.00
Bracket hole: 10.40
Belt. adj. brackethole pos.: 60
Belt. adj. bracket hole 1: M8
Pulley dia.: 59.80
Grooves/pulley: 4
Radius: 81.50
Radius 2: 85.50
B+: M8
Position/B+ in min.: 53
D+ Size: Plug
Rotation: CW
Plug no.: PL07
Total length mm: 175.00
Terminal type: L-S
Pulley: SP
Regulator type: IR
Prod. info: BN
Servicing: Nissan

Filer

Specifikation

B+ M8
Mount. bracket dist. 81.00
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 60
Plug no. PL07
Bracket hole 10.40
Position/B+ in min. 53
Prod. info BN
Pulley SP
Pulley dia. 59.80
Pulley dist. 38.00
Radius 81.50
D+ Size Plug
Radius 2 85.50
Regulator type IR
Rotation CW
Servicing Nissan
Grooves/pulley 4
Terminal type L-S
Voltage 14
Total length 175.00 mm
Width/holder arm 13.00
Amp 70

  • OEM
    A005T06891, A005T06891A, A005T06891B, A005T06891C, A005T06891D, a5t06891, a5t06891a, a5t06891b, a5t06891c, a5t06891d, F032111704, ja1182ir, lr165-711, lr165-711b, lr170-746, lr170-746b, lr170-746c, lr170-746e, lr170-746f, lr170-746g, LR170-746H, lr170-746j, lr170-746k, lr170-746m, LR170-748, lr170-748b, lr170-750, lr170-750b, lr170-750c, 23100-0m003, 23100-0m005, 23100-0m006, 23100-0m007, 23100-0m008, 23100-0m009, 23100-0m010, 23100-0M012, 23100-4M400, 23100-86a00, 23100-86r00, 23100-95R10

  • Konkurrentreferens
    A2007, AL2361X, ALT-3078, ALT32089, BAO3250, CAL20133, dra3697, F042205070, F042305012, F042A05012, J5111062, lrb00266, QA1904, 1-2001-01HI, 8EL012426-481, 8el737327-001, 28-2654, 227.153.702, 227.166.702, 5670, 9205, 13637, 13637N, 13637R, 119598, 119603, 401182RI, 600380, 746943, 9212689, 12060292, 12060301, 0986042951, 943354039010, 944390511620

  • Normaliserat artikelnummer
    a005t06891, a005t06891a, a005t06891b, a005t06891c, a005t06891d, a2007, a5t06891, a5t06891a, a5t06891b, a5t06891c, a5t06891d, al2361x, alt3078, alt32089, bao3250, cal20133, dra3697, f032111704, f042205070, f042305012, f042a05012, j5111062, ja1182ir, lr165711, lr165711b, lr170746, lr170746b, lr170746c, lr170746e, lr170746f, lr170746g, lr170746h, lr170746j, lr170746k, lr170746m, lr170748, lr170748b, lr170750, lr170750b, lr170750c, lrb00266, qa1904, 8el012426481, 8el737327001, 5670, 9205, 13637, 13637n, 13637r, 119598, 119603, 231000m003, 231000m005, 231000m006, 231000m007, 231000m008, 231000m009, 231000m010, 231000m012, 231004m400, 282654, 401182ri, 600380, 746943, 1200101hi, 2310086a00, 2310086r00, 2310095r10, 9212689, 12060292, 12060301, 227153702, 227166702, 0986042951, 943354039010, 944390511620

  • Passar modeller
    Nissan Model: Almera Model series: Almera Model type: SLX Size of motor: 1.6 Brand of engine: GA16DE Type description: N15 From date: 01-09-1995 To date: 01-07-2000 Fuel: Gasoline Approved: Yes
    Nissan Model: Almera Model series: Almera Size of motor: 1.4 Brand of engine: GA14DE Type description: N15 Body: Hatchback From date: 01-09-1995 To date: 01-03-2000 Fuel: Gasoline Approved: Yes
    Nissan Model: Almera Model series: Almera Size of motor: 1.4 Brand of engine: GA14DE Type description: N15 From date: 01-09-1995 To date: 01-07-2000 Fuel: Gasoline Approved: Yes
    Nissan Model: Almera Model series: Almera Size of motor: 1.6 Brand of engine: GA16DE Type description: N15 Body: Hatchback From date: 01-09-1995 To date: 01-03-2000 Fuel: Gasoline Approved: Yes
    Nissan Model: Almera Model series: Almera Size of motor: 1.6 Brand of engine: GA16DE Type description: N15 From date: 01-09-1995 To date: 01-07-2000 Fuel: Gasoline Approved: Yes
    Nissan Model: Primera Model series: Primera Type of engine: i Size of motor: 1.6 Brand of engine: GA16DE Type description: W10 Body: Estate From date: 01-02-1991 To date: 01-03-1998 Fuel: Gasoline Approved: Yes Manufacture type: Traveller
    Nissan Model: Sunny Model series: Sunny Type of engine: 16V Size of motor: 1.6 Brand of engine: GA16DS Type description: Y10 Body: Estate From date: 01-11-1990 To date: 01-05-1995 Fuel: Gasoline Approved: Yes
    Nissan Model: Sunny Model series: Sunny Type of engine: i 16V Size of motor: 1.6 Brand of engine: GA16DE Type description: 10 Body: Van From date: 01-10-1992 To date: 01-03-2000 Fuel: Gasoline Approved: Yes
    Nissan Model: Sunny Model series: Sunny Type of engine: i 16V Size of motor: 1.6 Brand of engine: GA16DE Type description: Y10L Body: Estate From date: 01-10-1992 To date: 01-03-2000 Fuel: Gasoline Approved: Yes
    Nissan Model: Sunny Model series: Sunny Type of engine: i Size of motor: 1.6 Brand of engine: GA16DE Type description: Y10 Body: Estate From date: 01-06-1991 To date: 01-03-2000 Fuel: Gasoline Approved: Yes
    Nissan Model: Sunny Model series: Sunny Type of engine: i Size of motor: 1.6 Brand of engine: GA16DS Type description: Y10 Body: Estate From date: 01-06-1991 To date: 01-03-2000 Fuel: Gasoline Approved: Yes
    1 / 3
  • Beskrivning
    Voltage: 14
    Amp: 70
    Pulley dist.: 38.00
    Width/holder arm: 13.00
    Mount. bracket dist.: 81.00
    Bracket hole: 10.40
    Belt. adj. brackethole pos.: 60
    Belt. adj. bracket hole 1: M8
    Pulley dia.: 59.80
    Grooves/pulley: 4
    Radius: 81.50
    Radius 2: 85.50
    B+: M8
    Position/B+ in min.: 53
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL07
    Total length mm: 175.00
    Terminal type: L-S
    Pulley: SP
    Regulator type: IR
    Prod. info: BN
    Servicing: Nissan

    Filer

  • Specifikation
    B+ M8
    Mount. bracket dist. 81.00
    Belt. adj. bracket hole 1 M8
    Belt. adj. brackethole pos. 60
    Plug no. PL07
    Bracket hole 10.40
    Position/B+ in min. 53
    Prod. info BN
    Pulley SP
    Pulley dia. 59.80
    Pulley dist. 38.00
    Radius 81.50
    D+ Size Plug
    Radius 2 85.50
    Regulator type IR
    Rotation CW
    Servicing Nissan
    Grooves/pulley 4
    Terminal type L-S
    Voltage 14
    Total length 175.00 mm
    Width/holder arm 13.00
    Amp 70
  • Fordonsmatchning

    • OEM
      A005T06891, A005T06891A, A005T06891B, A005T06891C, A005T06891D, a5t06891, a5t06891a, a5t06891b, a5t06891c, a5t06891d, F032111704, ja1182ir, lr165-711, lr165-711b, lr170-746, lr170-746b, lr170-746c, lr170-746e, lr170-746f, lr170-746g, LR170-746H, lr170-746j, lr170-746k, lr170-746m, LR170-748, lr170-748b, lr170-750, lr170-750b, lr170-750c, 23100-0m003, 23100-0m005, 23100-0m006, 23100-0m007, 23100-0m008, 23100-0m009, 23100-0m010, 23100-0M012, 23100-4M400, 23100-86a00, 23100-86r00, 23100-95R10

    • Konkurrentreferens
      A2007, AL2361X, ALT-3078, ALT32089, BAO3250, CAL20133, dra3697, F042205070, F042305012, F042A05012, J5111062, lrb00266, QA1904, 1-2001-01HI, 8EL012426-481, 8el737327-001, 28-2654, 227.153.702, 227.166.702, 5670, 9205, 13637, 13637N, 13637R, 119598, 119603, 401182RI, 600380, 746943, 9212689, 12060292, 12060301, 0986042951, 943354039010, 944390511620

    • Normaliserat artikelnummer
      a005t06891, a005t06891a, a005t06891b, a005t06891c, a005t06891d, a2007, a5t06891, a5t06891a, a5t06891b, a5t06891c, a5t06891d, al2361x, alt3078, alt32089, bao3250, cal20133, dra3697, f032111704, f042205070, f042305012, f042a05012, j5111062, ja1182ir, lr165711, lr165711b, lr170746, lr170746b, lr170746c, lr170746e, lr170746f, lr170746g, lr170746h, lr170746j, lr170746k, lr170746m, lr170748, lr170748b, lr170750, lr170750b, lr170750c, lrb00266, qa1904, 8el012426481, 8el737327001, 5670, 9205, 13637, 13637n, 13637r, 119598, 119603, 231000m003, 231000m005, 231000m006, 231000m007, 231000m008, 231000m009, 231000m010, 231000m012, 231004m400, 282654, 401182ri, 600380, 746943, 1200101hi, 2310086a00, 2310086r00, 2310095r10, 9212689, 12060292, 12060301, 227153702, 227166702, 0986042951, 943354039010, 944390511620

    • Passar modeller
      Nissan Model: Almera Model series: Almera Model type: SLX Size of motor: 1.6 Brand of engine: GA16DE Type description: N15 From date: 01-09-1995 To date: 01-07-2000 Fuel: Gasoline Approved: Yes
      Nissan Model: Almera Model series: Almera Size of motor: 1.4 Brand of engine: GA14DE Type description: N15 Body: Hatchback From date: 01-09-1995 To date: 01-03-2000 Fuel: Gasoline Approved: Yes
      Nissan Model: Almera Model series: Almera Size of motor: 1.4 Brand of engine: GA14DE Type description: N15 From date: 01-09-1995 To date: 01-07-2000 Fuel: Gasoline Approved: Yes
      Nissan Model: Almera Model series: Almera Size of motor: 1.6 Brand of engine: GA16DE Type description: N15 Body: Hatchback From date: 01-09-1995 To date: 01-03-2000 Fuel: Gasoline Approved: Yes
      Nissan Model: Almera Model series: Almera Size of motor: 1.6 Brand of engine: GA16DE Type description: N15 From date: 01-09-1995 To date: 01-07-2000 Fuel: Gasoline Approved: Yes
      Nissan Model: Primera Model series: Primera Type of engine: i Size of motor: 1.6 Brand of engine: GA16DE Type description: W10 Body: Estate From date: 01-02-1991 To date: 01-03-1998 Fuel: Gasoline Approved: Yes Manufacture type: Traveller
      Nissan Model: Sunny Model series: Sunny Type of engine: 16V Size of motor: 1.6 Brand of engine: GA16DS Type description: Y10 Body: Estate From date: 01-11-1990 To date: 01-05-1995 Fuel: Gasoline Approved: Yes
      Nissan Model: Sunny Model series: Sunny Type of engine: i 16V Size of motor: 1.6 Brand of engine: GA16DE Type description: 10 Body: Van From date: 01-10-1992 To date: 01-03-2000 Fuel: Gasoline Approved: Yes
      Nissan Model: Sunny Model series: Sunny Type of engine: i 16V Size of motor: 1.6 Brand of engine: GA16DE Type description: Y10L Body: Estate From date: 01-10-1992 To date: 01-03-2000 Fuel: Gasoline Approved: Yes
      Nissan Model: Sunny Model series: Sunny Type of engine: i Size of motor: 1.6 Brand of engine: GA16DE Type description: Y10 Body: Estate From date: 01-06-1991 To date: 01-03-2000 Fuel: Gasoline Approved: Yes
      Nissan Model: Sunny Model series: Sunny Type of engine: i Size of motor: 1.6 Brand of engine: GA16DS Type description: Y10 Body: Estate From date: 01-06-1991 To date: 01-03-2000 Fuel: Gasoline Approved: Yes
