HC-Cargo Generator
HC-Cargo Generator
Artikelnr: F032114208

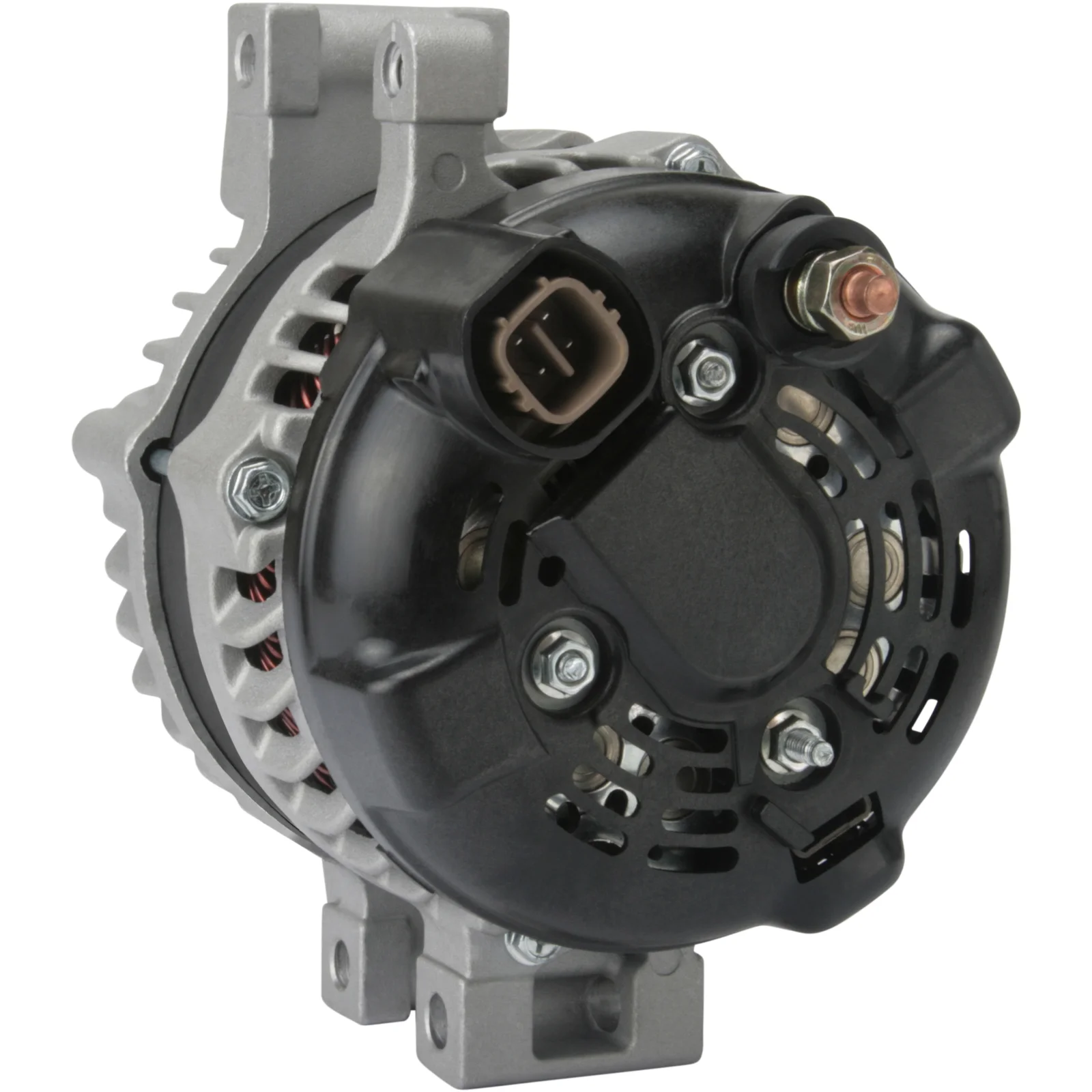

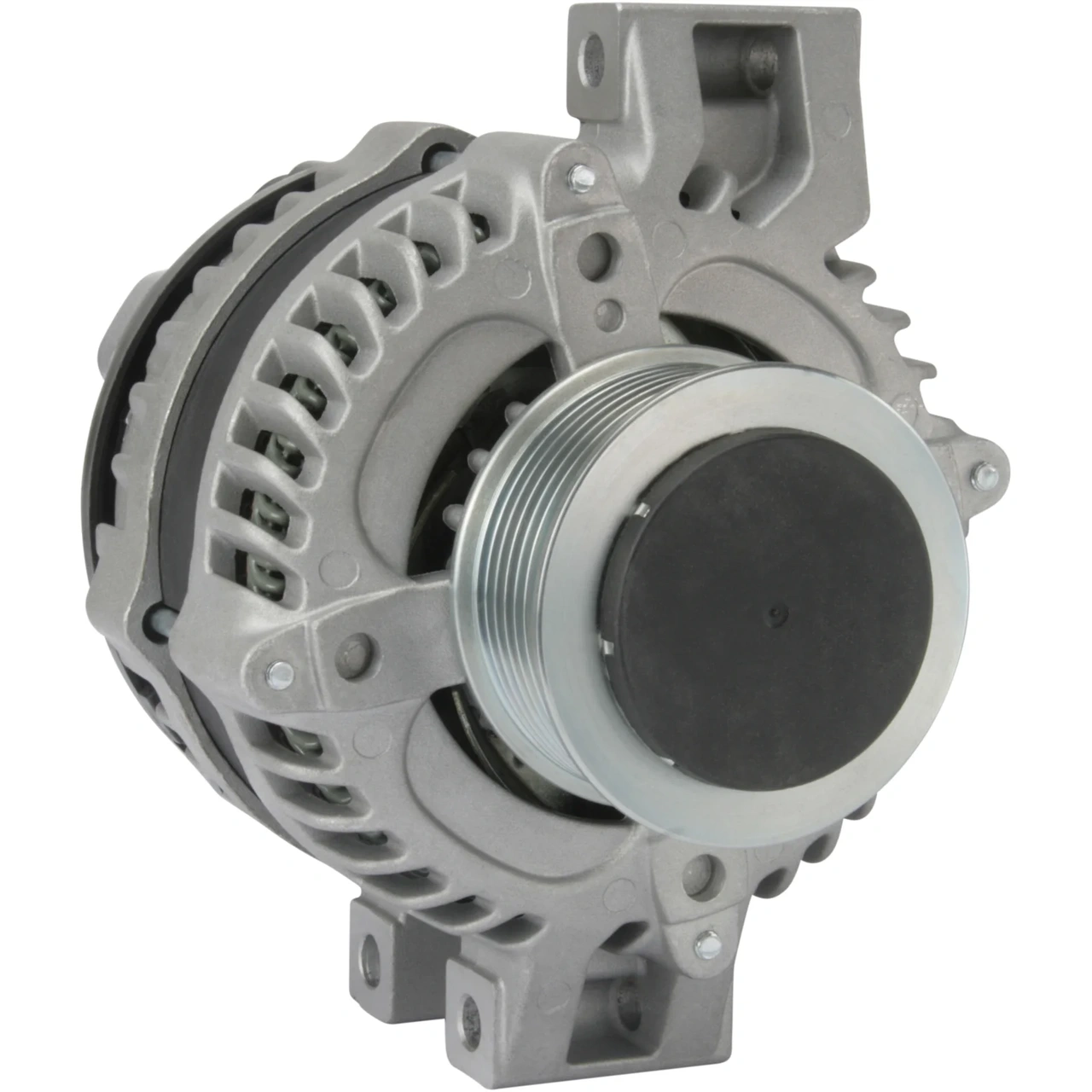

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 120, Rotation: CW, Mount. bracket dist.: 44.00

Beskrivning

Voltage: 14
Amp: 120
Pulley dist.: 35.50
Width/holder arm: 46.00
Mount. bracket dist.: 44.00
Bracket hole: 8.50
Bracket hole 2: 8.50
Pulley dia.: 70.00
Grooves/pulley: 7
Radius: 83.00
Radius 2: 80.00
B+: M8
Position/B+ in min.: 2
D+ Size: Plug
Rotation: CW
Plug no.: PL60
Total length mm: 193.00
Pulley: SP/FW
Regulator type: IR
Prod. info: BN

Filer

Specifikation

B+ M8
Mount. bracket dist. 44.00
Plug no. PL60
Bracket hole 8.50
Bracket hole 2 8.50
Position/B+ in min. 2
Prod. info BN
Pulley SP/FW
Pulley dia. 70.00
Pulley dist. 35.50
Radius 83.00
D+ Size Plug
Radius 2 80.00
Regulator type IR
Rotation CW
Grooves/pulley 7
Voltage 14
Total length 193.00 mm
Width/holder arm 46.00
Amp 120

  • OEM
    CSC91, CSD86, csd89, F032114208, 1980ir, 1986A00581, 021080-0010, 021080-1010, 31100-rbd-e01, 31100-rbd-e02, 31100-RSR-E01, 104210-3910, 104210-3911, 104210-3912, 104210-4860, 104210-4863

  • Konkurrentreferens
    A6079, A6079(DENSO), A6079PR, CAL40239, DAN984, dan985, DENDAN984, DENDAN985, DRA0153, J5114048, LRA02971, 8EL011713-511, 8EL738212-971, 28-5585, 125.531.105, 125.531.130, 125.569.120, 222.158.1202, 9379, 23971R, 112916, 210844, 210844A, 301980RI, 440551, 9212239, 12060876, 12061002, 0986082050, 063377522010, 063377523010

  • Normaliserat artikelnummer
    a6079, a6079denso, a6079pr, cal40239, csc91, csd86, csd89, dan984, dan985, dendan984, dendan985, dra0153, f032114208, j5114048, lra02971, 8el011713511, 8el738212971, 1980ir, 1986a00581, 9379, 23971r, 31100rbde01, 31100rbde02, 31100rsre01, 112916, 210844, 210844a, 285585, 301980ri, 440551, 9212239, 12060876, 12061002, 125531105, 125531130, 125569120, 0210800010, 0210801010, 0986082050, 1042103910, 1042103911, 1042103912, 1042104860, 1042104863, 2221581202, 063377522010, 063377523010

  • Passar modeller
    Honda Model: Accord Model series: Accord Type of engine: DTDi Size of motor: 2.2 Brand of engine: N22A1 Type description: CL_, CM_ From date: 01-01-2004 To date: 01-05-2008 Fuel: Diesel Approved: Yes
    Honda Model: Accord Model series: Accord Type of engine: DTDi Size of motor: 2.2 Brand of engine: N22A1 Type description: CM_ Body: Estate From date: 01-01-2004 To date: 01-05-2008 Fuel: Diesel Approved: Yes Manufacture type: TOURER
    Honda Model: Civic Model series: Civic Type of engine: CTDi Size of motor: 2.2 Brand of engine: N22A2 Type description: FD_ Body: Hatchback From date: 01-09-2005 Fuel: Diesel Approved: Yes
    Honda Model: CR-V Model series: CR-V Type of engine: CTDi Size of motor: 2.2 Brand of engine: N22A2 Type description: RD_ Body: SUV From date: 01-02-2005 To date: 01-09-2006 Fuel: Diesel Approved: Yes
    Honda Model: CR-V Model series: CR-V Type of engine: i CTDi Size of motor: 2.2 Brand of engine: N22A2 Type description: RE_ Body: SUV From date: 01-01-2007 Fuel: Diesel Approved: Yes
    Honda Model: FR-V Model series: FR-V Type of engine: i CTDi Size of motor: 2.2 Brand of engine: N22A1 Body: Hatchback From date: 01-07-2005 Fuel: Diesel Approved: Yes
    1 / 2
  • Beskrivning
    Voltage: 14
    Amp: 120
    Pulley dist.: 35.50
    Width/holder arm: 46.00
    Mount. bracket dist.: 44.00
    Bracket hole: 8.50
    Bracket hole 2: 8.50
    Pulley dia.: 70.00
    Grooves/pulley: 7
    Radius: 83.00
    Radius 2: 80.00
    B+: M8
    Position/B+ in min.: 2
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL60
    Total length mm: 193.00
    Pulley: SP/FW
    Regulator type: IR
    Prod. info: BN

    Filer

  • Specifikation
    B+ M8
    Mount. bracket dist. 44.00
    Plug no. PL60
    Bracket hole 8.50
    Bracket hole 2 8.50
    Position/B+ in min. 2
    Prod. info BN
    Pulley SP/FW
    Pulley dia. 70.00
    Pulley dist. 35.50
    Radius 83.00
    D+ Size Plug
    Radius 2 80.00
    Regulator type IR
    Rotation CW
    Grooves/pulley 7
    Voltage 14
    Total length 193.00 mm
    Width/holder arm 46.00
    Amp 120
  • Fordonsmatchning

    • OEM
      CSC91, CSD86, csd89, F032114208, 1980ir, 1986A00581, 021080-0010, 021080-1010, 31100-rbd-e01, 31100-rbd-e02, 31100-RSR-E01, 104210-3910, 104210-3911, 104210-3912, 104210-4860, 104210-4863

    • Konkurrentreferens
      A6079, A6079(DENSO), A6079PR, CAL40239, DAN984, dan985, DENDAN984, DENDAN985, DRA0153, J5114048, LRA02971, 8EL011713-511, 8EL738212-971, 28-5585, 125.531.105, 125.531.130, 125.569.120, 222.158.1202, 9379, 23971R, 112916, 210844, 210844A, 301980RI, 440551, 9212239, 12060876, 12061002, 0986082050, 063377522010, 063377523010

    • Normaliserat artikelnummer
      a6079, a6079denso, a6079pr, cal40239, csc91, csd86, csd89, dan984, dan985, dendan984, dendan985, dra0153, f032114208, j5114048, lra02971, 8el011713511, 8el738212971, 1980ir, 1986a00581, 9379, 23971r, 31100rbde01, 31100rbde02, 31100rsre01, 112916, 210844, 210844a, 285585, 301980ri, 440551, 9212239, 12060876, 12061002, 125531105, 125531130, 125569120, 0210800010, 0210801010, 0986082050, 1042103910, 1042103911, 1042103912, 1042104860, 1042104863, 2221581202, 063377522010, 063377523010

    • Passar modeller
      Honda Model: Accord Model series: Accord Type of engine: DTDi Size of motor: 2.2 Brand of engine: N22A1 Type description: CL_, CM_ From date: 01-01-2004 To date: 01-05-2008 Fuel: Diesel Approved: Yes
      Honda Model: Accord Model series: Accord Type of engine: DTDi Size of motor: 2.2 Brand of engine: N22A1 Type description: CM_ Body: Estate From date: 01-01-2004 To date: 01-05-2008 Fuel: Diesel Approved: Yes Manufacture type: TOURER
      Honda Model: Civic Model series: Civic Type of engine: CTDi Size of motor: 2.2 Brand of engine: N22A2 Type description: FD_ Body: Hatchback From date: 01-09-2005 Fuel: Diesel Approved: Yes
      Honda Model: CR-V Model series: CR-V Type of engine: CTDi Size of motor: 2.2 Brand of engine: N22A2 Type description: RD_ Body: SUV From date: 01-02-2005 To date: 01-09-2006 Fuel: Diesel Approved: Yes
      Honda Model: CR-V Model series: CR-V Type of engine: i CTDi Size of motor: 2.2 Brand of engine: N22A2 Type description: RE_ Body: SUV From date: 01-01-2007 Fuel: Diesel Approved: Yes
      Honda Model: FR-V Model series: FR-V Type of engine: i CTDi Size of motor: 2.2 Brand of engine: N22A1 Body: Hatchback From date: 01-07-2005 Fuel: Diesel Approved: Yes
