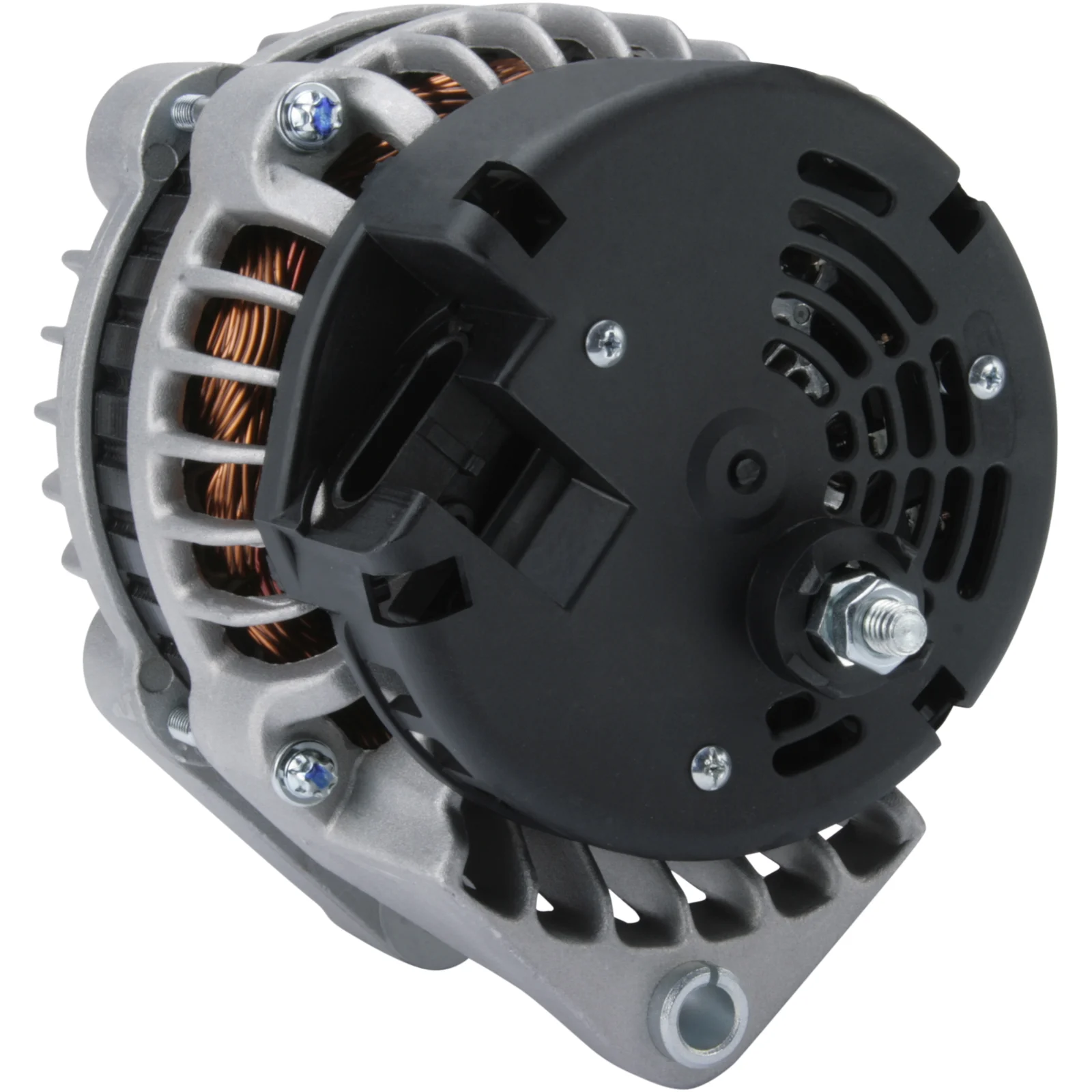

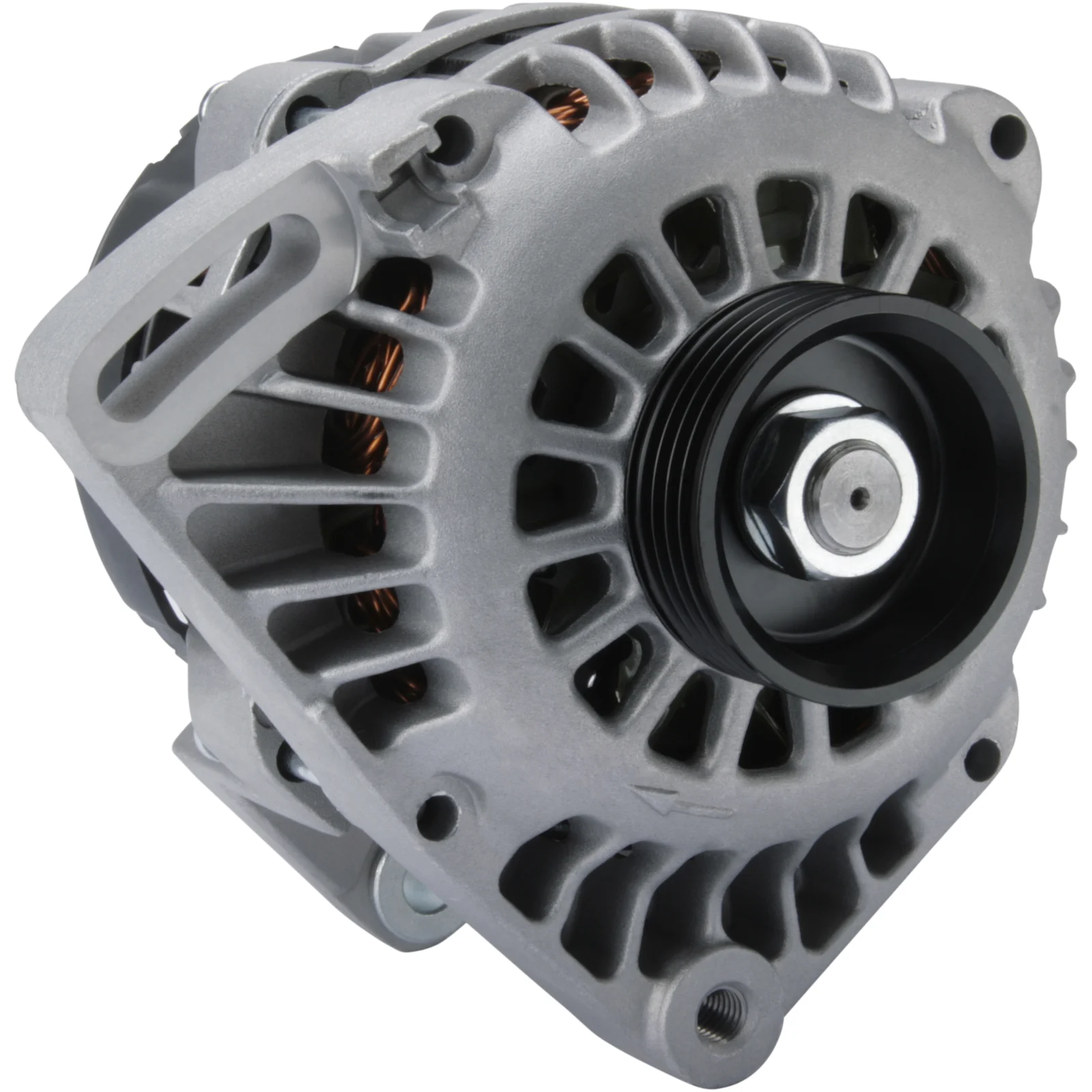

HC-Cargo Generator
HC-Cargo Generator
Artikelnr: F032112165

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 75, Rotation: CW, Mount. bracket dist.: 66.50

Beskrivning

Renault Clio Gen. 12V-75A 12V - 75A, 4 groove pulley, (P-L I-S) 4 groove pulley För Yourex produkt order 90-480-0818

Voltage: 14
Amp: 75
Pulley dist.: 46.70
Width/holder arm: 27.00
Mount. bracket dist.: 66.50
Bracket hole: M10
Belt. adj. brackethole pos.: 47
Belt. adj. bracket hole 1: 10.00/40.50
Pulley dia.: 59.50
Grooves/pulley: 4
Radius: 85.50
Radius 2: 97.50
B+: M8
Position/B+ in min.: 23
D+ Size: Plug
Rotation: CW
Plug no.: PL122
Total length mm: 179.00
Pulley: SP
Regulator type: IR
Prod. info: BN
Servicing: Renault

Filer

Specifikation

B+ M8
Mount. bracket dist. 66.50
Belt. adj. bracket hole 1 10.00/40.50
Belt. adj. brackethole pos. 47
Plug no. PL122
Bracket hole M10
Position/B+ in min. 23
Prod. info BN
Pulley SP
Pulley dia. 59.50
Pulley dist. 46.70
Radius 85.50
D+ Size Plug
Radius 2 97.50
Regulator type IR
Rotation CW
Servicing Renault
Grooves/pulley 4
Voltage 14
Total length 179.00 mm
Width/holder arm 27.00
Amp 75

  • OEM
    AAK5503, F032112165, LRB 321, x08378, 11.209.004, 214, 215, 461, 1253ir, 1986A01690, 112165, 872258, 873348, 3493214, 8111838, 8111839, 10479214, 10479215, 10480214, 10480215, 7700870818, 7700870822, 7700872258, 7700872348, 7700876198, 7700972258, 7711134795

  • Konkurrentreferens
    A1014, A1014PR, ALT-1410, ALT1410, CAL12104, DRA3713, dra3736, DRA3736N, DRA3736X, F042003130, F042300149, F042A00149, F042S03130, lrb00321, MG723, QA2343, QA2601, ts-1682, 8EL011360-021, 8EL011710-241, 8EL011713-431, 8EL737399-001, 28-2869, 28-3715, 91-01-4527, 230.138.752, 4540, 6668N, 6668R, 8547N, 22857R, 118940, 200160, 200182, 200204, 210206, 210206A, 301253RI, 436701, 437119, 440051, 746174, 746199, 746886, 746974, 747899, 9212795, 12045200, 12090009, 32000321, 0986045201, 0986083770, 944390900280

  • Bilmärken
    Renault

  • Normaliserat artikelnummer
    a1014, a1014pr, aak5503, alt1410, cal12104, dra3713, dra3736, dra3736n, dra3736x, f032112165, f042003130, f042300149, f042a00149, f042s03130, lrb00321, lrb321, mg723, qa2343, qa2601, ts1682, x08378, 8el011360021, 8el011710241, 8el011713431, 8el737399001, 214, 215, 461, 1253ir, 1986a01690, 4540, 6668n, 6668r, 8547n, 22857r, 112165, 118940, 200160, 200182, 200204, 210206, 210206a, 282869, 283715, 301253ri, 436701, 437119, 440051, 746174, 746199, 746886, 746974, 747899, 872258, 873348, 3493214, 8111838, 8111839, 9212795, 10479214, 10479215, 10480214, 10480215, 11209004, 12045200, 12090009, 32000321, 91014527, 230138752, 0986045201, 0986083770, 7700870818, 7700870822, 7700872258, 7700872348, 7700876198, 7700972258, 7711134795, 944390900280

  • Passar modeller
    Renault Model: Clio Model series: Clio Size of motor: 1.1 Brand of engine: D7F720 Type description: SB0A Body: Van From date: 01-09-1998 Fuel: Gasoline Approved: Yes
    Renault Model: Clio Model series: Clio Size of motor: 1.2 Brand of engine: D7F720 Type description: B/CB0F,B/CB0A Body: Hatchback From date: 01-09-1998 Fuel: Gasoline Approved: Yes
    Renault Model: Clio Model series: Clio Size of motor: 1.2 Brand of engine: D7F726 Type description: B/CB0F,B/CB0A Body: Hatchback From date: 01-09-1998 Fuel: Gasoline Approved: Yes
    Renault Model: Clio Model series: Clio Size of motor: 1.2 Brand of engine: D7F730 Body: Hatchback From date: 01-01-1996 To date: 01-09-1998 Fuel: Gasoline Approved: Yes
    Renault Model: Clio Model series: Clio Size of motor: 1.2 Brand of engine: D7F730 Type description: B/C57 Body: Hatchback From date: 01-01-1996 To date: 01-09-1998 Fuel: Gasoline Approved: Yes
    Renault Model: Clio Model series: Clio Size of motor: 1.2 Brand of engine: D7F746 Type description: B/CB0F,B/CB0A Body: Hatchback From date: 01-09-1998 Fuel: Gasoline Approved: Yes
    Renault Model: Clio Model series: Clio Size of motor: 1.2 Brand of engine: D7F764 Type description: B/CB0F,B/CB0A Body: Hatchback From date: 01-09-1998 Fuel: Gasoline Approved: Yes
    Renault Model: Clio Model series: Clio Size of motor: 1.2 Brand of engine: D7F766 Type description: B/CB0F,B/CB0A Body: Hatchback From date: 01-09-1998 Fuel: Gasoline Approved: Yes
    Renault Model: Kangoo Model series: Kangoo Model type: Express Size of motor: 1.2 Brand of engine: D7F710 Body: Van From date: 01-08-1997 Fuel: Gasoline Approved: Yes
    Renault Model: Kangoo Model series: Kangoo Size of motor: 1.2 Brand of engine: D7F710 Body: MPV From date: 01-08-1997 Fuel: Gasoline Approved: Yes
    Renault Model: Twingo Model series: Twingo Hatchback Van Size of motor: 1.2 Brand of engine: D7F700 Type description: S06_ Body: Hatchback Van From date: 01-03-1997 To date: 01-08-2003 Fuel: Petrol Approved: Yes
    Renault Model: Twingo Model series: Twingo Size of motor: 1.2 Brand of engine: D7F700 Type description: C066,C068 Body: Hatchback From date: 01-05-1996 To date: 01-06-2007 Fuel: Gasoline Approved: Yes
    Renault Model: Twingo Model series: Twingo Size of motor: 1.2 Brand of engine: D7F700 Type description: C067 Body: Hatchback From date: 01-05-1996 To date: 01-03-2007 Fuel: Gasoline Approved: Yes
    Renault Model: Twingo Model series: Twingo Size of motor: 1.2 Brand of engine: D7F700 Type description: S06_ Body: Van From date: 01-05-1996 To date: 01-08-2004 Fuel: Gasoline Approved: Yes
    Renault Model: Twingo Model series: Twingo Size of motor: 1.2 Brand of engine: D7F701 Body: Hatchback From date: 01-05-1996 To date: 01-03-2007 Fuel: Gasoline Approved: Yes
    Renault Model: Twingo Model series: Twingo Size of motor: 1.2 Brand of engine: D7F701 Type description: C066,C068 Body: Hatchback From date: 01-05-1996 To date: 01-06-2007 Fuel: Gasoline Approved: Yes
    Renault Model: Twingo Model series: Twingo Size of motor: 1.2 Brand of engine: D7F701 Type description: S06_ Body: Van From date: 01-05-1996 To date: 01-08-2004 Fuel: Gasoline Approved: Yes
    Renault Series: Clio I Model: 1.2 Engine volume: 1.2 Engine type: D7F 730 Year: 04.96-02.98
    Renault Series: Clio II Model: 1.2 Engine volume: 1.2 Engine type: D7F 710 / 720 / 726 Year: 09.98-10.07
    Renault Series: Kangoo Express Model: 1.2 Engine volume: 1.2 Engine type: D7F 700/720/722 Year: 09.98-
    Renault Series: Twingo Model: 1.2 AC Engine volume: 1.2 Engine type: D7F Year: 09.96-01.98
