Artikelnr: F032113791

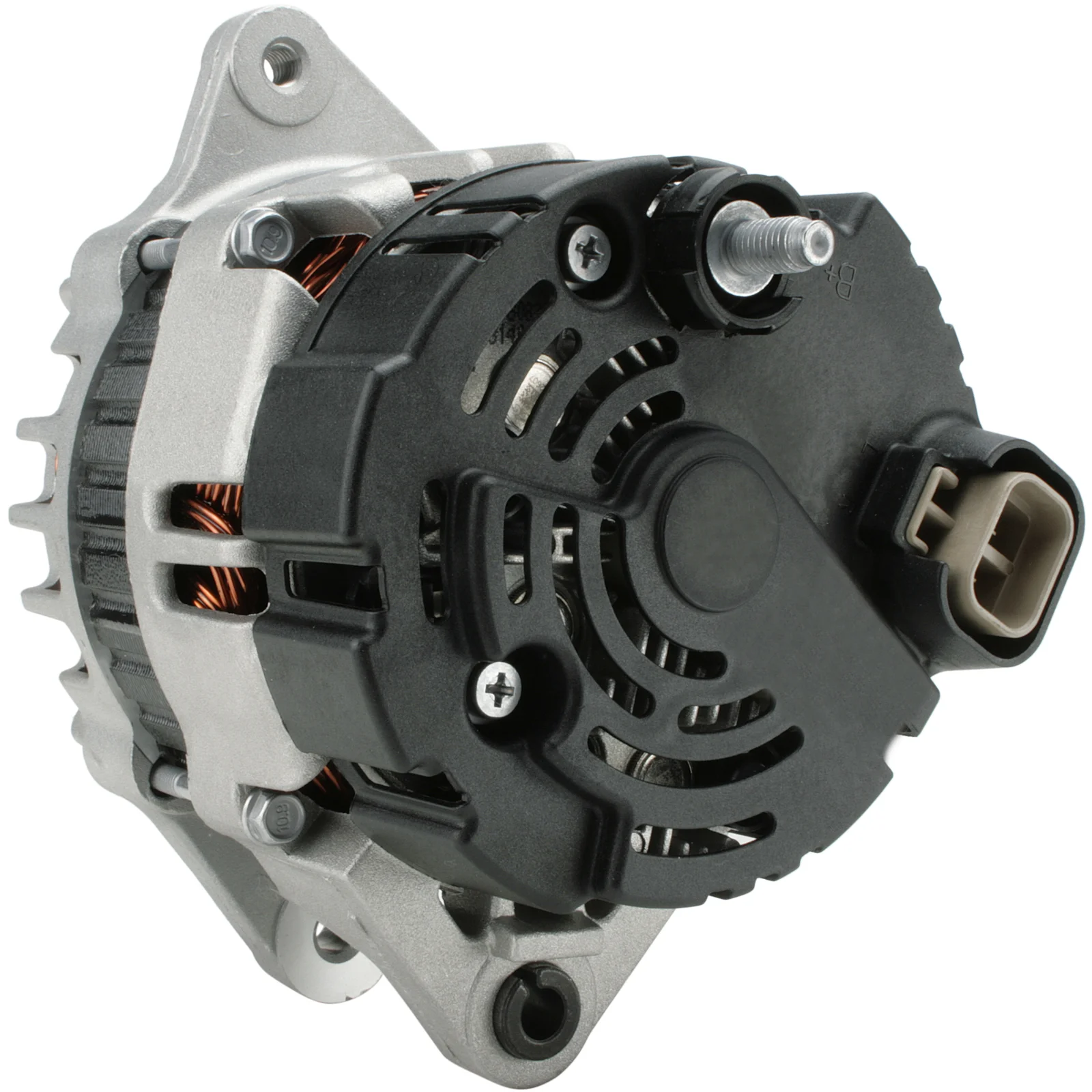

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 70, Rotation: CW, Mount. bracket dist.: 48.00

Beskrivning

Hyundai Generator 12V-70A 12V - 70A, 4gr, (L, R) För Yourex produkt order 90-228-0255

Voltage: 14
Amp: 70
Pulley dist.: 38.50
Width/holder arm: 13.00
Mount. bracket dist.: 48.00
Bracket hole: 8.30
Belt. adj. brackethole pos.: 3
Belt. adj. bracket hole 1: M8
Pulley dia.: 59.00
Grooves/pulley: 4
Radius: 76.00
Radius 2: 79.00
B+: M8
Position/B+ in min.: 60
D+ Size: Plug
Rotation: CW
Plug no.: PL89
Total length mm: 169.00
Pulley: SP
Regulator type: IR
Prod. info: BN
Servicing: Hundai

Filer

Specifikation

B+ M8
Mount. bracket dist. 48.00
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 3
Plug no. PL89
Bracket hole 8.30
Position/B+ in min. 60
Prod. info BN
Pulley SP
Pulley dia. 59.00
Pulley dist. 38.50
Radius 76.00
D+ Size Plug
Radius 2 79.00
Regulator type IR
Rotation CW
Servicing Hundai
Grooves/pulley 4
Voltage 14
Total length 169.00 mm
Width/holder arm 13.00
Amp 70

  • OEM
    A0002655517, F000BL0101, F000BL0110, F032113791, ja1798ir, TA000A 55601, TA000A55601, 0986 049 570, 1986A00078, 37300-02550, 37300-02551, 37300-02570, 37300-02700, 37300-02800, 113791, 2655517, 0124220005, 0124220008

  • Konkurrentreferens
    A9029, ALT-H159, CAL32122, DRA0014, DRA0014N, DRA0682, DRA0727, DRA4134N, F042A0H159, J5110522, lra02910, LRA02933, LRA02951, LRA03037, 8EL012426-801, 8EL738238-001, 28-5524, 28-5565, 28-5649, 155.520.070, 155.570.070, 224.193.702, 226.171.702, 226.197.702, 9400, 23910N, 23910R, 24037, 112484, 210374, 210374A, 401798RI, 444249, 600017, 600028, 600029, 9212895, 12060835, 12060861, 063532612, 063532628, 0986049570, 0986085100, 063532612010, 063532628010, 944390904230

  • Bilmärken
    Hyundai, Kia

  • Normaliserat artikelnummer
    a0002655517, a9029, alth159, cal32122, dra0014, dra0014n, dra0682, dra0727, dra4134n, f000bl0101, f000bl0110, f032113791, f042a0h159, j5110522, ja1798ir, lra02910, lra02933, lra02951, lra03037, ta000a55601, 8el012426801, 8el738238001, 1986a00078, 9400, 23910n, 23910r, 24037, 112484, 113791, 210374, 210374a, 285524, 285565, 285649, 401798ri, 444249, 600017, 600028, 600029, 2655517, 9212895, 12060835, 12060861, 063532612, 063532628, 0124220005, 0124220008, 155520070, 155570070, 224193702, 226171702, 226197702, 0986049570, 0986085100, 3730002550, 3730002551, 3730002570, 3730002700, 3730002800, 063532612010, 063532628010, 944390904230

  • Passar modeller
    Hyundai Model: Atos Model series: Atos Size of motor: 1.1 Brand of engine: G4HG Type description: MX Body: MPV From date: 01-08-2003 To date: 01-12-2008 Fuel: Gasoline Approved: Yes
    Hyundai Model: Atos Model series: Atos Type of engine: i Size of motor: 1.0 Brand of engine: G4HC-E Type description: MX Body: MPV From date: 01-03-2001 To date: 01-07-2003 Fuel: Gasoline Approved: Yes
    Hyundai Model: Getz Model series: Getz Size of motor: 1.1 Brand of engine: G4HD Type description: TB Body: Hatchback From date: 01-09-2002 To date: 01-09-2005 Fuel: Gasoline Approved: Yes
    Hyundai Model: Getz Model series: Getz Size of motor: 1.1 Brand of engine: G4HD Type description: TB Body: Hatchback From date: 01-09-2005 To date: 01-06-2009 Fuel: Gasoline Approved: Yes
    Hyundai Model: i10 Model series: i10 Size of motor: 1.1 Brand of engine: G4HG Type description: PA Body: Hatchback From date: 01-01-2009 To date: 01-12-2013 Fuel: LPG Approved: Yes
    Hyundai Series: Atos Model: 1.0i Engine volume: 1.0i Engine type: G4HC-E Year: 07.01-12.03
    Hyundai Series: Atos Prime Model: 1.0i Engine volume: 1.0 Engine type: G4HC-E Year: 07.01-12.03
    Hyundai Series: Atos Prime Model: 1.1 Engine volume: 1.1 Engine type: G4HD Year: 06.03-
    Hyundai Series: Getz Model: 1.1 Engine volume: 1.1 Engine type: G4HD Year: 09.02-09.05
    Hyundai Series: Getz Model: 1.1 Engine volume: 1.1 Engine type: G4HD Year: 09.05-12.06
    Hyundai Series: i10 Model: 1.1 Engine volume: 1.1 Engine type: G4HG Year: 01.08-
    Kia Model: Picanto Model series: Picanto Size of motor: 1.0 Brand of engine: G4HE Type description: BA Body: Hatchback From date: 01-04-2004 Fuel: Gasoline Approved: Yes
    Kia Model: Picanto Model series: Picanto Size of motor: 1.1 Brand of engine: G4HG Type description: BA Body: Hatchback From date: 01-04-2004 Fuel: Gasoline Approved: Yes
    Kia Series: Picanto (SA) Model: 1.0 Engine volume: 1.0 Engine type: G4HE Year: 09.05-02.09
    Kia Series: Picanto (SA) Model: 1.1 Engine volume: 1.1 Engine type: G4HG Year: 04.04-
