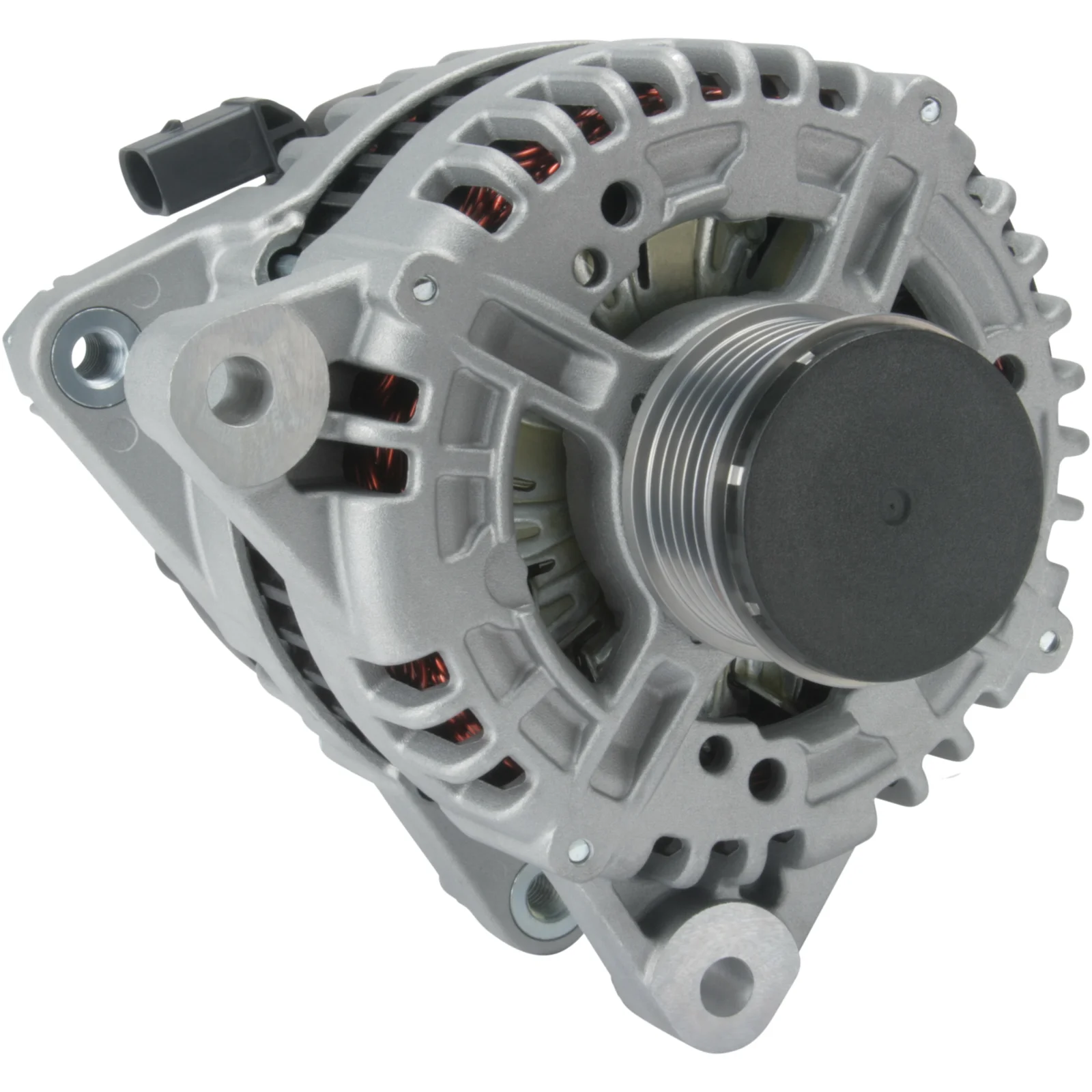

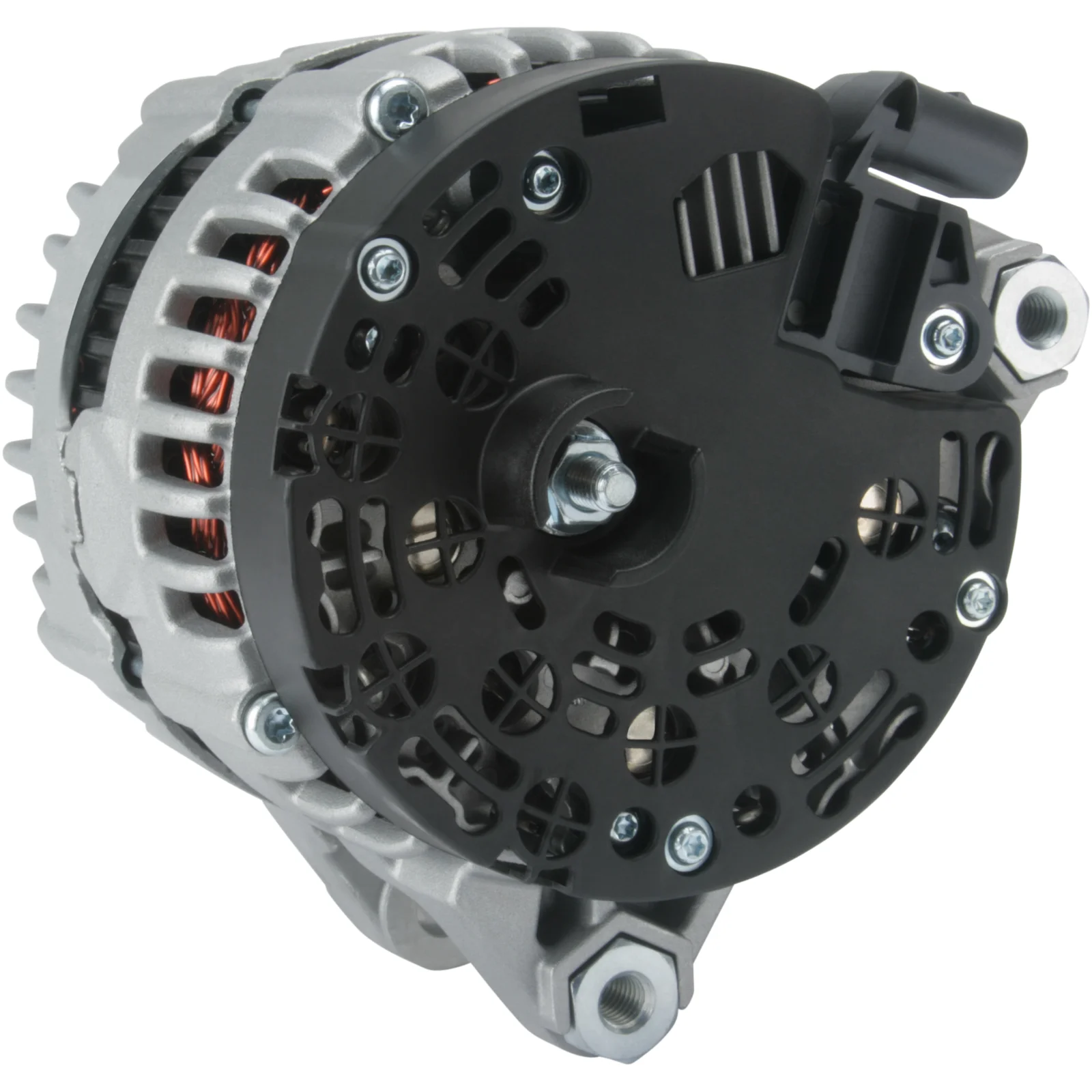

HC-Cargo Generator
HC-Cargo Generator
Artikelnr: F032115365

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 150, Rotation: CW, Mount. bracket dist.: 46.70

Beskrivning

Gen. 12V-150A passar Volvo mm 12V - 150A, 6gr.frg, (LIN) ID-kod : 88 Alternativ : 90-600-8139 (180A) För Yourex produkt order 90-180-7090

Voltage: 14
Amp: 150
Pulley dist.: 42.50
Width/holder arm: 21.20
Mount. bracket dist.: 46.70
Bracket hole: 10.50
Belt. adj. brackethole pos.: 47
Belt. adj. bracket hole 1: 10.50
Pulley dia.: 54.00
Grooves/pulley: 6
Radius: 90.00
Radius 2: 90.00
B+: M8
Position/B+ in min.: 45
Rotation: CW
Plug no.: PL137
Total length mm: 182.00
Terminal type: COM
Communication: LIN
Pulley: SP/FW
Regulator type: IR
Prod. info: BN
Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

Filer

Specifikation

B+ M8
Communication LIN
Mount. bracket dist. 46.70
Belt. adj. bracket hole 1 10.50
Belt. adj. brackethole pos. 47
Plug no. PL137
Bracket hole 10.50
Position/B+ in min. 45
Prod. info BN
Pulley SP/FW
Pulley dia. 54.00
Pulley dist. 42.50
Radius 90.00
Radius 2 90.00
Regulator type IR
Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Grooves/pulley 6
Terminal type COM
Voltage 14
Total length 182.00 mm
Width/holder arm 21.20
Amp 150

  • OEM
    F032115365, FO 1458640, 7G9J10300EA, 7G9N-10300EA, 7g9n10300ea, 7GN10300EA, 0121 615 028, 0986 081 190, 2000ir, 115365, 1458640, 1791840, 2099465, 30795169, 36000798, 0121615028, 0121615128

  • Konkurrentreferens
    A0289, CAL10312, DRA0058, DRA0058N, LRA03277, 8EL011712-111, 8EL738212-341, 28-5889, 219.311.1502, 20013, 20013N, 112663, 210427, 210427A, 302000RI, 440477, 9090377, 12090175, 32081190, 0986081190, 944390903770

  • Bilmärken
    Ford EU, Volvo

  • Normaliserat artikelnummer
    a0289, cal10312, dra0058, dra0058n, f032115365, fo1458640, lra03277, 7g9j10300ea, 7g9n10300ea, 7gn10300ea, 8el011712111, 8el738212341, 2000ir, 20013, 20013n, 112663, 115365, 210427, 210427a, 285889, 302000ri, 440477, 1458640, 1791840, 2099465, 9090377, 12090175, 30795169, 32081190, 36000798, 0121615028, 0121615128, 0986081190, 2193111502, 944390903770

  • Passar modeller
    Ford EU Series: Mondeo IV Model: 2.0 TDCi Engine volume: 2.0 Engine type: AZBA / N7BB Year: 03.07-
    Ford EU Series: Mondeo IV Model: 2.0 TDCi Engine volume: 2.0 Engine type: KLBA/LPBA/TYBA Year: 11.07-
    Ford EU Series: Mondeo IV Model: 2.0 TDCi Engine volume: 2.0 Engine type: UFBA / QXBB Year: 03.07-
    Ford EU Series: Mondeo IV Sedan Model: 2.0 TDCi Engine volume: 2.0 Engine type: AZBA / N7BB Year: 03.07-
    Ford EU Series: Mondeo IV Sedan Model: 2.0 TDCi Engine volume: 2.0 Engine type: UFBA / QXBB Year: 03.07-
    Ford EU Series: Mondeo IV Turnier Model: 2.0 TDCi Engine volume: 2.0 Engine type: AZBA Year: 03.07-
    Ford EU Series: Mondeo IV Turnier Model: 2.0 TDCi Engine volume: 2.0 Engine type: KLBA/LPBA Year: 11.07-12.14
    Ford EU Series: Mondeo IV Turnier Model: 2.0 TDCi Engine volume: 2.0 Engine type: UFBA / QXBB Year: 03.07-
    Ford Model: Mondeo Model series: Mondeo Type of engine: TDCi Size of motor: 2.0 Brand of engine: AZBA From date: 01-03-2007 To date: 01-01-2015 Fuel: Diesel Approved: Yes
    Ford Model: Mondeo Model series: Mondeo Type of engine: TDCi Size of motor: 2.0 Brand of engine: AZBA Type description: BA7_ Body: Estate From date: 01-03-2007 To date: 01-12-2012 Fuel: Diesel Approved: Yes Manufacture type: turnier
    Ford Model: Mondeo Model series: Mondeo Type of engine: TDCi Size of motor: 2.0 Brand of engine: AZBA Type description: BA7_ Body: Hatchback From date: 01-03-2007 To date: 01-01-2015 Fuel: Diesel Approved: Yes
    Ford Model: Mondeo Model series: Mondeo Type of engine: TDCi Size of motor: 2.0 Brand of engine: AZBC Body: Estate From date: 01-03-2007 To date: 01-12-2014 Fuel: Diesel Approved: Yes Manufacture type: Turnier
    Ford Model: Mondeo Model series: Mondeo Type of engine: TDCi Size of motor: 2.0 Brand of engine: AZBC Body: Hatchback From date: 01-03-2007 To date: 01-12-2014 Fuel: Diesel Approved: Yes
    Ford Model: Mondeo Model series: Mondeo Type of engine: TDCi Size of motor: 2.0 Brand of engine: KLBA Body: Box Body / Estate From date: 01-11-2007 To date: 01-09-2014 Fuel: Diesel Approved: Yes
    Ford Model: Mondeo Model series: Mondeo Type of engine: TDCi Size of motor: 2.0 Brand of engine: KLBA Body: Estate From date: 01-11-2007 To date: 01-01-2015 Fuel: Diesel Approved: Yes Manufacture type: turnier
    Ford Model: Mondeo Model series: Mondeo Type of engine: TDCi Size of motor: 2.0 Brand of engine: KLBA Body: Hatchback From date: 01-11-2007 To date: 01-01-2015 Fuel: Diesel Approved: Yes
    Ford Model: Mondeo Model series: Mondeo Type of engine: TDCi Size of motor: 2.0 Brand of engine: KLBA From date: 01-11-2007 To date: 01-01-2015 Fuel: Diesel Approved: Yes
    Ford Model: Mondeo Model series: Mondeo Type of engine: TDCi Size of motor: 2.0 Brand of engine: LPBA Body: Estate From date: 01-11-2007 To date: 01-01-2015 Fuel: Diesel Approved: Yes Manufacture type: turnier
    Ford Model: Mondeo Model series: Mondeo Type of engine: TDCi Size of motor: 2.0 Brand of engine: LPBA Body: Hatchback From date: 01-11-2007 To date: 01-01-2015 Fuel: Diesel Approved: Yes
    Ford Model: Mondeo Model series: Mondeo Type of engine: TDCi Size of motor: 2.0 Brand of engine: LPBA From date: 01-11-2007 To date: 01-01-2015 Fuel: Diesel Approved: Yes
    Ford Model: Mondeo Model series: Mondeo Type of engine: TDCi Size of motor: 2.0 Brand of engine: QXBA Body: Estate From date: 01-03-2007 To date: 01-01-2015 Fuel: Diesel Approved: Yes Manufacture type: turnier
    Ford Model: Mondeo Model series: Mondeo Type of engine: TDCi Size of motor: 2.0 Brand of engine: QXBA Body: Hatchback From date: 01-03-2007 To date: 01-01-2015 Fuel: Diesel Approved: Yes
    Ford Model: Mondeo Model series: Mondeo Type of engine: TDCi Size of motor: 2.0 Brand of engine: QXBA From date: 01-03-2007 To date: 01-01-2015 Fuel: Diesel Approved: Yes
    Ford Model: Mondeo Model series: Mondeo Type of engine: TDCi Size of motor: 2.0 Brand of engine: QXBB Body: Box Body / Estate From date: 01-03-2007 To date: 01-09-2014 Fuel: Diesel Approved: Yes
    Ford Model: Mondeo Model series: Mondeo Type of engine: TDCi Size of motor: 2.0 Brand of engine: QXBB Body: Estate From date: 01-03-2007 To date: 01-01-2015 Fuel: Diesel Approved: Yes Manufacture type: turnier
    Ford Model: Mondeo Model series: Mondeo Type of engine: TDCi Size of motor: 2.0 Brand of engine: QXBB Body: Hatchback From date: 01-03-2007 To date: 01-01-2015 Fuel: Diesel Approved: Yes
    Ford Model: Mondeo Model series: Mondeo Type of engine: TDCi Size of motor: 2.0 Brand of engine: QXBB From date: 01-03-2007 To date: 01-01-2015 Fuel: Diesel Approved: Yes
    Ford Model: Mondeo Model series: Mondeo Type of engine: TDCi Size of motor: 2.0 Brand of engine: TYBA Body: Estate From date: 01-11-2007 To date: 01-01-2015 Fuel: Diesel Approved: Yes Manufacture type: turnier
    Ford Model: Mondeo Model series: Mondeo Type of engine: TDCi Size of motor: 2.0 Brand of engine: TYBA Body: Hatchback From date: 01-11-2007 To date: 01-01-2015 Fuel: Diesel Approved: Yes
    Ford Model: Mondeo Model series: Mondeo Type of engine: TDCi Size of motor: 2.0 Brand of engine: TYBA From date: 01-11-2007 To date: 01-01-2015 Fuel: Diesel Approved: Yes
    Ford Model: Mondeo Model series: Mondeo Type of engine: TDCi Size of motor: 2.0 Brand of engine: UFBA Body: Estate From date: 01-03-2007 To date: 01-01-2015 Fuel: Diesel Approved: Yes Manufacture type: turnier
    Ford Model: Mondeo Model series: Mondeo Type of engine: TDCi Size of motor: 2.0 Brand of engine: UFBA Body: Hatchback From date: 01-03-2007 To date: 01-01-2015 Fuel: Diesel Approved: Yes
    Ford Model: Mondeo Model series: Mondeo Type of engine: TDCi Size of motor: 2.0 Brand of engine: UFBA From date: 01-03-2007 To date: 01-01-2015 Fuel: Diesel Approved: Yes
    Ford Model: Mondeo Model series: Mondeo Type of engine: TDCi Size of motor: 2.0 Brand of engine: UKBA Body: Estate From date: 01-03-2007 To date: 01-12-2014 Fuel: Diesel Approved: Yes Manufacture type: Turnier
    Ford Model: Mondeo Model series: Mondeo Type of engine: TDCi Size of motor: 2.0 Brand of engine: UKBA Body: Hatchback From date: 01-03-2007 To date: 01-12-2014 Fuel: Diesel Approved: Yes
    Volvo Model: S80 Model series: S80 Type of engine: TDi Size of motor: 2.0 Brand of engine: D4204T From date: 01-02-2008 To date: 01-03-2011 Fuel: Diesel Approved: Yes
    Volvo Model: V70 Model series: V70 Type of engine: Diesel Size of motor: 2.0 Brand of engine: D4204T Body: Estate From date: 01-10-2007 To date: 01-12-2015 Fuel: Diesel Approved: Yes
    Volvo Series: S80 II Model: 2.0 TDI Engine volume: 2.0 Engine type: D 4204 T Year: 02.08-07.10
    Volvo Series: V70 III Model: 2.0 D Engine volume: 2.0 Engine type: D 4204 T Year: 10.07-07.10
