HC-Cargo Generator
HC-Cargo Generator
Artikelnr: F032115544

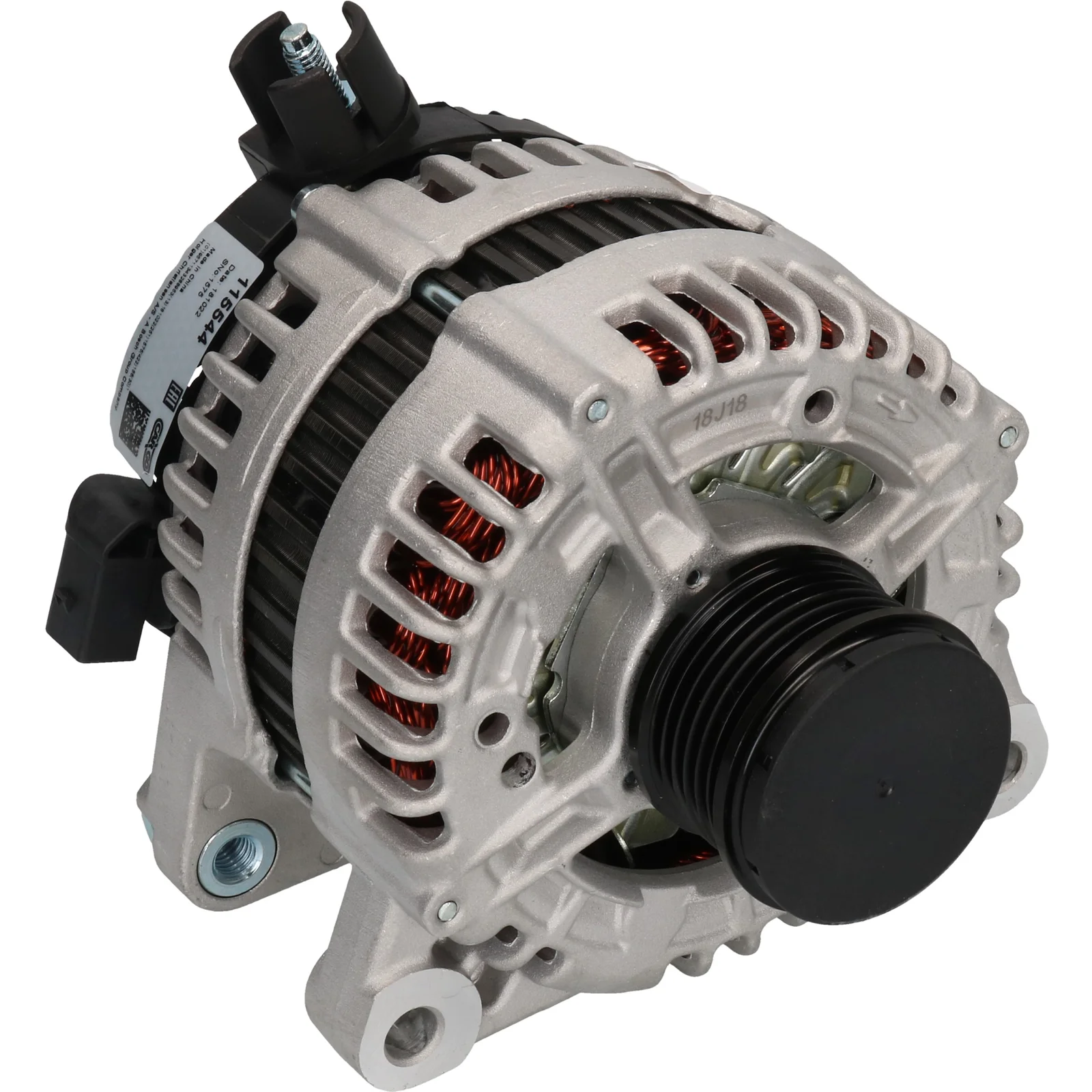

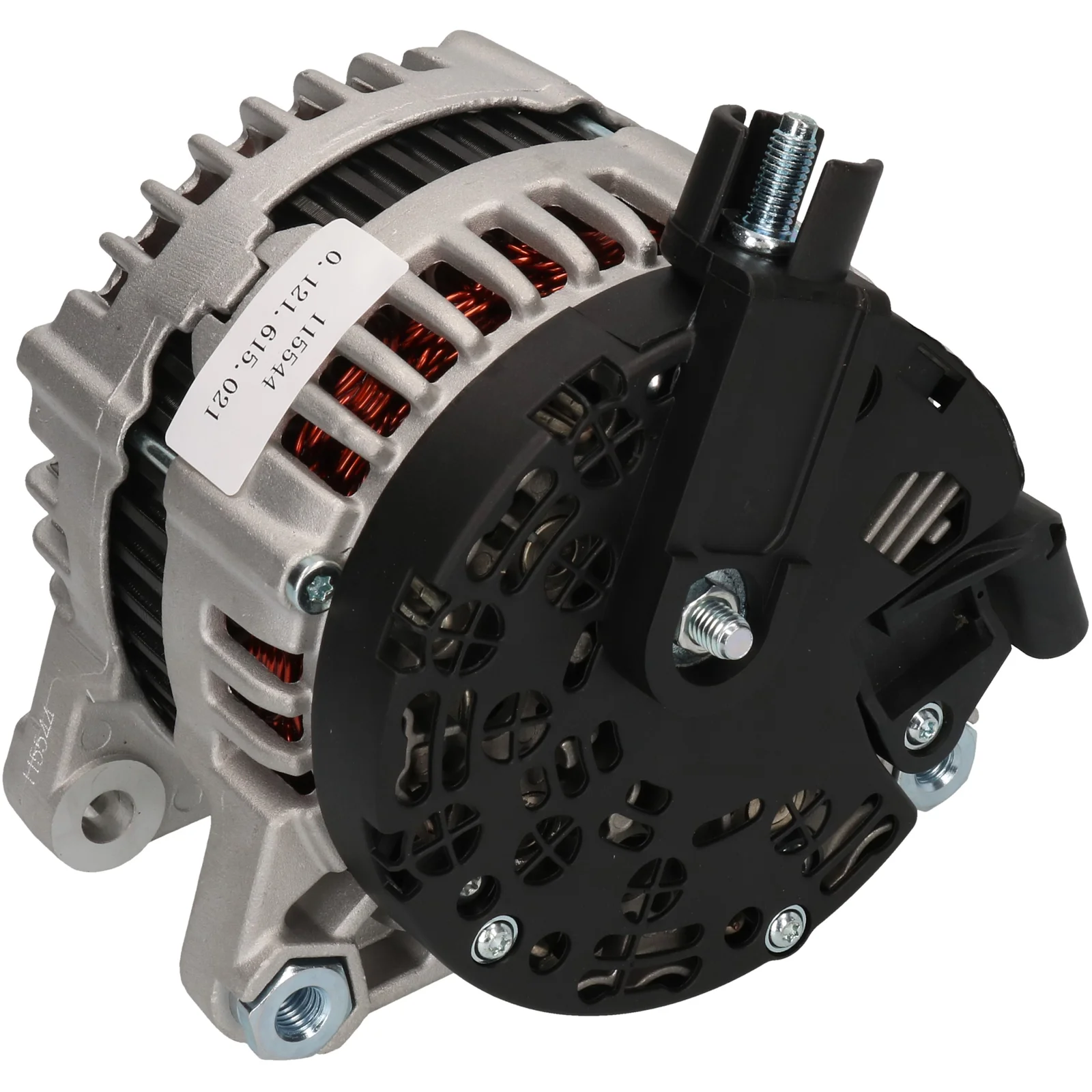

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 150, Rotation: CW, Mount. bracket dist.: 46.00

Beskrivning

Voltage: 14
Amp: 150
Pulley dist.: 42.50
Width/holder arm: 21.00
Mount. bracket dist.: 46.00
Bracket hole: 10.50
Belt. adj. brackethole pos.: 30
Belt. adj. bracket hole 1: 10.50
Belt. adj. bracket hole 2: M10
Pulley dia.: 54.50
Grooves/pulley: 6
Radius: 90.00
Radius 2: 90.00
B+: M8
Position/B+ in min.: 60
Rotation: CW
Plug no.: PL137
Total length mm: 184.00
Terminal type: COM
Communication: LIN
Pulley: SP/FW
Regulator type: IR
Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

Filer

Specifikation

B+ M8
Communication LIN
Mount. bracket dist. 46.00
Belt. adj. bracket hole 1 10.50
Belt. adj. bracket hole 2 M10
Belt. adj. brackethole pos. 30
Plug no. PL137
Bracket hole 10.50
Position/B+ in min. 60
Pulley SP/FW
Pulley dia. 54.50
Pulley dist. 42.50
Radius 90.00
Radius 2 90.00
Regulator type IR
Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Grooves/pulley 6
Terminal type COM
Voltage 14
Total length 184.00 mm
Width/holder arm 21.00
Amp 150

  • OEM
    F032115544, lr002899, lr007088, 6G9J10300ADA, 6g9n10300ada, 6G9N10300ADB, 1986A00674, 2113ir, 1435647, 1455494, 1790385, 2099447, 0121615021, 0121615058, 0121615121

  • Konkurrentreferens
    A0288, A0288PR, CAL10375, DRA0059, LRA02973, 8EL011712-611, 28-5587, 219.191.1502, 23973, 23973N, 112976, 210426, 210426A, 440480, 12090257, 0986081400, 063536151210

  • Normaliserat artikelnummer
    a0288, a0288pr, cal10375, dra0059, f032115544, lr002899, lr007088, lra02973, 6g9j10300ada, 6g9n10300ada, 6g9n10300adb, 8el011712611, 1986a00674, 2113ir, 23973, 23973n, 112976, 210426, 210426a, 285587, 440480, 1435647, 1455494, 1790385, 2099447, 12090257, 0121615021, 0121615058, 0121615121, 0986081400, 2191911502, 063536151210

  • Passar modeller
    Ford Model: Galaxy Model series: Galaxy Type of engine: TDCi Size of motor: 2.2 Brand of engine: KNWA Type description: WA6 Body: MPV From date: 01-11-2010 To date: 01-06-2015 Fuel: Diesel Approved: Yes
    Ford Model: Galaxy Model series: Galaxy Type of engine: TDCi Size of motor: 2.2 Brand of engine: KNWA Type description: WA6 Body: Van From date: 01-03-2013 To date: 01-06-2015 Fuel: Diesel Approved: Yes
    Ford Model: Galaxy Model series: Galaxy Type of engine: TDCi Size of motor: 2.2 Brand of engine: Q4BA Body: MPV From date: 01-03-2008 To date: 01-12-2012 Fuel: Diesel Approved: Yes
    Ford Model: Galaxy Model series: Galaxy Type of engine: TDCi Size of motor: 2.2 Brand of engine: Q4WA Body: MPV From date: 01-03-2008 To date: 01-12-2012 Fuel: Diesel Approved: Yes
    Ford Model: Mondeo Model series: Mondeo Type of engine: TDCi Size of motor: 2.0 Brand of engine: AZBC Body: Estate From date: 01-03-2007 To date: 01-12-2014 Fuel: Diesel Approved: Yes Manufacture type: Turnier
    Ford Model: Mondeo Model series: Mondeo Type of engine: TDCi Size of motor: 2.0 Brand of engine: AZBC Body: Hatchback From date: 01-03-2007 To date: 01-12-2014 Fuel: Diesel Approved: Yes
    Ford Model: Mondeo Model series: Mondeo Type of engine: TDCi Size of motor: 2.0 Brand of engine: KLBA Body: Box Body / Estate From date: 01-11-2007 To date: 01-09-2014 Fuel: Diesel Approved: Yes
    Ford Model: Mondeo Model series: Mondeo Type of engine: TDCi Size of motor: 2.0 Brand of engine: KLBA Body: Estate From date: 01-11-2007 To date: 01-01-2015 Fuel: Diesel Approved: Yes Manufacture type: turnier
    Ford Model: Mondeo Model series: Mondeo Type of engine: TDCi Size of motor: 2.0 Brand of engine: KLBA Body: Hatchback From date: 01-11-2007 To date: 01-01-2015 Fuel: Diesel Approved: Yes
    Ford Model: Mondeo Model series: Mondeo Type of engine: TDCi Size of motor: 2.0 Brand of engine: KLBA From date: 01-11-2007 To date: 01-01-2015 Fuel: Diesel Approved: Yes
    Ford Model: Mondeo Model series: Mondeo Type of engine: TDCi Size of motor: 2.0 Brand of engine: LPBA Body: Estate From date: 01-11-2007 To date: 01-01-2015 Fuel: Diesel Approved: Yes Manufacture type: turnier
    Ford Model: Mondeo Model series: Mondeo Type of engine: TDCi Size of motor: 2.0 Brand of engine: LPBA Body: Hatchback From date: 01-11-2007 To date: 01-01-2015 Fuel: Diesel Approved: Yes
    Ford Model: Mondeo Model series: Mondeo Type of engine: TDCi Size of motor: 2.0 Brand of engine: LPBA From date: 01-11-2007 To date: 01-01-2015 Fuel: Diesel Approved: Yes
    Ford Model: Mondeo Model series: Mondeo Type of engine: TDCi Size of motor: 2.0 Brand of engine: QXBB Body: Box Body / Estate From date: 01-03-2007 To date: 01-09-2014 Fuel: Diesel Approved: Yes
    Ford Model: Mondeo Model series: Mondeo Type of engine: TDCi Size of motor: 2.0 Brand of engine: TYBA Body: Estate From date: 01-11-2007 To date: 01-01-2015 Fuel: Diesel Approved: Yes Manufacture type: turnier
    Ford Model: Mondeo Model series: Mondeo Type of engine: TDCi Size of motor: 2.0 Brand of engine: TYBA Body: Hatchback From date: 01-11-2007 To date: 01-01-2015 Fuel: Diesel Approved: Yes
    Ford Model: Mondeo Model series: Mondeo Type of engine: TDCi Size of motor: 2.0 Brand of engine: TYBA From date: 01-11-2007 To date: 01-01-2015 Fuel: Diesel Approved: Yes
    Ford Model: Mondeo Model series: Mondeo Type of engine: TDCi Size of motor: 2.0 Brand of engine: UKBA Body: Estate From date: 01-03-2007 To date: 01-12-2014 Fuel: Diesel Approved: Yes Manufacture type: Turnier
    Ford Model: Mondeo Model series: Mondeo Type of engine: TDCi Size of motor: 2.0 Brand of engine: UKBA Body: Hatchback From date: 01-03-2007 To date: 01-12-2014 Fuel: Diesel Approved: Yes
    Ford Model: Mondeo Model series: Mondeo Type of engine: TDCi Size of motor: 2.2 Brand of engine: KNBA Body: Box Body / Estate From date: 01-03-2013 To date: 01-09-2014 Fuel: Diesel Approved: Yes
    Ford Model: Mondeo Model series: Mondeo Type of engine: TDCI Size of motor: 2.2 Brand of engine: KNBA Type description: BA7 From date: 01-10-2010 To date: 01-01-2015 Fuel: Diesel Approved: Yes
    Ford Model: Mondeo Model series: Mondeo Type of engine: TDCi Size of motor: 2.2 Brand of engine: KNBA Type description: BE_ Body: Hatchback From date: 01-07-2010 To date: 01-01-2015 Fuel: Diesel Approved: Yes
    Ford Model: Mondeo Model series: Mondeo Type of engine: TDCi Size of motor: 2.2 Brand of engine: KNBA Type description: BG7 Body: Estate From date: 01-07-2010 To date: 01-01-2015 Fuel: Diesel Approved: Yes Manufacture type: Turnier
    Ford Model: Mondeo Model series: Mondeo Type of engine: TDCi Size of motor: 2.2 Brand of engine: Q4BA Body: Estate From date: 01-03-2008 To date: 01-10-2010 Fuel: Diesel Approved: Yes Manufacture type: turnier
    Ford Model: Mondeo Model series: Mondeo Type of engine: TDCi Size of motor: 2.2 Brand of engine: Q4BA Body: Hatchback From date: 01-03-2008 To date: 01-10-2010 Fuel: Diesel Approved: Yes
    Ford Model: Mondeo Model series: Mondeo Type of engine: TDCi Size of motor: 2.2 Brand of engine: Q4BA From date: 01-03-2008 To date: 01-10-2010 Fuel: Diesel Approved: Yes
    Ford Model: S-Max Model series: S-Max Type of engine: TDCi Size of motor: 2.2 Brand of engine: KNWA Type description: WA_ Body: MPV From date: 01-07-2010 To date: 01-12-2014 Fuel: Diesel Approved: Yes
    Ford Model: S-Max Model series: S-Max Type of engine: TDCi Size of motor: 2.2 Brand of engine: Q4WA Type description: WA6 Body: MPV From date: 01-03-2008 To date: 01-12-2012 Fuel: Diesel Approved: Yes
    Land Rover Model: Freelander Model series: Freelander Model type: 4x4 Type of engine: TDI Size of motor: 2.2 Brand of engine: 224DT Type description: L359 Body: Van From date: 01-10-2006 To date: 01-10-2014 Fuel: Diesel Approved: Yes
    Land Rover Model: Freelander Model series: Freelander Model type: SD4 Type of engine: Diesel Size of motor: 2.2 Brand of engine: 224DT Type description: FA_ From date: 01-08-2010 To date: 01-10-2014 Fuel: Diesel Approved: Yes
    Land Rover Model: Freelander Model series: Freelander Model type: TD4 4x4 Type of engine: Diesel Size of motor: 2.2 Brand of engine: 224DT Type description: FA_ From date: 01-10-2006 To date: 01-10-2014 Fuel: Diesel Approved: Yes
    Land Rover Model: Freelander Model series: Freelander Model type: TD4 4x4 Type of engine: Diesel Size of motor: 2.2 Brand of engine: DW12BTED4 Type description: FA_ From date: 01-10-2006 To date: 01-10-2014 Fuel: Diesel Approved: Yes
    Land Rover Model: Freelander Model series: Freelander Model type: TD4 Type of engine: Diesel Size of motor: 2.2 Brand of engine: 224DT Type description: FA_ From date: 01-08-2010 To date: 01-10-2014 Fuel: Diesel Approved: Yes
    Land Rover Model: Freelander Model series: Freelander Model type: TD4 Type of engine: Diesel Size of motor: 2.2 Brand of engine: DW12BTED4 Type description: FA_ From date: 01-08-2010 To date: 01-10-2014 Fuel: Diesel Approved: Yes
    Land Rover Model: Freelander Model series: Freelander Type of engine: Diesel Size of motor: 2.2 Brand of engine: 224DT Type description: FA_ From date: 01-10-2006 To date: 01-10-2014 Fuel: Diesel Approved: Yes
    1 / 7
  • Beskrivning
    Voltage: 14
    Amp: 150
    Pulley dist.: 42.50
    Width/holder arm: 21.00
    Mount. bracket dist.: 46.00
    Bracket hole: 10.50
    Belt. adj. brackethole pos.: 30
    Belt. adj. bracket hole 1: 10.50
    Belt. adj. bracket hole 2: M10
    Pulley dia.: 54.50
    Grooves/pulley: 6
    Radius: 90.00
    Radius 2: 90.00
    B+: M8
    Position/B+ in min.: 60
    Rotation: CW
    Plug no.: PL137
    Total length mm: 184.00
    Terminal type: COM
    Communication: LIN
    Pulley: SP/FW
    Regulator type: IR
    Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Filer

  • Specifikation
    B+ M8
    Communication LIN
    Mount. bracket dist. 46.00
    Belt. adj. bracket hole 1 10.50
    Belt. adj. bracket hole 2 M10
    Belt. adj. brackethole pos. 30
    Plug no. PL137
    Bracket hole 10.50
    Position/B+ in min. 60
    Pulley SP/FW
    Pulley dia. 54.50
    Pulley dist. 42.50
    Radius 90.00
    Radius 2 90.00
    Regulator type IR
    Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
    Rotation CW
    Grooves/pulley 6
    Terminal type COM
    Voltage 14
    Total length 184.00 mm
    Width/holder arm 21.00
    Amp 150
  • Fordonsmatchning

    • OEM
      F032115544, lr002899, lr007088, 6G9J10300ADA, 6g9n10300ada, 6G9N10300ADB, 1986A00674, 2113ir, 1435647, 1455494, 1790385, 2099447, 0121615021, 0121615058, 0121615121

    • Konkurrentreferens
      A0288, A0288PR, CAL10375, DRA0059, LRA02973, 8EL011712-611, 28-5587, 219.191.1502, 23973, 23973N, 112976, 210426, 210426A, 440480, 12090257, 0986081400, 063536151210

    • Normaliserat artikelnummer
      a0288, a0288pr, cal10375, dra0059, f032115544, lr002899, lr007088, lra02973, 6g9j10300ada, 6g9n10300ada, 6g9n10300adb, 8el011712611, 1986a00674, 2113ir, 23973, 23973n, 112976, 210426, 210426a, 285587, 440480, 1435647, 1455494, 1790385, 2099447, 12090257, 0121615021, 0121615058, 0121615121, 0986081400, 2191911502, 063536151210

    • Passar modeller
      Ford Model: Galaxy Model series: Galaxy Type of engine: TDCi Size of motor: 2.2 Brand of engine: KNWA Type description: WA6 Body: MPV From date: 01-11-2010 To date: 01-06-2015 Fuel: Diesel Approved: Yes
      Ford Model: Galaxy Model series: Galaxy Type of engine: TDCi Size of motor: 2.2 Brand of engine: KNWA Type description: WA6 Body: Van From date: 01-03-2013 To date: 01-06-2015 Fuel: Diesel Approved: Yes
      Ford Model: Galaxy Model series: Galaxy Type of engine: TDCi Size of motor: 2.2 Brand of engine: Q4BA Body: MPV From date: 01-03-2008 To date: 01-12-2012 Fuel: Diesel Approved: Yes
      Ford Model: Galaxy Model series: Galaxy Type of engine: TDCi Size of motor: 2.2 Brand of engine: Q4WA Body: MPV From date: 01-03-2008 To date: 01-12-2012 Fuel: Diesel Approved: Yes
      Ford Model: Mondeo Model series: Mondeo Type of engine: TDCi Size of motor: 2.0 Brand of engine: AZBC Body: Estate From date: 01-03-2007 To date: 01-12-2014 Fuel: Diesel Approved: Yes Manufacture type: Turnier
      Ford Model: Mondeo Model series: Mondeo Type of engine: TDCi Size of motor: 2.0 Brand of engine: AZBC Body: Hatchback From date: 01-03-2007 To date: 01-12-2014 Fuel: Diesel Approved: Yes
      Ford Model: Mondeo Model series: Mondeo Type of engine: TDCi Size of motor: 2.0 Brand of engine: KLBA Body: Box Body / Estate From date: 01-11-2007 To date: 01-09-2014 Fuel: Diesel Approved: Yes
      Ford Model: Mondeo Model series: Mondeo Type of engine: TDCi Size of motor: 2.0 Brand of engine: KLBA Body: Estate From date: 01-11-2007 To date: 01-01-2015 Fuel: Diesel Approved: Yes Manufacture type: turnier
      Ford Model: Mondeo Model series: Mondeo Type of engine: TDCi Size of motor: 2.0 Brand of engine: KLBA Body: Hatchback From date: 01-11-2007 To date: 01-01-2015 Fuel: Diesel Approved: Yes
      Ford Model: Mondeo Model series: Mondeo Type of engine: TDCi Size of motor: 2.0 Brand of engine: KLBA From date: 01-11-2007 To date: 01-01-2015 Fuel: Diesel Approved: Yes
      Ford Model: Mondeo Model series: Mondeo Type of engine: TDCi Size of motor: 2.0 Brand of engine: LPBA Body: Estate From date: 01-11-2007 To date: 01-01-2015 Fuel: Diesel Approved: Yes Manufacture type: turnier
      Ford Model: Mondeo Model series: Mondeo Type of engine: TDCi Size of motor: 2.0 Brand of engine: LPBA Body: Hatchback From date: 01-11-2007 To date: 01-01-2015 Fuel: Diesel Approved: Yes
      Ford Model: Mondeo Model series: Mondeo Type of engine: TDCi Size of motor: 2.0 Brand of engine: LPBA From date: 01-11-2007 To date: 01-01-2015 Fuel: Diesel Approved: Yes
      Ford Model: Mondeo Model series: Mondeo Type of engine: TDCi Size of motor: 2.0 Brand of engine: QXBB Body: Box Body / Estate From date: 01-03-2007 To date: 01-09-2014 Fuel: Diesel Approved: Yes
      Ford Model: Mondeo Model series: Mondeo Type of engine: TDCi Size of motor: 2.0 Brand of engine: TYBA Body: Estate From date: 01-11-2007 To date: 01-01-2015 Fuel: Diesel Approved: Yes Manufacture type: turnier
      Ford Model: Mondeo Model series: Mondeo Type of engine: TDCi Size of motor: 2.0 Brand of engine: TYBA Body: Hatchback From date: 01-11-2007 To date: 01-01-2015 Fuel: Diesel Approved: Yes
      Ford Model: Mondeo Model series: Mondeo Type of engine: TDCi Size of motor: 2.0 Brand of engine: TYBA From date: 01-11-2007 To date: 01-01-2015 Fuel: Diesel Approved: Yes
      Ford Model: Mondeo Model series: Mondeo Type of engine: TDCi Size of motor: 2.0 Brand of engine: UKBA Body: Estate From date: 01-03-2007 To date: 01-12-2014 Fuel: Diesel Approved: Yes Manufacture type: Turnier
      Ford Model: Mondeo Model series: Mondeo Type of engine: TDCi Size of motor: 2.0 Brand of engine: UKBA Body: Hatchback From date: 01-03-2007 To date: 01-12-2014 Fuel: Diesel Approved: Yes
      Ford Model: Mondeo Model series: Mondeo Type of engine: TDCi Size of motor: 2.2 Brand of engine: KNBA Body: Box Body / Estate From date: 01-03-2013 To date: 01-09-2014 Fuel: Diesel Approved: Yes
      Ford Model: Mondeo Model series: Mondeo Type of engine: TDCI Size of motor: 2.2 Brand of engine: KNBA Type description: BA7 From date: 01-10-2010 To date: 01-01-2015 Fuel: Diesel Approved: Yes
      Ford Model: Mondeo Model series: Mondeo Type of engine: TDCi Size of motor: 2.2 Brand of engine: KNBA Type description: BE_ Body: Hatchback From date: 01-07-2010 To date: 01-01-2015 Fuel: Diesel Approved: Yes
      Ford Model: Mondeo Model series: Mondeo Type of engine: TDCi Size of motor: 2.2 Brand of engine: KNBA Type description: BG7 Body: Estate From date: 01-07-2010 To date: 01-01-2015 Fuel: Diesel Approved: Yes Manufacture type: Turnier
      Ford Model: Mondeo Model series: Mondeo Type of engine: TDCi Size of motor: 2.2 Brand of engine: Q4BA Body: Estate From date: 01-03-2008 To date: 01-10-2010 Fuel: Diesel Approved: Yes Manufacture type: turnier
      Ford Model: Mondeo Model series: Mondeo Type of engine: TDCi Size of motor: 2.2 Brand of engine: Q4BA Body: Hatchback From date: 01-03-2008 To date: 01-10-2010 Fuel: Diesel Approved: Yes
      Ford Model: Mondeo Model series: Mondeo Type of engine: TDCi Size of motor: 2.2 Brand of engine: Q4BA From date: 01-03-2008 To date: 01-10-2010 Fuel: Diesel Approved: Yes
      Ford Model: S-Max Model series: S-Max Type of engine: TDCi Size of motor: 2.2 Brand of engine: KNWA Type description: WA_ Body: MPV From date: 01-07-2010 To date: 01-12-2014 Fuel: Diesel Approved: Yes
      Ford Model: S-Max Model series: S-Max Type of engine: TDCi Size of motor: 2.2 Brand of engine: Q4WA Type description: WA6 Body: MPV From date: 01-03-2008 To date: 01-12-2012 Fuel: Diesel Approved: Yes
      Land Rover Model: Freelander Model series: Freelander Model type: 4x4 Type of engine: TDI Size of motor: 2.2 Brand of engine: 224DT Type description: L359 Body: Van From date: 01-10-2006 To date: 01-10-2014 Fuel: Diesel Approved: Yes
      Land Rover Model: Freelander Model series: Freelander Model type: SD4 Type of engine: Diesel Size of motor: 2.2 Brand of engine: 224DT Type description: FA_ From date: 01-08-2010 To date: 01-10-2014 Fuel: Diesel Approved: Yes
      Land Rover Model: Freelander Model series: Freelander Model type: TD4 4x4 Type of engine: Diesel Size of motor: 2.2 Brand of engine: 224DT Type description: FA_ From date: 01-10-2006 To date: 01-10-2014 Fuel: Diesel Approved: Yes
      Land Rover Model: Freelander Model series: Freelander Model type: TD4 4x4 Type of engine: Diesel Size of motor: 2.2 Brand of engine: DW12BTED4 Type description: FA_ From date: 01-10-2006 To date: 01-10-2014 Fuel: Diesel Approved: Yes
      Land Rover Model: Freelander Model series: Freelander Model type: TD4 Type of engine: Diesel Size of motor: 2.2 Brand of engine: 224DT Type description: FA_ From date: 01-08-2010 To date: 01-10-2014 Fuel: Diesel Approved: Yes
      Land Rover Model: Freelander Model series: Freelander Model type: TD4 Type of engine: Diesel Size of motor: 2.2 Brand of engine: DW12BTED4 Type description: FA_ From date: 01-08-2010 To date: 01-10-2014 Fuel: Diesel Approved: Yes
      Land Rover Model: Freelander Model series: Freelander Type of engine: Diesel Size of motor: 2.2 Brand of engine: 224DT Type description: FA_ From date: 01-10-2006 To date: 01-10-2014 Fuel: Diesel Approved: Yes
      1 / 7
