HC-Cargo Generator
HC-Cargo Generator
Artikelnr: F032115414

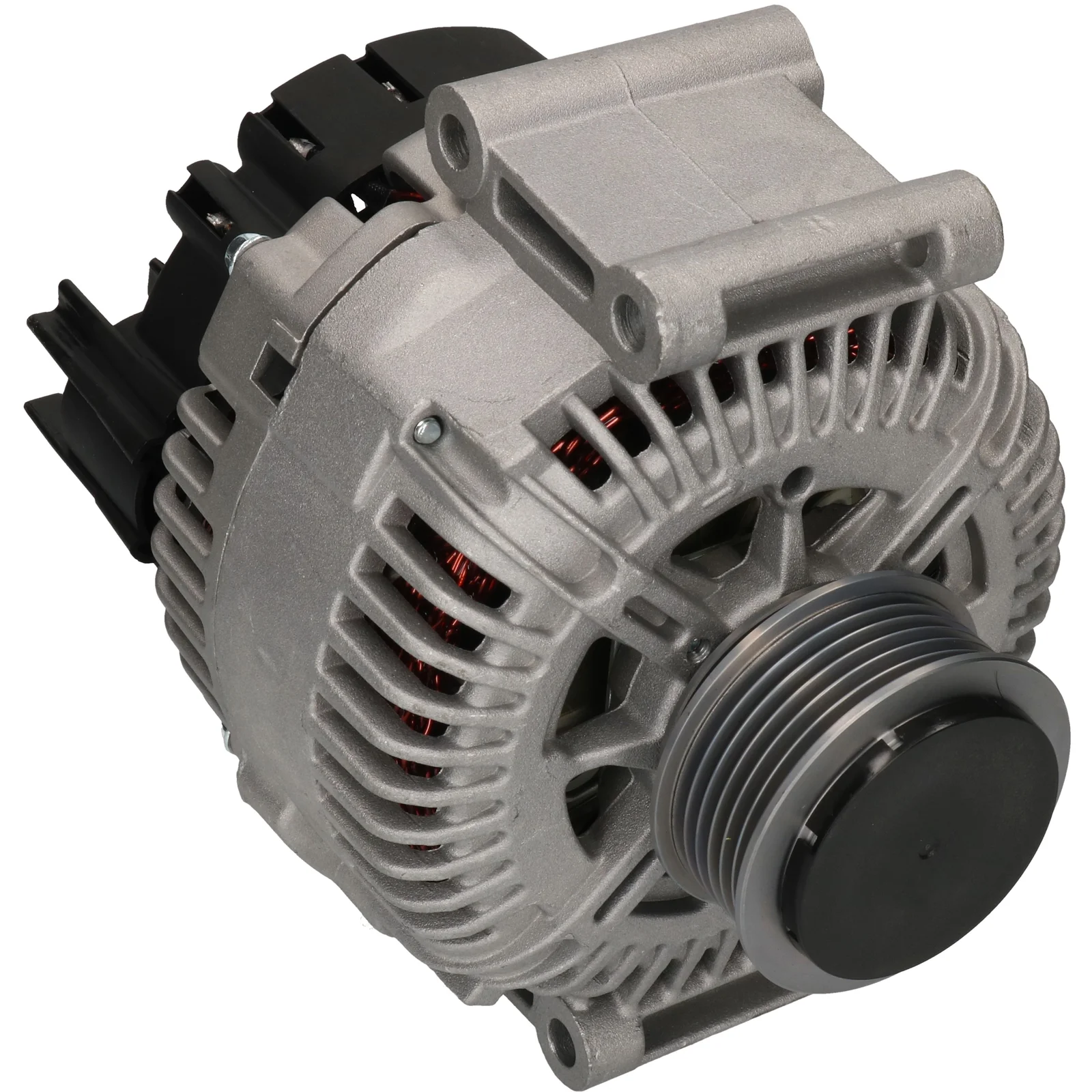

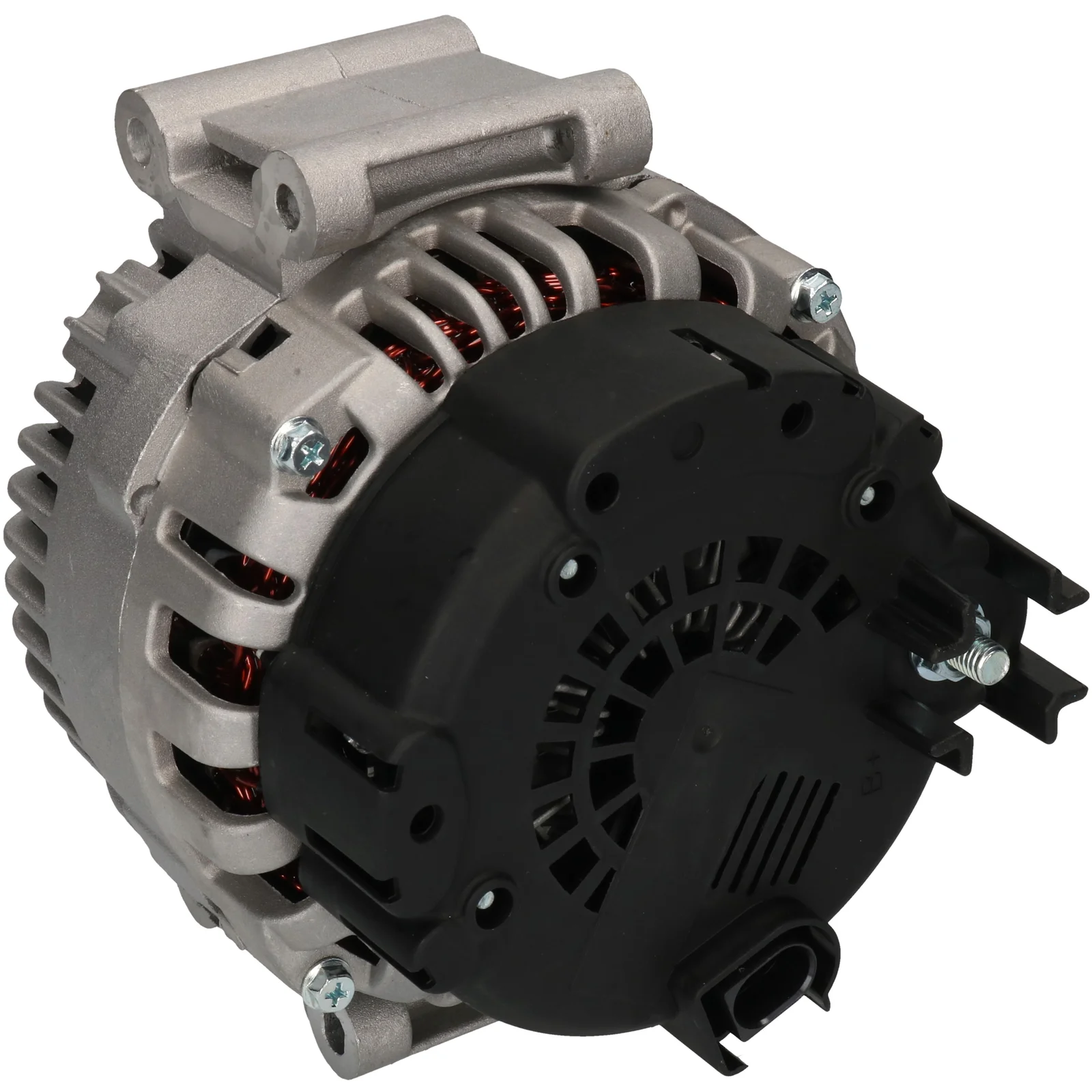

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 180, Rotation: CW, Mount. bracket dist.: 56.00

Beskrivning

Voltage: 14
Amp: 180
Pulley dist.: 29.50
Width/holder arm: 70.00
Mount. bracket dist.: 56.00
Bracket hole: 9.00
Belt. adj. bracket hole 1: 9.00
Belt. adj. bracket hole 2: 8.00x9.50
Pulley dia.: 64.50
Grooves/pulley: 6
Radius: 80.50
Radius 2: 82.50
B+: M8
Position/B+ in min.: 45
Rotation: CW
Plug no.: PL86
Total length mm: 198.00
Terminal type: COM
Pulley: SP/FW
Regulator type: IR
Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

Filer

Specifikation

B+ M8
Mount. bracket dist. 56.00
Belt. adj. bracket hole 1 9.00
Belt. adj. bracket hole 2 8.00x9.50
Plug no. PL86
Bracket hole 9.00
Position/B+ in min. 45
Pulley SP/FW
Pulley dia. 64.50
Pulley dist. 29.50
Radius 80.50
Radius 2 82.50
Regulator type IR
Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Grooves/pulley 6
Terminal type COM
Voltage 14
Total length 198.00 mm
Width/holder arm 70.00
Amp 180

  • OEM
    F032115414, TG17C023, tg17c044, 06E903016G, 06e903016k, 06e903016m, 06E903016MX, 2542798, 0121715022, 0121715122

  • Konkurrentreferens
    A0723S, A3257, A3265, CAL10A13, CAL15366, DRA0053, DRA0358, F042205124, LRA02365, 8EL015637-051, 28-4871, 11162n, 11162R, 437528, 439536, 439554, 553122RI, 12090219, 32437528

  • Normaliserat artikelnummer
    a0723s, a3257, a3265, cal10a13, cal15366, dra0053, dra0358, f032115414, f042205124, lra02365, tg17c023, tg17c044, 06e903016g, 06e903016k, 06e903016m, 06e903016mx, 8el015637051, 11162n, 11162r, 284871, 437528, 439536, 439554, 553122ri, 2542798, 12090219, 32437528, 0121715022, 0121715122

  • Passar modeller
    Audi Model: A6 Model series: A6 Model type: Allroad Quattro Type of engine: FSi Size of motor: 3.2 Brand of engine: AUK Type description: 4FH Body: Estate From date: 01-05-2006 To date: 01-10-2008 Fuel: Gasoline Approved: Yes
    Audi Model: A6 Model series: A6 Model type: Quattro Size of motor: 2.4 Brand of engine: BDW From date: 01-01-2005 To date: 01-10-2008 Fuel: Gasoline Approved: Yes
    Audi Model: A6 Model series: A6 Model type: Quattro Size of motor: 2.4 Brand of engine: BDW Type description: 4F5 Body: Estate From date: 01-03-2005 To date: 01-10-2008 Fuel: Gasoline Approved: Yes Manufacture type: AVANT
    Audi Model: A6 Model series: A6 Model type: Quattro Type of engine: FSi Size of motor: 3.2 Brand of engine: AUK Type description: 4F2 From date: 01-05-2004 To date: 01-10-2008 Fuel: Gasoline Approved: Yes
    Audi Model: A6 Model series: A6 Model type: Quattro Type of engine: FSi Size of motor: 3.2 Brand of engine: AUK Type description: 4F5 Body: Estate From date: 01-03-2005 To date: 01-10-2008 Fuel: Gasoline Approved: Yes Manufacture type: AVANT
    Audi Model: A6 Model series: A6 Model type: Quattro Type of engine: FSi Size of motor: 3.2 Brand of engine: BKH Type description: 4F2 From date: 01-05-2004 To date: 01-10-2008 Fuel: Gasoline Approved: Yes
    Audi Model: A6 Model series: A6 Model type: Quattro Type of engine: FSi Size of motor: 3.2 Brand of engine: BYU Type description: 4F2 From date: 01-09-2006 To date: 01-10-2008 Fuel: Gasoline Approved: Yes
    Audi Model: A6 Model series: A6 Size of motor: 2.4 Brand of engine: BDW Type description: 4F2 From date: 01-05-2004 To date: 01-10-2008 Fuel: Gasoline Approved: Yes
    Audi Model: A6 Model series: A6 Size of motor: 2.4 Brand of engine: BDW Type description: 4F5 Body: Estate From date: 01-03-2005 To date: 01-10-2008 Fuel: Gasoline Approved: Yes Manufacture type: AVANT
    Audi Model: A6 Model series: A6 Type of engine: FSi Size of motor: 3.2 Brand of engine: AUK Type description: 4F2 From date: 01-05-2004 To date: 01-05-2009 Fuel: Gasoline Approved: Yes
    Audi Model: A6 Model series: A6 Type of engine: FSi Size of motor: 3.2 Brand of engine: AUK Type description: 4F5 Body: Estate From date: 01-03-2005 To date: 01-10-2008 Fuel: Gasoline Approved: Yes Manufacture type: AVANT
    Audi Model: A6 Model series: A6 Type of engine: FSi Size of motor: 3.2 Brand of engine: BKH Type description: 4F2 From date: 01-05-2004 To date: 01-05-2009 Fuel: Gasoline Approved: Yes
    1 / 3
  • Beskrivning
    Voltage: 14
    Amp: 180
    Pulley dist.: 29.50
    Width/holder arm: 70.00
    Mount. bracket dist.: 56.00
    Bracket hole: 9.00
    Belt. adj. bracket hole 1: 9.00
    Belt. adj. bracket hole 2: 8.00x9.50
    Pulley dia.: 64.50
    Grooves/pulley: 6
    Radius: 80.50
    Radius 2: 82.50
    B+: M8
    Position/B+ in min.: 45
    Rotation: CW
    Plug no.: PL86
    Total length mm: 198.00
    Terminal type: COM
    Pulley: SP/FW
    Regulator type: IR
    Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Filer

  • Specifikation
    B+ M8
    Mount. bracket dist. 56.00
    Belt. adj. bracket hole 1 9.00
    Belt. adj. bracket hole 2 8.00x9.50
    Plug no. PL86
    Bracket hole 9.00
    Position/B+ in min. 45
    Pulley SP/FW
    Pulley dia. 64.50
    Pulley dist. 29.50
    Radius 80.50
    Radius 2 82.50
    Regulator type IR
    Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
    Rotation CW
    Grooves/pulley 6
    Terminal type COM
    Voltage 14
    Total length 198.00 mm
    Width/holder arm 70.00
    Amp 180
  • Fordonsmatchning

    • OEM
      F032115414, TG17C023, tg17c044, 06E903016G, 06e903016k, 06e903016m, 06E903016MX, 2542798, 0121715022, 0121715122

    • Konkurrentreferens
      A0723S, A3257, A3265, CAL10A13, CAL15366, DRA0053, DRA0358, F042205124, LRA02365, 8EL015637-051, 28-4871, 11162n, 11162R, 437528, 439536, 439554, 553122RI, 12090219, 32437528

    • Normaliserat artikelnummer
      a0723s, a3257, a3265, cal10a13, cal15366, dra0053, dra0358, f032115414, f042205124, lra02365, tg17c023, tg17c044, 06e903016g, 06e903016k, 06e903016m, 06e903016mx, 8el015637051, 11162n, 11162r, 284871, 437528, 439536, 439554, 553122ri, 2542798, 12090219, 32437528, 0121715022, 0121715122

    • Passar modeller
      Audi Model: A6 Model series: A6 Model type: Allroad Quattro Type of engine: FSi Size of motor: 3.2 Brand of engine: AUK Type description: 4FH Body: Estate From date: 01-05-2006 To date: 01-10-2008 Fuel: Gasoline Approved: Yes
      Audi Model: A6 Model series: A6 Model type: Quattro Size of motor: 2.4 Brand of engine: BDW From date: 01-01-2005 To date: 01-10-2008 Fuel: Gasoline Approved: Yes
      Audi Model: A6 Model series: A6 Model type: Quattro Size of motor: 2.4 Brand of engine: BDW Type description: 4F5 Body: Estate From date: 01-03-2005 To date: 01-10-2008 Fuel: Gasoline Approved: Yes Manufacture type: AVANT
      Audi Model: A6 Model series: A6 Model type: Quattro Type of engine: FSi Size of motor: 3.2 Brand of engine: AUK Type description: 4F2 From date: 01-05-2004 To date: 01-10-2008 Fuel: Gasoline Approved: Yes
      Audi Model: A6 Model series: A6 Model type: Quattro Type of engine: FSi Size of motor: 3.2 Brand of engine: AUK Type description: 4F5 Body: Estate From date: 01-03-2005 To date: 01-10-2008 Fuel: Gasoline Approved: Yes Manufacture type: AVANT
      Audi Model: A6 Model series: A6 Model type: Quattro Type of engine: FSi Size of motor: 3.2 Brand of engine: BKH Type description: 4F2 From date: 01-05-2004 To date: 01-10-2008 Fuel: Gasoline Approved: Yes
      Audi Model: A6 Model series: A6 Model type: Quattro Type of engine: FSi Size of motor: 3.2 Brand of engine: BYU Type description: 4F2 From date: 01-09-2006 To date: 01-10-2008 Fuel: Gasoline Approved: Yes
      Audi Model: A6 Model series: A6 Size of motor: 2.4 Brand of engine: BDW Type description: 4F2 From date: 01-05-2004 To date: 01-10-2008 Fuel: Gasoline Approved: Yes
      Audi Model: A6 Model series: A6 Size of motor: 2.4 Brand of engine: BDW Type description: 4F5 Body: Estate From date: 01-03-2005 To date: 01-10-2008 Fuel: Gasoline Approved: Yes Manufacture type: AVANT
      Audi Model: A6 Model series: A6 Type of engine: FSi Size of motor: 3.2 Brand of engine: AUK Type description: 4F2 From date: 01-05-2004 To date: 01-05-2009 Fuel: Gasoline Approved: Yes
      Audi Model: A6 Model series: A6 Type of engine: FSi Size of motor: 3.2 Brand of engine: AUK Type description: 4F5 Body: Estate From date: 01-03-2005 To date: 01-10-2008 Fuel: Gasoline Approved: Yes Manufacture type: AVANT
      Audi Model: A6 Model series: A6 Type of engine: FSi Size of motor: 3.2 Brand of engine: BKH Type description: 4F2 From date: 01-05-2004 To date: 01-05-2009 Fuel: Gasoline Approved: Yes
