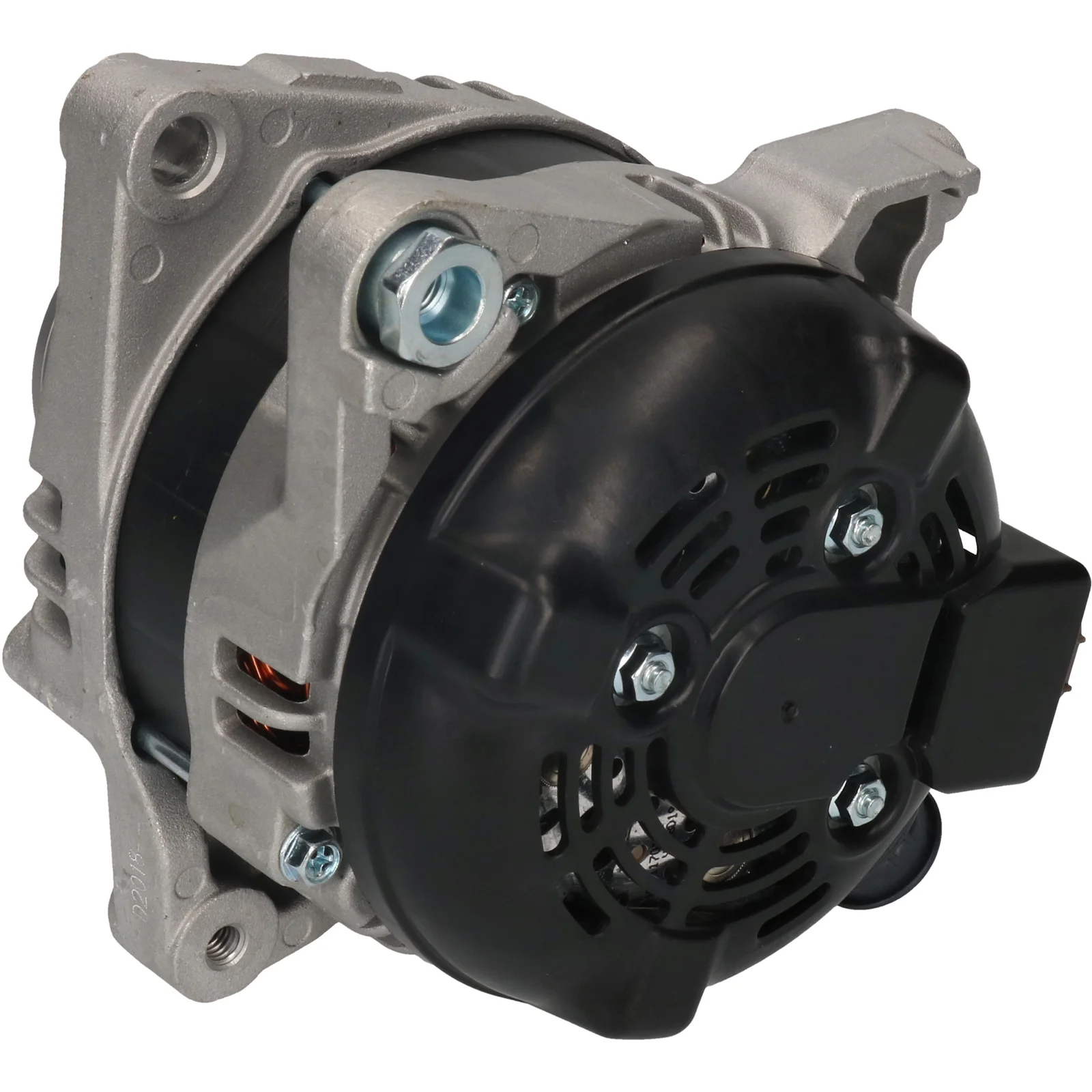

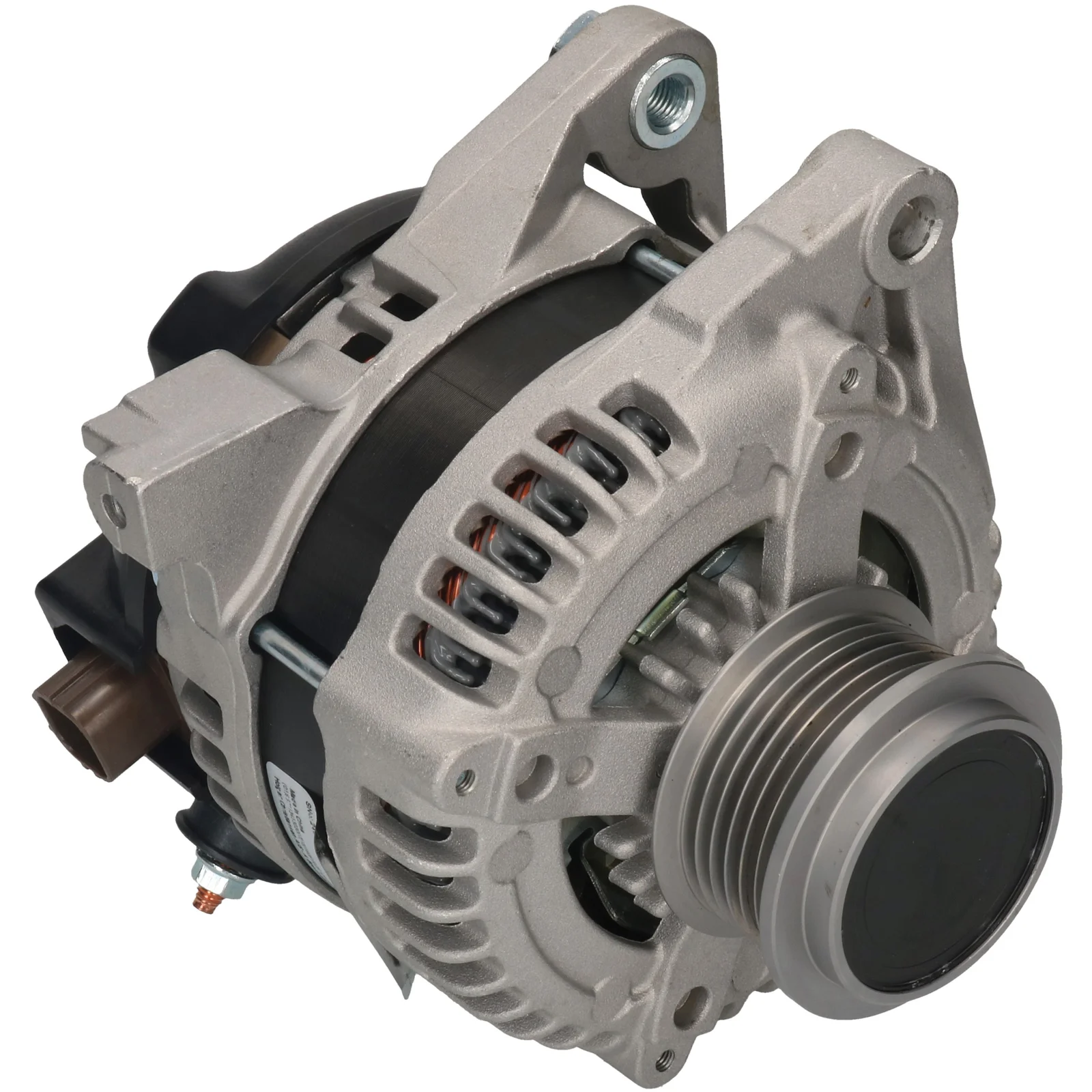

HC-Cargo Generator
HC-Cargo Generator
Artikelnr: F032115657

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 100, Rotation: CW, Mount. bracket dist.: 42.50

Beskrivning

Gen.12V-100A passar Toyota 12V - 100A, 6gr.frg, (IG, RLO, L, M) Yaris 1.4D-4D 11.2008-> Auris 1.4D-4D 02.2009-> För Yourex produkt order 90-555-3310

Voltage: 14
Amp: 100
Pulley dist.: 47.00
Width/holder arm: 20.00
Mount. bracket dist.: 42.50
Bracket hole: 11.00
Belt. adj. brackethole pos.: 48
Belt. adj. bracket hole 1: M8
Pulley dia.: 58.00
Grooves/pulley: 6
Radius: 88.00
Radius 2: 82.00
B+: M6
Position/B+ in min.: 59
D+ Size: Plug
Rotation: CW
Plug no.: PL146
Total length mm: 169.50
Pulley: SP/FW
Regulator type: IR
Prod. info: BN

Filer

Specifikation

B+ M6
Mount. bracket dist. 42.50
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 48
Plug no. PL146
Bracket hole 11.00
Position/B+ in min. 59
Prod. info BN
Pulley SP/FW
Pulley dia. 58.00
Pulley dist. 47.00
Radius 88.00
D+ Size Plug
Radius 2 82.00
Regulator type IR
Rotation CW
Grooves/pulley 6
Voltage 14
Total length 169.50 mm
Width/holder arm 20.00
Amp 100

  • OEM
    DAN 1018, F032115657, 1986A01303, 2097ir, 27060-0N040, 27060-0N050, 27060-33100, 104210-2320, 104210-2520, 104210-2522, 104210-2530, 115657

  • Konkurrentreferens
    A6065, A6065(DENSO), CAL40337, DAN1018, DRA1286, LRA03633, MAN7539, 8EL011712-931, 28-6773, 195.936.100, 195.936.120, 235.347.1002, 20538R, 113258, 210979, 210979A, 440853, 440892, 443067, 12060921, 0986082450, 063377539010

  • Bilmärken
    Toyota

  • Normaliserat artikelnummer
    a6065, a6065denso, cal40337, dan1018, dra1286, f032115657, lra03633, man7539, 8el011712931, 1986a01303, 2097ir, 20538r, 113258, 115657, 210979, 210979a, 270600n040, 270600n050, 286773, 440853, 440892, 443067, 12060921, 195936100, 195936120, 0986082450, 1042102320, 1042102520, 1042102522, 1042102530, 2353471002, 2706033100, 063377539010

  • Passar modeller
    Toyota Model: Auris Model series: Auris Type of engine: D-4D Size of motor: 1.4 Brand of engine: 1ND-TV Type description: NDE150 Body: Hatchback From date: 01-03-2007 To date: 01-09-2012 Fuel: Diesel Approved: Yes
    Toyota Model: Auris Model series: Auris Type of engine: D-4D Size of motor: 1.4 Brand of engine: 1ND-TV Type description: _E15_ Body: Box From date: 01-03-2007 To date: 01-09-2012 Fuel: Diesel Approved: Yes
    Toyota Model: Urban Cruiser Model series: Urban Cruiser Model type: 4x4 Type of engine: D-4D Size of motor: 1.4 Brand of engine: 1ND-TV Type description: NLP110/115 Body: Hatchback From date: 01-01-2009 To date: 01-04-2014 Fuel: Diesel Approved: Yes
    Toyota Model: Urban Cruiser Model series: Urban Cruiser Type of engine: D-4D Size of motor: 1.4 Brand of engine: 1ND-TV Type description: NLP110/115 Body: Hatchback From date: 01-01-2009 To date: 01-04-2014 Fuel: Diesel Approved: Yes
    Toyota Model: Yaris Model series: Yaris Type of engine: D-4D Size of motor: 1.4 Brand of engine: 1ND-TV Type description: NLP90 Body: Hatchback From date: 01-08-2005 To date: 01-12-2012 Fuel: Diesel Approved: Yes
    Toyota Series: Auris (_E15_) Model: 1.4 D-4D Engine volume: 1.4 Engine type: 1ND-TV Year: 02.09-09.12
    Toyota Series: Corolla (_E15_) Model: 1.4 D-4D Engine volume: 1.4 Engine type: 1ND-TV Year: 02.09-05.13
    Toyota Series: Urban Cruiser Model: 1.4 D-4D 4x4 Engine volume: 1.4 Engine type: 1ND-TV Year: 04.09-
    Toyota Series: Urban Cruiser Model: 1.4 D-4D Engine volume: 1.4 Engine type: 1ND-TV Year: 04.09-
    Toyota Series: Yaris (_P9_) Model: 1.4 D-4D Engine volume: 1.4 Engine type: 1ND-TV Year: 11.08-06.11
