Artikelnr: F032114750

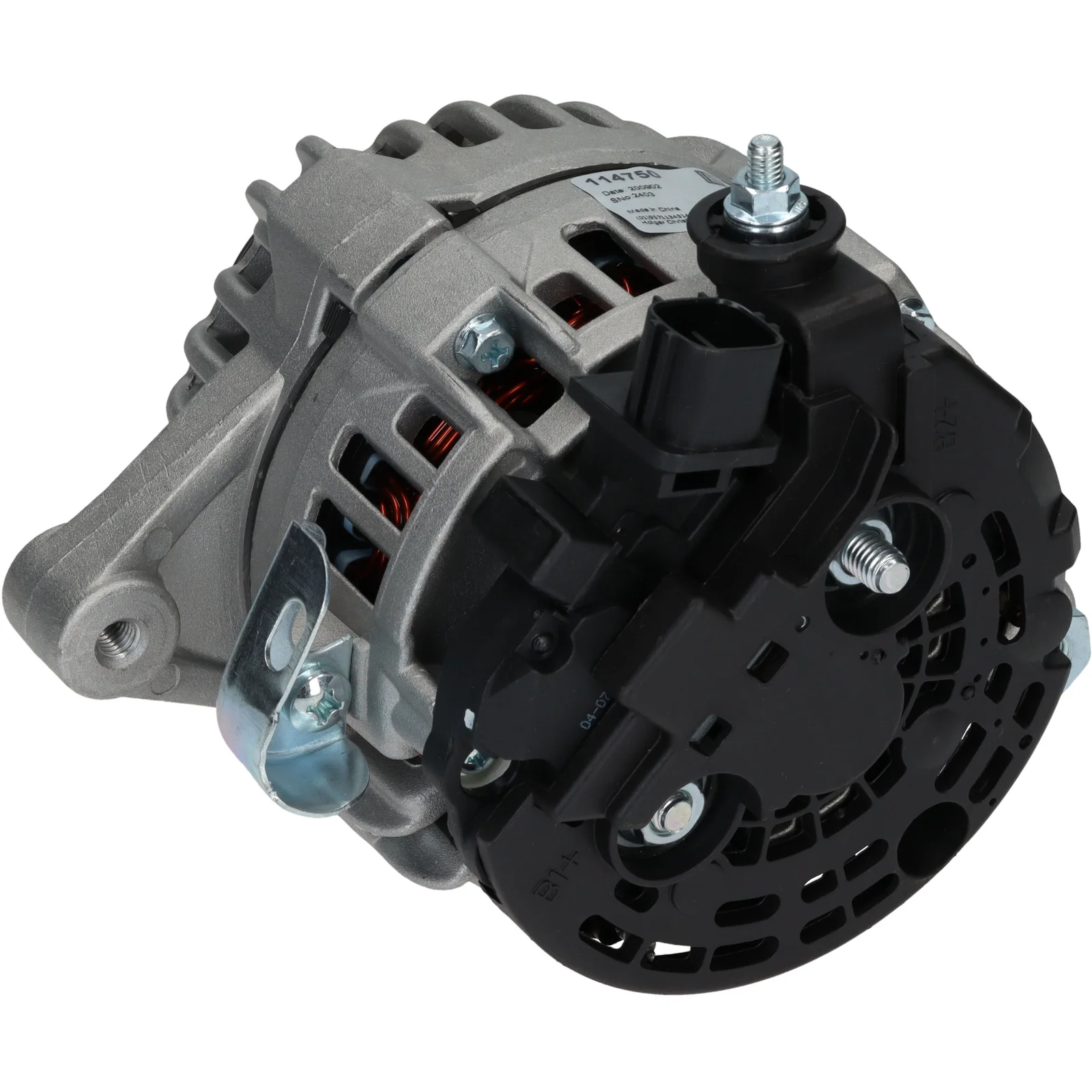

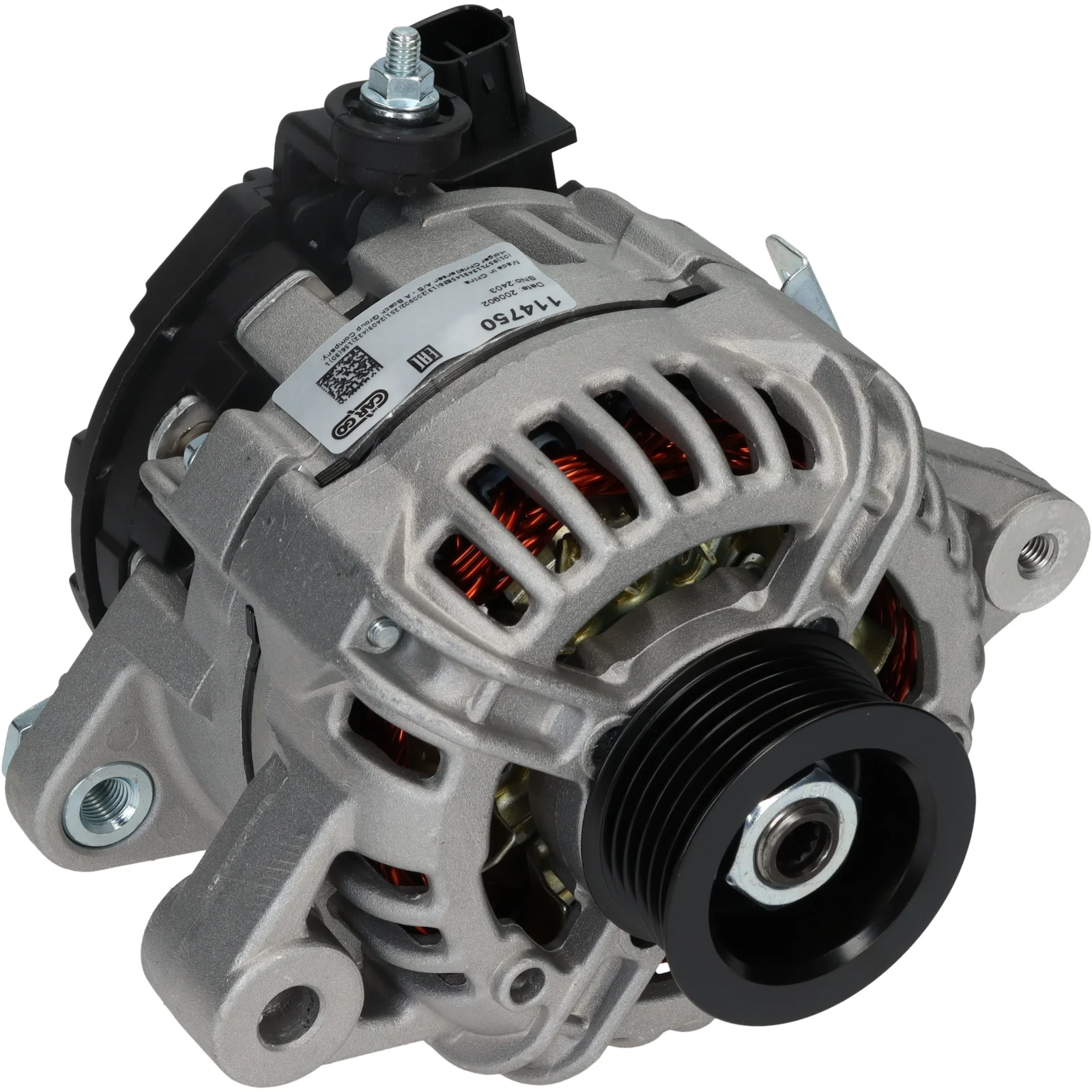

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 80, Rotation: CW, Mount. bracket dist.: 39.00

Beskrivning

Voltage: 14
Amp: 80
Pulley dist.: 48.00
Width/holder arm: 27.00
Mount. bracket dist.: 39.00
Bracket hole: 10.50
Belt. adj. brackethole pos.: 3
Belt. adj. bracket hole 1: M8
Pulley dia.: 54.80
Grooves/pulley: 6
Radius: 80.00
Radius 2: 90.00
B+: M6
Position/B+ in min.: 12
D+ Size: Plug
Rotation: CW
Plug no.: PL78
Total length mm: 170.00
Pulley: SP
Fan: IF

Specifikation

B+ M6
Mount. bracket dist. 39.00
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 3
Plug no. PL78
Bracket hole 10.50
Position/B+ in min. 12
Pulley SP
Pulley dia. 54.80
Pulley dist. 48.00
Radius 80.00
D+ Size Plug
Radius 2 90.00
Rotation CW
Fan IF
Grooves/pulley 6
Voltage 14
Total length 170.00 mm
Width/holder arm 27.00
Amp 80
  • OEM

    F032114750, 1929ir, 1986A01670, 27060-0j051, 0124225054
  • Konkurrentreferens

    A0329PR, A6302, CAL10404, DRA0621, LRA03187, 28-5799, 195.929.080, 235.326.802, 20356R, 113245, 210941, 210941A, 440847, 9090849, 12060907, 0986080450
  • Normaliserat artikelnummer

    a0329pr, a6302, cal10404, dra0621, f032114750, lra03187, 1929ir, 1986a01670, 20356r, 113245, 210941, 210941a, 270600j051, 285799, 440847, 9090849, 12060907, 0124225054, 195929080, 235326802, 0986080450
  • Passar modeller

    Toyota Model: Yaris Model series: Yaris Type of engine: VVTi Size of motor: 1.3 Brand of engine: 2SZ-FE Body: Hatchback From date: 01-08-2005 To date: 01-11-2010 Fuel: Gasoline Approved: Yes
  • Beskrivning
    Voltage: 14
    Amp: 80
    Pulley dist.: 48.00
    Width/holder arm: 27.00
    Mount. bracket dist.: 39.00
    Bracket hole: 10.50
    Belt. adj. brackethole pos.: 3
    Belt. adj. bracket hole 1: M8
    Pulley dia.: 54.80
    Grooves/pulley: 6
    Radius: 80.00
    Radius 2: 90.00
    B+: M6
    Position/B+ in min.: 12
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL78
    Total length mm: 170.00
    Pulley: SP
    Fan: IF
  • Specifikation
    B+ M6
    Mount. bracket dist. 39.00
    Belt. adj. bracket hole 1 M8
    Belt. adj. brackethole pos. 3
    Plug no. PL78
    Bracket hole 10.50
    Position/B+ in min. 12
    Pulley SP
    Pulley dia. 54.80
    Pulley dist. 48.00
    Radius 80.00
    D+ Size Plug
    Radius 2 90.00
    Rotation CW
    Fan IF
    Grooves/pulley 6
    Voltage 14
    Total length 170.00 mm
    Width/holder arm 27.00
    Amp 80
  • Fordonsmatchning
    • OEM

      F032114750, 1929ir, 1986A01670, 27060-0j051, 0124225054
    • Konkurrentreferens

      A0329PR, A6302, CAL10404, DRA0621, LRA03187, 28-5799, 195.929.080, 235.326.802, 20356R, 113245, 210941, 210941A, 440847, 9090849, 12060907, 0986080450
    • Normaliserat artikelnummer

      a0329pr, a6302, cal10404, dra0621, f032114750, lra03187, 1929ir, 1986a01670, 20356r, 113245, 210941, 210941a, 270600j051, 285799, 440847, 9090849, 12060907, 0124225054, 195929080, 235326802, 0986080450
    • Passar modeller

      Toyota Model: Yaris Model series: Yaris Type of engine: VVTi Size of motor: 1.3 Brand of engine: 2SZ-FE Body: Hatchback From date: 01-08-2005 To date: 01-11-2010 Fuel: Gasoline Approved: Yes
