Artikelnr: F032113235

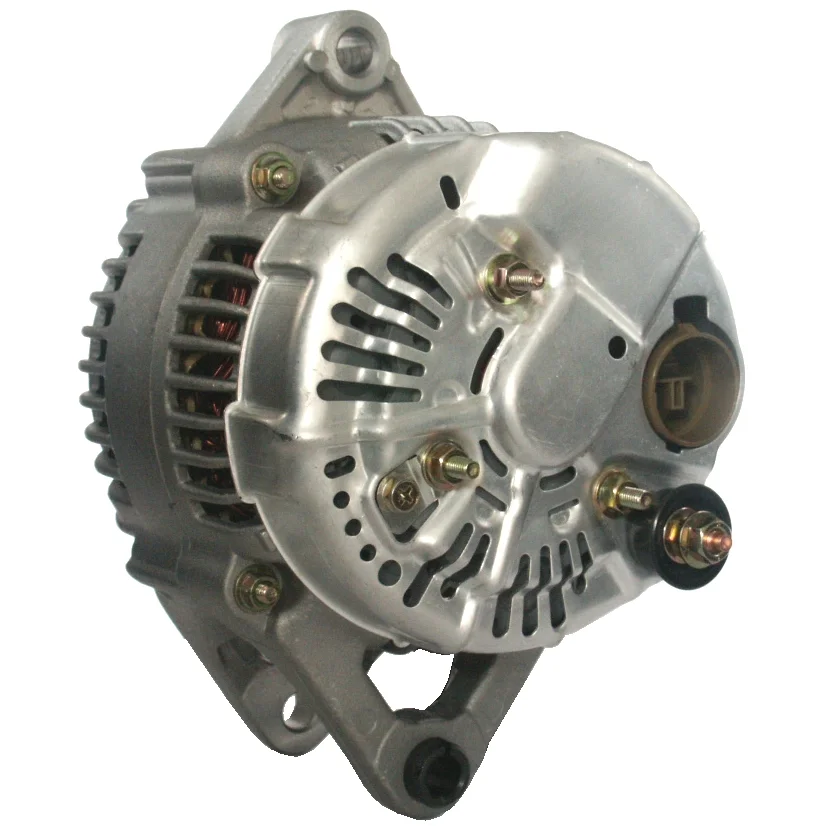

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 130, Rotation: CW, Mount. bracket dist.: 54.00

Beskrivning

Voltage: 14
Amp: 130
Pulley dist.: 35.00
Width/holder arm: 12.00
Mount. bracket dist.: 54.00
Bracket hole: 10.50
Belt. adj. brackethole pos.: 60
Belt. adj. bracket hole 1: 11.40
Pulley dia.: 64.50
Grooves/pulley: 6
Radius: 96.00
Radius 2: 87.00
B+: M6
Position/B+ in min.: 20
Rotation: CW
Plug no.: PL93
Total length mm: 191.00
Pulley: SP
Prod. info: BN
Servicing: Chrysler

Specifikation

B+ M6
Mount. bracket dist. 54.00
Belt. adj. bracket hole 1 11.40
Belt. adj. brackethole pos. 60
Plug no. PL93
Bracket hole 10.50
Position/B+ in min. 20
Prod. info BN
Pulley SP
Pulley dia. 64.50
Pulley dist. 35.00
Radius 96.00
Radius 2 87.00
Rotation CW
Servicing Chrysler
Grooves/pulley 6
Voltage 14
Total length 191.00 mm
Width/holder arm 12.00
Amp 130
  • OEM

    F032113235, ja1707, 121000-4160, 121000-4161, 121000-4320, 121000-4330, 121000-4331, 121000-4332, 4686099, 4727221, 04727325, 4727325, 4727325AA, 4727329, 4727329a, 4727329aa, 5104775AA, 38522264F
  • Konkurrentreferens

    a1699n, al6525x, ALT-6208, ALT6208, and0122, and0126, az-0042r, az-0052r, CAL40212, CAL40213, CAL40260, da13594, DRZ0199, F042302149, F042A02149, LRA01147, 1-2075-01nd, 1-2228-01nd, 1-2228-01ND-2, 27-3895, 27-5935, 29-2198, 90-29-5191, 534.012.1202, 534.053.1202, 13468, 13594, 13594N, 13594R, 13765, 13765N, 13765R, 21540, 111185, 111199, 401707, 12090354, 0986081200
  • Normaliserat artikelnummer

    a1699n, al6525x, alt6208, and0122, and0126, az0042r, az0052r, cal40212, cal40213, cal40260, da13594, drz0199, f032113235, f042302149, f042a02149, ja1707, lra01147, 13468, 13594, 13594n, 13594r, 13765, 13765n, 13765r, 21540, 111185, 111199, 273895, 275935, 292198, 401707, 1207501nd, 1222801nd, 1222801nd2, 4686099, 4727221, 04727325, 4727325, 4727325aa, 4727329, 4727329a, 4727329aa, 5104775aa, 12090354, 38522264f, 90295191, 0986081200, 1210004160, 1210004161, 1210004320, 1210004330, 1210004331, 1210004332, 5340121202, 5340531202
  • Passar modeller

    Chrysler Model: Caravan Model series: Caravan Size of motor: 2.4 Brand of engine: EDZ Body: MPV From date: 01-01-1995 To date: 01-08-2000 Fuel: Petrol Approved: Yes
    Chrysler Model: Grand Voyager Model series: Grand Voyager Size of motor: 2.4 Brand of engine: EDZ Type description: GS Body: Van From date: 01-01-1998 To date: 01-12-2001 Fuel: Petrol Approved: Yes
    Chrysler Model: Grand Voyager Model series: Grand Voyager Size of motor: 3.3 Brand of engine: EGA Type description: GS Body: Van From date: 01-01-1995 To date: 01-03-2001 Fuel: Petrol Approved: Yes
    Chrysler Model: Grand Voyager Model series: Grand Voyager Size of motor: 3.8 Brand of engine: EGH Type description: GS Body: Van From date: 01-01-1999 To date: 01-12-1999 Fuel: Petrol Approved: Yes
    Chrysler Model: Voyager / Grand Voyager Iii Model series: Voyager / Grand Voyager Iii Size of motor: 3.3 Brand of engine: EGA Type description: GS_, NS_ Body: MPV Fuel: Petrol Approved: Yes
    Chrysler Model: Voyager Model series: Voyager Model type: 4x4 Size of motor: 3.8 Brand of engine: EGH Type description: GS_ Body: Van From date: 01-10-1995 To date: 01-09-1997 Fuel: Petrol Approved: Yes
    Chrysler Model: Voyager Model series: Voyager Model type: 4x4 Size of motor: 3.8 Brand of engine: EGH Type description: GS_ Body: Van From date: 01-10-1997 To date: 01-03-2001 Fuel: Petrol Approved: Yes
    Chrysler Model: Voyager Model series: Voyager Model type: AWD Type of engine: i Size of motor: 3.8 Brand of engine: EGH Body: MPV From date: 01-01-1995 To date: 01-03-2001 Fuel: Gasoline Approved: Yes
    Chrysler Model: Voyager Model series: Voyager Model type: AWD Type of engine: i Size of motor: 3.8 Brand of engine: L00 Body: MPV From date: 01-01-1995 To date: 01-03-2001 Fuel: Gasoline Approved: Yes
    Chrysler Model: Voyager Model series: Voyager Size of motor: 2.4 Brand of engine: EDZ Type description: GS_ Body: Van From date: 01-01-1995 To date: 01-03-2001 Fuel: Petrol Approved: Yes
    Chrysler Model: Voyager Model series: Voyager Size of motor: 3.0 Brand of engine: EFA Type description: GS Body: MPV From date: 01-01-1995 To date: 01-03-2001 Fuel: Gasoline Approved: Yes
    Chrysler Model: Voyager Model series: Voyager Size of motor: 3.0 Brand of engine: EFA Type description: RG, RS Body: MPV From date: 01-09-1999 To date: 01-12-2000 Fuel: Petrol Approved: Yes
    Chrysler Model: Voyager Model series: Voyager Size of motor: 3.3 Brand of engine: EGA Type description: GS_ Body: Van From date: 01-01-1995 To date: 01-03-2001 Fuel: Petrol Approved: Yes
    Chrysler Model: Voyager Model series: Voyager Size of motor: 3.8 Brand of engine: EGH Type description: ES Body: MPV From date: 01-09-1993 To date: 01-12-1994 Fuel: Petrol Approved: Yes
    Chrysler Model: Voyager Model series: Voyager Type of engine: i Size of motor: 2.4 Brand of engine: B00 Body: MPV From date: 01-01-1995 To date: 01-03-2001 Fuel: Gasoline Approved: Yes
    Chrysler Model: Voyager Model series: Voyager Type of engine: i Size of motor: 3.3 Brand of engine: R00 Body: MPV From date: 01-01-1995 To date: 01-03-2001 Fuel: Gasoline Approved: Yes
    Dodge Model: Caravan Model series: Caravan Model type: 4WD Type of engine: i Size of motor: 3.8 Brand of engine: EGH Body: MPV From date: 01-01-1995 To date: 01-03-2001 Fuel: Gasoline Approved: Yes
    Dodge Model: Caravan Model series: Caravan Size of motor: 3.0 Brand of engine: EFA Body: MPV From date: 01-01-1995 To date: 01-06-2000 Fuel: Gasoline Approved: Yes
    Dodge Model: Caravan Model series: Caravan Type of engine: i Size of motor: 3.3 Brand of engine: EGP Body: MPV From date: 01-01-1995 To date: 01-03-2001 Fuel: Gasoline Approved: Yes
    Dodge Model: Caravan Model series: Caravan Type of engine: i Size of motor: 3.8 Brand of engine: EGH Body: MPV From date: 01-01-1995 To date: 01-03-2001 Fuel: Gasoline Approved: Yes
    Dodge Model: Caravan Van Model series: Caravan Van Size of motor: 3.8 Brand of engine: EGH Type description: NS Body: Box Body/MPV Fuel: Petrol Approved: Yes
    Dodge Model: Grand Caravan Mini Passenger Van Model series: Grand Caravan Mini Passenger Van Model type: AWD Size of motor: 3.3 Brand of engine: EGM Body: MPV Fuel: Petrol Approved: Yes
    Dodge Model: Grand Caravan Mini Passenger Van Model series: Grand Caravan Mini Passenger Van Model type: AWD Size of motor: 3.8 Brand of engine: EGH Body: MPV Fuel: Petrol Approved: Yes
    Dodge Model: Grand Caravan Mini Passenger Van Model series: Grand Caravan Mini Passenger Van Size of motor: 3.0 Brand of engine: EFA Body: MPV Fuel: Petrol Approved: Yes
    Dodge Model: Grand Caravan Mini Passenger Van Model series: Grand Caravan Mini Passenger Van Size of motor: 3.3 Brand of engine: EGM Body: MPV Fuel: Petrol Approved: Yes
