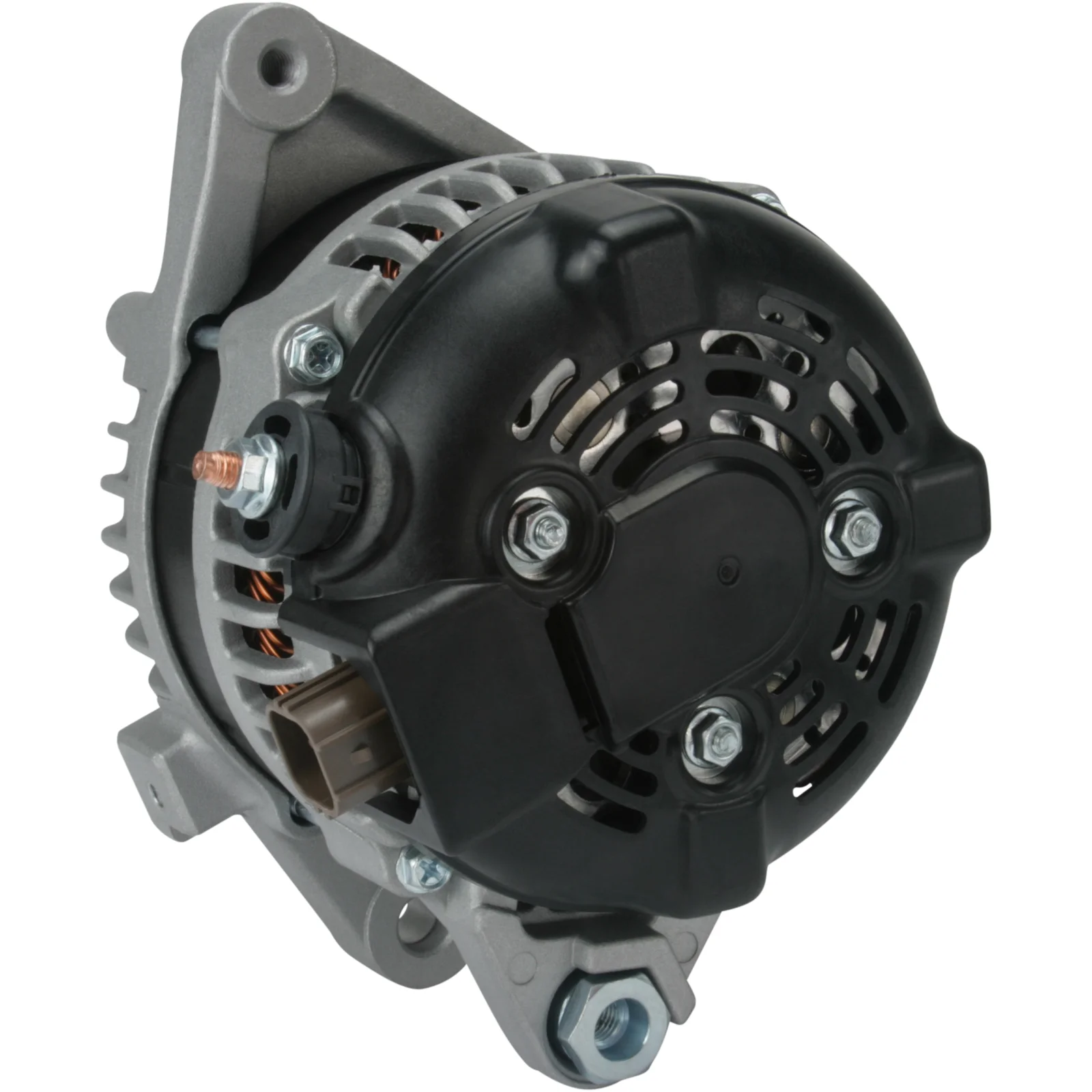

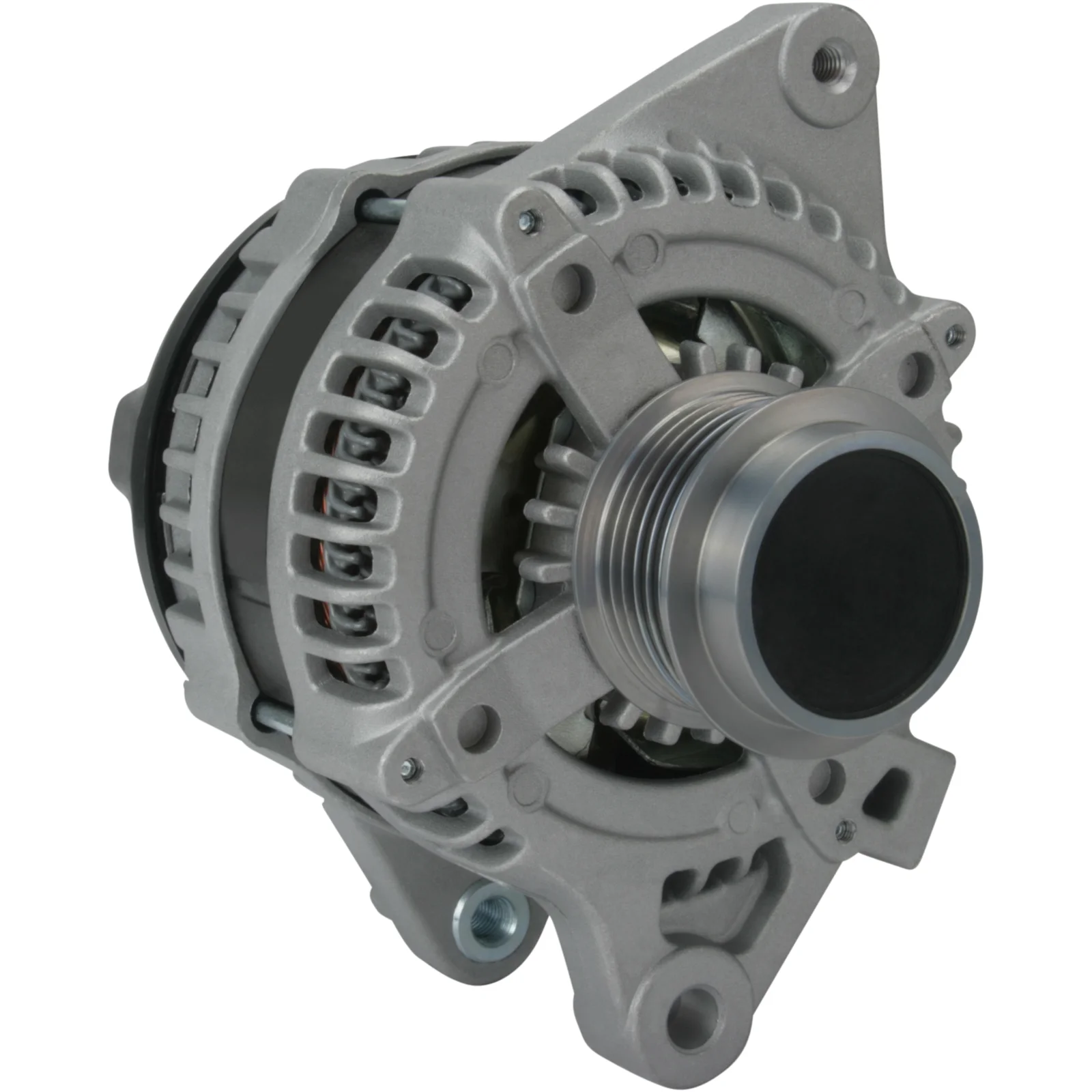

HC-Cargo Generator
HC-Cargo Generator
Artikelnr: F032115863

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 100, Rotation: CW, Mount. bracket dist.: 51.00

Beskrivning

Toyota Auris Gen. 12V-100A 12V - 100A, 6gr frg (IG-S-L-M) 6gr frg (IG-S-L-M) För Yourex produkt order 90-555-5350

Voltage: 14
Amp: 100
Pulley dist.: 33.00
Width/holder arm: 20.00
Mount. bracket dist.: 51.00
Bracket hole: 11.00
Belt. adj. brackethole pos.: 5
Belt. adj. bracket hole 1: M8
Pulley dia.: 55.00
Grooves/pulley: 6
Radius: 86.00
Radius 2: 93.00
B+: M6
Position/B+ in min.: 48
Rotation: CW
Plug no.: PL78
Total length mm: 175.00
Pulley: SP/FW
Fan: IF
Regulator type: IR
Prod. info: BN

Filer

Specifikation

B+ M6
Mount. bracket dist. 51.00
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 5
Plug no. PL78
Bracket hole 11.00
Position/B+ in min. 48
Prod. info BN
Pulley SP/FW
Pulley dia. 55.00
Pulley dist. 33.00
Radius 86.00
Radius 2 93.00
Regulator type IR
Rotation CW
Fan IF
Grooves/pulley 6
Voltage 14
Total length 175.00 mm
Width/holder arm 20.00
Amp 100

  • OEM
    F032115863, 1986A01322, 1986A01620, 2027ir, 27060-0T020, 27060-0t020, 27060-0T021, 27060-0T060, 27060-0T061, 27060-37010, 27060-37011, 27060-37090, 104210-5290, 104210-5291, 104210-5292, 104210-5350, 104210-5351, 104210-5352, 104210-5580, 104210-8480, 115863

  • Konkurrentreferens
    A6073, A6073(DENSO), A6168, CAL40279, CAL40292, DAN1019, DAN967, DRA0638, 8EL011712-571, 28-6651, 195.532.100, 195.932.100, 195.937.100, 195.949.100, 235.332.1002, 20395R, 210766, 210766A, 302027RI, 440863, 443151, 9090833, 12061000, 0986082090

  • Bilmärken
    Toyota

  • Normaliserat artikelnummer
    a6073, a6073denso, a6168, cal40279, cal40292, dan1019, dan967, dra0638, f032115863, 8el011712571, 1986a01322, 1986a01620, 2027ir, 20395r, 115863, 210766, 210766a, 270600t020, 270600t021, 270600t060, 270600t061, 286651, 302027ri, 440863, 443151, 9090833, 12061000, 195532100, 195932100, 195937100, 195949100, 0986082090, 1042105290, 1042105291, 1042105292, 1042105350, 1042105351, 1042105352, 1042105580, 1042108480, 2353321002, 2706037010, 2706037011, 2706037090

  • Passar modeller
    Toyota Model: Auris Model series: Auris Type of engine: VVTi Size of motor: 1.6 Brand of engine: 1ZR-FE Type description: ZRE51 Body: Hatchback From date: 01-03-2007 To date: 01-09-2012 Fuel: Gasoline Approved: Yes
    Toyota Model: Corolla Model series: Corolla Type of engine: Dual VVTi Size of motor: 1.6 Brand of engine: 1ZR-FE Type description: ZRE151R From date: 01-01-2007 To date: 01-07-2014 Fuel: Gasoline Approved: Yes
    Toyota Model: Yaris Model series: Yaris Type of engine: VVTi Size of motor: 1.3 Brand of engine: 2SZ-FE Body: Hatchback From date: 01-08-2005 To date: 01-11-2010 Fuel: Gasoline Approved: Yes
    Toyota Model: Yaris Model series: Yaris Type of engine: VVTi Size of motor: 1.8 Brand of engine: 2ZR-FE Body: Hatchback From date: 01-01-2007 To date: 01-12-2011 Fuel: Gasoline Approved: Yes
    Toyota Series: Auris (_E15_) Model: 1.6 VVT-i Engine volume: 1.6 Engine type: 1ZR-FE Year: 03.07-07.12
    Toyota Series: Corolla (_E15_) Model: 1.6 Dual VVTi Engine volume: 1.6 Engine type: 1ZR-FE Year: 01.07-03.13
    Toyota Series: Yaris (_P9_) Model: 1.3 VVT -i Engine volume: 1.3 Engine type: 2SZ-FE Year: 01.06-
    Toyota Series: Yaris (_P9_) Model: 1.8 VVTi Engine volume: 1.8 Engine type: 2ZR-FE Year: 01.07-05.10
    1 / 2
  • Beskrivning
    Toyota Auris Gen. 12V-100A 12V - 100A, 6gr frg (IG-S-L-M) 6gr frg (IG-S-L-M) För Yourex produkt order 90-555-5350

    Voltage: 14
    Amp: 100
    Pulley dist.: 33.00
    Width/holder arm: 20.00
    Mount. bracket dist.: 51.00
    Bracket hole: 11.00
    Belt. adj. brackethole pos.: 5
    Belt. adj. bracket hole 1: M8
    Pulley dia.: 55.00
    Grooves/pulley: 6
    Radius: 86.00
    Radius 2: 93.00
    B+: M6
    Position/B+ in min.: 48
    Rotation: CW
    Plug no.: PL78
    Total length mm: 175.00
    Pulley: SP/FW
    Fan: IF
    Regulator type: IR
    Prod. info: BN

    Filer

  • Specifikation
    B+ M6
    Mount. bracket dist. 51.00
    Belt. adj. bracket hole 1 M8
    Belt. adj. brackethole pos. 5
    Plug no. PL78
    Bracket hole 11.00
    Position/B+ in min. 48
    Prod. info BN
    Pulley SP/FW
    Pulley dia. 55.00
    Pulley dist. 33.00
    Radius 86.00
    Radius 2 93.00
    Regulator type IR
    Rotation CW
    Fan IF
    Grooves/pulley 6
    Voltage 14
    Total length 175.00 mm
    Width/holder arm 20.00
    Amp 100
  • Fordonsmatchning

    • OEM
      F032115863, 1986A01322, 1986A01620, 2027ir, 27060-0T020, 27060-0t020, 27060-0T021, 27060-0T060, 27060-0T061, 27060-37010, 27060-37011, 27060-37090, 104210-5290, 104210-5291, 104210-5292, 104210-5350, 104210-5351, 104210-5352, 104210-5580, 104210-8480, 115863

    • Konkurrentreferens
      A6073, A6073(DENSO), A6168, CAL40279, CAL40292, DAN1019, DAN967, DRA0638, 8EL011712-571, 28-6651, 195.532.100, 195.932.100, 195.937.100, 195.949.100, 235.332.1002, 20395R, 210766, 210766A, 302027RI, 440863, 443151, 9090833, 12061000, 0986082090

    • Bilmärken
      Toyota

    • Normaliserat artikelnummer
      a6073, a6073denso, a6168, cal40279, cal40292, dan1019, dan967, dra0638, f032115863, 8el011712571, 1986a01322, 1986a01620, 2027ir, 20395r, 115863, 210766, 210766a, 270600t020, 270600t021, 270600t060, 270600t061, 286651, 302027ri, 440863, 443151, 9090833, 12061000, 195532100, 195932100, 195937100, 195949100, 0986082090, 1042105290, 1042105291, 1042105292, 1042105350, 1042105351, 1042105352, 1042105580, 1042108480, 2353321002, 2706037010, 2706037011, 2706037090

    • Passar modeller
      Toyota Model: Auris Model series: Auris Type of engine: VVTi Size of motor: 1.6 Brand of engine: 1ZR-FE Type description: ZRE51 Body: Hatchback From date: 01-03-2007 To date: 01-09-2012 Fuel: Gasoline Approved: Yes
      Toyota Model: Corolla Model series: Corolla Type of engine: Dual VVTi Size of motor: 1.6 Brand of engine: 1ZR-FE Type description: ZRE151R From date: 01-01-2007 To date: 01-07-2014 Fuel: Gasoline Approved: Yes
      Toyota Model: Yaris Model series: Yaris Type of engine: VVTi Size of motor: 1.3 Brand of engine: 2SZ-FE Body: Hatchback From date: 01-08-2005 To date: 01-11-2010 Fuel: Gasoline Approved: Yes
      Toyota Model: Yaris Model series: Yaris Type of engine: VVTi Size of motor: 1.8 Brand of engine: 2ZR-FE Body: Hatchback From date: 01-01-2007 To date: 01-12-2011 Fuel: Gasoline Approved: Yes
      Toyota Series: Auris (_E15_) Model: 1.6 VVT-i Engine volume: 1.6 Engine type: 1ZR-FE Year: 03.07-07.12
      Toyota Series: Corolla (_E15_) Model: 1.6 Dual VVTi Engine volume: 1.6 Engine type: 1ZR-FE Year: 01.07-03.13
      Toyota Series: Yaris (_P9_) Model: 1.3 VVT -i Engine volume: 1.3 Engine type: 2SZ-FE Year: 01.06-
      Toyota Series: Yaris (_P9_) Model: 1.8 VVTi Engine volume: 1.8 Engine type: 2ZR-FE Year: 01.07-05.10
