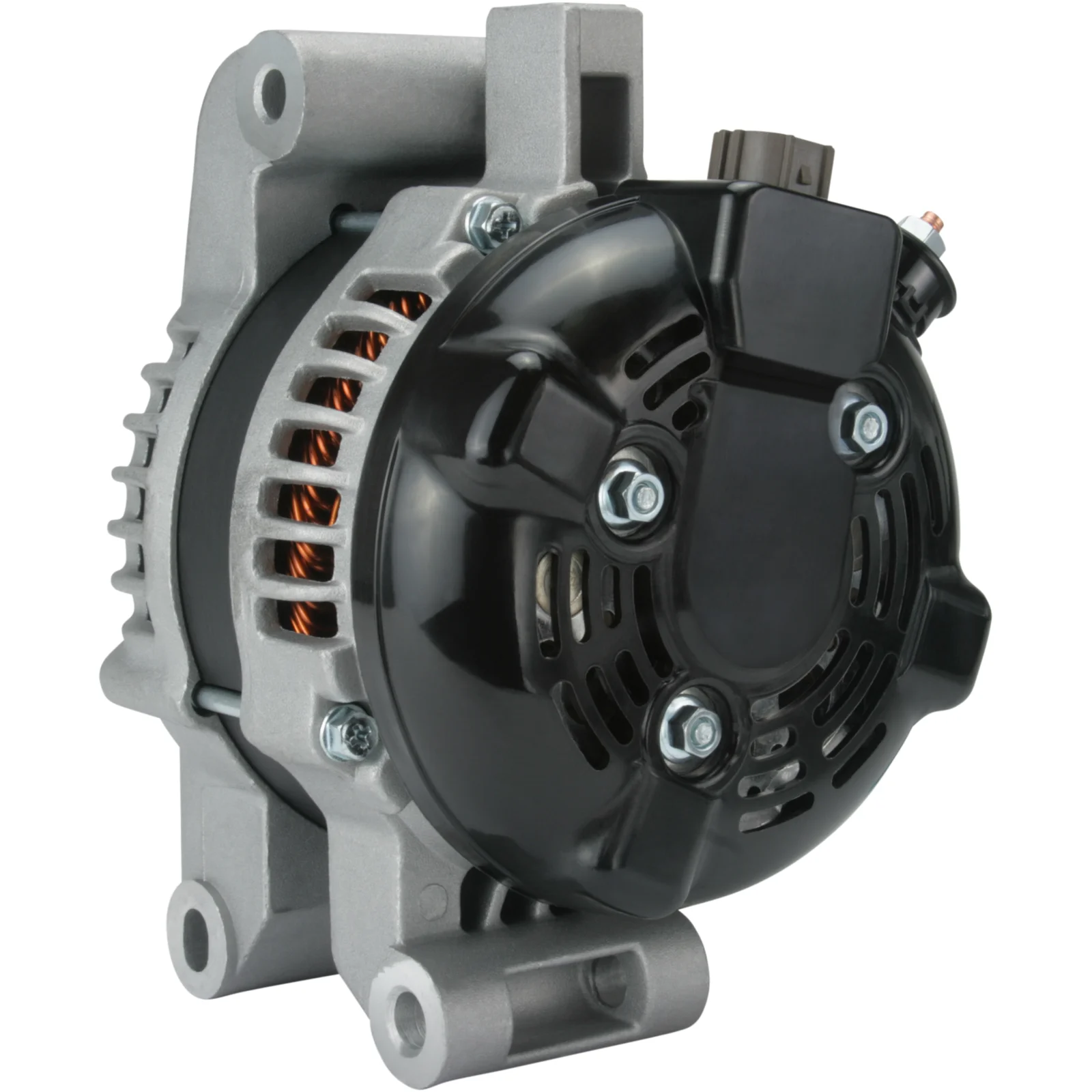

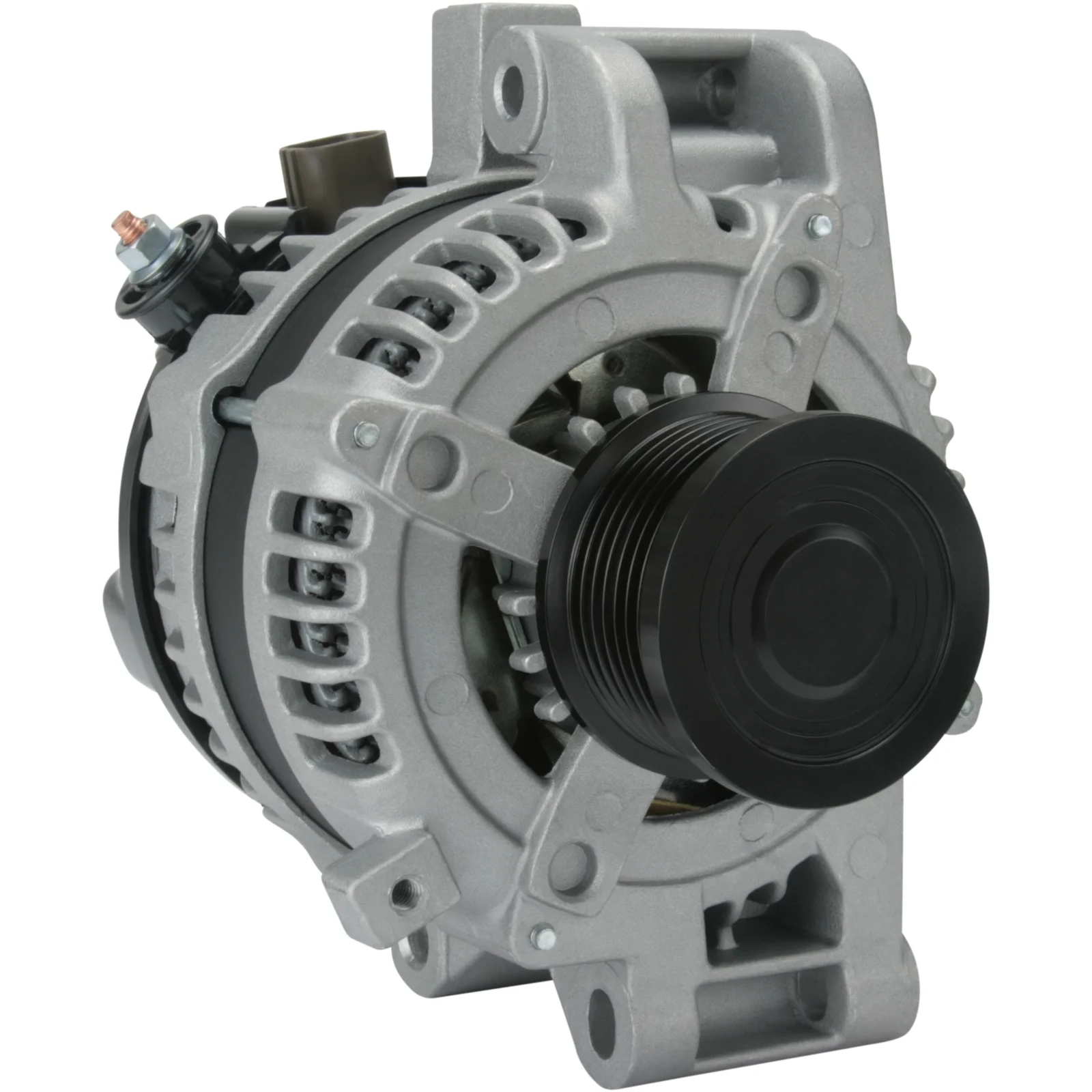

HC-Cargo Generator
HC-Cargo Generator
Artikelnr: F032114390

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 100, Rotation: CW, Mount. bracket dist.: 71.30

Beskrivning

Toyota Diesel Gen. 12V-100A 12V - 100A, 7gr.frg, (IG, RLO, L, M) För Yourex produkt order 90-555-4452

Voltage: 14
Amp: 100
Pulley dist.: 24.50
Width/holder arm: 60.20
Mount. bracket dist.: 71.30
Bracket hole: 9.00x11.80
Belt. adj. brackethole pos.: 60
Belt. adj. bracket hole 1: 8.50
Pulley dia.: 58.00
Grooves/pulley: 7
B+: M6
Position/B+ in min.: 7
D+ Size: Plug
Rotation: CW
Plug no.: PL146
Total length mm: 167.50
Terminal type: RLO
Pulley: SP/FW
Regulator type: IR
Prod. info: BN
Servicing: Toyota

Filer

Specifikation

B+ M6
Mount. bracket dist. 71.30
Belt. adj. bracket hole 1 8.50
Belt. adj. brackethole pos. 60
Plug no. PL146
Bracket hole 9.00x11.80
Position/B+ in min. 7
Prod. info BN
Pulley SP/FW
Pulley dia. 58.00
Pulley dist. 24.50
D+ Size Plug
Regulator type IR
Rotation CW
Servicing Toyota
Grooves/pulley 7
Terminal type RLO
Voltage 14
Total length 167.50 mm
Width/holder arm 60.20
Amp 100

  • OEM
    A6052, A6052(DENSO), A6052PR, CAL40257, CAL40435, DAN 938, DAN1317, DAN938, DRA0152, DRA1528, F032114390, LRA02947, 8EL012240-951, 8EL015630-161, 8EL015630-681, 8EL738212-941, 28-5561, 195.568.100, 195.928.100, 235.318.1002, 1986A01340, 9322, 021080-6060, 23947, 23947N, 23947R, 27060-0G010, 27060-0G011, 27060-0G01184, 27060-0R060, 27060-0R070, 27060-0R071, 27060-26070, 104210-1461, 104210-2390, 104210-2410, 104210-4520, 104210-4521, 104210-4522, 104210-4523, 104211-3060, 104211-3061, 104211-3062, 104211-3410, 112954, 114390, 209298, 209298A, 210842, 210842A, 301965RI, 443111, 554461RI, 9212749, 12060862, 0986049970, 063377500010

  • Konkurrentreferens
    A6052, A6052(DENSO), A6052PR, CAL40257, CAL40435, DAN1317, DAN938, DRA0152, DRA1528, LRA02947, 8EL012240-951, 8EL015630-161, 8EL015630-681, 8EL738212-941, 28-5561, 195.568.100, 195.928.100, 235.318.1002, 9322, 23947, 23947N, 23947R, 112954, 209298, 209298A, 210842, 210842A, 301965RI, 443111, 554461RI, 9212749, 12060862, 0986049970, 063377500010

  • Bilmärken
    TOYOTA

  • Normaliserat artikelnummer
    a6052, a6052denso, a6052pr, cal40257, cal40435, dan1317, dan938, dra0152, dra1528, f032114390, lra02947, 8el012240951, 8el015630161, 8el015630681, 8el738212941, 1986a01340, 9322, 23947, 23947n, 23947r, 112954, 114390, 209298, 209298a, 210842, 210842a, 270600g010, 270600g011, 270600g01184, 270600r060, 270600r070, 270600r071, 285561, 301965ri, 443111, 554461ri, 9212749, 12060862, 195568100, 195928100, 0210806060, 0986049970, 1042101461, 1042102390, 1042102410, 1042104520, 1042104521, 1042104522, 1042104523, 1042113060, 1042113061, 1042113062, 1042113410, 2353181002, 2706026070, 063377500010

  • Passar modeller
    TOYOTA AURIS (_E15_) 2.0 D-4D (ADE150_, ADE150R) Engine volume: 2.0 Engine type: 1AD-FTV Year: 10.06-09.12
    TOYOTA AURIS (_E15_) 2.2 D (ADE157_, ADE151_, ADE151R, ADE157R) Engine volume: 2.2 Engine type: 2AD-FHV Year: 11.06-09.12
    TOYOTA AVENSIS (_T25_) 2.0 D-4D (ADT250_, ADT250R) Engine volume: 2.0 Engine type: 1AD-FTV Year: 03.06-11.08
    TOYOTA AVENSIS (_T25_) 2.2 D-4D (ADT251_, ADT251R) Engine volume: 2.2 Engine type: 2AD-FTV Year: 10.05-11.08
    TOYOTA AVENSIS (_T25_) 2.2 D-CAT (ADT251_, ADT251R) Engine volume: 2.2 Engine type: 2AD-FHV Year: 07.05-11.08
    TOYOTA AVENSIS Kombi (_T25_) 2.0 D-4D (ADT250_, ADT250R) Engine volume: 2.0 Engine type: 1AD-FTV Year: 03.06-11.08
    TOYOTA AVENSIS Kombi (_T25_) 2.2 D-4D (ADT251_, ADT251R) Engine volume: 2.2 Engine type: 2AD-FTV Year: 10.05-11.08
    TOYOTA AVENSIS Kombi (_T25_) 2.2 D-CAT (ADT251_, ADT251R) Engine volume: 2.2 Engine type: 2AD-FHV Year: 07.05-11.08
    TOYOTA AVENSIS Kombi (_T27_) 2.0 D-4D (ADT270_, ADT270R) Engine volume: 2.0 Engine type: 1AD-FTV Year: 11.08-10.18
    TOYOTA AVENSIS Kombi (_T27_) 2.0 D-4D (ADT270_, ADT270R) Engine volume: 2.0 Engine type: 1AD-FTV Year: 11.11-10.18
    TOYOTA AVENSIS Kombi (_T27_) 2.2 D-4D (ADT271_, ADT271R) Engine volume: 2.2 Engine type: 2AD-FHV Year: 11.08-10.18
    TOYOTA AVENSIS Sedan (_T25_) 2.0 D-4D (ADT250_, ADT250R) Engine volume: 2.0 Engine type: 1AD-FTV Year: 03.06-10.08
    TOYOTA AVENSIS Sedan (_T25_) 2.2 D-4D (ADT251_, ADT251R) Engine volume: 2.2 Engine type: 2AD-FTV Year: 10.05-11.08
    TOYOTA AVENSIS Sedan (_T25_) 2.2 D-CAT (ADT251_, ADT251R) Engine volume: 2.2 Engine type: 2AD-FHV Year: 07.05-11.08
    TOYOTA AVENSIS Sedan (_T27_) 2.0 D-4D (ADT270_, ADT270R) Engine volume: 2.0 Engine type: 1AD-FTV Year: 11.08-10.11
    TOYOTA AVENSIS Sedan (_T27_) 2.0 D-4D (ADT270_, ADT270R) Engine volume: 2.0 Engine type: 1AD-FTV Year: 11.11-10.18
    TOYOTA AVENSIS Sedan (_T27_) 2.2 D-4D (ADT271_, ADT271R) Engine volume: 2.2 Engine type: 2AD-FHV Year: 11.08-10.18
    TOYOTA AVENSIS Sedan (_T27_) 2.2 D-4D (ADT271_, ADT271R) Engine volume: 2.2 Engine type: 2AD-FHV, 2AD-FTV Year: 11.08-10.18
    TOYOTA COROLLA Verso (ZER_, ZZE12_, R1_) 2.2 D-4D (AUR10_, AUR10R) Engine volume: 2.2 Engine type: 2AD-FHV Year: 10.05-03.09
    TOYOTA COROLLA Verso (ZER_, ZZE12_, R1_) 2.2 D-4D (AUR10_, AUR10R) Engine volume: 2.2 Engine type: 2AD-FTV Year: 10.05-03.09
    TOYOTA VERSO (_R2_) 2.0 D-4D (AUR20_, AUR20R) Engine volume: 2.0 Engine type: 1AD-FTV Year: 04.09-08.18
    TOYOTA VERSO (_R2_) 2.0 D-4D (AUR20_, AUR20R) Engine volume: 2.0 Engine type: 1AD-FTV Year: 11.12-08.18
    TOYOTA VERSO (_R2_) 2.2 D-4D (AUR21) Engine volume: 2.2 Engine type: 2AD-FHV Year: 04.09-08.18
    TOYOTA VERSO (_R2_) 2.2 D-4D (AUR21_, AUR21R) Engine volume: 2.2 Engine type: 2AD-FHV Year: 04.09-08.18
    TOYOTA VERSO (_R2_) 2.2 D-CAT (AUR21_, AUR21R) Engine volume: 2.2 Engine type: 2AD-FHV Year: 04.09-08.18
    TOYOTA VERSO VAN (_R2_) D4d (AUR20) Engine volume: 2.0 Engine type: 1AD-FTV Year: 11.12-08.18
    TOYOTA VERSO VAN (_R2_) D4d (AUR21) Engine volume: 2.2 Engine type: 2AD-FHV Year: 04.09-08.18
