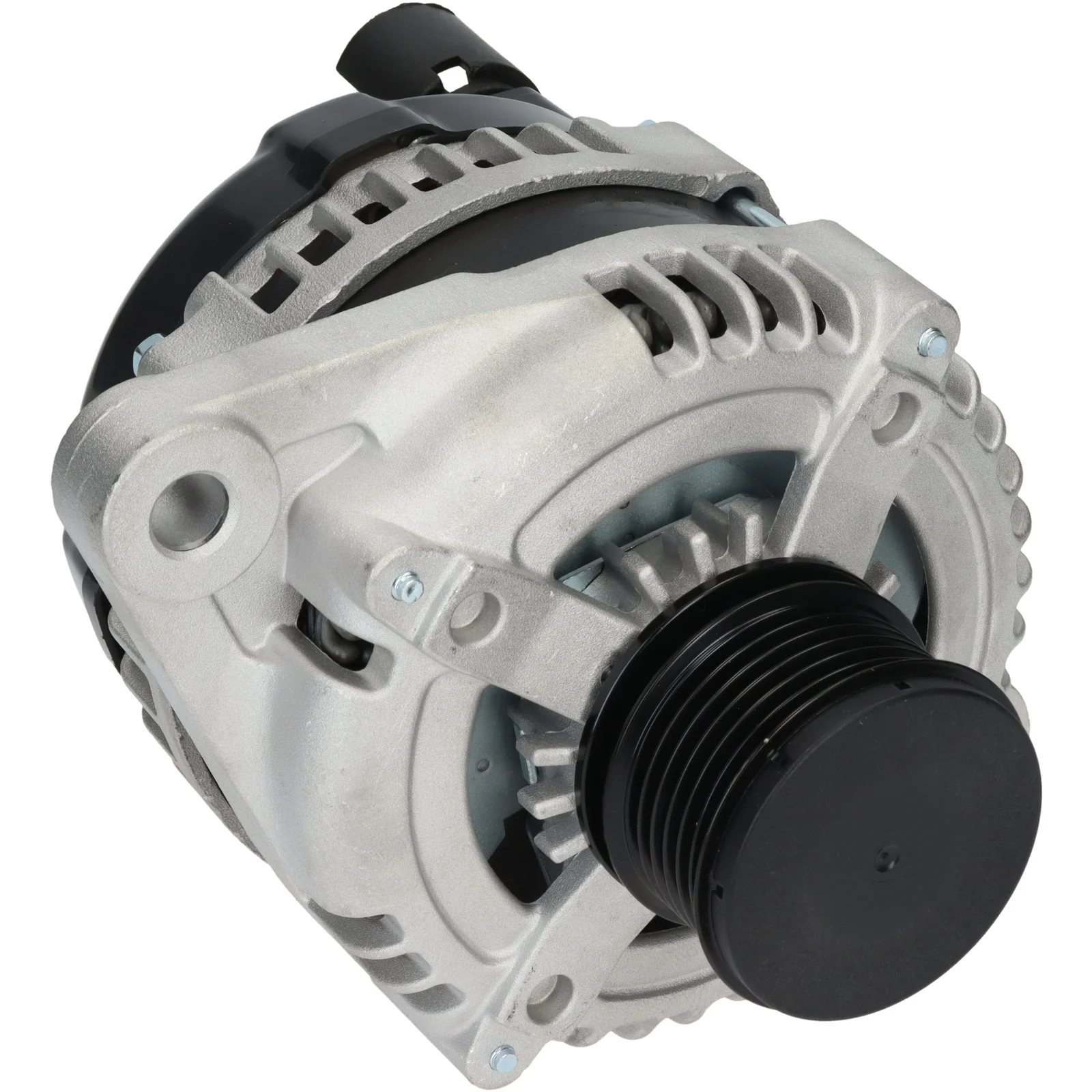

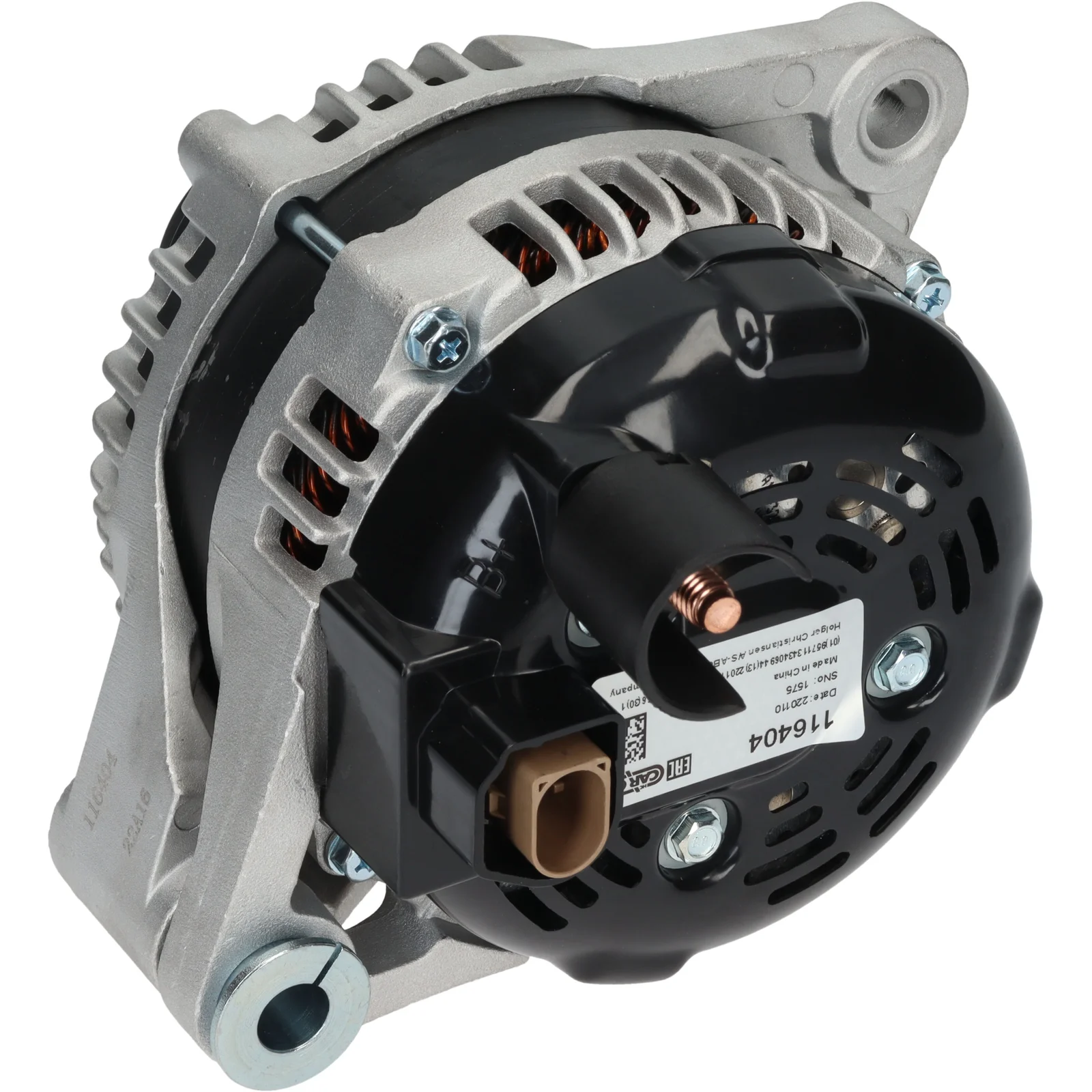

HC-Cargo Generator
HC-Cargo Generator
Artikelnr: F032116404

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 150, Pulley dia.: 54.00, Radius: 90.00

Beskrivning

Voltage: 14
Amp: 150
Pulley dist.: 109.00
Width/holder arm: 57.00
Bracket hole: 14.80
Belt. adj. brackethole pos.: 60
Belt. adj. bracket hole 1: 12.20
Pulley dia.: 54.00
Grooves/pulley: 6
Radius: 90.00
Radius 2: 90.00
B+: M8
Position/B+ in min.: 45
Plug no.: PL174
Total length mm: 198.00
Terminal type: COM
ID Code: 156
Communication: LIN
Pulley: SP/FW
Regulator type: IR
Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

Filer

Specifikation

B+ M8
Communication LIN
Belt. adj. bracket hole 1 12.20
Belt. adj. brackethole pos. 60
Plug no. PL174
Bracket hole 14.80
Position/B+ in min. 45
Pulley SP/FW
Pulley dia. 54.00
Pulley dist. 109.00
Radius 90.00
Radius 2 90.00
Regulator type IR
Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Grooves/pulley 6
ID Code 156
Terminal type COM
Voltage 14
Total length 198.00 mm
Width/holder arm 57.00
Amp 150

  • OEM
    F032116404, 1986A00638, 104211-8540, 51907673

  • Konkurrentreferens
    A6364, DAN1145, 28-7753, 209333, 209333A, 849220, 12090690, 0986085090

  • Normaliserat artikelnummer
    a6364, dan1145, f032116404, 1986a00638, 209333, 209333a, 287753, 849220, 12090690, 51907673, 0986085090, 1042118540

  • Passar modeller
    Alfa Romeo Model: Giulietta Model series: Giulietta Type of engine: JTDM Size of motor: 1.6 Brand of engine: 940A3.000 Type description: 940_ Body: Box From date: 01-04-2011 To date: 01-02-2016 Fuel: Diesel Approved: Yes
    Alfa Romeo Model: Giulietta Model series: Giulietta Type of engine: JTDM Size of motor: 2.0 Brand of engine: 940A4.000 Type description: 940_ Body: Box From date: 01-04-2011 To date: 01-02-2016 Fuel: Diesel Approved: Yes
    Alfa Romeo Model: Giulietta Model series: Giulietta Type of engine: JTDM Size of motor: 2.0 Brand of engine: 940A5.000 Type description: 940_ Body: Box From date: 01-07-2013 To date: 01-02-2016 Fuel: Diesel Approved: Yes
    Alfa Romeo Model: Giulietta Model series: Giulietta Type of engine: JTDM Size of motor: 2.0 Brand of engine: 940B4.000 Type description: 940_ Body: Box From date: 01-05-2015 Fuel: Diesel Approved: Yes
    Alfa Romeo Model: Giulietta Model series: Giulietta Type of engine: JTDM Size of motor: 2.0 Brand of engine: 940B5.000 Type description: 940_ Body: Box From date: 01-08-2013 To date: 01-02-2016 Fuel: Diesel Approved: Yes
    Fiat Model: Doblo Model series: Doblo Type of engine: Multijet Size of motor: 1.6 Brand of engine: 263A7.000 Type description: 263_ Body: Box Body / Estate From date: 01-03-2015 Fuel: Diesel Approved: Yes
    Jeep Model: Renegade Model series: Renegade Model type: 4X4 Type of engine: Multijet Size of motor: 2.0 Brand of engine: 55263088,55 Type description: BU, B1 Body: Box Body / Estate From date: 01-07-2014 Fuel: Diesel Approved: Yes
    Jeep Model: Renegade Model series: Renegade Model type: 4X4 Type of engine: Multijet Size of motor: 2.0 Brand of engine: 55263088,55263087,55283099,55284064 Type description: BU, B1 Body: Box Body / Estate From date: 01-07-2014 Fuel: Diesel Approved: Yes
    1 / 2
  • Beskrivning
    Voltage: 14
    Amp: 150
    Pulley dist.: 109.00
    Width/holder arm: 57.00
    Bracket hole: 14.80
    Belt. adj. brackethole pos.: 60
    Belt. adj. bracket hole 1: 12.20
    Pulley dia.: 54.00
    Grooves/pulley: 6
    Radius: 90.00
    Radius 2: 90.00
    B+: M8
    Position/B+ in min.: 45
    Plug no.: PL174
    Total length mm: 198.00
    Terminal type: COM
    ID Code: 156
    Communication: LIN
    Pulley: SP/FW
    Regulator type: IR
    Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Filer

  • Specifikation
    B+ M8
    Communication LIN
    Belt. adj. bracket hole 1 12.20
    Belt. adj. brackethole pos. 60
    Plug no. PL174
    Bracket hole 14.80
    Position/B+ in min. 45
    Pulley SP/FW
    Pulley dia. 54.00
    Pulley dist. 109.00
    Radius 90.00
    Radius 2 90.00
    Regulator type IR
    Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
    Grooves/pulley 6
    ID Code 156
    Terminal type COM
    Voltage 14
    Total length 198.00 mm
    Width/holder arm 57.00
    Amp 150
  • Fordonsmatchning

    • OEM
      F032116404, 1986A00638, 104211-8540, 51907673

    • Konkurrentreferens
      A6364, DAN1145, 28-7753, 209333, 209333A, 849220, 12090690, 0986085090

    • Normaliserat artikelnummer
      a6364, dan1145, f032116404, 1986a00638, 209333, 209333a, 287753, 849220, 12090690, 51907673, 0986085090, 1042118540

    • Passar modeller
      Alfa Romeo Model: Giulietta Model series: Giulietta Type of engine: JTDM Size of motor: 1.6 Brand of engine: 940A3.000 Type description: 940_ Body: Box From date: 01-04-2011 To date: 01-02-2016 Fuel: Diesel Approved: Yes
      Alfa Romeo Model: Giulietta Model series: Giulietta Type of engine: JTDM Size of motor: 2.0 Brand of engine: 940A4.000 Type description: 940_ Body: Box From date: 01-04-2011 To date: 01-02-2016 Fuel: Diesel Approved: Yes
      Alfa Romeo Model: Giulietta Model series: Giulietta Type of engine: JTDM Size of motor: 2.0 Brand of engine: 940A5.000 Type description: 940_ Body: Box From date: 01-07-2013 To date: 01-02-2016 Fuel: Diesel Approved: Yes
      Alfa Romeo Model: Giulietta Model series: Giulietta Type of engine: JTDM Size of motor: 2.0 Brand of engine: 940B4.000 Type description: 940_ Body: Box From date: 01-05-2015 Fuel: Diesel Approved: Yes
      Alfa Romeo Model: Giulietta Model series: Giulietta Type of engine: JTDM Size of motor: 2.0 Brand of engine: 940B5.000 Type description: 940_ Body: Box From date: 01-08-2013 To date: 01-02-2016 Fuel: Diesel Approved: Yes
      Fiat Model: Doblo Model series: Doblo Type of engine: Multijet Size of motor: 1.6 Brand of engine: 263A7.000 Type description: 263_ Body: Box Body / Estate From date: 01-03-2015 Fuel: Diesel Approved: Yes
      Jeep Model: Renegade Model series: Renegade Model type: 4X4 Type of engine: Multijet Size of motor: 2.0 Brand of engine: 55263088,55 Type description: BU, B1 Body: Box Body / Estate From date: 01-07-2014 Fuel: Diesel Approved: Yes
      Jeep Model: Renegade Model series: Renegade Model type: 4X4 Type of engine: Multijet Size of motor: 2.0 Brand of engine: 55263088,55263087,55283099,55284064 Type description: BU, B1 Body: Box Body / Estate From date: 01-07-2014 Fuel: Diesel Approved: Yes
      1 / 2
