Artikelnr: F032116392

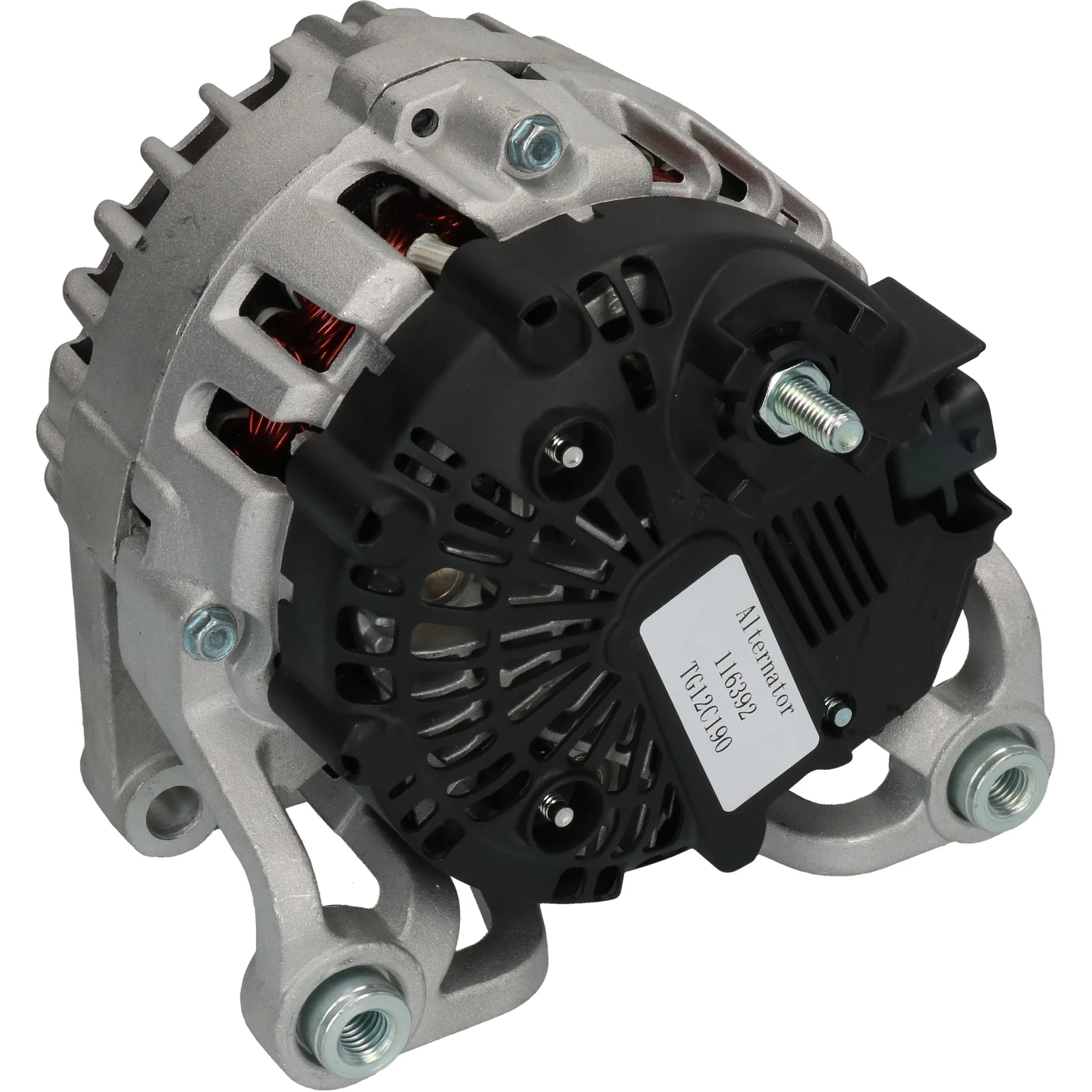

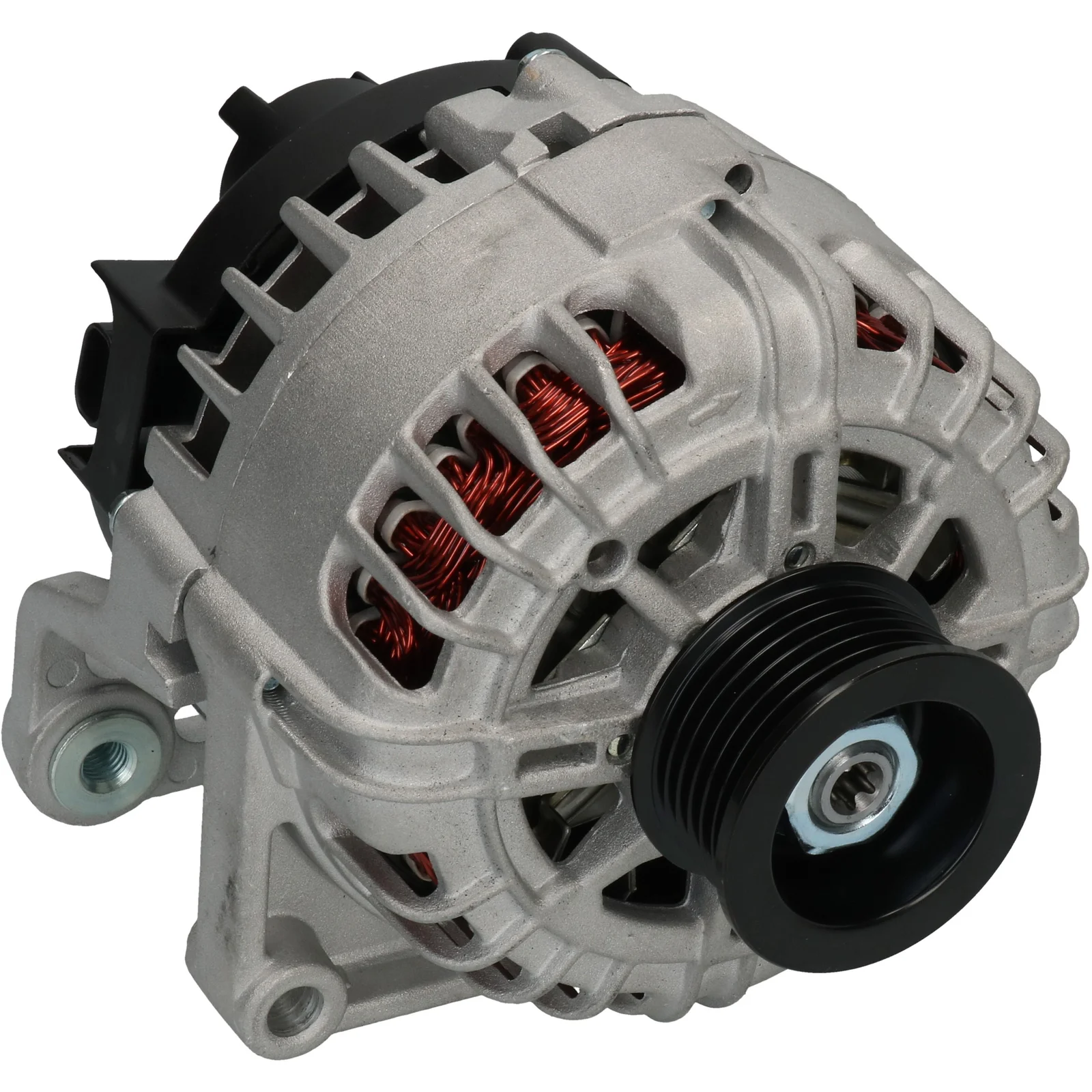

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 120, Rotation: CW, Mount. bracket dist.: 59.00

Beskrivning

Voltage: 14
Amp: 120
Pulley dist.: 63.80
Width/holder arm: 23.40
Mount. bracket dist.: 59.00
Bracket hole: 10.30
Belt. adj. brackethole pos.: 47
Belt. adj. bracket hole 1: 10.30
Belt. adj. bracket hole 2: M10
Pulley dia.: 53.00
Grooves/pulley: 6
Radius: 92.00
Radius 2: 92.00
B+: M8
Position/B+ in min.: 3
Rotation: CW
Plug no.: PL180
Total length mm: 185.50
Terminal type: L-F
Communication: PWM
Pulley: SP
Remarks: This Alternator has a PWM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

Specifikation

B+ M8
Communication PWM
Mount. bracket dist. 59.00
Belt. adj. bracket hole 1 10.30
Belt. adj. bracket hole 2 M10
Belt. adj. brackethole pos. 47
Plug no. PL180
Bracket hole 10.30
Position/B+ in min. 3
Pulley SP
Pulley dia. 53.00
Pulley dist. 63.80
Radius 92.00
Radius 2 92.00
Remarks This Alternator has a PWM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Grooves/pulley 6
Terminal type L-F
Voltage 14
Total length 185.50 mm
Width/holder arm 23.40
Amp 120
  • OEM

    F032116392, TG12C055, TG12C190, 1986A01643, 1202189, 1202351, 2620376A, 2650768A, 13502594, 13512749, 13588302, 95515969
  • Konkurrentreferens

    CAL15503, DRA1369, LRA04043, 28-7652, 135.916.120, 209146, 209146A, 440625, 849236, 12090659, 0986085810
  • Normaliserat artikelnummer

    cal15503, dra1369, f032116392, lra04043, tg12c055, tg12c190, 1986a01643, 209146, 209146a, 287652, 440625, 849236, 1202189, 1202351, 2620376a, 2650768a, 12090659, 13502594, 13512749, 13588302, 95515969, 135916120, 0986085810
  • Passar modeller

    Opel Model: Astra Model series: Astra J Model type: Ecotec Size of motor: 1.6 Brand of engine: A16XER Body: Hatchback From date: 01-12-2009 To date: 01-10-2015 Fuel: Gasoline Approved: Yes
    Opel Model: Astra Model series: Astra J Model type: GTC Size of motor: 1.8 Brand of engine: A18XER Body: Hatchback From date: 01-10-2011 To date: 01-10-2015 Fuel: Gasoline Approved: Yes
    Opel Model: Astra Model series: Astra J Size of motor: 1.6 Brand of engine: A16XER Body: Estate From date: 01-10-2010 To date: 01-10-2015 Fuel: Gasoline Approved: Yes Manufacture type: SPORTS TOU
    Opel Model: Zafira Model series: Zafira C Size of motor: 1.8 Brand of engine: A18XEL Type description: P12 Body: MPV From date: 01-10-2011 Fuel: Gasoline Approved: Yes
    Opel Model: Zafira Model series: Zafira C Size of motor: 1.8 Brand of engine: A18XER Type description: P12 Body: MPV From date: 01-10-2011 Fuel: Gasoline Approved: Yes
    Vauxhall Model: Astra Model series: Astra MK VI Type of engine: 16V Size of motor: 1.6 Brand of engine: A16XER Body: Estate From date: 01-10-2010 To date: 01-10-2015 Fuel: Gasoline Approved: Yes Manufacture type: SPORTS TOU
    Vauxhall Model: Astra Model series: Astra MK VI Type of engine: 16V VVT Size of motor: 1.6 Brand of engine: A16XER Body: Hatchback From date: 01-12-2009 To date: 01-10-2015 Fuel: Gasoline Approved: Yes
    Vauxhall Model: Zafira Model series: Zafira MK III Size of motor: 1.8 Brand of engine: A18XEL Type description: P12 Body: MPV From date: 01-10-2011 To date: 01-08-2018 Fuel: Gasoline Approved: Yes
    Vauxhall Model: Zafira Model series: Zafira MK III Size of motor: 1.8 Brand of engine: A18XER Type description: P12 Body: MPV From date: 01-10-2011 To date: 01-08-2018 Fuel: Gasoline Approved: Yes
