- Generator
-

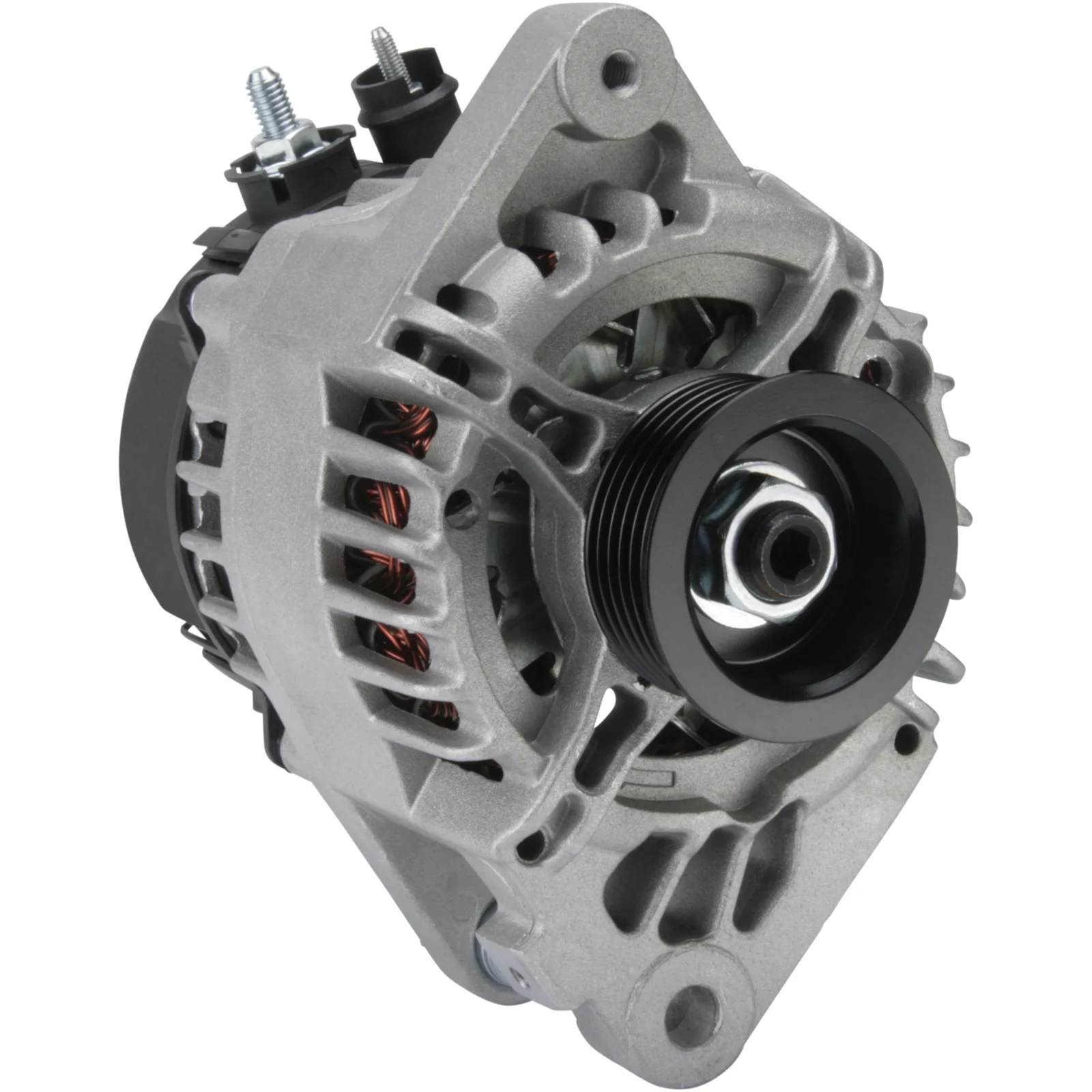

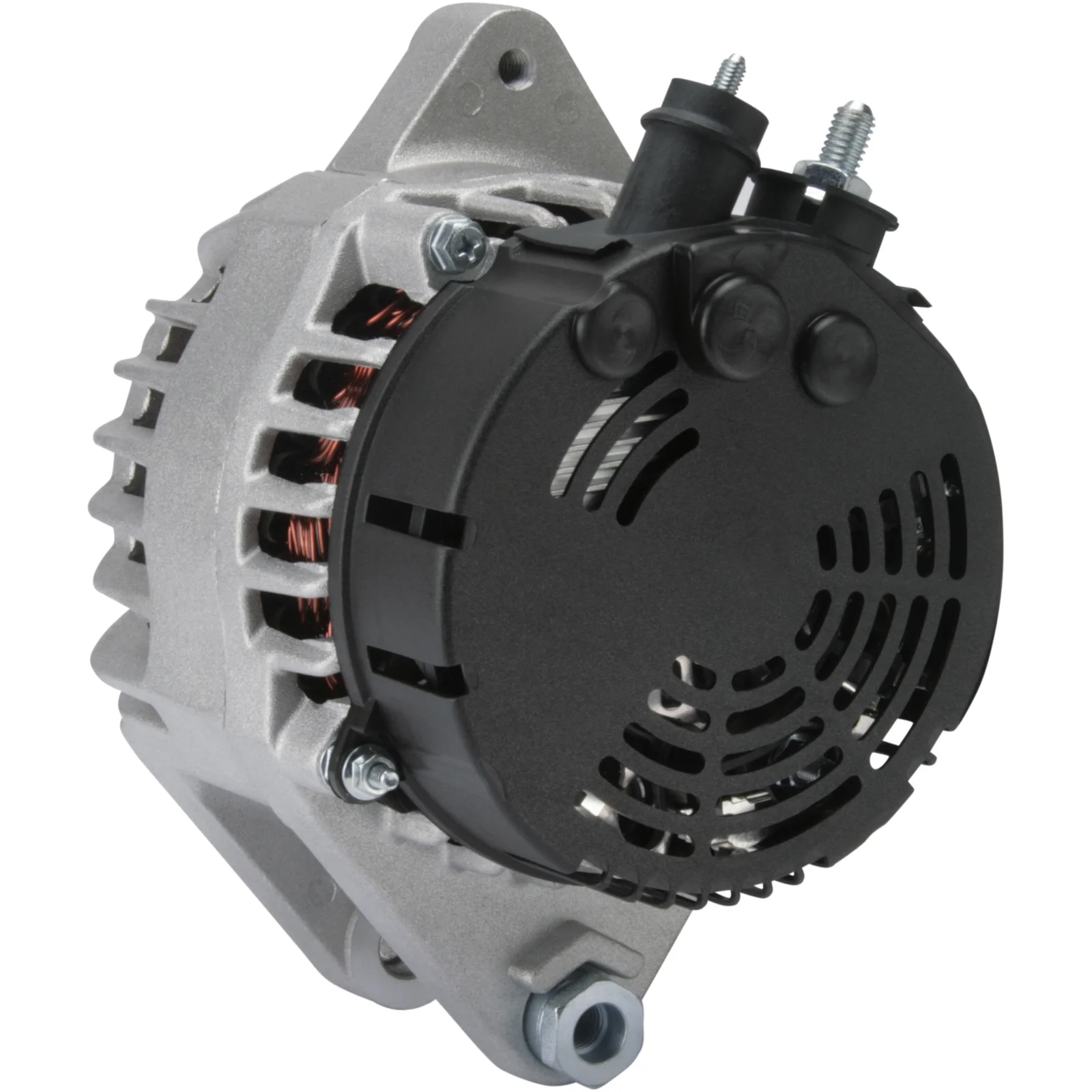

HC-Cargo Generator
- Generator
-
HC-Cargo Generator
Artikelnr: F032114099
HC-Cargo Generator
Voltage: 14, Amp: 80, Rotation: CW, Mount. bracket dist.: 42.00
Beskrivning
Toyota/PSA Generator 12V-80A 12V - 80A För Yourex produkt order 90-450-2874
Voltage: 14
Amp: 80
Pulley dist.: 29.00
Width/holder arm: 20.00
Mount. bracket dist.: 42.00
Bracket hole: 11.00
Belt. adj. brackethole pos.: 57
Belt. adj. bracket hole 1: M8
Pulley dia.: 57.50
Grooves/pulley: 6
Radius: 88.00
Radius 2: 82.00
B+: M8
Position/B+ in min.: 5
D+ Size: M5
Rotation: CW
Total length mm: 167.00
Pulley: SP
Regulator type: IR
Voltage: 14
Amp: 80
Pulley dist.: 29.00
Width/holder arm: 20.00
Mount. bracket dist.: 42.00
Bracket hole: 11.00
Belt. adj. brackethole pos.: 57
Belt. adj. bracket hole 1: M8
Pulley dia.: 57.50
Grooves/pulley: 6
Radius: 88.00
Radius 2: 82.00
B+: M8
Position/B+ in min.: 5
D+ Size: M5
Rotation: CW
Total length mm: 167.00
Pulley: SP
Regulator type: IR
Filer
Specifikation
| B+ | M8 |
|---|---|
| Mount. bracket dist. | 42.00 |
| Belt. adj. bracket hole 1 | M8 |
| Belt. adj. brackethole pos. | 57 |
| Bracket hole | 11.00 |
| Position/B+ in min. | 5 |
| Pulley | SP |
| Pulley dia. | 57.50 |
| Pulley dist. | 29.00 |
| Radius | 88.00 |
| D+ Size | M5 |
| Radius 2 | 82.00 |
| Regulator type | IR |
| Rotation | CW |
| Grooves/pulley | 6 |
| Voltage | 14 |
| Total length | 167.00 mm |
| Width/holder arm | 20.00 |
| Amp | 80 |
-
OEM
A4084, A6266(DENSO), ALT-H192, CAL40277, DAN1036, DENDAN1036, DRA0216, F032114099, F042A0H192, PEU 5705 KJ, 8EL012240-651, 8EL012430-331, 8EL738212-851, 28-5623, 195.910.080, 1949ir, 1986A01573, 5702 L0, 5702CQ, 5702H2, 5702J1, 5702J2, 5702L1, 5705-CR, 5705CP, 5705KH, 5705KJ, 5705NN, 5705NP, 20332N, 23966N, 27060-00020, 27060-0Q020, 27060-0Q021, 27060-0Q100, 27060-0Q120, 27060-0Q130, 57050KJ, 101210-1410, 102211-8740, 102211-8741, 112781, 114099, 200279, 210830, 210830A, 270600Q010, 270600Q011, 270600Q050, 270600Q10000, 270600Q13084, 301949RI, 440445, 443269, 747026, 6095319, 12090259, 0986081000, 7711368601, 8200474219, 8200660041, 8200901783, 063377549010 -
Konkurrentreferens
A4084, A6266(DENSO), ALT-H192, CAL40277, DAN1036, DENDAN1036, DRA0216, F042A0H192, 8EL012240-651, 8EL012430-331, 8EL738212-851, 28-5623, 195.910.080, 5702J2, 5702L1, 5705CP, 5705KJ, 5705NP, 20332N, 23966N, 112781, 200279, 210830, 210830A, 301949RI, 440445, 443269, 747026, 12090259, 0986081000, 063377549010 -
Bilmärken
CITROËN, PEUGEOT, RENAULT, TOYOTA -
Normaliserat artikelnummer
a4084, a6266denso, alth192, cal40277, dan1036, dendan1036, dra0216, f032114099, f042a0h192, peu5705kj, 8el012240651, 8el012430331, 8el738212851, 1949ir, 1986a01573, 5702cq, 5702h2, 5702j1, 5702j2, 5702l0, 5702l1, 5705cp, 5705cr, 5705kh, 5705kj, 5705nn, 5705np, 20332n, 23966n, 57050kj, 112781, 114099, 200279, 210830, 210830a, 270600q010, 270600q011, 270600q020, 270600q021, 270600q050, 270600q100, 270600q10000, 270600q120, 270600q130, 270600q13084, 285623, 301949ri, 440445, 443269, 747026, 6095319, 12090259, 195910080, 0986081000, 1012101410, 1022118740, 1022118741, 2706000020, 7711368601, 8200474219, 8200660041, 8200901783, 063377549010 -
Passar modeller
CITROËN C1 (PM_, PN_) 1.0 Engine volume: 1.0 Engine type: CFA (384F), CFB (1KR) Year: 06.05-09.14 PEUGEOT 107 (PM_, PN_) 1.0 Engine volume: 1.0 Engine type: CFA (384F), CFB (1KR) Year: 06.05-05.14 RENAULT GRAND SCÉNIC II (JM0/1_) 1.9 dCi (JM14) Engine volume: 1.9 Engine type: F9Q 804, F9Q 816, F9Q 818, F9Q 803 Year: 04.04-02.08 RENAULT GRAND SCÉNIC II (JM0/1_) 1.9 dCi (JM15) Engine volume: 1.9 Engine type: F9Q E 804 Year: 05.05-11.08 RENAULT GRAND SCÉNIC II (JM0/1_) 1.9 dCi Engine volume: 1.9 Engine type: F9Q 804, F9Q 812, F9Q 816, F9Q 818, F9Q 803 Year: 05.05-01.09 RENAULT GRAND SCÉNIC III (JZ0/1_) 1.9 dCi (JZ0J, JZ0N, JZ1K, JZ1S) Engine volume: 1.9 Engine type: F9Q 870, F9Q 872 Year: 02.09-09.16 RENAULT LAGUNA II (BG0/1_) 2.0 16V (BG1Y) Engine volume: 2.0 Engine type: F4R 886, F4R 887 Year: 01.05-09.07 RENAULT LAGUNA II Grandtour (KG0/1_) 2.0 16V (KG1Y) Engine volume: 2.0 Engine type: F4R 886, F4R 887 Year: 01.05-09.07 RENAULT MEGANE CC (EZ0/1_) 1.9 dCi (EZ0J, EZ1S) Engine volume: 1.9 Engine type: F9Q 870 Year: 06.10-08.15 RENAULT MEGANE II (BM0/1_, CM0/1_) 1.9 dCi (BM0G, CM0G) Engine volume: 1.9 Engine type: F9Q 800 Year: 11.02-02.08 RENAULT MEGANE II (BM0/1_, CM0/1_) 1.9 dCi Engine volume: 1.9 Engine type: F9Q 800, F9Q 804, F9Q 816, F9Q 818, F9Q 803 Year: 11.02-02.08 RENAULT MEGANE II (BM0/1_, CM0/1_) 1.9 dCi Engine volume: 1.9 Engine type: F9Q 804, F9Q 816, F9Q 818, F9Q 803 Year: 05.05-12.09 RENAULT MEGANE II (BM0/1_, CM0/1_) 1.9 dCi Engine volume: 1.9 Engine type: F9Q 804, F9Q 818 Year: 05.05-02.08 RENAULT MEGANE II (BM0/1_, CM0/1_) 1.9 dCi Engine volume: 1.9 Engine type: F9Q 808 Year: 03.04-08.06 RENAULT MEGANE II Coupé-Cabriolet (EM0/1_) 1.9 dCi Engine volume: 1.9 Engine type: F9Q 800 Year: 09.03-03.09 RENAULT MEGANE II Coupé-Cabriolet (EM0/1_) 1.9 dCi Engine volume: 1.9 Engine type: F9Q 800, F9Q 804, F9Q 816, F9Q 818, F9Q 803 Year: 09.03-03.09 RENAULT MEGANE II Coupé-Cabriolet (EM0/1_) 1.9 dCi Engine volume: 1.9 Engine type: F9Q 804, F9Q 803 Year: 05.05-02.07 RENAULT MEGANE II Coupé-Cabriolet (EM0/1_) 1.9 dCi Engine volume: 1.9 Engine type: F9Q 804, F9Q 816, F9Q 818 Year: 05.05-03.09 RENAULT MEGANE II Kombi (KM0/1_) 1.9 dCi (KM14) Engine volume: 1.9 Engine type: F9Q 804, F9Q 803 Year: 05.05-07.09 RENAULT MEGANE II Kombi (KM0/1_) 1.9 dCi (KM14) Engine volume: 1.9 Engine type: F9Q 818 Year: 05.05-07.09 RENAULT MEGANE II Kombi (KM0/1_) 1.9 dCi (KMRG, KM1G, KM0G, KM2C) Engine volume: 1.9 Engine type: F9Q 800 Year: 08.03-07.09 RENAULT MEGANE II Kombi (KM0/1_) 1.9 dCi Engine volume: 1.9 Engine type: F9Q 804, F9Q 818 Year: 05.05-07.09 RENAULT MEGANE II Kombi (KM0/1_) 1.9 dCi Engine volume: 1.9 Engine type: F9Q 808 Year: 03.04-02.07 RENAULT MEGANE II Sedan (LM0/1_) 1.9 dCi (LM0G, LM1G, LM2C) Engine volume: 1.9 Engine type: F9Q 800 Year: 09.03- RENAULT MEGANE II Sedan (LM0/1_) 1.9 dCi (LM14, LM1D) Engine volume: 1.9 Engine type: F9Q 804, F9Q 816, F9Q 818, F9Q 803 Year: 05.05- RENAULT MEGANE II Sedan (LM0/1_) 1.9 dCi Engine volume: 1.9 Engine type: F9Q 804, F9Q 803 Year: 05.05- RENAULT MEGANE II Sedan (LM0/1_) 1.9 dCi Engine volume: 1.9 Engine type: F9Q 808 Year: 03.04- RENAULT MEGANE III Coupé (DZ0/1_) 1.9 dCi (DZ0N, DZ0J, DZ1J, DZ1K) Engine volume: 1.9 Engine type: F9Q 870, F9Q 872 Year: 11.08-08.15 RENAULT MEGANE III Grandtour (KZ0/1) 1.9 dCi (KZ0J, KZ0N, KZ1S) Engine volume: 1.9 Engine type: F9Q 870, F9Q 872 Year: 05.09-08.15 RENAULT MEGANE III Halvkombi (BZ0/1_, B3_) 1.9 dCi (BZ0N, BZ0J) Engine volume: 1.9 Engine type: F9Q 870, F9Q 872 Year: 11.08-01.16 RENAULT SCÉNIC II (JM0/1_) 1.9 D Engine volume: 1.9 Engine type: F9Q 804, F9Q 812, F9Q 816, F9Q 818, F9Q 803 Year: 06.06-11.08 RENAULT SCÉNIC II (JM0/1_) 1.9 dCi (JM14) Engine volume: 1.9 Engine type: F9Q 804, F9Q 816, F9Q 818, F9Q 803 Year: 05.05-11.08 RENAULT SCÉNIC II (JM0/1_) 1.9 dCi (JM15) Engine volume: 1.9 Engine type: F9Q 804 Year: 05.05-11.08 RENAULT SCÉNIC II (JM0/1_) 1.9 dCi 130 Engine volume: 1.9 Engine type: F9Q 804 Year: 10.05-12.09 RENAULT SCÉNIC II (JM0/1_) 1.9 dCi Engine volume: 1.9 Engine type: F9Q 804 Year: 06.03-11.08 RENAULT SCÉNIC III (JZ0/1_) 1.9 dCi (JZ0J, JZ1J, JZ1K, JZ1S) Engine volume: 1.9 Engine type: F9Q 870, F9Q 872 Year: 02.09-09.16 RENAULT SCÉNIC III VAN (JZ0/1_) 1.9 dCi (JZ0J, JZ1J, JZ1K, JZ1S) Engine volume: 1.9 Engine type: F9Q 870, F9Q 872 Year: 01.13-09.16 TOYOTA AYGO (_B1_) 1.0 (KGB10_, KGB10R) Engine volume: 1.0 Engine type: 1KR-FE Year: 07.05-05.14 TOYOTA AYGO Skåp/halvkombi (_B1_) 1.0 VVTi (KGB10) Engine volume: 1.0 Engine type: 1KR-FE Year: 07.05-05.14 1 / 8
-
Beskrivning
Toyota/PSA Generator 12V-80A 12V - 80A För Yourex produkt order 90-450-2874
Voltage: 14
Amp: 80
Pulley dist.: 29.00
Width/holder arm: 20.00
Mount. bracket dist.: 42.00
Bracket hole: 11.00
Belt. adj. brackethole pos.: 57
Belt. adj. bracket hole 1: M8
Pulley dia.: 57.50
Grooves/pulley: 6
Radius: 88.00
Radius 2: 82.00
B+: M8
Position/B+ in min.: 5
D+ Size: M5
Rotation: CW
Total length mm: 167.00
Pulley: SP
Regulator type: IRFiler
-
Specifikation
B+ M8 Mount. bracket dist. 42.00 Belt. adj. bracket hole 1 M8 Belt. adj. brackethole pos. 57 Bracket hole 11.00 Position/B+ in min. 5 Pulley SP Pulley dia. 57.50 Pulley dist. 29.00 Radius 88.00 D+ Size M5 Radius 2 82.00 Regulator type IR Rotation CW Grooves/pulley 6 Voltage 14 Total length 167.00 mm Width/holder arm 20.00 Amp 80 -
Fordonsmatchning
-
OEM
A4084, A6266(DENSO), ALT-H192, CAL40277, DAN1036, DENDAN1036, DRA0216, F032114099, F042A0H192, PEU 5705 KJ, 8EL012240-651, 8EL012430-331, 8EL738212-851, 28-5623, 195.910.080, 1949ir, 1986A01573, 5702 L0, 5702CQ, 5702H2, 5702J1, 5702J2, 5702L1, 5705-CR, 5705CP, 5705KH, 5705KJ, 5705NN, 5705NP, 20332N, 23966N, 27060-00020, 27060-0Q020, 27060-0Q021, 27060-0Q100, 27060-0Q120, 27060-0Q130, 57050KJ, 101210-1410, 102211-8740, 102211-8741, 112781, 114099, 200279, 210830, 210830A, 270600Q010, 270600Q011, 270600Q050, 270600Q10000, 270600Q13084, 301949RI, 440445, 443269, 747026, 6095319, 12090259, 0986081000, 7711368601, 8200474219, 8200660041, 8200901783, 063377549010 -
Konkurrentreferens
A4084, A6266(DENSO), ALT-H192, CAL40277, DAN1036, DENDAN1036, DRA0216, F042A0H192, 8EL012240-651, 8EL012430-331, 8EL738212-851, 28-5623, 195.910.080, 5702J2, 5702L1, 5705CP, 5705KJ, 5705NP, 20332N, 23966N, 112781, 200279, 210830, 210830A, 301949RI, 440445, 443269, 747026, 12090259, 0986081000, 063377549010 -
Bilmärken
CITROËN, PEUGEOT, RENAULT, TOYOTA -
Normaliserat artikelnummer
a4084, a6266denso, alth192, cal40277, dan1036, dendan1036, dra0216, f032114099, f042a0h192, peu5705kj, 8el012240651, 8el012430331, 8el738212851, 1949ir, 1986a01573, 5702cq, 5702h2, 5702j1, 5702j2, 5702l0, 5702l1, 5705cp, 5705cr, 5705kh, 5705kj, 5705nn, 5705np, 20332n, 23966n, 57050kj, 112781, 114099, 200279, 210830, 210830a, 270600q010, 270600q011, 270600q020, 270600q021, 270600q050, 270600q100, 270600q10000, 270600q120, 270600q130, 270600q13084, 285623, 301949ri, 440445, 443269, 747026, 6095319, 12090259, 195910080, 0986081000, 1012101410, 1022118740, 1022118741, 2706000020, 7711368601, 8200474219, 8200660041, 8200901783, 063377549010 -
Passar modeller
CITROËN C1 (PM_, PN_) 1.0 Engine volume: 1.0 Engine type: CFA (384F), CFB (1KR) Year: 06.05-09.14 PEUGEOT 107 (PM_, PN_) 1.0 Engine volume: 1.0 Engine type: CFA (384F), CFB (1KR) Year: 06.05-05.14 RENAULT GRAND SCÉNIC II (JM0/1_) 1.9 dCi (JM14) Engine volume: 1.9 Engine type: F9Q 804, F9Q 816, F9Q 818, F9Q 803 Year: 04.04-02.08 RENAULT GRAND SCÉNIC II (JM0/1_) 1.9 dCi (JM15) Engine volume: 1.9 Engine type: F9Q E 804 Year: 05.05-11.08 RENAULT GRAND SCÉNIC II (JM0/1_) 1.9 dCi Engine volume: 1.9 Engine type: F9Q 804, F9Q 812, F9Q 816, F9Q 818, F9Q 803 Year: 05.05-01.09 RENAULT GRAND SCÉNIC III (JZ0/1_) 1.9 dCi (JZ0J, JZ0N, JZ1K, JZ1S) Engine volume: 1.9 Engine type: F9Q 870, F9Q 872 Year: 02.09-09.16 RENAULT LAGUNA II (BG0/1_) 2.0 16V (BG1Y) Engine volume: 2.0 Engine type: F4R 886, F4R 887 Year: 01.05-09.07 RENAULT LAGUNA II Grandtour (KG0/1_) 2.0 16V (KG1Y) Engine volume: 2.0 Engine type: F4R 886, F4R 887 Year: 01.05-09.07 RENAULT MEGANE CC (EZ0/1_) 1.9 dCi (EZ0J, EZ1S) Engine volume: 1.9 Engine type: F9Q 870 Year: 06.10-08.15 RENAULT MEGANE II (BM0/1_, CM0/1_) 1.9 dCi (BM0G, CM0G) Engine volume: 1.9 Engine type: F9Q 800 Year: 11.02-02.08 RENAULT MEGANE II (BM0/1_, CM0/1_) 1.9 dCi Engine volume: 1.9 Engine type: F9Q 800, F9Q 804, F9Q 816, F9Q 818, F9Q 803 Year: 11.02-02.08 RENAULT MEGANE II (BM0/1_, CM0/1_) 1.9 dCi Engine volume: 1.9 Engine type: F9Q 804, F9Q 816, F9Q 818, F9Q 803 Year: 05.05-12.09 RENAULT MEGANE II (BM0/1_, CM0/1_) 1.9 dCi Engine volume: 1.9 Engine type: F9Q 804, F9Q 818 Year: 05.05-02.08 RENAULT MEGANE II (BM0/1_, CM0/1_) 1.9 dCi Engine volume: 1.9 Engine type: F9Q 808 Year: 03.04-08.06 RENAULT MEGANE II Coupé-Cabriolet (EM0/1_) 1.9 dCi Engine volume: 1.9 Engine type: F9Q 800 Year: 09.03-03.09 RENAULT MEGANE II Coupé-Cabriolet (EM0/1_) 1.9 dCi Engine volume: 1.9 Engine type: F9Q 800, F9Q 804, F9Q 816, F9Q 818, F9Q 803 Year: 09.03-03.09 RENAULT MEGANE II Coupé-Cabriolet (EM0/1_) 1.9 dCi Engine volume: 1.9 Engine type: F9Q 804, F9Q 803 Year: 05.05-02.07 RENAULT MEGANE II Coupé-Cabriolet (EM0/1_) 1.9 dCi Engine volume: 1.9 Engine type: F9Q 804, F9Q 816, F9Q 818 Year: 05.05-03.09 RENAULT MEGANE II Kombi (KM0/1_) 1.9 dCi (KM14) Engine volume: 1.9 Engine type: F9Q 804, F9Q 803 Year: 05.05-07.09 RENAULT MEGANE II Kombi (KM0/1_) 1.9 dCi (KM14) Engine volume: 1.9 Engine type: F9Q 818 Year: 05.05-07.09 RENAULT MEGANE II Kombi (KM0/1_) 1.9 dCi (KMRG, KM1G, KM0G, KM2C) Engine volume: 1.9 Engine type: F9Q 800 Year: 08.03-07.09 RENAULT MEGANE II Kombi (KM0/1_) 1.9 dCi Engine volume: 1.9 Engine type: F9Q 804, F9Q 818 Year: 05.05-07.09 RENAULT MEGANE II Kombi (KM0/1_) 1.9 dCi Engine volume: 1.9 Engine type: F9Q 808 Year: 03.04-02.07 RENAULT MEGANE II Sedan (LM0/1_) 1.9 dCi (LM0G, LM1G, LM2C) Engine volume: 1.9 Engine type: F9Q 800 Year: 09.03- RENAULT MEGANE II Sedan (LM0/1_) 1.9 dCi (LM14, LM1D) Engine volume: 1.9 Engine type: F9Q 804, F9Q 816, F9Q 818, F9Q 803 Year: 05.05- RENAULT MEGANE II Sedan (LM0/1_) 1.9 dCi Engine volume: 1.9 Engine type: F9Q 804, F9Q 803 Year: 05.05- RENAULT MEGANE II Sedan (LM0/1_) 1.9 dCi Engine volume: 1.9 Engine type: F9Q 808 Year: 03.04- RENAULT MEGANE III Coupé (DZ0/1_) 1.9 dCi (DZ0N, DZ0J, DZ1J, DZ1K) Engine volume: 1.9 Engine type: F9Q 870, F9Q 872 Year: 11.08-08.15 RENAULT MEGANE III Grandtour (KZ0/1) 1.9 dCi (KZ0J, KZ0N, KZ1S) Engine volume: 1.9 Engine type: F9Q 870, F9Q 872 Year: 05.09-08.15 RENAULT MEGANE III Halvkombi (BZ0/1_, B3_) 1.9 dCi (BZ0N, BZ0J) Engine volume: 1.9 Engine type: F9Q 870, F9Q 872 Year: 11.08-01.16 RENAULT SCÉNIC II (JM0/1_) 1.9 D Engine volume: 1.9 Engine type: F9Q 804, F9Q 812, F9Q 816, F9Q 818, F9Q 803 Year: 06.06-11.08 RENAULT SCÉNIC II (JM0/1_) 1.9 dCi (JM14) Engine volume: 1.9 Engine type: F9Q 804, F9Q 816, F9Q 818, F9Q 803 Year: 05.05-11.08 RENAULT SCÉNIC II (JM0/1_) 1.9 dCi (JM15) Engine volume: 1.9 Engine type: F9Q 804 Year: 05.05-11.08 RENAULT SCÉNIC II (JM0/1_) 1.9 dCi 130 Engine volume: 1.9 Engine type: F9Q 804 Year: 10.05-12.09 RENAULT SCÉNIC II (JM0/1_) 1.9 dCi Engine volume: 1.9 Engine type: F9Q 804 Year: 06.03-11.08 RENAULT SCÉNIC III (JZ0/1_) 1.9 dCi (JZ0J, JZ1J, JZ1K, JZ1S) Engine volume: 1.9 Engine type: F9Q 870, F9Q 872 Year: 02.09-09.16 RENAULT SCÉNIC III VAN (JZ0/1_) 1.9 dCi (JZ0J, JZ1J, JZ1K, JZ1S) Engine volume: 1.9 Engine type: F9Q 870, F9Q 872 Year: 01.13-09.16 TOYOTA AYGO (_B1_) 1.0 (KGB10_, KGB10R) Engine volume: 1.0 Engine type: 1KR-FE Year: 07.05-05.14 TOYOTA AYGO Skåp/halvkombi (_B1_) 1.0 VVTi (KGB10) Engine volume: 1.0 Engine type: 1KR-FE Year: 07.05-05.14 1 / 8
-
