HC-Cargo Generator
HC-Cargo Generator
Artikelnr: F032114083

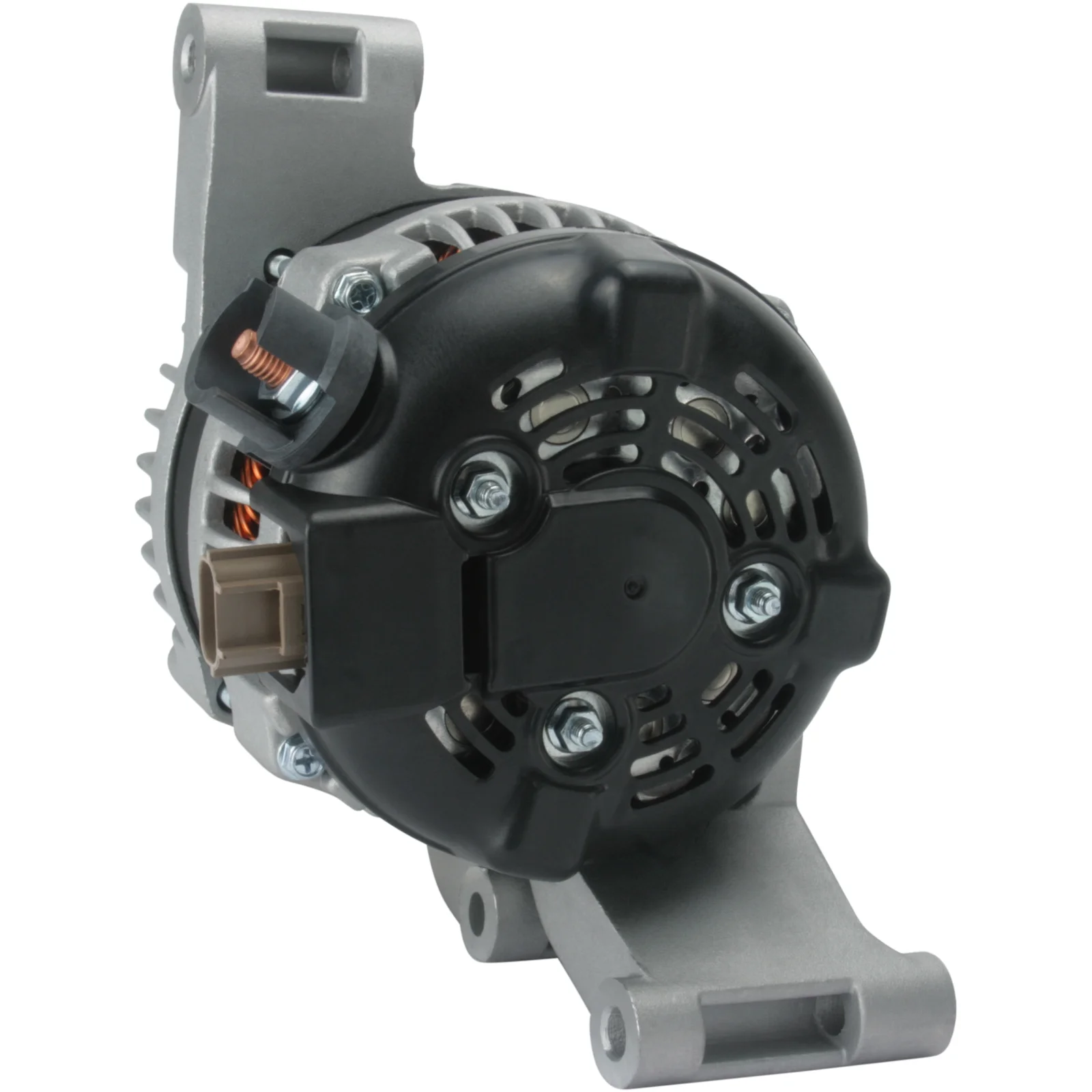

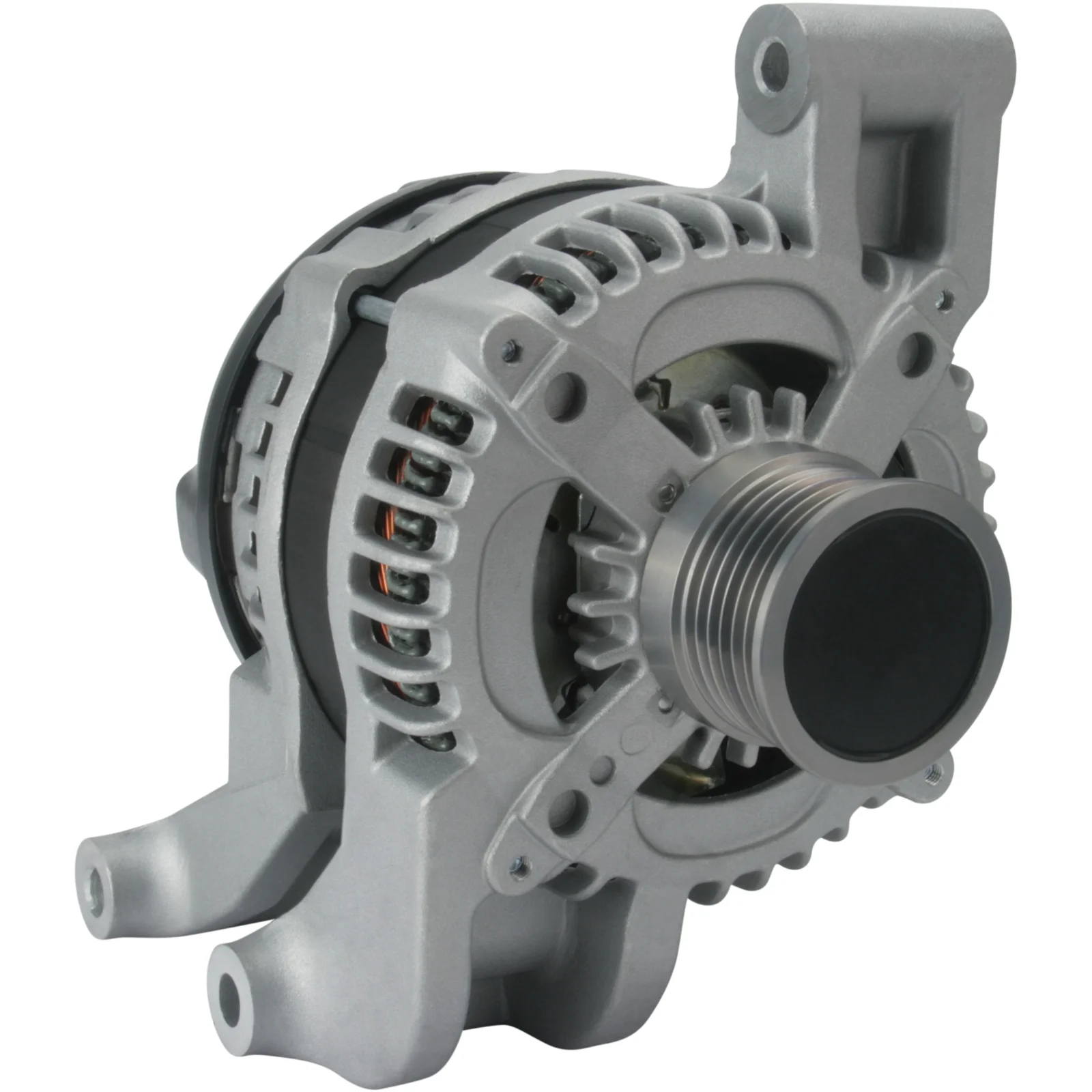

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 150, Rotation: CW, Mount. bracket dist.: 68.00

Beskrivning

Gen. 12V-150A passar Volvo 12V - 150A, (LI, RC, BVS), 6gr. frg Kontaktstycke/Repair Lead : 54-101-0111 För Yourex produkt order 90-600-7072

Voltage: 14
Amp: 150
Pulley dist.: 75.00
Width/holder arm: 72.00
Mount. bracket dist.: 68.00
Bracket hole: 8.60x9.60
Bracket hole 2: 9.40
Belt. adj. brackethole pos.: 5
Belt. adj. bracket hole 1: 8.50
Pulley dia.: 49.50
Grooves/pulley: 6
Radius: 89.00
Radius 2: 90.00
B+: M8
Position/B+ in min.: 50
D+ Size: Plug
Rotation: CW
Plug no.: PL57
Total length mm: 180.00
Pulley: SP/FW
Regulator type: IR
Prod. info: BN

Filer

Specifikation

B+ M8
Mount. bracket dist. 68.00
Belt. adj. bracket hole 1 8.50
Belt. adj. brackethole pos. 5
Plug no. PL57
Bracket hole 8.60x9.60
Bracket hole 2 9.40
Position/B+ in min. 50
Prod. info BN
Pulley SP/FW
Pulley dia. 49.50
Pulley dist. 75.00
Radius 89.00
D+ Size Plug
Radius 2 90.00
Regulator type IR
Rotation CW
Grooves/pulley 6
Voltage 14
Total length 180.00 mm
Width/holder arm 72.00
Amp 150

  • OEM
    F032114083, 3M5T-10300NB, 3M5T-10300NC, 3M5T10300NB, 3M5T10300NC, 1931ir, 1986A01207, 104210-1190, 104210-2750, 104210-3821, 104210-5770, 104211-8480, 114083, 1633079, 8603272, 30667072, 30795495, 36002575, 63377420

  • Konkurrentreferens
    A6049, A6049(DENSO), CAL40269, DAN934, DENDAN934, DRA0086, LRA03069, 8EL011712-001, 27-5681, 105.512.150, 519.029.1502, 0986UR6381, 24070N, 24070R, 112960, 210441, 210441A, 301931RI, 440975, 9090693, 12090208, 32118750, 063377420, 0986082590, 063377420010, 944390904320

  • Bilmärken
    Ford EU, Volvo

  • Normaliserat artikelnummer
    a6049, a6049denso, cal40269, dan934, dendan934, dra0086, f032114083, lra03069, 3m5t10300nb, 3m5t10300nc, 8el011712001, 0986ur6381, 1931ir, 1986a01207, 24070n, 24070r, 112960, 114083, 210441, 210441a, 275681, 301931ri, 440975, 1633079, 8603272, 9090693, 12090208, 30667072, 30795495, 32118750, 36002575, 063377420, 63377420, 105512150, 0986082590, 1042101190, 1042102750, 1042103821, 1042105770, 1042118480, 5190291502, 063377420010, 944390904320

  • Passar modeller
    Volvo Model: C30 Model series: C30 Type of engine: Flexfuel Size of motor: 1.8 Brand of engine: B4184S8 Body: Hatchback From date: 01-01-2007 To date: 01-12-2012 Fuel: Gasoline Approved: Yes
    Volvo Model: S40 Model series: S40 Size of motor: 1.8 Brand of engine: B4184S11 Type description: MS From date: 01-04-2004 To date: 01-12-2010 Fuel: Gasoline Approved: Yes
    Volvo Model: S40 Model series: S40 Size of motor: 2.0 Brand of engine: B4204S3 Type description: MS From date: 01-10-2006 To date: 01-12-2012 Fuel: Gasoline Approved: Yes
    Volvo Model: S40 Model series: S40 Type of engine: Flexfuel Size of motor: 1.8 Brand of engine: B4184S8 Type description: MS From date: 01-01-2006 To date: 01-12-2010 Fuel: Gasoline Approved: Yes
    Volvo Model: V50 Model series: V50 Model type: BiFuel Type of engine: Bifuel Size of motor: 1.8 Brand of engine: B4184S8 Type description: 545 Body: Estate From date: 01-01-2009 To date: 01-09-2010 Fuel: Petrol/Electro Approved: Yes Manufacture type: Estate
    Volvo Model: V50 Model series: V50 Model type: Flexfuel Size of motor: 2.0 Brand of engine: B4204S4 Type description: MW Body: Estate From date: 01-01-2010 To date: 01-12-2012 Fuel: Bi-Fuel Approved: Yes
    Volvo Model: V50 Model series: V50 Size of motor: 1.8 Brand of engine: B4184S11 Type description: MW Body: Estate From date: 01-04-2004 To date: 01-12-2010 Fuel: Gasoline Approved: Yes
    Volvo Model: V50 Model series: V50 Size of motor: 2.0 Brand of engine: B4204S3 Type description: MW Body: Estate From date: 01-10-2006 To date: 01-12-2012 Fuel: Gasoline Approved: Yes
    Volvo Model: V50 Model series: V50 Type of engine: FlexFuel Size of motor: 1.8 Brand of engine: B4184S8 Type description: MW Body: Estate From date: 01-01-2005 To date: 01-12-2010 Fuel: Gasoline Approved: Yes
    Volvo Series: C30 Model: 1.8 FlexFuel Engine volume: 1.8 Engine type: B 4184 S8 Year: 01.07-
    Volvo Series: C30 Model: 2.0 Engine volume: 2.0 Engine type: B 4204 S3 Year: 10.06-
    Volvo Series: S40 II Model: 1.8 Engine volume: 1.8 Engine type: B 4184 S11 Year: 01.06-
    Volvo Series: S40 II Model: 1.8 FlexFuel Engine volume: 1.8 Engine type: B 4184 S8 Year: 01.06-
    Volvo Series: S40 II Model: 2.0 Engine volume: 2.0 Engine type: B 4204 S3 Year: 10.06-
    Volvo Series: V50 Model: 1.8 Engine volume: 1.8 Engine type: B 4184 S11 Year: 01.06-
    Volvo Series: V50 Model: 1.8 FlexiFuel Engine volume: 1.8 Engine type: B 4184 S8 Year: 01.05-
    Volvo Series: V50 Model: 2.0 Engine volume: 2.0 Engine type: B 4204 S3 Year: 10.06-
    Volvo Series: V50 Model: 2.0 FlexFuel Engine volume: 2.0 Engine type: B 4204 S4 Year: 01.10-12.12
