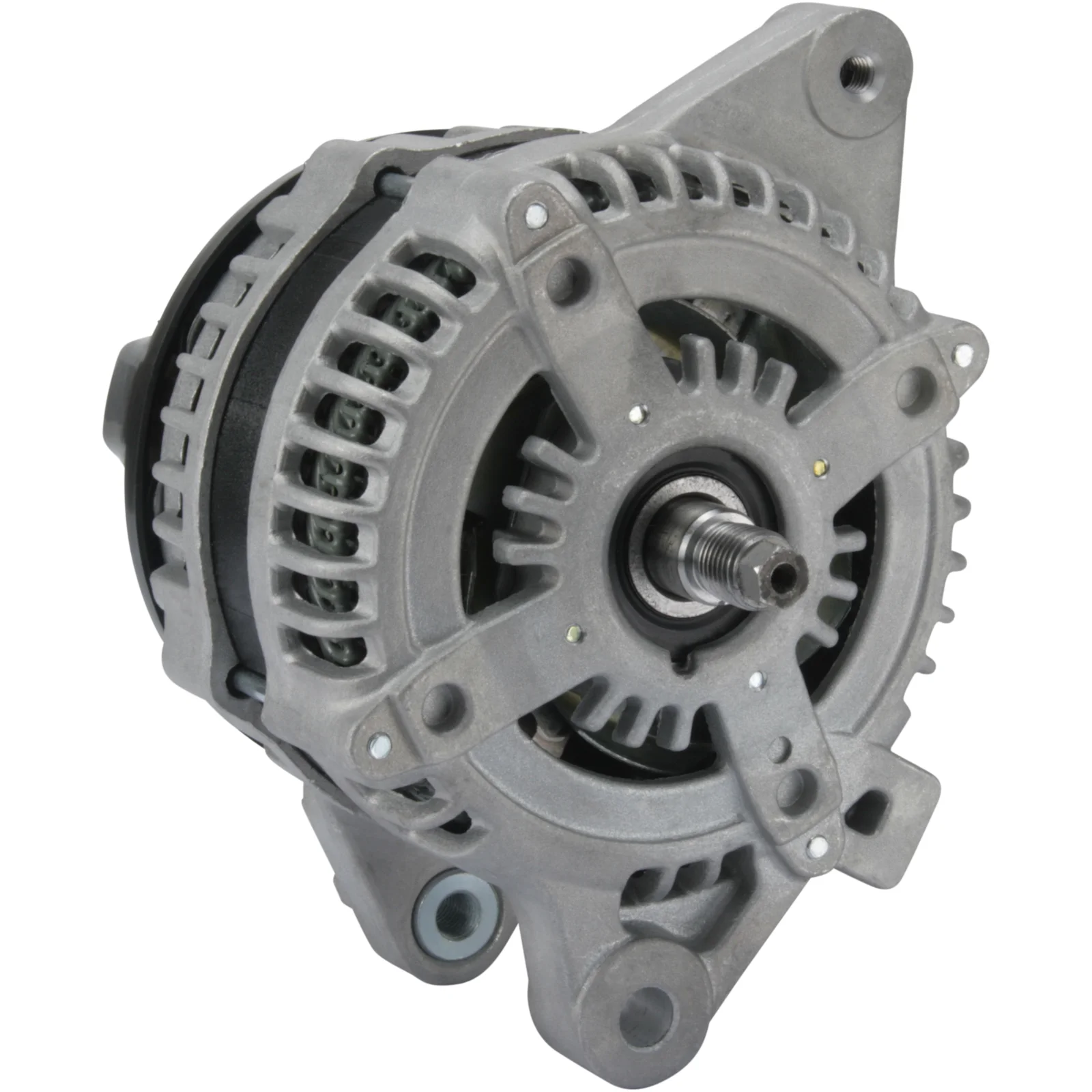

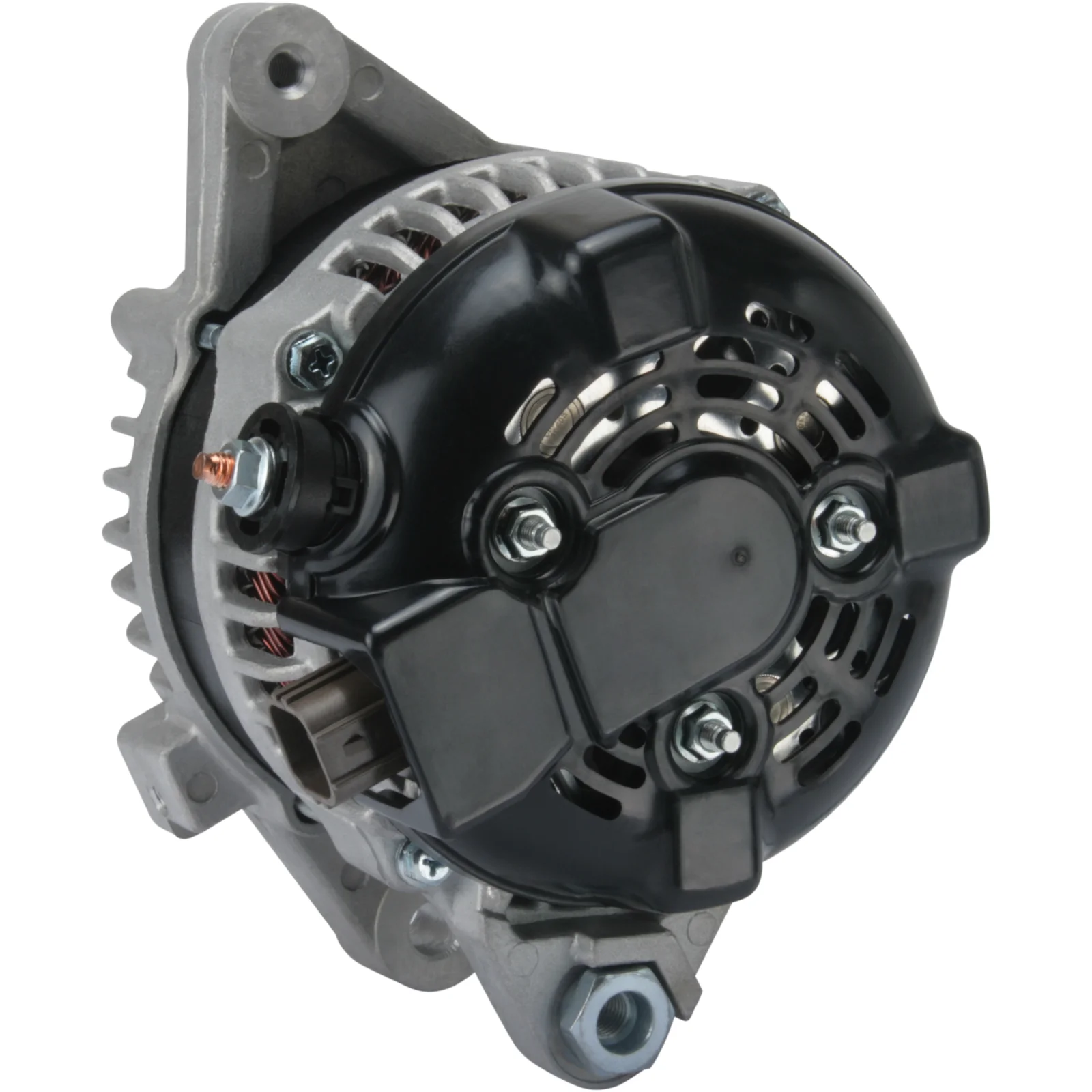

HC-Cargo Generator
HC-Cargo Generator
Artikelnr: F032114694

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 100, Rotation: CW, Mount. bracket dist.: 51.50

Beskrivning

Toyota Avensis Gen. 12V-100A 12V - 100A, 6gr.frg, (IG-RLO-L-M) 6gr frigångsremsk. (IG-RLO-L-M) För Yourex produkt order 90-555-2181

Voltage: 14
Amp: 100
Pulley dist.: 33.50
Width/holder arm: 20.00
Mount. bracket dist.: 51.50
Bracket hole: 11.00
Belt. adj. brackethole pos.: 8
Belt. adj. bracket hole 1: M8
Pulley dia.: 55.00
Grooves/pulley: 6
Radius: 86.00
Radius 2: 92.00
B+: M6
Position/B+ in min.: 47
D+ Size: Plug
Rotation: CW
Plug no.: PL146
Pulley: SP/FW
Regulator type: IR

Filer

Specifikation

B+ M6
Mount. bracket dist. 51.50
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 8
Plug no. PL146
Bracket hole 11.00
Position/B+ in min. 47
Pulley SP/FW
Pulley dia. 55.00
Pulley dist. 33.50
Radius 86.00
D+ Size Plug
Radius 2 92.00
Regulator type IR
Rotation CW
Grooves/pulley 6
Voltage 14
Width/holder arm 20.00
Amp 100

  • OEM
    DAN 1011, DAN 1318, F032114694, 1986A00633, 1986A01205, 2126ir, 27060-0T050, 27060-0t050, 27060-0T051, 27060-0t051, 27060-0T090, 27060-0T091, 27060-0T180, 27060-0T181, 27060-37020, 27060-37050, 27060-37051, 104210-2180, 104210-2181, 104210-2182, 104210-2380, 104210-2381, 104210-2400, 104210-2401, 104211-3050, 104211-3051, 104211-3052, 104211-3053, 104211-3420, 104211-3421, 104211-3422, 104211-3423, 114694

  • Konkurrentreferens
    A6061, A6061(DENSO), A6468S, CAL40302, CAL40436, dan1011, DAN1318, DENDAN1011, DRA0696, LRA03353, MAN7533, 8EL011712-841, 28-5965, 195.948.100, 195.998.100, 235.330.1002, 20359, 20359R, 209299, 209299A, 209360, 209360A, 553471RI, 554462RI, 849171, 9090843, 12060919, 0986082350, 063377533010

  • Bilmärken
    Toyota

  • Normaliserat artikelnummer
    a6061, a6061denso, a6468s, cal40302, cal40436, dan1011, dan1318, dendan1011, dra0696, f032114694, lra03353, man7533, 8el011712841, 1986a00633, 1986a01205, 2126ir, 20359, 20359r, 114694, 209299, 209299a, 209360, 209360a, 270600t050, 270600t051, 270600t090, 270600t091, 270600t180, 270600t181, 285965, 553471ri, 554462ri, 849171, 9090843, 12060919, 195948100, 195998100, 0986082350, 1042102180, 1042102181, 1042102182, 1042102380, 1042102381, 1042102400, 1042102401, 1042113050, 1042113051, 1042113052, 1042113053, 1042113420, 1042113421, 1042113422, 1042113423, 2353301002, 2706037020, 2706037050, 2706037051, 063377533010

  • Passar modeller
    Toyota Model: Auris Model series: Auris Size of motor: 1.6 Brand of engine: 1ZR-FAE Type description: ZRE151 Body: Hatchback From date: 01-05-2009 To date: 01-09-2012 Fuel: Gasoline Approved: Yes
    Toyota Model: Auris Model series: Auris Size of motor: 1.8 Brand of engine: 2ZR-FAE Body: Hatchback From date: 01-02-2009 To date: 01-09-2012 Fuel: Gasoline Approved: Yes
    Toyota Model: Auris Model series: Auris Size of motor: 1.8 Brand of engine: 2ZR-FAE Type description: ZRE152 Body: Hatchback From date: 01-02-2009 To date: 01-09-2012 Fuel: Gasoline Approved: Yes
    Toyota Model: Avensis Model series: Avensis Size of motor: 1.6 Brand of engine: 1ZR-FAE Type description: T27 Body: Estate From date: 01-02-2009 To date: 01-10-2018 Fuel: Gasoline Approved: Yes Manufacture type: Station Wa
    Toyota Model: Avensis Model series: Avensis Size of motor: 1.6 Brand of engine: 1ZR-FAE Type description: T27 From date: 01-11-2008 To date: 01-10-2018 Fuel: Gasoline Approved: Yes
    Toyota Model: Avensis Model series: Avensis Size of motor: 1.8 Brand of engine: 2ZR-FAE Type description: T27 Body: Estate From date: 01-02-2009 To date: 01-10-2018 Fuel: Gasoline Approved: Yes Manufacture type: Station Wa
    Toyota Model: Avensis Model series: Avensis Size of motor: 2.0 Brand of engine: 1AZ-FE Type description: T27 From date: 01-11-2008 To date: 01-10-2018 Fuel: Gasoline Approved: Yes
    Toyota Model: Avensis Model series: Avensis Size of motor: 2.0 Brand of engine: 3ZR-FAE Type description: T27 Body: Estate From date: 01-02-2009 To date: 01-10-2018 Fuel: Gasoline Approved: Yes Manufacture type: Station Wa
    Toyota Model: Avensis Model series: Avensis Size of motor: 2.0 Brand of engine: 3ZR-FAE Type description: T27 From date: 01-11-2008 To date: 01-10-2018 Fuel: Gasoline Approved: Yes
    Toyota Model: Avensis Model series: Avensis Size of motor: 2.0 Brand of engine: 3ZR-FE Type description: T27 Body: Estate From date: 01-02-2009 To date: 01-10-2018 Fuel: Gasoline Approved: Yes Manufacture type: Station Wa
    Toyota Model: Avensis Model series: Avensis Size of motor: 2.0 Brand of engine: 3ZR-FE Type description: T27 From date: 01-11-2008 To date: 01-10-2018 Fuel: Gasoline Approved: Yes
    Toyota Model: Avensis Model series: Avensis Size of motor: 2.0 Brand of engine: 3ZR-FE Type description: _T27_ From date: 01-12-2012 To date: 01-10-2018 Fuel: Gasoline Approved: Yes
    Toyota Model: Verso Model series: Verso Size of motor: 1.6 Brand of engine: 1ZR-FAE Type description: ZGR20 Body: MPV From date: 01-04-2009 To date: 01-08-2018 Fuel: Gasoline Approved: Yes
    Toyota Model: Verso Model series: Verso Size of motor: 1.6 Brand of engine: 1ZR-FAE Type description: _R2_ Body: MPV From date: 01-04-2009 To date: 01-08-2018 Fuel: Gasoline Approved: Yes
    Toyota Model: Verso Model series: Verso Type of engine: VVTi Size of motor: 1.8 Brand of engine: 2ZR-FAE Type description: ZGR21 Body: MPV From date: 01-04-2009 To date: 01-08-2018 Fuel: Gasoline Approved: Yes
    Toyota Model: Verso Van Model series: Verso Van Size of motor: 1.6 Brand of engine: 1ZR-FAE Type description: _R2_ Body: Van From date: 01-04-2009 To date: 01-08-2018 Fuel: Petrol Approved: Yes
    Toyota Model: Verso Van Model series: Verso Van Size of motor: 1.8 Brand of engine: 2ZR-FAE Type description: _R2_ Body: Van From date: 01-04-2009 To date: 01-08-2018 Fuel: Petrol Approved: Yes
    Toyota Series: Auris (_E15_) Model: 1.6 Engine volume: 1.6 Engine type: 1ZR-FAE Year: 05.09-
    Toyota Series: Auris (_E15_) Model: 1.8 Engine volume: 1.8 Engine type: 2ZR-FAE Year: 02.09-
    Toyota Series: Avensis (T27) Kombi Model: 1.8 Engine volume: 1.8 Engine type: 2ZR-FAE Year: 02.09-
    Toyota Series: Avensis (T27) Kombi Model: 2.0 Engine volume: 2.0 Engine type: 3ZR-FAE Year: 02.09-
    Toyota Series: Avensis (T27) Model: 1.8 Engine volume: 1.8 Engine type: 2ZR-FAE Year: 02.09-
    Toyota Series: Avensis (T27) Model: 2.0 Engine volume: 2.0 Engine type: 3ZR-FAE Year: 02.09-
    Toyota Series: RAV 4 III (ACA_) Model: 2.0 4WD Engine volume: 2.0 Engine type: 3ZR-FAE Year: 12.08-
    Toyota Series: RAV 4 III (ACA_) Model: 2.0 FWD Engine volume: 2.0 Engine type: 3ZR-FAE Year: 12.08-
    Toyota Series: Verso (_R2_) Model: 1.6 Engine volume: 1.6 Engine type: 1ZR-FAE Year: 04.09-
    Toyota Series: Verso (_R2_) Model: 1.8 Engine volume: 1.8 Engine type: 2ZR-FAE Year: 04.09-
    1 / 6
  • Beskrivning
    Toyota Avensis Gen. 12V-100A 12V - 100A, 6gr.frg, (IG-RLO-L-M) 6gr frigångsremsk. (IG-RLO-L-M) För Yourex produkt order 90-555-2181

    Voltage: 14
    Amp: 100
    Pulley dist.: 33.50
    Width/holder arm: 20.00
    Mount. bracket dist.: 51.50
    Bracket hole: 11.00
    Belt. adj. brackethole pos.: 8
    Belt. adj. bracket hole 1: M8
    Pulley dia.: 55.00
    Grooves/pulley: 6
    Radius: 86.00
    Radius 2: 92.00
    B+: M6
    Position/B+ in min.: 47
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL146
    Pulley: SP/FW
    Regulator type: IR

    Filer

  • Specifikation
    B+ M6
    Mount. bracket dist. 51.50
    Belt. adj. bracket hole 1 M8
    Belt. adj. brackethole pos. 8
    Plug no. PL146
    Bracket hole 11.00
    Position/B+ in min. 47
    Pulley SP/FW
    Pulley dia. 55.00
    Pulley dist. 33.50
    Radius 86.00
    D+ Size Plug
    Radius 2 92.00
    Regulator type IR
    Rotation CW
    Grooves/pulley 6
    Voltage 14
    Width/holder arm 20.00
    Amp 100
  • Fordonsmatchning

    • OEM
      DAN 1011, DAN 1318, F032114694, 1986A00633, 1986A01205, 2126ir, 27060-0T050, 27060-0t050, 27060-0T051, 27060-0t051, 27060-0T090, 27060-0T091, 27060-0T180, 27060-0T181, 27060-37020, 27060-37050, 27060-37051, 104210-2180, 104210-2181, 104210-2182, 104210-2380, 104210-2381, 104210-2400, 104210-2401, 104211-3050, 104211-3051, 104211-3052, 104211-3053, 104211-3420, 104211-3421, 104211-3422, 104211-3423, 114694

    • Konkurrentreferens
      A6061, A6061(DENSO), A6468S, CAL40302, CAL40436, dan1011, DAN1318, DENDAN1011, DRA0696, LRA03353, MAN7533, 8EL011712-841, 28-5965, 195.948.100, 195.998.100, 235.330.1002, 20359, 20359R, 209299, 209299A, 209360, 209360A, 553471RI, 554462RI, 849171, 9090843, 12060919, 0986082350, 063377533010

    • Bilmärken
      Toyota

    • Normaliserat artikelnummer
      a6061, a6061denso, a6468s, cal40302, cal40436, dan1011, dan1318, dendan1011, dra0696, f032114694, lra03353, man7533, 8el011712841, 1986a00633, 1986a01205, 2126ir, 20359, 20359r, 114694, 209299, 209299a, 209360, 209360a, 270600t050, 270600t051, 270600t090, 270600t091, 270600t180, 270600t181, 285965, 553471ri, 554462ri, 849171, 9090843, 12060919, 195948100, 195998100, 0986082350, 1042102180, 1042102181, 1042102182, 1042102380, 1042102381, 1042102400, 1042102401, 1042113050, 1042113051, 1042113052, 1042113053, 1042113420, 1042113421, 1042113422, 1042113423, 2353301002, 2706037020, 2706037050, 2706037051, 063377533010

    • Passar modeller
      Toyota Model: Auris Model series: Auris Size of motor: 1.6 Brand of engine: 1ZR-FAE Type description: ZRE151 Body: Hatchback From date: 01-05-2009 To date: 01-09-2012 Fuel: Gasoline Approved: Yes
      Toyota Model: Auris Model series: Auris Size of motor: 1.8 Brand of engine: 2ZR-FAE Body: Hatchback From date: 01-02-2009 To date: 01-09-2012 Fuel: Gasoline Approved: Yes
      Toyota Model: Auris Model series: Auris Size of motor: 1.8 Brand of engine: 2ZR-FAE Type description: ZRE152 Body: Hatchback From date: 01-02-2009 To date: 01-09-2012 Fuel: Gasoline Approved: Yes
      Toyota Model: Avensis Model series: Avensis Size of motor: 1.6 Brand of engine: 1ZR-FAE Type description: T27 Body: Estate From date: 01-02-2009 To date: 01-10-2018 Fuel: Gasoline Approved: Yes Manufacture type: Station Wa
      Toyota Model: Avensis Model series: Avensis Size of motor: 1.6 Brand of engine: 1ZR-FAE Type description: T27 From date: 01-11-2008 To date: 01-10-2018 Fuel: Gasoline Approved: Yes
      Toyota Model: Avensis Model series: Avensis Size of motor: 1.8 Brand of engine: 2ZR-FAE Type description: T27 Body: Estate From date: 01-02-2009 To date: 01-10-2018 Fuel: Gasoline Approved: Yes Manufacture type: Station Wa
      Toyota Model: Avensis Model series: Avensis Size of motor: 2.0 Brand of engine: 1AZ-FE Type description: T27 From date: 01-11-2008 To date: 01-10-2018 Fuel: Gasoline Approved: Yes
      Toyota Model: Avensis Model series: Avensis Size of motor: 2.0 Brand of engine: 3ZR-FAE Type description: T27 Body: Estate From date: 01-02-2009 To date: 01-10-2018 Fuel: Gasoline Approved: Yes Manufacture type: Station Wa
      Toyota Model: Avensis Model series: Avensis Size of motor: 2.0 Brand of engine: 3ZR-FAE Type description: T27 From date: 01-11-2008 To date: 01-10-2018 Fuel: Gasoline Approved: Yes
      Toyota Model: Avensis Model series: Avensis Size of motor: 2.0 Brand of engine: 3ZR-FE Type description: T27 Body: Estate From date: 01-02-2009 To date: 01-10-2018 Fuel: Gasoline Approved: Yes Manufacture type: Station Wa
      Toyota Model: Avensis Model series: Avensis Size of motor: 2.0 Brand of engine: 3ZR-FE Type description: T27 From date: 01-11-2008 To date: 01-10-2018 Fuel: Gasoline Approved: Yes
      Toyota Model: Avensis Model series: Avensis Size of motor: 2.0 Brand of engine: 3ZR-FE Type description: _T27_ From date: 01-12-2012 To date: 01-10-2018 Fuel: Gasoline Approved: Yes
      Toyota Model: Verso Model series: Verso Size of motor: 1.6 Brand of engine: 1ZR-FAE Type description: ZGR20 Body: MPV From date: 01-04-2009 To date: 01-08-2018 Fuel: Gasoline Approved: Yes
      Toyota Model: Verso Model series: Verso Size of motor: 1.6 Brand of engine: 1ZR-FAE Type description: _R2_ Body: MPV From date: 01-04-2009 To date: 01-08-2018 Fuel: Gasoline Approved: Yes
      Toyota Model: Verso Model series: Verso Type of engine: VVTi Size of motor: 1.8 Brand of engine: 2ZR-FAE Type description: ZGR21 Body: MPV From date: 01-04-2009 To date: 01-08-2018 Fuel: Gasoline Approved: Yes
      Toyota Model: Verso Van Model series: Verso Van Size of motor: 1.6 Brand of engine: 1ZR-FAE Type description: _R2_ Body: Van From date: 01-04-2009 To date: 01-08-2018 Fuel: Petrol Approved: Yes
      Toyota Model: Verso Van Model series: Verso Van Size of motor: 1.8 Brand of engine: 2ZR-FAE Type description: _R2_ Body: Van From date: 01-04-2009 To date: 01-08-2018 Fuel: Petrol Approved: Yes
      Toyota Series: Auris (_E15_) Model: 1.6 Engine volume: 1.6 Engine type: 1ZR-FAE Year: 05.09-
      Toyota Series: Auris (_E15_) Model: 1.8 Engine volume: 1.8 Engine type: 2ZR-FAE Year: 02.09-
      Toyota Series: Avensis (T27) Kombi Model: 1.8 Engine volume: 1.8 Engine type: 2ZR-FAE Year: 02.09-
      Toyota Series: Avensis (T27) Kombi Model: 2.0 Engine volume: 2.0 Engine type: 3ZR-FAE Year: 02.09-
      Toyota Series: Avensis (T27) Model: 1.8 Engine volume: 1.8 Engine type: 2ZR-FAE Year: 02.09-
      Toyota Series: Avensis (T27) Model: 2.0 Engine volume: 2.0 Engine type: 3ZR-FAE Year: 02.09-
      Toyota Series: RAV 4 III (ACA_) Model: 2.0 4WD Engine volume: 2.0 Engine type: 3ZR-FAE Year: 12.08-
      Toyota Series: RAV 4 III (ACA_) Model: 2.0 FWD Engine volume: 2.0 Engine type: 3ZR-FAE Year: 12.08-
      Toyota Series: Verso (_R2_) Model: 1.6 Engine volume: 1.6 Engine type: 1ZR-FAE Year: 04.09-
      Toyota Series: Verso (_R2_) Model: 1.8 Engine volume: 1.8 Engine type: 2ZR-FAE Year: 04.09-
