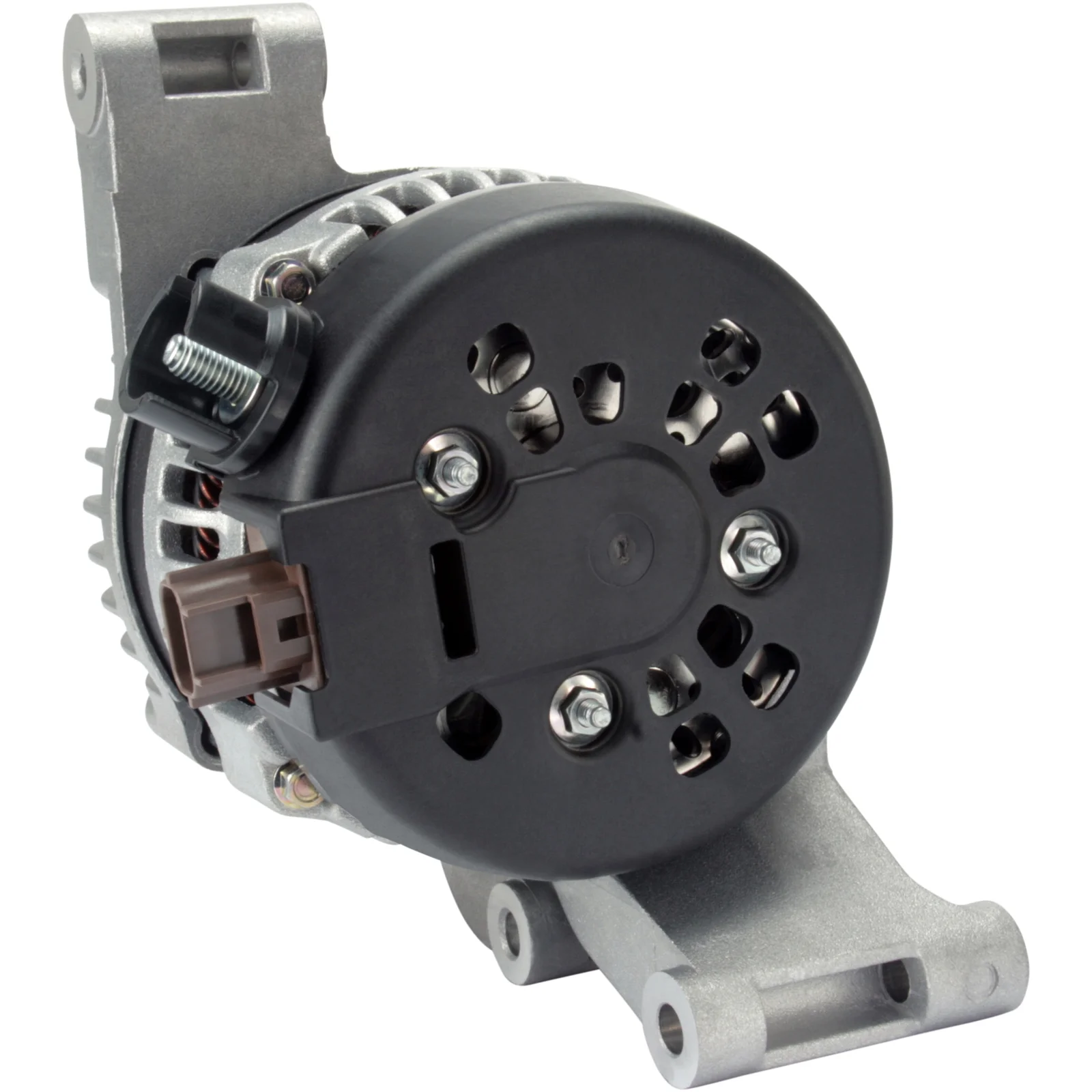

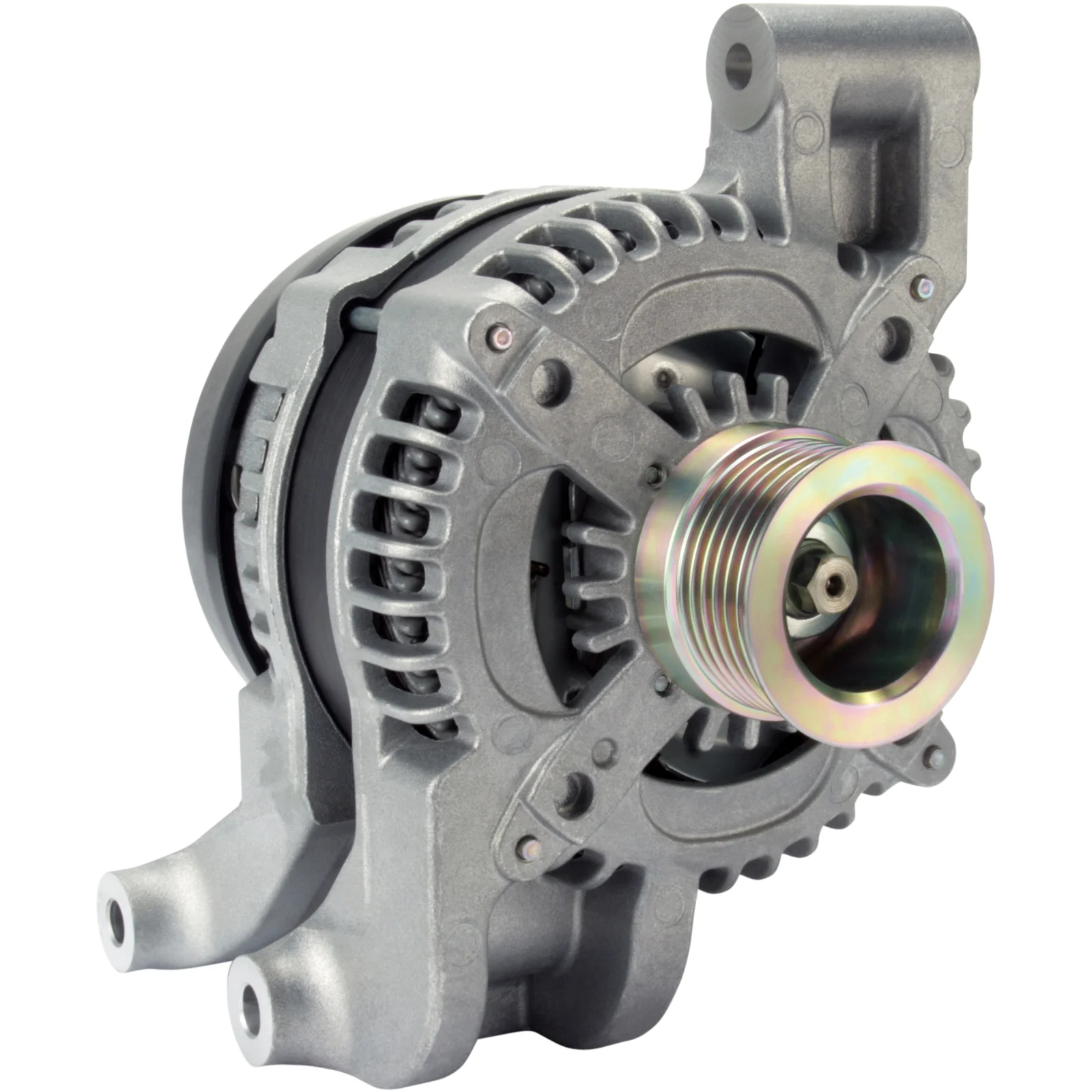

HC-Cargo Generator
HC-Cargo Generator
Artikelnr: F032114065

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 120, Rotation: CW, Mount. bracket dist.: 68.50

Beskrivning

Generator 12V-120A (M/T) 12V - 120A, 6gr, (LI, RC, BVS) Alternativ :med clutch pulley = 90-180-3051. För test använd testbox 89-8219 Kontaktstycke/Repair Lead : 54-101-0111 För Yourex produkt order 90-180-3050

Voltage: 14
Amp: 120
Pulley dist.: 75.00
Width/holder arm: 72.00
Mount. bracket dist.: 68.50
Bracket hole: 9.00
Belt. adj. bracket hole 1: 9.00
Pulley dia.: 49.00
Grooves/pulley: 6
B+: M8
Position/B+ in min.: 50
Rotation: CW
Plug no.: PL57
Total length mm: 165.00
Pulley: SP
Regulator type: IR
Prod. info: BN

Filer

Specifikation

B+ M8
Mount. bracket dist. 68.50
Belt. adj. bracket hole 1 9.00
Plug no. PL57
Bracket hole 9.00
Position/B+ in min. 50
Prod. info BN
Pulley SP
Pulley dia. 49.00
Pulley dist. 75.00
Regulator type IR
Rotation CW
Grooves/pulley 6
Voltage 14
Total length 165.00 mm
Width/holder arm 72.00
Amp 120

  • OEM
    F032114065, FO 1322879, 3M5T-10300LC, 3M5T-10300LD, 3M5T10300LA, 3M5T10300LB, 3m5t10300lc, 3M5T10300LD, 1926ir, 1986A01349, 104210-3530, 104210-3531, 104210-3532, 104210-3760, 104210-5800, 114065, 1322879, 1530298, 8666581, 30667069

  • Konkurrentreferens
    A6019, A6019(DENSO), A6019PR, A6216, CAL40176, DAN1023, DENDAN1023, DRA0219, F042205104, 8EL011712-201, 27-5658, 23986R, 24046, 24046N, 112496, 200200, 210438, 210438A, 301926RI, 443199, 747057, 9212868, 12090256, 32081700, 0986081700, 063377543010, 944390904330

  • Bilmärken
    Ford EU, Volvo

  • Normaliserat artikelnummer
    a6019, a6019denso, a6019pr, a6216, cal40176, dan1023, dendan1023, dra0219, f032114065, f042205104, fo1322879, 3m5t10300la, 3m5t10300lb, 3m5t10300lc, 3m5t10300ld, 8el011712201, 1926ir, 1986a01349, 23986r, 24046, 24046n, 112496, 114065, 200200, 210438, 210438a, 275658, 301926ri, 443199, 747057, 1322879, 1530298, 8666581, 9212868, 12090256, 30667069, 32081700, 0986081700, 1042103530, 1042103531, 1042103532, 1042103760, 1042105800, 063377543010, 944390904330

  • Passar modeller
    Ford EU Series: C-MAX Model: 1.8 Engine volume: 1.8 Engine type: QQDA/QQDB Year: 02.07-
    Ford EU Series: C-Max Model: 1.8 Flexifuel Engine volume: 1.8 Engine type: Q7DA Year: 02.07-
    Ford EU Series: C-MAX Model: 2.0 AUT Engine volume: 2.0 Year: 02.07-
    Ford EU Series: Focus C-Max Model: 1.8 Engine volume: 1.8 Engine type: CSDA / CSDB Year: 10.03-03.07
    Ford EU Series: Focus C-Max Model: 1.8 Engine volume: 1.8 Engine type: Q7DA / QQDA/B Year: 04.04-03.07
    Ford EU Series: Focus C-Max Model: 1.8 Flexifuel Engine volume: 1.8 Engine type: Q7DA Year: 01.06-03.07
    Ford EU Series: Focus C-Max Model: 2.0 AUT Engine volume: 2.0 Engine type: AODA / B Year: 04.04-03.07
    Ford EU Series: Focus II Cabriolet Model: 2.0 AUT Engine volume: 2.0 Engine type: AODA / B Year: 10.06-
    Ford EU Series: Focus II Model: 1.8 Flexifuel Engine volume: 1.8 Engine type: Q7DA Year: 01.06-
    Ford EU Series: Focus II Model: 2.0 AUT Engine volume: 2.0 Engine type: AODA / B Year: 11.04-
    Ford EU Series: Focus II Sedan Model: 2.0 AUT Engine volume: 2.0 Engine type: AODA / B Year: 04.05-
    Ford EU Series: Focus II Turnier Model: 1.8 Engine volume: 1.8 Year: 03.06-
    Ford EU Series: Focus II Turnier Model: 1.8 Flexifuel Engine volume: 1.8 Engine type: Q7DA Year: 01.06-
    Ford EU Series: Focus II Turnier Model: 2.0 AUT Engine volume: 2.0 Engine type: AODA / B Year: 11.04-
    Ford Model: C-Max Model series: C-Max Size of motor: 1.8 Brand of engine: QQDA Body: MPV From date: 01-02-2007 To date: 01-09-2010 Fuel: Gasoline Approved: Yes
    Ford Model: C-Max Model series: C-Max Size of motor: 1.8 Brand of engine: QQDB Body: MPV From date: 01-02-2007 To date: 01-09-2010 Fuel: Gasoline Approved: Yes
    Ford Model: C-Max Model series: C-Max Size of motor: 1.8 Brand of engine: QQDC Body: MPV From date: 01-02-2007 To date: 01-09-2010 Fuel: Gasoline Approved: Yes
    Ford Model: C-Max Model series: C-Max Size of motor: 2.0 Brand of engine: AODA Body: MPV From date: 01-02-2007 To date: 01-09-2010 Fuel: Gasoline Approved: Yes
    Ford Model: C-Max Model series: C-Max Size of motor: 2.0 Brand of engine: AODB Body: MPV From date: 01-02-2007 To date: 01-09-2010 Fuel: Gasoline Approved: Yes
    Ford Model: C-Max Model series: C-Max Size of motor: 2.0 Brand of engine: AODE Body: MPV From date: 01-02-2007 To date: 01-09-2010 Fuel: Gasoline Approved: Yes
    Ford Model: C-Max Model series: C-Max Size of motor: 2.0 Brand of engine: SYDA Body: MPV From date: 01-02-2007 To date: 01-09-2010 Fuel: Gasoline Approved: Yes
    Ford Model: C-Max Model series: C-Max Type of engine: FlexFuel Size of motor: 1.8 Brand of engine: Q7DA Body: MPV From date: 01-02-2007 To date: 01-09-2010 Fuel: Gasoline Approved: Yes
    Ford Model: Focus Model series: Focus Model type: C-Max Flexifuel Size of motor: 1.8 Brand of engine: Q7DA Body: MPV From date: 01-01-2006 To date: 01-03-2007 Fuel: Gasoline Approved: Yes
    Ford Model: Focus Model series: Focus Model type: C-Max Size of motor: 1.8 Brand of engine: CSDA Body: MPV From date: 01-10-2003 To date: 01-03-2007 Fuel: Gasoline Approved: Yes
    Ford Model: Focus Model series: Focus Model type: C-Max Size of motor: 1.8 Brand of engine: CSDB Body: MPV From date: 01-10-2003 To date: 01-03-2007 Fuel: Gasoline Approved: Yes
    Ford Model: Focus Model series: Focus Model type: C-Max Size of motor: 1.8 Brand of engine: Q7DA Body: MPV From date: 01-04-2004 To date: 01-03-2007 Fuel: Gasoline Approved: Yes
    Ford Model: Focus Model series: Focus Model type: C-Max Size of motor: 1.8 Brand of engine: QQDA Body: MPV From date: 01-04-2004 To date: 01-03-2007 Fuel: Gasoline Approved: Yes
    Ford Model: Focus Model series: Focus Model type: C-Max Size of motor: 1.8 Brand of engine: QQDB Body: MPV From date: 01-04-2004 To date: 01-03-2007 Fuel: Gasoline Approved: Yes
    Ford Model: Focus Model series: Focus Model type: CNG Size of motor: 2.0 Brand of engine: SYDA Type description: DA_ Body: Hatchback From date: 01-04-2009 To date: 01-07-2011 Fuel: Bi-Fuel Approved: Yes
    Ford Model: Focus Model series: Focus Model type: LPG Size of motor: 2.0 Brand of engine: SYDA Type description: DAW_ Body: Estate From date: 01-06-2008 To date: 01-07-2011 Fuel: Bi-Fuel Approved: Yes Manufacture type: Turnier
    Ford Model: Focus Model series: Focus Model type: LPG Size of motor: 2.0 Brand of engine: SYDA Type description: DA_ Body: Hatchback From date: 01-06-2008 To date: 01-07-2011 Fuel: Bi-Fuel Approved: Yes
    Ford Model: Focus Model series: Focus Size of motor: 1.8 Brand of engine: Q7DA Type description: DAW_ Body: Estate From date: 01-03-2006 To date: 01-09-2012 Fuel: Gasoline Approved: Yes Manufacture type: turnier
    Ford Model: Focus Model series: Focus Size of motor: 1.8 Brand of engine: Q7DA,QQDA Body: Box Body / Estate From date: 01-06-2009 To date: 01-07-2011 Fuel: Diesel/Electro Approved: Yes
    Ford Model: Focus Model series: Focus Size of motor: 1.8 Brand of engine: QQDB Type description: DAW_ Body: Estate From date: 01-03-2006 To date: 01-09-2012 Fuel: Gasoline Approved: Yes Manufacture type: turnier
    Ford Model: Focus Model series: Focus Size of motor: 1.8 Brand of engine: QQDB Type description: DA_ Body: Hatchback From date: 01-03-2006 To date: 01-09-2012 Fuel: Gasoline Approved: Yes
    Ford Model: Focus Model series: Focus Size of motor: 1.8 Brand of engine: QQDB Type description: DA_ From date: 01-03-2006 To date: 01-09-2012 Fuel: Gasoline Approved: Yes
    Ford Model: Focus Model series: Focus Size of motor: 1.8 Brand of engine: QQDC Body: MPV From date: 01-09-2005 To date: 01-03-2007 Fuel: Gasoline Approved: Yes
    Ford Model: Focus Model series: Focus Size of motor: 2.0 Brand of engine: AODA Type description: DA_ From date: 01-04-2005 To date: 01-07-2011 Fuel: Gasoline Approved: Yes
    Ford Model: Focus Model series: Focus Type of engine: FlexFuel Size of motor: 1.8 Brand of engine: Q7DA Type description: DAW_ Body: Estate From date: 01-01-2006 To date: 01-09-2012 Fuel: Gasoline Approved: Yes Manufacture type: turnier
    Ford Model: Focus Model series: Focus Type of engine: FlexFuel Size of motor: 1.8 Brand of engine: Q7DA Type description: DA_ Body: Hatchback From date: 01-01-2006 To date: 01-09-2012 Fuel: Gasoline Approved: Yes
    Ford Model: Focus Model series: Focus Type of engine: FlexFuel Size of motor: 1.8 Brand of engine: Q7DA Type description: DA_ From date: 01-06-2006 To date: 01-07-2011 Fuel: Gasoline Approved: Yes
    Ford Model: Focus Model series: Focus Type of engine: FlexFuel Size of motor: 1.8 Brand of engine: QQDD Type description: DA_ Body: Hatchback From date: 01-12-2005 To date: 01-01-2008 Fuel: Gasoline Approved: Yes
    Ford Model: Focus Model series: Focus Type of engine: FlexFuel Size of motor: 1.8 Type description: DAW_ Body: Estate From date: 01-12-2005 To date: 01-01-2008 Fuel: Gasoline Approved: Yes Manufacture type: turnier
    Ford Model: Focus Model series: Focus Type of engine: FlexFuel Size of motor: 1.8 Type description: DA_ From date: 01-12-2005 To date: 01-01-2008 Fuel: Gasoline Approved: Yes
    Volvo Series: S40 II Model: 1.8 FlexFuel Engine volume: 1.8 Engine type: B 4184 S8 Year: 01.06-
    1 / 9
  • Beskrivning
    Generator 12V-120A (M/T) 12V - 120A, 6gr, (LI, RC, BVS) Alternativ :med clutch pulley = 90-180-3051. För test använd testbox 89-8219 Kontaktstycke/Repair Lead : 54-101-0111 För Yourex produkt order 90-180-3050

    Voltage: 14
    Amp: 120
    Pulley dist.: 75.00
    Width/holder arm: 72.00
    Mount. bracket dist.: 68.50
    Bracket hole: 9.00
    Belt. adj. bracket hole 1: 9.00
    Pulley dia.: 49.00
    Grooves/pulley: 6
    B+: M8
    Position/B+ in min.: 50
    Rotation: CW
    Plug no.: PL57
    Total length mm: 165.00
    Pulley: SP
    Regulator type: IR
    Prod. info: BN

    Filer

  • Specifikation
    B+ M8
    Mount. bracket dist. 68.50
    Belt. adj. bracket hole 1 9.00
    Plug no. PL57
    Bracket hole 9.00
    Position/B+ in min. 50
    Prod. info BN
    Pulley SP
    Pulley dia. 49.00
    Pulley dist. 75.00
    Regulator type IR
    Rotation CW
    Grooves/pulley 6
    Voltage 14
    Total length 165.00 mm
    Width/holder arm 72.00
    Amp 120
  • Fordonsmatchning

    • OEM
      F032114065, FO 1322879, 3M5T-10300LC, 3M5T-10300LD, 3M5T10300LA, 3M5T10300LB, 3m5t10300lc, 3M5T10300LD, 1926ir, 1986A01349, 104210-3530, 104210-3531, 104210-3532, 104210-3760, 104210-5800, 114065, 1322879, 1530298, 8666581, 30667069

    • Konkurrentreferens
      A6019, A6019(DENSO), A6019PR, A6216, CAL40176, DAN1023, DENDAN1023, DRA0219, F042205104, 8EL011712-201, 27-5658, 23986R, 24046, 24046N, 112496, 200200, 210438, 210438A, 301926RI, 443199, 747057, 9212868, 12090256, 32081700, 0986081700, 063377543010, 944390904330

    • Bilmärken
      Ford EU, Volvo

    • Normaliserat artikelnummer
      a6019, a6019denso, a6019pr, a6216, cal40176, dan1023, dendan1023, dra0219, f032114065, f042205104, fo1322879, 3m5t10300la, 3m5t10300lb, 3m5t10300lc, 3m5t10300ld, 8el011712201, 1926ir, 1986a01349, 23986r, 24046, 24046n, 112496, 114065, 200200, 210438, 210438a, 275658, 301926ri, 443199, 747057, 1322879, 1530298, 8666581, 9212868, 12090256, 30667069, 32081700, 0986081700, 1042103530, 1042103531, 1042103532, 1042103760, 1042105800, 063377543010, 944390904330

    • Passar modeller
      Ford EU Series: C-MAX Model: 1.8 Engine volume: 1.8 Engine type: QQDA/QQDB Year: 02.07-
      Ford EU Series: C-Max Model: 1.8 Flexifuel Engine volume: 1.8 Engine type: Q7DA Year: 02.07-
      Ford EU Series: C-MAX Model: 2.0 AUT Engine volume: 2.0 Year: 02.07-
      Ford EU Series: Focus C-Max Model: 1.8 Engine volume: 1.8 Engine type: CSDA / CSDB Year: 10.03-03.07
      Ford EU Series: Focus C-Max Model: 1.8 Engine volume: 1.8 Engine type: Q7DA / QQDA/B Year: 04.04-03.07
      Ford EU Series: Focus C-Max Model: 1.8 Flexifuel Engine volume: 1.8 Engine type: Q7DA Year: 01.06-03.07
      Ford EU Series: Focus C-Max Model: 2.0 AUT Engine volume: 2.0 Engine type: AODA / B Year: 04.04-03.07
      Ford EU Series: Focus II Cabriolet Model: 2.0 AUT Engine volume: 2.0 Engine type: AODA / B Year: 10.06-
      Ford EU Series: Focus II Model: 1.8 Flexifuel Engine volume: 1.8 Engine type: Q7DA Year: 01.06-
      Ford EU Series: Focus II Model: 2.0 AUT Engine volume: 2.0 Engine type: AODA / B Year: 11.04-
      Ford EU Series: Focus II Sedan Model: 2.0 AUT Engine volume: 2.0 Engine type: AODA / B Year: 04.05-
      Ford EU Series: Focus II Turnier Model: 1.8 Engine volume: 1.8 Year: 03.06-
      Ford EU Series: Focus II Turnier Model: 1.8 Flexifuel Engine volume: 1.8 Engine type: Q7DA Year: 01.06-
      Ford EU Series: Focus II Turnier Model: 2.0 AUT Engine volume: 2.0 Engine type: AODA / B Year: 11.04-
      Ford Model: C-Max Model series: C-Max Size of motor: 1.8 Brand of engine: QQDA Body: MPV From date: 01-02-2007 To date: 01-09-2010 Fuel: Gasoline Approved: Yes
      Ford Model: C-Max Model series: C-Max Size of motor: 1.8 Brand of engine: QQDB Body: MPV From date: 01-02-2007 To date: 01-09-2010 Fuel: Gasoline Approved: Yes
      Ford Model: C-Max Model series: C-Max Size of motor: 1.8 Brand of engine: QQDC Body: MPV From date: 01-02-2007 To date: 01-09-2010 Fuel: Gasoline Approved: Yes
      Ford Model: C-Max Model series: C-Max Size of motor: 2.0 Brand of engine: AODA Body: MPV From date: 01-02-2007 To date: 01-09-2010 Fuel: Gasoline Approved: Yes
      Ford Model: C-Max Model series: C-Max Size of motor: 2.0 Brand of engine: AODB Body: MPV From date: 01-02-2007 To date: 01-09-2010 Fuel: Gasoline Approved: Yes
      Ford Model: C-Max Model series: C-Max Size of motor: 2.0 Brand of engine: AODE Body: MPV From date: 01-02-2007 To date: 01-09-2010 Fuel: Gasoline Approved: Yes
      Ford Model: C-Max Model series: C-Max Size of motor: 2.0 Brand of engine: SYDA Body: MPV From date: 01-02-2007 To date: 01-09-2010 Fuel: Gasoline Approved: Yes
      Ford Model: C-Max Model series: C-Max Type of engine: FlexFuel Size of motor: 1.8 Brand of engine: Q7DA Body: MPV From date: 01-02-2007 To date: 01-09-2010 Fuel: Gasoline Approved: Yes
      Ford Model: Focus Model series: Focus Model type: C-Max Flexifuel Size of motor: 1.8 Brand of engine: Q7DA Body: MPV From date: 01-01-2006 To date: 01-03-2007 Fuel: Gasoline Approved: Yes
      Ford Model: Focus Model series: Focus Model type: C-Max Size of motor: 1.8 Brand of engine: CSDA Body: MPV From date: 01-10-2003 To date: 01-03-2007 Fuel: Gasoline Approved: Yes
      Ford Model: Focus Model series: Focus Model type: C-Max Size of motor: 1.8 Brand of engine: CSDB Body: MPV From date: 01-10-2003 To date: 01-03-2007 Fuel: Gasoline Approved: Yes
      Ford Model: Focus Model series: Focus Model type: C-Max Size of motor: 1.8 Brand of engine: Q7DA Body: MPV From date: 01-04-2004 To date: 01-03-2007 Fuel: Gasoline Approved: Yes
      Ford Model: Focus Model series: Focus Model type: C-Max Size of motor: 1.8 Brand of engine: QQDA Body: MPV From date: 01-04-2004 To date: 01-03-2007 Fuel: Gasoline Approved: Yes
      Ford Model: Focus Model series: Focus Model type: C-Max Size of motor: 1.8 Brand of engine: QQDB Body: MPV From date: 01-04-2004 To date: 01-03-2007 Fuel: Gasoline Approved: Yes
      Ford Model: Focus Model series: Focus Model type: CNG Size of motor: 2.0 Brand of engine: SYDA Type description: DA_ Body: Hatchback From date: 01-04-2009 To date: 01-07-2011 Fuel: Bi-Fuel Approved: Yes
      Ford Model: Focus Model series: Focus Model type: LPG Size of motor: 2.0 Brand of engine: SYDA Type description: DAW_ Body: Estate From date: 01-06-2008 To date: 01-07-2011 Fuel: Bi-Fuel Approved: Yes Manufacture type: Turnier
      Ford Model: Focus Model series: Focus Model type: LPG Size of motor: 2.0 Brand of engine: SYDA Type description: DA_ Body: Hatchback From date: 01-06-2008 To date: 01-07-2011 Fuel: Bi-Fuel Approved: Yes
      Ford Model: Focus Model series: Focus Size of motor: 1.8 Brand of engine: Q7DA Type description: DAW_ Body: Estate From date: 01-03-2006 To date: 01-09-2012 Fuel: Gasoline Approved: Yes Manufacture type: turnier
      Ford Model: Focus Model series: Focus Size of motor: 1.8 Brand of engine: Q7DA,QQDA Body: Box Body / Estate From date: 01-06-2009 To date: 01-07-2011 Fuel: Diesel/Electro Approved: Yes
      Ford Model: Focus Model series: Focus Size of motor: 1.8 Brand of engine: QQDB Type description: DAW_ Body: Estate From date: 01-03-2006 To date: 01-09-2012 Fuel: Gasoline Approved: Yes Manufacture type: turnier
      Ford Model: Focus Model series: Focus Size of motor: 1.8 Brand of engine: QQDB Type description: DA_ Body: Hatchback From date: 01-03-2006 To date: 01-09-2012 Fuel: Gasoline Approved: Yes
      Ford Model: Focus Model series: Focus Size of motor: 1.8 Brand of engine: QQDB Type description: DA_ From date: 01-03-2006 To date: 01-09-2012 Fuel: Gasoline Approved: Yes
      Ford Model: Focus Model series: Focus Size of motor: 1.8 Brand of engine: QQDC Body: MPV From date: 01-09-2005 To date: 01-03-2007 Fuel: Gasoline Approved: Yes
      Ford Model: Focus Model series: Focus Size of motor: 2.0 Brand of engine: AODA Type description: DA_ From date: 01-04-2005 To date: 01-07-2011 Fuel: Gasoline Approved: Yes
      Ford Model: Focus Model series: Focus Type of engine: FlexFuel Size of motor: 1.8 Brand of engine: Q7DA Type description: DAW_ Body: Estate From date: 01-01-2006 To date: 01-09-2012 Fuel: Gasoline Approved: Yes Manufacture type: turnier
      Ford Model: Focus Model series: Focus Type of engine: FlexFuel Size of motor: 1.8 Brand of engine: Q7DA Type description: DA_ Body: Hatchback From date: 01-01-2006 To date: 01-09-2012 Fuel: Gasoline Approved: Yes
      Ford Model: Focus Model series: Focus Type of engine: FlexFuel Size of motor: 1.8 Brand of engine: Q7DA Type description: DA_ From date: 01-06-2006 To date: 01-07-2011 Fuel: Gasoline Approved: Yes
      Ford Model: Focus Model series: Focus Type of engine: FlexFuel Size of motor: 1.8 Brand of engine: QQDD Type description: DA_ Body: Hatchback From date: 01-12-2005 To date: 01-01-2008 Fuel: Gasoline Approved: Yes
      Ford Model: Focus Model series: Focus Type of engine: FlexFuel Size of motor: 1.8 Type description: DAW_ Body: Estate From date: 01-12-2005 To date: 01-01-2008 Fuel: Gasoline Approved: Yes Manufacture type: turnier
      Ford Model: Focus Model series: Focus Type of engine: FlexFuel Size of motor: 1.8 Type description: DA_ From date: 01-12-2005 To date: 01-01-2008 Fuel: Gasoline Approved: Yes
      Volvo Series: S40 II Model: 1.8 FlexFuel Engine volume: 1.8 Engine type: B 4184 S8 Year: 01.06-
