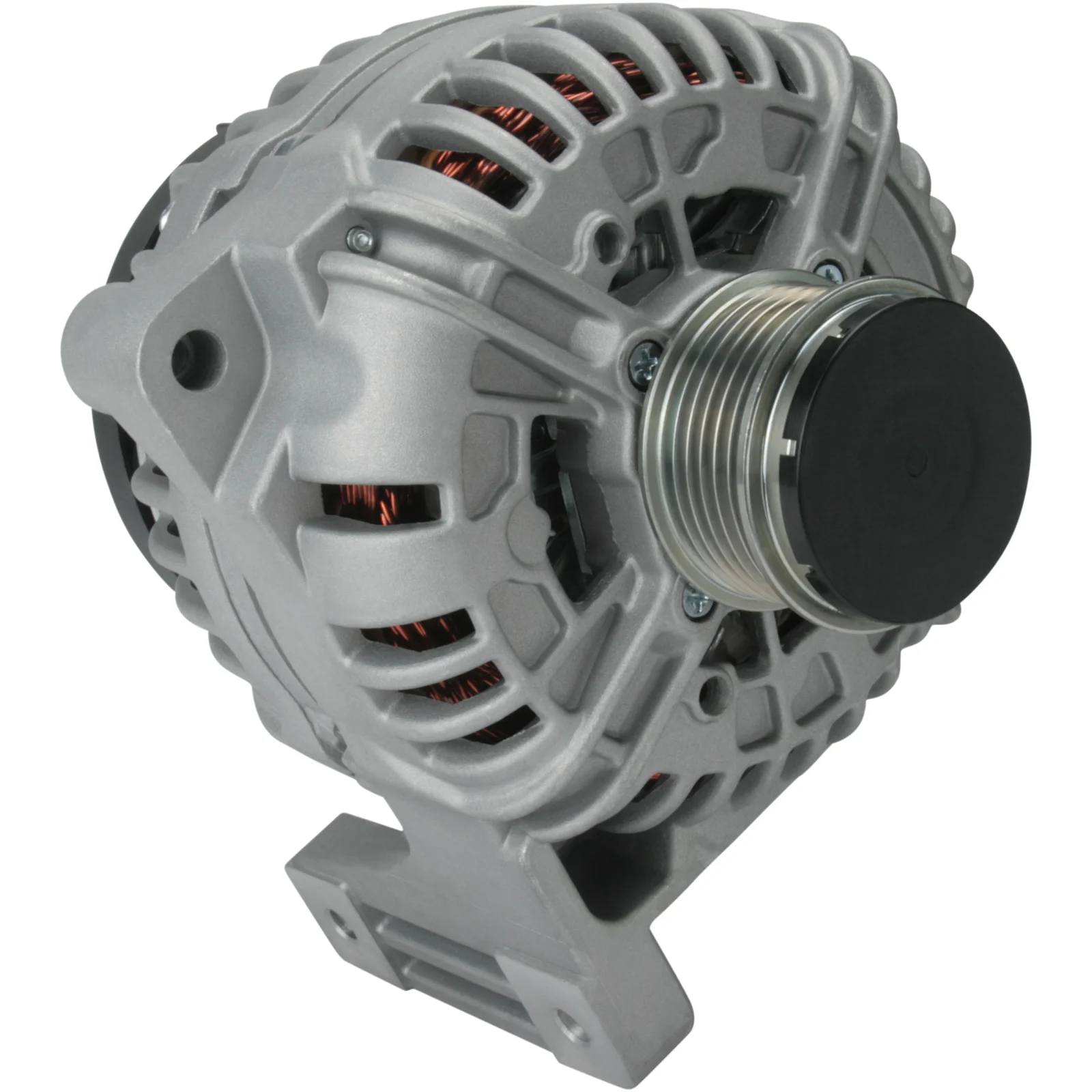

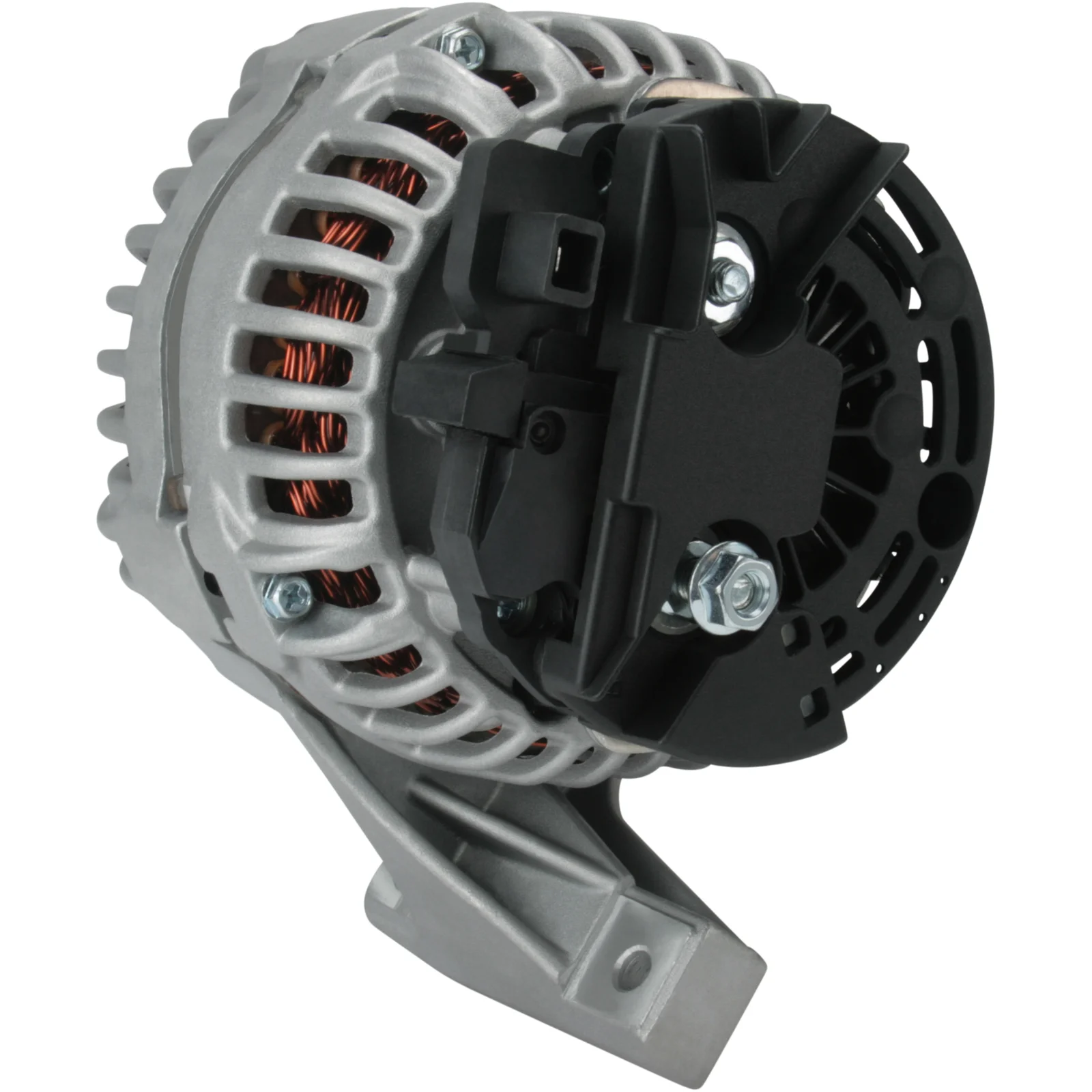

HC-Cargo Generator
- Generator
-
HC-Cargo Generator
Artikelnr: F032115709
HC-Cargo Generator
Voltage: 14, Amp: 160, Rotation: CCW, Mount. bracket dist.: 82.00
Beskrivning
Gen. 12V-160A passar Volvo 12V - 160A, 6gr.frg, (L), CCW Alternativ : 90-600-5029 (140A) För Yourex produkt order 90-600-4747
Voltage: 14
Amp: 160
Pulley dist.: 45.00
Width/holder arm: 20.00
Mount. bracket dist.: 82.00
Bracket hole: 8.50
Bracket hole 2: 8.50
Belt. adj. brackethole pos.: 45
Belt. adj. bracket hole 1: M8
Pulley dia.: 56.00
Grooves/pulley: 6
B+: M8
Position/B+ in min.: 35
D+ Size: Plug
Rotation: CCW
Plug no.: PL149
Total length mm: 192.00
Lamp type: Active
Pulley: SP/FW
Regulator type: IR
Prod. info: BN
Info: Bosch 0124625001 not with clutch pulley
Voltage: 14
Amp: 160
Pulley dist.: 45.00
Width/holder arm: 20.00
Mount. bracket dist.: 82.00
Bracket hole: 8.50
Bracket hole 2: 8.50
Belt. adj. brackethole pos.: 45
Belt. adj. bracket hole 1: M8
Pulley dia.: 56.00
Grooves/pulley: 6
B+: M8
Position/B+ in min.: 35
D+ Size: Plug
Rotation: CCW
Plug no.: PL149
Total length mm: 192.00
Lamp type: Active
Pulley: SP/FW
Regulator type: IR
Prod. info: BN
Info: Bosch 0124625001 not with clutch pulley
Filer
Specifikation
| B+ | M8 |
|---|---|
| Mount. bracket dist. | 82.00 |
| Belt. adj. bracket hole 1 | M8 |
| Belt. adj. brackethole pos. | 45 |
| Plug no. | PL149 |
| Bracket hole | 8.50 |
| Bracket hole 2 | 8.50 |
| Position/B+ in min. | 35 |
| Prod. info | BN |
| Pulley | SP/FW |
| Pulley dia. | 56.00 |
| Pulley dist. | 45.00 |
| D+ Size | Plug |
| Regulator type | IR |
| Rotation | CCW |
| Grooves/pulley | 6 |
| Info | Bosch 0124625001 not with clutch pulley |
| Lamp type | Active |
| Voltage | 14 |
| Total length | 192.00 mm |
| Width/holder arm | 20.00 |
| Amp | 160 |
-
OEM
A0146, CAL10342, DRB6310, DRB7470, F032115709, LRA02224, 8EL012426-011, 8EL738211-101, 28-4697, 0124 625 001, 0124 625 003, 238.150.1602, 815.512.160, 0986 046 310, 0986 047 470, 1861ir, 1986A01783, 11081N, 11082N, 111838, 115709, 209052, 209052A, 440869, 8602713, 8602714, 8637849, 8651665, 8676499, 9046310, 12046310, 12047470, 32047470, 36050268, 0124625001, 0124625003, 0986046313, 0986046317, 0986047470, 0986047473, 0986047477 -
Konkurrentreferens
A0146, CAL10342, DRB6310, DRB7470, LRA02224, 8EL012426-011, 8EL738211-101, 28-4697, 238.150.1602, 815.512.160, 11081N, 11082N, 111838, 209052, 209052A, 440869, 9046310, 12046310, 12047470, 32047470, 0986046313, 0986046317, 0986047470, 0986047473, 0986047477 -
Bilmärken
VOLVO -
Normaliserat artikelnummer
a0146, cal10342, drb6310, drb7470, f032115709, lra02224, 8el012426011, 8el738211101, 1861ir, 1986a01783, 11081n, 11082n, 111838, 115709, 209052, 209052a, 284697, 440869, 8602713, 8602714, 8637849, 8651665, 8676499, 9046310, 12046310, 12047470, 32047470, 36050268, 0124625001, 0124625003, 815512160, 0986046310, 0986046313, 0986046317, 0986047470, 0986047473, 0986047477, 2381501602 -
Passar modeller
VOLVO S60 I (384) 2.0 T Engine volume: 2.0 Engine type: B 5204 T5 Year: 07.00-04.10 VOLVO S60 I (384) 2.4 Bifuel (CNG) Engine volume: 2.4 Engine type: B 5244 SG, B 5244 SG2 Year: 07.01-04.10 VOLVO S60 I (384) 2.4 Bifuel (LPG) Engine volume: 2.4 Engine type: B 5244 SG2 Year: 07.01-04.10 VOLVO S60 I (384) 2.4 CDI Engine volume: 2.4 Engine type: D 5244 T3 Year: 10.03-12.05 VOLVO S60 I (384) 2.4 D Engine volume: 2.4 Engine type: D 5244 T2 Year: 05.01-04.10 VOLVO S60 I (384) 2.4 Engine volume: 2.4 Engine type: B 5244 S Year: 11.00-04.10 VOLVO S60 I (384) 2.4 Engine volume: 2.4 Engine type: B 5244 S2 Year: 07.00-04.10 VOLVO S60 I (384) 2.4 Engine volume: 2.4 Engine type: B 5244 T4 Year: 01.05-10.06 VOLVO S60 I (384) 2.4 T AWD Engine volume: 2.4 Engine type: B 5244 T3 Year: 06.01-04.10 VOLVO S60 I (384) 2.4 T Engine volume: 2.4 Engine type: B 5244 T3 Year: 07.00-04.10 VOLVO S60 I (384) 2.5 T AWD Engine volume: 2.5 Engine type: B 5254 T2 Year: 07.02-04.10 VOLVO S60 I (384) 2.5 T Engine volume: 2.5 Engine type: B 5254 T2 Year: 01.03-04.10 VOLVO S60 I (384) D5 Engine volume: 2.4 Engine type: D 5244 T5, D 5244 T Year: 01.01-04.10 VOLVO S60 I (384) R 2,5 T AWD Engine volume: 2.5 Engine type: B 5254 T4 Year: 01.03-04.10 VOLVO S60 I (384) T5 Engine volume: 2.3 Engine type: B 5234 T3 Year: 07.00-04.10 VOLVO S60 I (384) T5 Engine volume: 2.3 Engine type: B 5234 T7 Year: 07.00-09.02 VOLVO S60 I (384) T5 Engine volume: 2.4 Engine type: B 5244 T5 Year: 04.04-04.10 VOLVO S80 I (184) 2.0 T Engine volume: 2.0 Engine type: B 5204 T5 Year: 12.99-07.06 VOLVO S80 I (184) 2.3 R Engine volume: 2.3 Engine type: B 5234 T7 Year: 04.00-08.05 VOLVO S80 I (184) 2.4 Bifuel (CNG) Engine volume: 2.4 Engine type: B 5244 SG2 Year: 09.01-07.06 VOLVO S80 I (184) 2.4 Bifuel (LPG) Engine volume: 2.4 Engine type: B 5244 SG Year: 09.01-07.06 VOLVO S80 I (184) 2.4 D Engine volume: 2.4 Engine type: D 5244 T2 Year: 10.01-07.06 VOLVO S80 I (184) 2.4 Engine volume: 2.4 Engine type: B 5244 S Year: 01.99-07.06 VOLVO S80 I (184) 2.4 Engine volume: 2.4 Engine type: B 5244 S2 Year: 01.99-07.06 VOLVO S80 I (184) 2.4 T Engine volume: 2.4 Engine type: B 5244 T3 Year: 06.00-07.06 VOLVO S80 I (184) 2.5 T AWD Engine volume: 2.5 Engine type: B 5254 T2 Year: 07.03-07.06 VOLVO S80 I (184) 2.5 T Engine volume: 2.5 Engine type: B 5254 T2 Year: 03.03-07.06 VOLVO S80 I (184) 2.9 Engine volume: 2.9 Engine type: B 6294 S2 Year: 05.98-02.08 VOLVO S80 I (184) 2.9 Engine volume: 2.9 Engine type: B 6304 S3 Year: 05.98-07.06 VOLVO S80 I (184) D5 Engine volume: 2.4 Engine type: D 5244 T Year: 08.01-07.06 VOLVO S80 I (184) T6 Engine volume: 2.8 Engine type: B 6284 T Year: 05.98-12.01 VOLVO S80 I (184) T6 Engine volume: 3.0 Engine type: B 6294 T Year: 06.01-07.06 VOLVO V70 II (285) 2.0 T Engine volume: 2.0 Engine type: B 5204 T5 Year: 11.99-08.07 VOLVO V70 II (285) 2.4 Bifuel (CNG) Engine volume: 2.4 Engine type: B 5244 SG, B 5244 SG2 Year: 09.01-08.07 VOLVO V70 II (285) 2.4 Bifuel (LPG) Engine volume: 2.4 Engine type: B 5244 SG2 Year: 09.01-08.07 VOLVO V70 II (285) 2.4 D Engine volume: 2.4 Engine type: D 5244 T2 Year: 07.01-08.07 VOLVO V70 II (285) 2.4 Engine volume: 2.4 Engine type: B 5244 S Year: 03.00-08.07 VOLVO V70 II (285) 2.4 T AWD Engine volume: 2.4 Engine type: B 5244 T3 Year: 09.01-08.02 VOLVO V70 II (285) 2.4 T Engine volume: 2.4 Engine type: B 5244 T3 Year: 11.99-08.03 VOLVO V70 II (285) 2.5 T AWD Engine volume: 2.5 Engine type: B 5254 T2 Year: 07.02-08.07 VOLVO V70 II (285) 2.5 T Engine volume: 2.5 Engine type: B 5254 T2 Year: 07.01-08.07 VOLVO V70 II (285) 2.5 TDI Engine volume: 2.5 Engine type: D 5252 T Year: 11.99-08.07 VOLVO V70 II (285) D5 AWD Engine volume: 2.4 Engine type: D 5244 T5, D 5244 T, D 5244 T2 Year: 07.02-08.07 VOLVO V70 II (285) D5 Engine volume: 2.4 Engine type: D 5244 T5, D 5244 T, D 5244 T2 Year: 01.01-12.08 VOLVO V70 II (285) R 2,5 T AWD Engine volume: 2.5 Engine type: B 5254 T4 Year: 03.03-08.07 VOLVO V70 II (285) T5 Engine volume: 2.3 Engine type: B 5234 T3 Year: 11.99-12.04 VOLVO V70 II (285) T5 Engine volume: 2.4 Engine type: B 5244 T5 Year: 04.04-08.07 VOLVO XC70 I Cross Country (295) 2.4 T XC AWD Engine volume: 2.4 Engine type: B 5244 T3 Year: 03.00-09.02 VOLVO XC70 I Cross Country (295) 2.5 T XC AWD Engine volume: 2.5 Engine type: B 5254 T2 Year: 09.02-08.07 VOLVO XC70 I Cross Country (295) D5 XC AWD Engine volume: 2.4 Engine type: D 5244 T Year: 09.02-08.07 VOLVO XC90 I (275) 2.5 AWD Engine volume: 2.5 Engine type: B 5254 T2 Year: 06.02-12.14 VOLVO XC90 I (275) 2.5 Engine volume: 2.5 Engine type: B 5254 T2 Year: 01.03-12.06 VOLVO XC90 I (275) 2.5 T AWD Engine volume: 2.5 Engine type: B 5254 T2 Year: 10.02-09.14 VOLVO XC90 I (275) D5 AWD Engine volume: 2.4 Engine type: D 5244 T Year: 10.02-12.06 VOLVO XC90 I (275) T6 AWD Engine volume: 2.9 Engine type: B 6294 T Year: 10.02-12.06 1 / 11
-
Beskrivning
Gen. 12V-160A passar Volvo 12V - 160A, 6gr.frg, (L), CCW Alternativ : 90-600-5029 (140A) För Yourex produkt order 90-600-4747
Voltage: 14
Amp: 160
Pulley dist.: 45.00
Width/holder arm: 20.00
Mount. bracket dist.: 82.00
Bracket hole: 8.50
Bracket hole 2: 8.50
Belt. adj. brackethole pos.: 45
Belt. adj. bracket hole 1: M8
Pulley dia.: 56.00
Grooves/pulley: 6
B+: M8
Position/B+ in min.: 35
D+ Size: Plug
Rotation: CCW
Plug no.: PL149
Total length mm: 192.00
Lamp type: Active
Pulley: SP/FW
Regulator type: IR
Prod. info: BN
Info: Bosch 0124625001 not with clutch pulleyFiler
-
Specifikation
B+ M8 Mount. bracket dist. 82.00 Belt. adj. bracket hole 1 M8 Belt. adj. brackethole pos. 45 Plug no. PL149 Bracket hole 8.50 Bracket hole 2 8.50 Position/B+ in min. 35 Prod. info BN Pulley SP/FW Pulley dia. 56.00 Pulley dist. 45.00 D+ Size Plug Regulator type IR Rotation CCW Grooves/pulley 6 Info Bosch 0124625001 not with clutch pulley Lamp type Active Voltage 14 Total length 192.00 mm Width/holder arm 20.00 Amp 160 -
Fordonsmatchning
-
OEM
A0146, CAL10342, DRB6310, DRB7470, F032115709, LRA02224, 8EL012426-011, 8EL738211-101, 28-4697, 0124 625 001, 0124 625 003, 238.150.1602, 815.512.160, 0986 046 310, 0986 047 470, 1861ir, 1986A01783, 11081N, 11082N, 111838, 115709, 209052, 209052A, 440869, 8602713, 8602714, 8637849, 8651665, 8676499, 9046310, 12046310, 12047470, 32047470, 36050268, 0124625001, 0124625003, 0986046313, 0986046317, 0986047470, 0986047473, 0986047477 -
Konkurrentreferens
A0146, CAL10342, DRB6310, DRB7470, LRA02224, 8EL012426-011, 8EL738211-101, 28-4697, 238.150.1602, 815.512.160, 11081N, 11082N, 111838, 209052, 209052A, 440869, 9046310, 12046310, 12047470, 32047470, 0986046313, 0986046317, 0986047470, 0986047473, 0986047477 -
Bilmärken
VOLVO -
Normaliserat artikelnummer
a0146, cal10342, drb6310, drb7470, f032115709, lra02224, 8el012426011, 8el738211101, 1861ir, 1986a01783, 11081n, 11082n, 111838, 115709, 209052, 209052a, 284697, 440869, 8602713, 8602714, 8637849, 8651665, 8676499, 9046310, 12046310, 12047470, 32047470, 36050268, 0124625001, 0124625003, 815512160, 0986046310, 0986046313, 0986046317, 0986047470, 0986047473, 0986047477, 2381501602 -
Passar modeller
VOLVO S60 I (384) 2.0 T Engine volume: 2.0 Engine type: B 5204 T5 Year: 07.00-04.10 VOLVO S60 I (384) 2.4 Bifuel (CNG) Engine volume: 2.4 Engine type: B 5244 SG, B 5244 SG2 Year: 07.01-04.10 VOLVO S60 I (384) 2.4 Bifuel (LPG) Engine volume: 2.4 Engine type: B 5244 SG2 Year: 07.01-04.10 VOLVO S60 I (384) 2.4 CDI Engine volume: 2.4 Engine type: D 5244 T3 Year: 10.03-12.05 VOLVO S60 I (384) 2.4 D Engine volume: 2.4 Engine type: D 5244 T2 Year: 05.01-04.10 VOLVO S60 I (384) 2.4 Engine volume: 2.4 Engine type: B 5244 S Year: 11.00-04.10 VOLVO S60 I (384) 2.4 Engine volume: 2.4 Engine type: B 5244 S2 Year: 07.00-04.10 VOLVO S60 I (384) 2.4 Engine volume: 2.4 Engine type: B 5244 T4 Year: 01.05-10.06 VOLVO S60 I (384) 2.4 T AWD Engine volume: 2.4 Engine type: B 5244 T3 Year: 06.01-04.10 VOLVO S60 I (384) 2.4 T Engine volume: 2.4 Engine type: B 5244 T3 Year: 07.00-04.10 VOLVO S60 I (384) 2.5 T AWD Engine volume: 2.5 Engine type: B 5254 T2 Year: 07.02-04.10 VOLVO S60 I (384) 2.5 T Engine volume: 2.5 Engine type: B 5254 T2 Year: 01.03-04.10 VOLVO S60 I (384) D5 Engine volume: 2.4 Engine type: D 5244 T5, D 5244 T Year: 01.01-04.10 VOLVO S60 I (384) R 2,5 T AWD Engine volume: 2.5 Engine type: B 5254 T4 Year: 01.03-04.10 VOLVO S60 I (384) T5 Engine volume: 2.3 Engine type: B 5234 T3 Year: 07.00-04.10 VOLVO S60 I (384) T5 Engine volume: 2.3 Engine type: B 5234 T7 Year: 07.00-09.02 VOLVO S60 I (384) T5 Engine volume: 2.4 Engine type: B 5244 T5 Year: 04.04-04.10 VOLVO S80 I (184) 2.0 T Engine volume: 2.0 Engine type: B 5204 T5 Year: 12.99-07.06 VOLVO S80 I (184) 2.3 R Engine volume: 2.3 Engine type: B 5234 T7 Year: 04.00-08.05 VOLVO S80 I (184) 2.4 Bifuel (CNG) Engine volume: 2.4 Engine type: B 5244 SG2 Year: 09.01-07.06 VOLVO S80 I (184) 2.4 Bifuel (LPG) Engine volume: 2.4 Engine type: B 5244 SG Year: 09.01-07.06 VOLVO S80 I (184) 2.4 D Engine volume: 2.4 Engine type: D 5244 T2 Year: 10.01-07.06 VOLVO S80 I (184) 2.4 Engine volume: 2.4 Engine type: B 5244 S Year: 01.99-07.06 VOLVO S80 I (184) 2.4 Engine volume: 2.4 Engine type: B 5244 S2 Year: 01.99-07.06 VOLVO S80 I (184) 2.4 T Engine volume: 2.4 Engine type: B 5244 T3 Year: 06.00-07.06 VOLVO S80 I (184) 2.5 T AWD Engine volume: 2.5 Engine type: B 5254 T2 Year: 07.03-07.06 VOLVO S80 I (184) 2.5 T Engine volume: 2.5 Engine type: B 5254 T2 Year: 03.03-07.06 VOLVO S80 I (184) 2.9 Engine volume: 2.9 Engine type: B 6294 S2 Year: 05.98-02.08 VOLVO S80 I (184) 2.9 Engine volume: 2.9 Engine type: B 6304 S3 Year: 05.98-07.06 VOLVO S80 I (184) D5 Engine volume: 2.4 Engine type: D 5244 T Year: 08.01-07.06 VOLVO S80 I (184) T6 Engine volume: 2.8 Engine type: B 6284 T Year: 05.98-12.01 VOLVO S80 I (184) T6 Engine volume: 3.0 Engine type: B 6294 T Year: 06.01-07.06 VOLVO V70 II (285) 2.0 T Engine volume: 2.0 Engine type: B 5204 T5 Year: 11.99-08.07 VOLVO V70 II (285) 2.4 Bifuel (CNG) Engine volume: 2.4 Engine type: B 5244 SG, B 5244 SG2 Year: 09.01-08.07 VOLVO V70 II (285) 2.4 Bifuel (LPG) Engine volume: 2.4 Engine type: B 5244 SG2 Year: 09.01-08.07 VOLVO V70 II (285) 2.4 D Engine volume: 2.4 Engine type: D 5244 T2 Year: 07.01-08.07 VOLVO V70 II (285) 2.4 Engine volume: 2.4 Engine type: B 5244 S Year: 03.00-08.07 VOLVO V70 II (285) 2.4 T AWD Engine volume: 2.4 Engine type: B 5244 T3 Year: 09.01-08.02 VOLVO V70 II (285) 2.4 T Engine volume: 2.4 Engine type: B 5244 T3 Year: 11.99-08.03 VOLVO V70 II (285) 2.5 T AWD Engine volume: 2.5 Engine type: B 5254 T2 Year: 07.02-08.07 VOLVO V70 II (285) 2.5 T Engine volume: 2.5 Engine type: B 5254 T2 Year: 07.01-08.07 VOLVO V70 II (285) 2.5 TDI Engine volume: 2.5 Engine type: D 5252 T Year: 11.99-08.07 VOLVO V70 II (285) D5 AWD Engine volume: 2.4 Engine type: D 5244 T5, D 5244 T, D 5244 T2 Year: 07.02-08.07 VOLVO V70 II (285) D5 Engine volume: 2.4 Engine type: D 5244 T5, D 5244 T, D 5244 T2 Year: 01.01-12.08 VOLVO V70 II (285) R 2,5 T AWD Engine volume: 2.5 Engine type: B 5254 T4 Year: 03.03-08.07 VOLVO V70 II (285) T5 Engine volume: 2.3 Engine type: B 5234 T3 Year: 11.99-12.04 VOLVO V70 II (285) T5 Engine volume: 2.4 Engine type: B 5244 T5 Year: 04.04-08.07 VOLVO XC70 I Cross Country (295) 2.4 T XC AWD Engine volume: 2.4 Engine type: B 5244 T3 Year: 03.00-09.02 VOLVO XC70 I Cross Country (295) 2.5 T XC AWD Engine volume: 2.5 Engine type: B 5254 T2 Year: 09.02-08.07 VOLVO XC70 I Cross Country (295) D5 XC AWD Engine volume: 2.4 Engine type: D 5244 T Year: 09.02-08.07 VOLVO XC90 I (275) 2.5 AWD Engine volume: 2.5 Engine type: B 5254 T2 Year: 06.02-12.14 VOLVO XC90 I (275) 2.5 Engine volume: 2.5 Engine type: B 5254 T2 Year: 01.03-12.06 VOLVO XC90 I (275) 2.5 T AWD Engine volume: 2.5 Engine type: B 5254 T2 Year: 10.02-09.14 VOLVO XC90 I (275) D5 AWD Engine volume: 2.4 Engine type: D 5244 T Year: 10.02-12.06 VOLVO XC90 I (275) T6 AWD Engine volume: 2.9 Engine type: B 6294 T Year: 10.02-12.06 1 / 11
-
