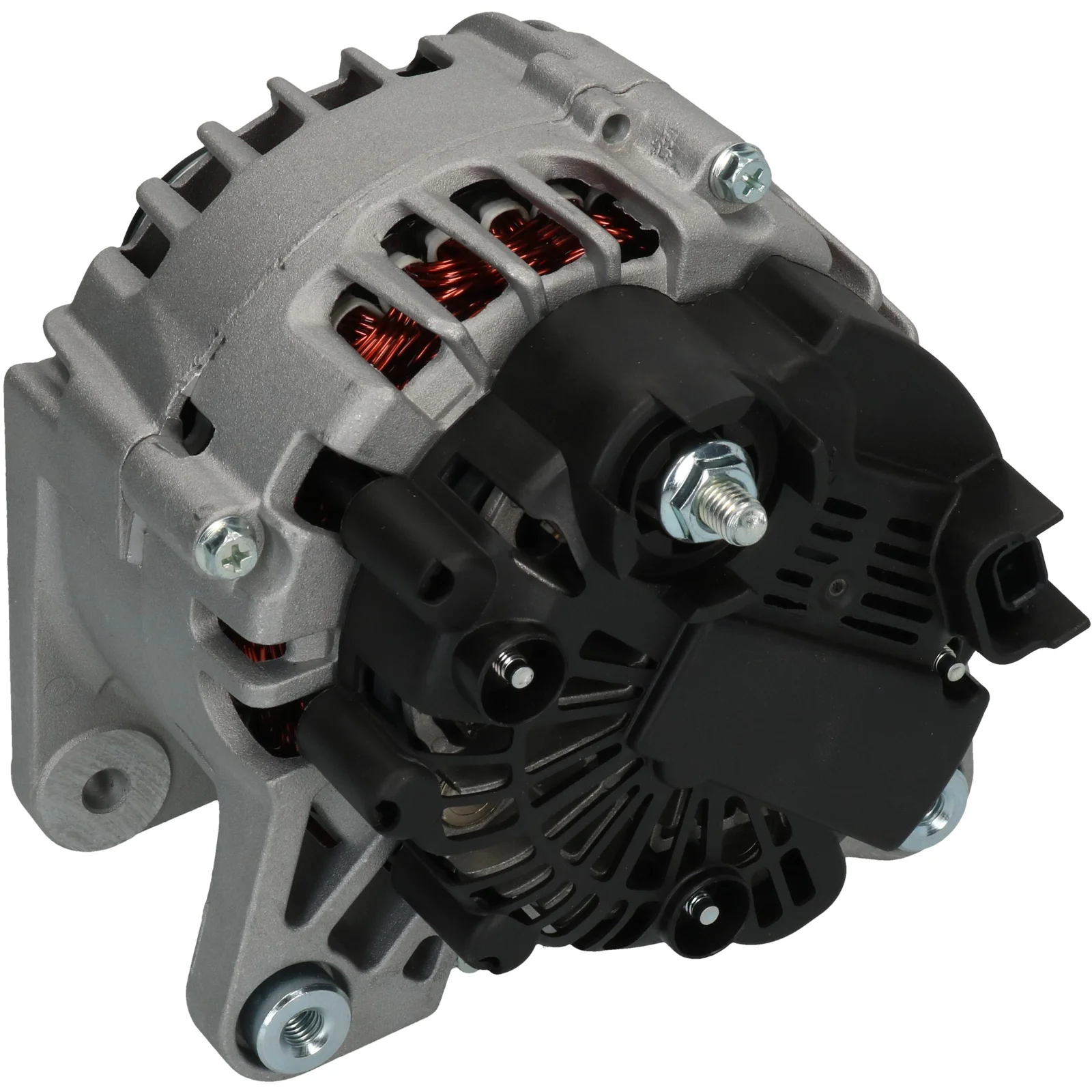

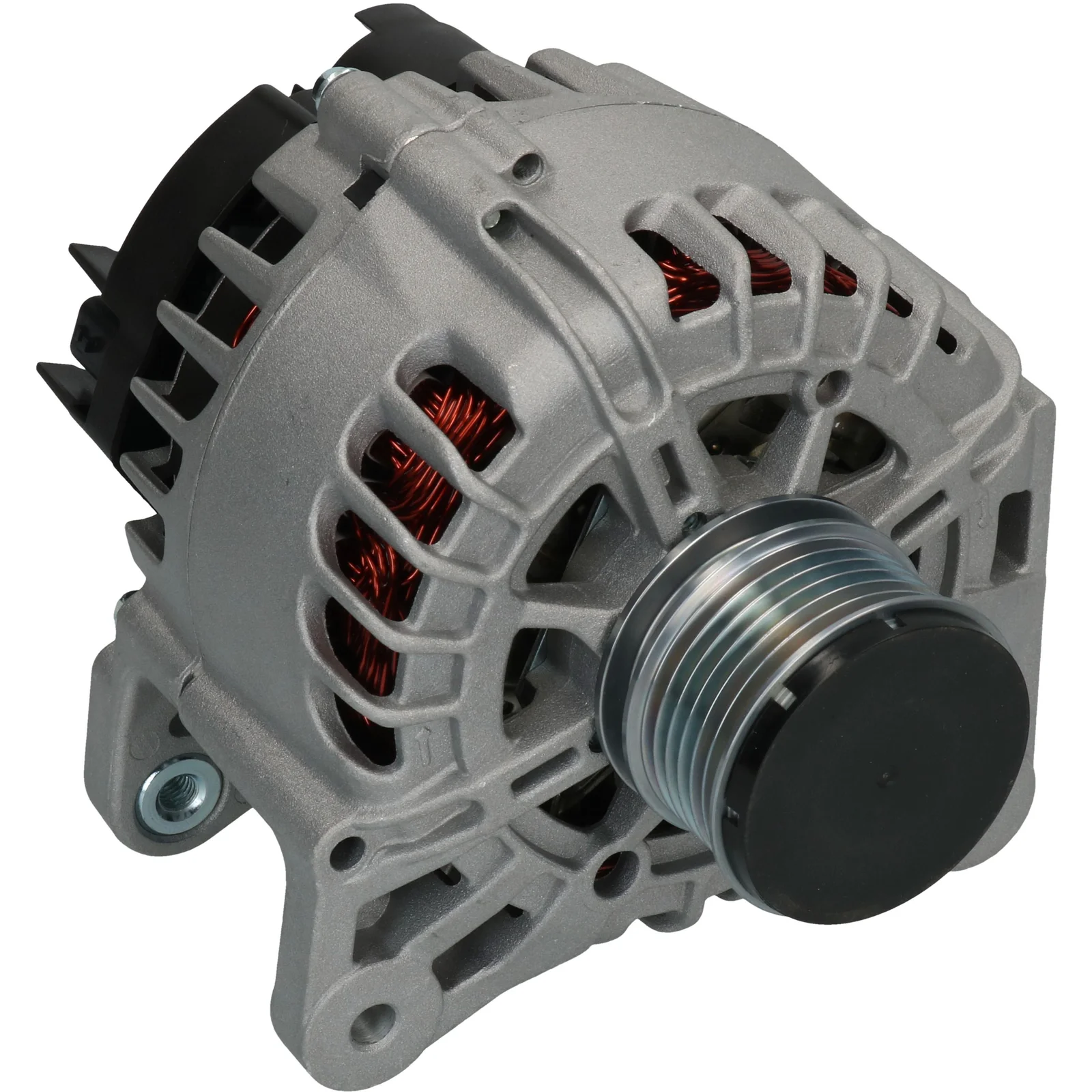

HC-Cargo Generator
HC-Cargo Generator
Artikelnr: F032116363

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 120, Rotation: CW, Mount. bracket dist.: 60.50

Beskrivning

Voltage: 14
Amp: 120
Pulley dist.: 38.50
Width/holder arm: 14.00
Mount. bracket dist.: 60.50
Bracket hole: 8.70
Belt. adj. brackethole pos.: 45
Belt. adj. bracket hole 1: 8.70
Pulley dia.: 55.00
Grooves/pulley: 6
Radius: 90.00
Radius 2: 90.00
B+: M8
Position/B+ in min.: 50
Rotation: CW
Plug no.: PL131
Total length mm: 195.00
Terminal type: COM
Communication: LIN
Pulley: SP/FW
Fan: IF
Regulator type: IR
Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

Filer

Specifikation

B+ M8
Communication LIN
Mount. bracket dist. 60.50
Belt. adj. bracket hole 1 8.70
Belt. adj. brackethole pos. 45
Plug no. PL131
Bracket hole 8.70
Position/B+ in min. 50
Pulley SP/FW
Pulley dia. 55.00
Pulley dist. 38.50
Radius 90.00
Radius 2 90.00
Regulator type IR
Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Fan IF
Grooves/pulley 6
Terminal type COM
Voltage 14
Total length 195.00 mm
Width/holder arm 14.00
Amp 120

  • OEM
    F032116363, tg12c241, 23100-1318R, 2627732A, 231001318R, 231008918r

  • Konkurrentreferens
    A3215S, 575.962.120, 20610N, 200271, 439983, 440755, 554409RI

  • Normaliserat artikelnummer
    a3215s, f032116363, tg12c241, 20610n, 200271, 439983, 440755, 554409ri, 2627732a, 231001318r, 231008918r, 575962120

  • Passar modeller
    Dacia Model: Dokker Model series: Dokker Express Type of engine: dCi Size of motor: 1.5 Brand of engine: K9K612 Body: Van From date: 01-12-2012 Fuel: Diesel Approved: Yes
    Dacia Model: Dokker Model series: Dokker Type of engine: dCi Size of motor: 1.5 Brand of engine: K9K612 Body: Estate From date: 01-11-2012 Fuel: Diesel Approved: Yes
    Renault Model: Captur Model series: Captur Model type: 110 Type of engine: DCi Size of motor: 1.5 Brand of engine: K9K646 Body: Hatchback From date: 01-01-2015 Fuel: Diesel Approved: Yes
    Renault Model: Captur Model series: Captur Type of engine: dCi Size of motor: 1.5 Brand of engine: K9K608 Body: Hatchback From date: 01-06-2013 Fuel: Diesel Approved: Yes
    Renault Model: Captur Model series: Captur Type of engine: dCi Size of motor: 1.5 Brand of engine: K9K609 Body: Hatchback From date: 01-06-2013 Fuel: Diesel Approved: Yes
    Renault Model: Clio Model series: Clio Grandtour Model type: 110 Type of engine: DCi Size of motor: 1.5 Brand of engine: K9K646 Body: Estate From date: 01-06-2016 Fuel: Diesel Approved: Yes Manufacture type: Grandtour
    Renault Model: Clio Model series: Clio Model type: 110 Type of engine: DCi Size of motor: 1.5 Brand of engine: K9K646 Body: Hatchback From date: 01-06-2016 Fuel: Diesel Approved: Yes
    Renault Model: Clio Model series: Clio Model type: 90 Type of engine: DCi Size of motor: 1.5 Brand of engine: K9K608 Body: Van From date: 01-01-2014 Fuel: Diesel Approved: Yes
    Renault Model: Clio Model series: Clio Model type: Grandtour Type of engine: dCi Size of motor: 1.5 Brand of engine: K9K608 Body: Estate From date: 01-01-2013 Fuel: Diesel Approved: Yes Manufacture type: Grandtour
    Renault Model: Clio Model series: Clio Model type: Grandtour Type of engine: dCi Size of motor: 1.5 Brand of engine: K9K612 Body: Estate From date: 01-01-2013 Fuel: Diesel Approved: Yes Manufacture type: Grandtour
    Renault Model: Clio Model series: Clio Type of engine: dCi Size of motor: 1.5 Brand of engine: K9K608 Body: Hatchback From date: 01-11-2012 Fuel: Diesel Approved: Yes
    Renault Model: Kadjar Model series: Kadjar Model type: 110 Type of engine: DCi Size of motor: 1.5 Brand of engine: K9K646 From date: 01-06-2015 Fuel: Diesel Approved: Yes
    Renault Model: Kadjar Model series: Kadjar Model type: 110 Type of engine: DCi Size of motor: 1.5 Brand of engine: K9K647 From date: 01-06-2015 Fuel: Diesel Approved: Yes
    Renault Model: Megane Model series: Megane Model type: 110 Type of engine: DCi Size of motor: 1.5 Brand of engine: K9K646 Body: Hatchback From date: 01-11-2015 Fuel: Diesel Approved: Yes
    Renault Model: Megane Model series: Megane Model type: 110 Type of engine: DCi Size of motor: 1.5 Brand of engine: K9K656 Body: Hatchback From date: 01-11-2015 Fuel: Diesel Approved: Yes
    Renault Model: Megane Model series: Megane Model type: 110 Type of engine: DCi Size of motor: 1.5 Brand of engine: K9K656 Type description: K9A/M_ Body: Estate From date: 01-04-2016 Fuel: Diesel Approved: Yes
    Renault Model: Megane Model series: Megane Model type: 110 Type of engine: DCi Size of motor: 1.5 Brand of engine: K9K657 Body: Hatchback From date: 01-11-2015 Fuel: Diesel Approved: Yes
    Renault Model: Megane Model series: Megane Model type: 110 Type of engine: DCi Size of motor: 1.5 Brand of engine: K9K657 Type description: K9A/M_ Body: Estate From date: 01-04-2016 Fuel: Diesel Approved: Yes
    Renault Model: Megane Model series: Megane Model type: 90 Type of engine: DCi Size of motor: 1.5 Brand of engine: K9K656 Body: Hatchback From date: 01-11-2015 Fuel: Diesel Approved: Yes
    Renault Model: Megane Model series: Megane Model type: 90 Type of engine: DCi Size of motor: 1.5 Brand of engine: K9K656 Type description: K9A/M_ Body: Estate From date: 01-04-2016 Fuel: Diesel Approved: Yes
    1 / 4
