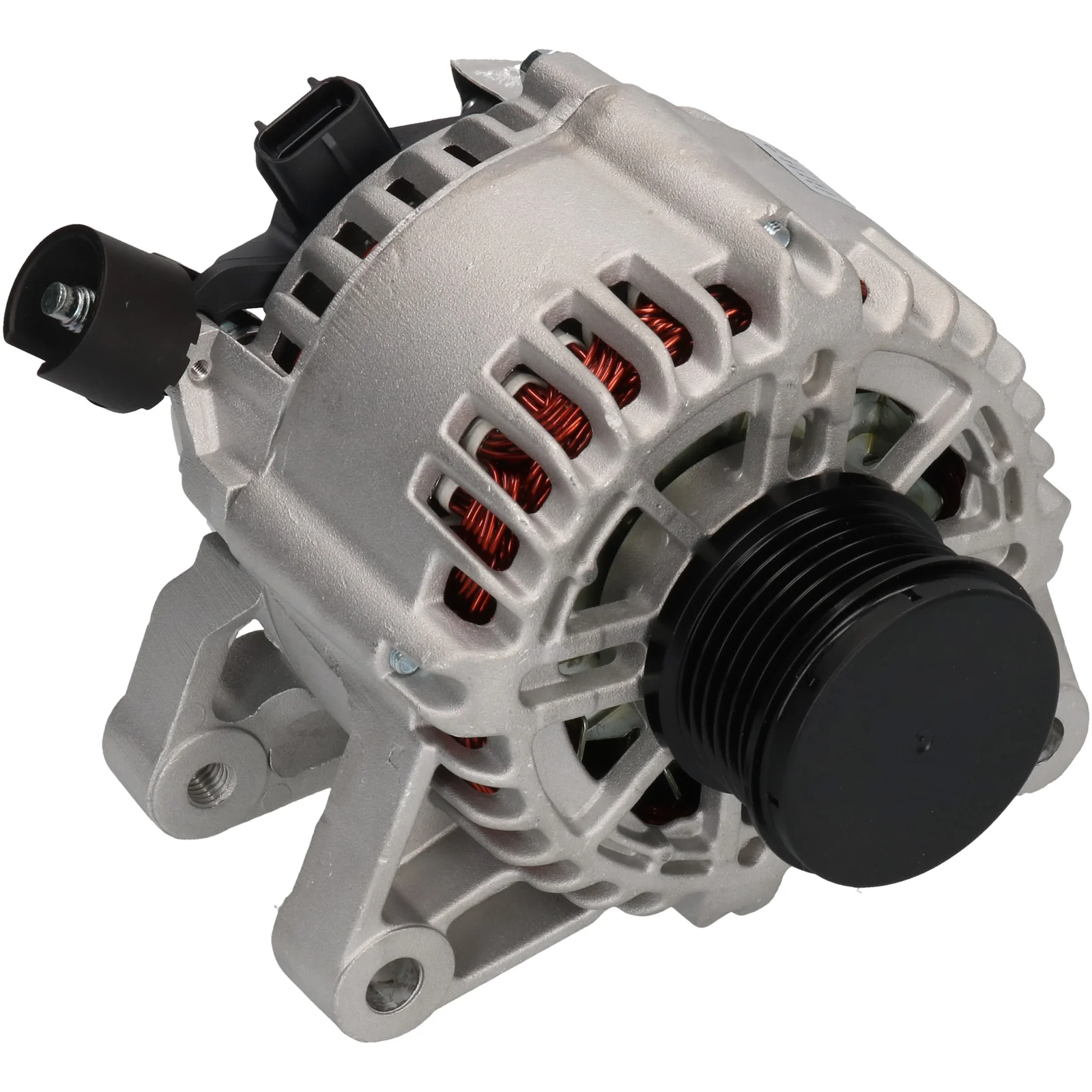

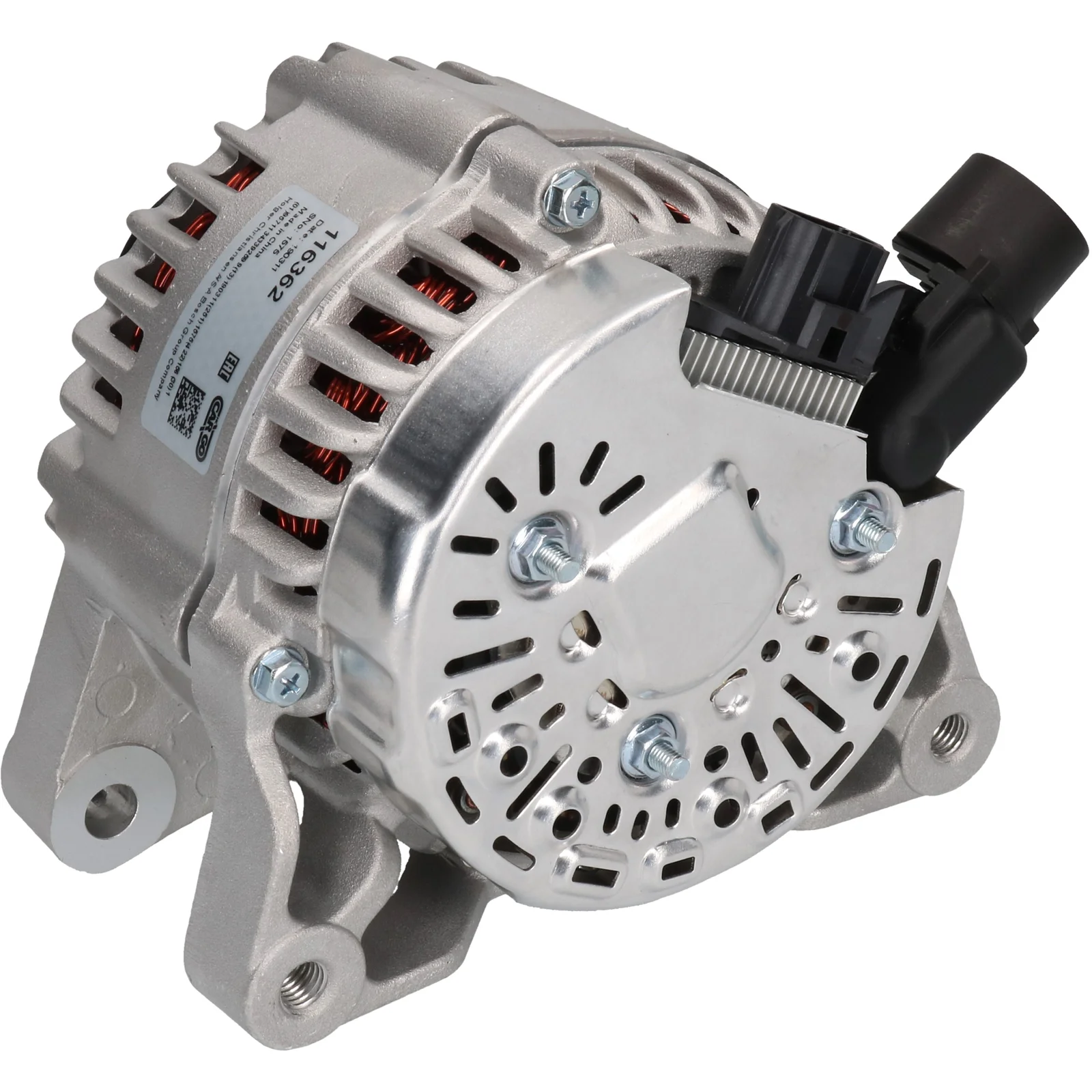

HC-Cargo Generator
HC-Cargo Generator
Artikelnr: F032116362

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 80, Rotation: CW, Mount. bracket dist.: 45.80

Beskrivning

Voltage: 14
Amp: 80
Pulley dist.: 42.50
Width/holder arm: 21.50
Mount. bracket dist.: 45.80
Bracket hole: 10.50
Belt. adj. brackethole pos.: 12
Belt. adj. bracket hole 1: 10.50
Pulley dia.: 54.00
Grooves/pulley: 6
Radius: 90.00
Radius 2: 90.00
B+: M8
Position/B+ in min.: 12
Rotation: CW
Plug no.: PL57
Total length mm: 159.00
Terminal type: FR-SIG-A
Communication: PWM1-128
Pulley: SP/FW
Fan: IF
Regulator type: IR

Filer

Specifikation

B+ M8
Communication PWM1-128
Mount. bracket dist. 45.80
Belt. adj. bracket hole 1 10.50
Belt. adj. brackethole pos. 12
Plug no. PL57
Bracket hole 10.50
Position/B+ in min. 12
Pulley SP/FW
Pulley dia. 54.00
Pulley dist. 42.50
Radius 90.00
Radius 2 90.00
Regulator type IR
Rotation CW
Fan IF
Grooves/pulley 6
Terminal type FR-SIG-A
Voltage 14
Total length 159.00 mm
Width/holder arm 21.50
Amp 80

  • OEM
    F032116362, Y401-18-300, 2S6T-AA, 2s6t10300aa, 2S6T10300AB, 2S6T10300AC, 2S6T10300AD, 3S6T-AC, 3S6T10300AA, 3S6T10300AB, 3S6T10300AC, 3S6T10300AD, 3S6TAA, 20-150-01002, 1986A01122, 1140135, 1464756, 1464788, 1477856, 1477859, 1545138

  • Konkurrentreferens
    A9020, A9020PR, A9020SR, ALT-H174, CAL14105, CAL14114, DRA0178, DRA0178N, DRA4247, DRA4247N, F042A0H174, LRA02338, LRA02562, 8EL011360-631, 8EL011710-771, 8EL738187-001, 20-150-01034, 27-4838, 27-4916, 219.171.802, 4714, 112186, 200317, 301777RI, 440699, 443104, 443127, 443159, 9213257, 12049150, 063380002, 0986049151, 063380002010, 944390902400

  • Normaliserat artikelnummer
    a9020, a9020pr, a9020sr, alth174, cal14105, cal14114, dra0178, dra0178n, dra4247, dra4247n, f032116362, f042a0h174, lra02338, lra02562, y40118300, 2s6t10300aa, 2s6t10300ab, 2s6t10300ac, 2s6t10300ad, 2s6taa, 3s6t10300aa, 3s6t10300ab, 3s6t10300ac, 3s6t10300ad, 3s6taa, 3s6tac, 8el011360631, 8el011710771, 8el738187001, 1986a01122, 4714, 112186, 200317, 274838, 274916, 301777ri, 440699, 443104, 443127, 443159, 1140135, 1464756, 1464788, 1477856, 1477859, 1545138, 9213257, 12049150, 063380002, 219171802, 0986049151, 2015001002, 2015001034, 063380002010, 944390902400

  • Passar modeller
    Ford Model: Ecosport Model series: Ecosport Type of engine: TDCi Size of motor: 1.4 Body: SUV From date: 01-01-2003 To date: 01-05-2011 Fuel: Diesel Approved: Yes
    Ford Model: Fiesta Model series: Fiesta Type of engine: TDCi Size of motor: 1.4 Brand of engine: F6JA Body: Van From date: 01-10-2003 To date: 01-12-2010 Fuel: Diesel Approved: Yes
    Ford Model: Fiesta Model series: Fiesta Type of engine: TDCi Size of motor: 1.4 Brand of engine: F6JA Type description: JH_, JD_ Body: Hatchback From date: 01-11-2001 To date: 01-06-2008 Fuel: Diesel Approved: Yes
    Ford Model: Fiesta Model series: Fiesta Type of engine: TDCi Size of motor: 1.4 Brand of engine: F6JB Body: Van From date: 01-10-2003 To date: 01-12-2010 Fuel: Diesel Approved: Yes
    Ford Model: Fiesta Model series: Fiesta Type of engine: TDCi Size of motor: 1.4 Brand of engine: F6JB Type description: JH_, JD_ Body: Hatchback From date: 01-11-2001 To date: 01-06-2008 Fuel: Diesel Approved: Yes
    Ford Model: Fusion Model series: Fusion Type of engine: TDCi Size of motor: 1.4 Brand of engine: F6JA Body: Estate From date: 01-08-2002 To date: 01-12-2012 Fuel: Diesel Approved: Yes
    Ford Model: Fusion Model series: Fusion Type of engine: TDCi Size of motor: 1.4 Brand of engine: F6JB Body: Estate From date: 01-08-2002 To date: 01-12-2012 Fuel: Diesel Approved: Yes
    Ford USA Model: Ecosport Model series: Ecosport Type of engine: Diesel Size of motor: 1.4 Body: MPV From date: 01-04-2003 Fuel: Diesel Approved: Yes
    Mazda Model: 2 Model series: 2 Type of engine: CD Size of motor: 1.4 Brand of engine: F6JA Body: Hatchback From date: 01-04-2003 To date: 01-06-2007 Fuel: Diesel Approved: Yes
    1 / 2
  • Beskrivning
    Voltage: 14
    Amp: 80
    Pulley dist.: 42.50
    Width/holder arm: 21.50
    Mount. bracket dist.: 45.80
    Bracket hole: 10.50
    Belt. adj. brackethole pos.: 12
    Belt. adj. bracket hole 1: 10.50
    Pulley dia.: 54.00
    Grooves/pulley: 6
    Radius: 90.00
    Radius 2: 90.00
    B+: M8
    Position/B+ in min.: 12
    Rotation: CW
    Plug no.: PL57
    Total length mm: 159.00
    Terminal type: FR-SIG-A
    Communication: PWM1-128
    Pulley: SP/FW
    Fan: IF
    Regulator type: IR

    Filer

  • Specifikation
    B+ M8
    Communication PWM1-128
    Mount. bracket dist. 45.80
    Belt. adj. bracket hole 1 10.50
    Belt. adj. brackethole pos. 12
    Plug no. PL57
    Bracket hole 10.50
    Position/B+ in min. 12
    Pulley SP/FW
    Pulley dia. 54.00
    Pulley dist. 42.50
    Radius 90.00
    Radius 2 90.00
    Regulator type IR
    Rotation CW
    Fan IF
    Grooves/pulley 6
    Terminal type FR-SIG-A
    Voltage 14
    Total length 159.00 mm
    Width/holder arm 21.50
    Amp 80
  • Fordonsmatchning

    • OEM
      F032116362, Y401-18-300, 2S6T-AA, 2s6t10300aa, 2S6T10300AB, 2S6T10300AC, 2S6T10300AD, 3S6T-AC, 3S6T10300AA, 3S6T10300AB, 3S6T10300AC, 3S6T10300AD, 3S6TAA, 20-150-01002, 1986A01122, 1140135, 1464756, 1464788, 1477856, 1477859, 1545138

    • Konkurrentreferens
      A9020, A9020PR, A9020SR, ALT-H174, CAL14105, CAL14114, DRA0178, DRA0178N, DRA4247, DRA4247N, F042A0H174, LRA02338, LRA02562, 8EL011360-631, 8EL011710-771, 8EL738187-001, 20-150-01034, 27-4838, 27-4916, 219.171.802, 4714, 112186, 200317, 301777RI, 440699, 443104, 443127, 443159, 9213257, 12049150, 063380002, 0986049151, 063380002010, 944390902400

    • Normaliserat artikelnummer
      a9020, a9020pr, a9020sr, alth174, cal14105, cal14114, dra0178, dra0178n, dra4247, dra4247n, f032116362, f042a0h174, lra02338, lra02562, y40118300, 2s6t10300aa, 2s6t10300ab, 2s6t10300ac, 2s6t10300ad, 2s6taa, 3s6t10300aa, 3s6t10300ab, 3s6t10300ac, 3s6t10300ad, 3s6taa, 3s6tac, 8el011360631, 8el011710771, 8el738187001, 1986a01122, 4714, 112186, 200317, 274838, 274916, 301777ri, 440699, 443104, 443127, 443159, 1140135, 1464756, 1464788, 1477856, 1477859, 1545138, 9213257, 12049150, 063380002, 219171802, 0986049151, 2015001002, 2015001034, 063380002010, 944390902400

    • Passar modeller
      Ford Model: Ecosport Model series: Ecosport Type of engine: TDCi Size of motor: 1.4 Body: SUV From date: 01-01-2003 To date: 01-05-2011 Fuel: Diesel Approved: Yes
      Ford Model: Fiesta Model series: Fiesta Type of engine: TDCi Size of motor: 1.4 Brand of engine: F6JA Body: Van From date: 01-10-2003 To date: 01-12-2010 Fuel: Diesel Approved: Yes
      Ford Model: Fiesta Model series: Fiesta Type of engine: TDCi Size of motor: 1.4 Brand of engine: F6JA Type description: JH_, JD_ Body: Hatchback From date: 01-11-2001 To date: 01-06-2008 Fuel: Diesel Approved: Yes
      Ford Model: Fiesta Model series: Fiesta Type of engine: TDCi Size of motor: 1.4 Brand of engine: F6JB Body: Van From date: 01-10-2003 To date: 01-12-2010 Fuel: Diesel Approved: Yes
      Ford Model: Fiesta Model series: Fiesta Type of engine: TDCi Size of motor: 1.4 Brand of engine: F6JB Type description: JH_, JD_ Body: Hatchback From date: 01-11-2001 To date: 01-06-2008 Fuel: Diesel Approved: Yes
      Ford Model: Fusion Model series: Fusion Type of engine: TDCi Size of motor: 1.4 Brand of engine: F6JA Body: Estate From date: 01-08-2002 To date: 01-12-2012 Fuel: Diesel Approved: Yes
      Ford Model: Fusion Model series: Fusion Type of engine: TDCi Size of motor: 1.4 Brand of engine: F6JB Body: Estate From date: 01-08-2002 To date: 01-12-2012 Fuel: Diesel Approved: Yes
      Ford USA Model: Ecosport Model series: Ecosport Type of engine: Diesel Size of motor: 1.4 Body: MPV From date: 01-04-2003 Fuel: Diesel Approved: Yes
      Mazda Model: 2 Model series: 2 Type of engine: CD Size of motor: 1.4 Brand of engine: F6JA Body: Hatchback From date: 01-04-2003 To date: 01-06-2007 Fuel: Diesel Approved: Yes
