HC-Cargo Generator
HC-Cargo Generator
Artikelnr: F032115435

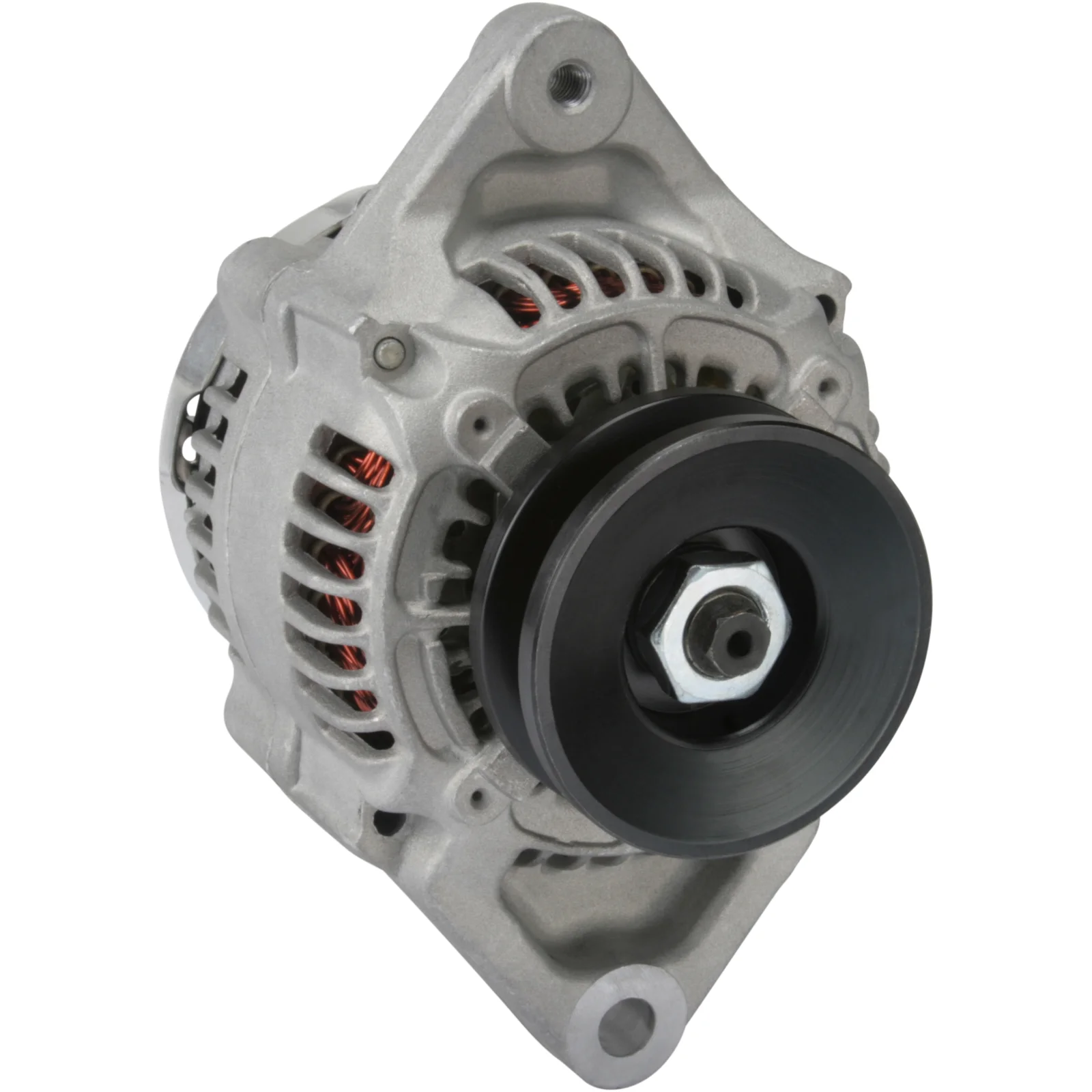

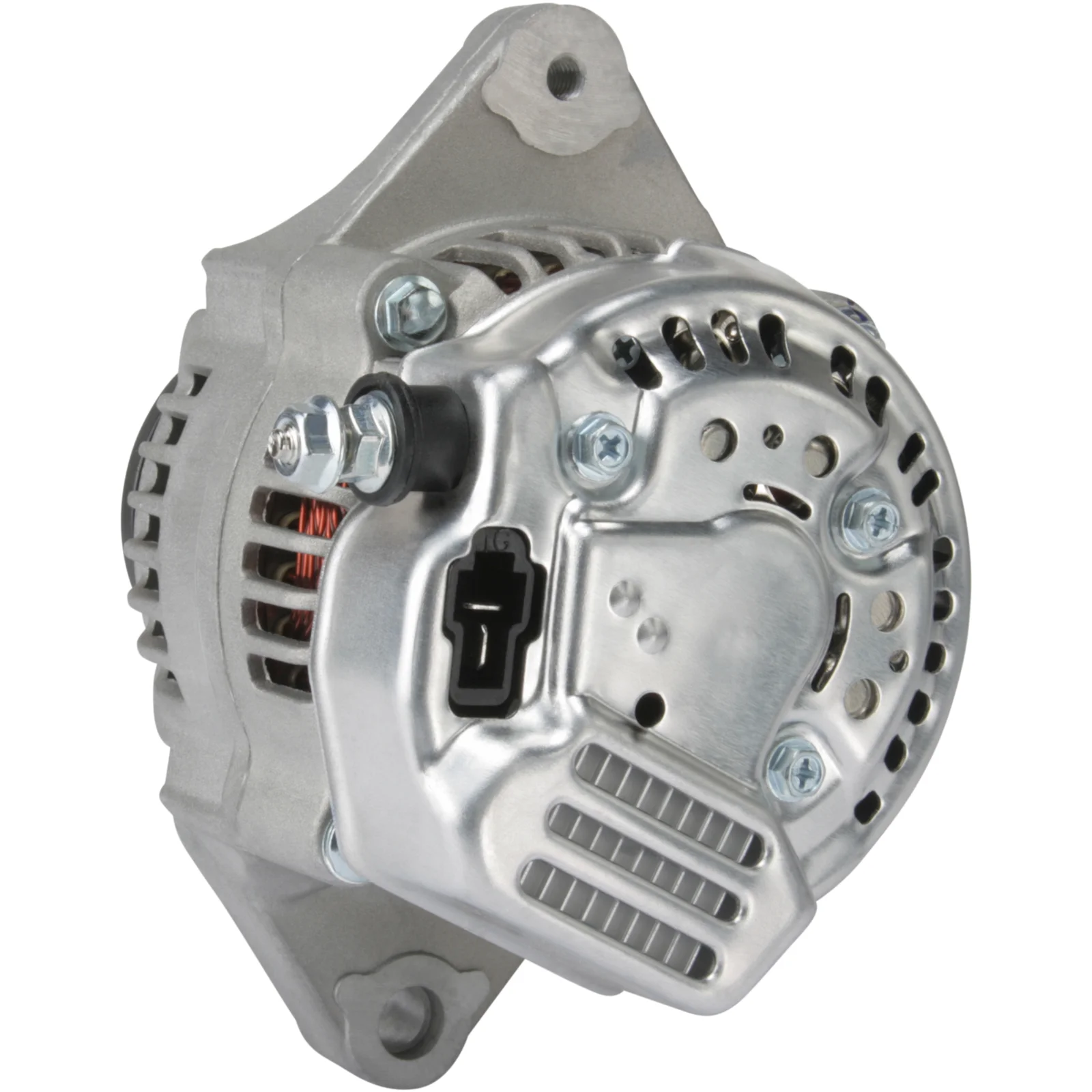

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 50, Rotation: CW, Pulley dia.: 69.00

Beskrivning

Voltage: 14
Amp: 50
Pulley dist.: 42.00
Width/holder arm: 21.00
Bracket hole: 10.20
Belt. adj. brackethole pos.: 60
Belt. adj. bracket hole 1: M8
Pulley dia.: 69.00
Grooves/pulley: 1
Radius: 77.50
Radius 2: 75.00
B+: M6
Position/B+ in min.: 48
D+ Size: Plug
Rotation: CW
Plug no.: PL10
Total length mm: 145.00
Pulley: P
Regulator type: IR
Prod. info: BN

Filer

Specifikation

B+ M6
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 60
Plug no. PL10
Bracket hole 10.20
Position/B+ in min. 48
Prod. info BN
Pulley P
Pulley dia. 69.00
Pulley dist. 42.00
Radius 77.50
D+ Size Plug
Radius 2 75.00
Regulator type IR
Rotation CW
Grooves/pulley 1
Voltage 14
Total length 145.00 mm
Width/holder arm 21.00
Amp 50
  • Beskrivning
    Voltage: 14
    Amp: 50
    Pulley dist.: 42.00
    Width/holder arm: 21.00
    Bracket hole: 10.20
    Belt. adj. brackethole pos.: 60
    Belt. adj. bracket hole 1: M8
    Pulley dia.: 69.00
    Grooves/pulley: 1
    Radius: 77.50
    Radius 2: 75.00
    B+: M6
    Position/B+ in min.: 48
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL10
    Total length mm: 145.00
    Pulley: P
    Regulator type: IR
    Prod. info: BN

    Filer

  • Specifikation
    B+ M6
    Belt. adj. bracket hole 1 M8
    Belt. adj. brackethole pos. 60
    Plug no. PL10
    Bracket hole 10.20
    Position/B+ in min. 48
    Prod. info BN
    Pulley P
    Pulley dia. 69.00
    Pulley dist. 42.00
    Radius 77.50
    D+ Size Plug
    Radius 2 75.00
    Regulator type IR
    Rotation CW
    Grooves/pulley 1
    Voltage 14
    Total length 145.00 mm
    Width/holder arm 21.00
    Amp 50
