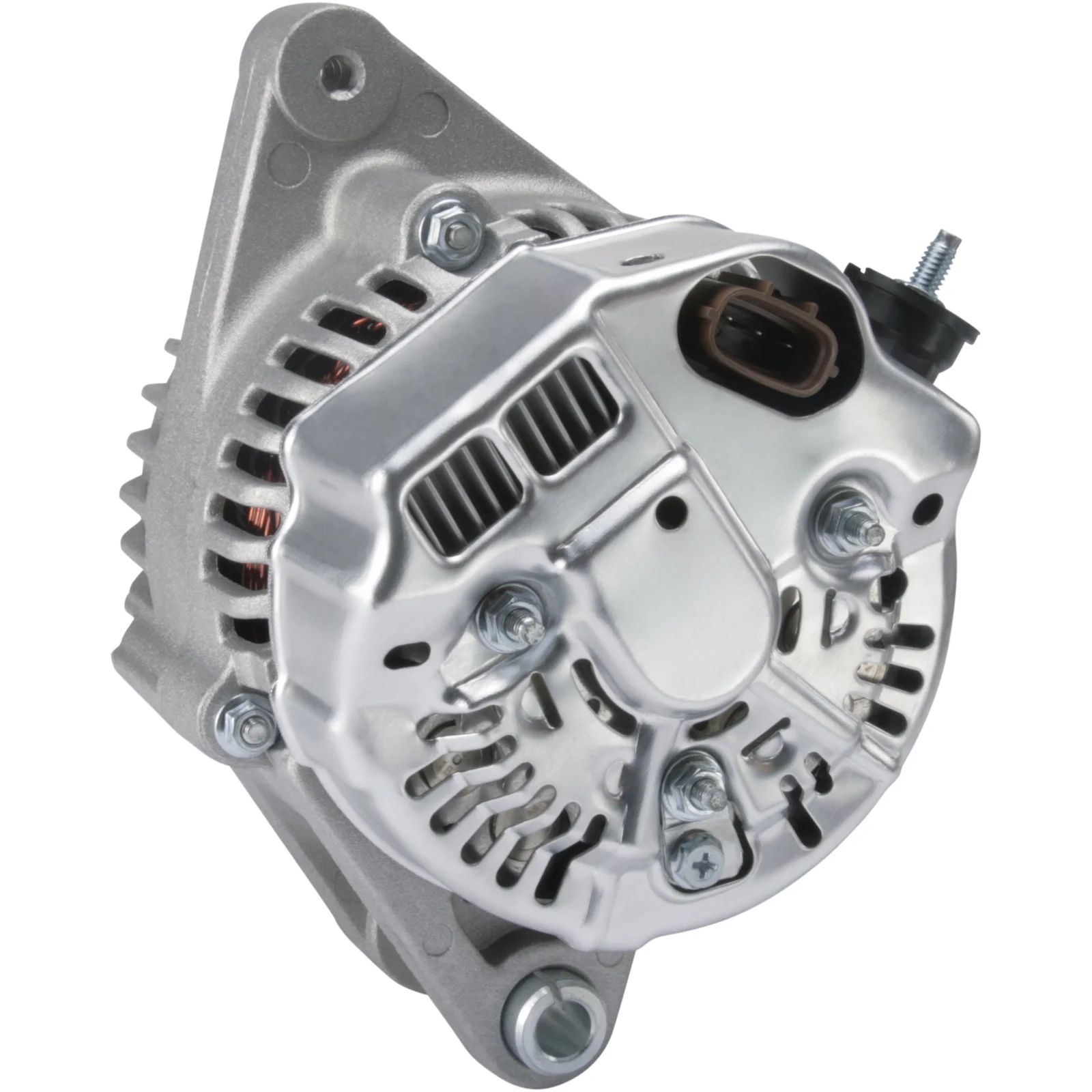

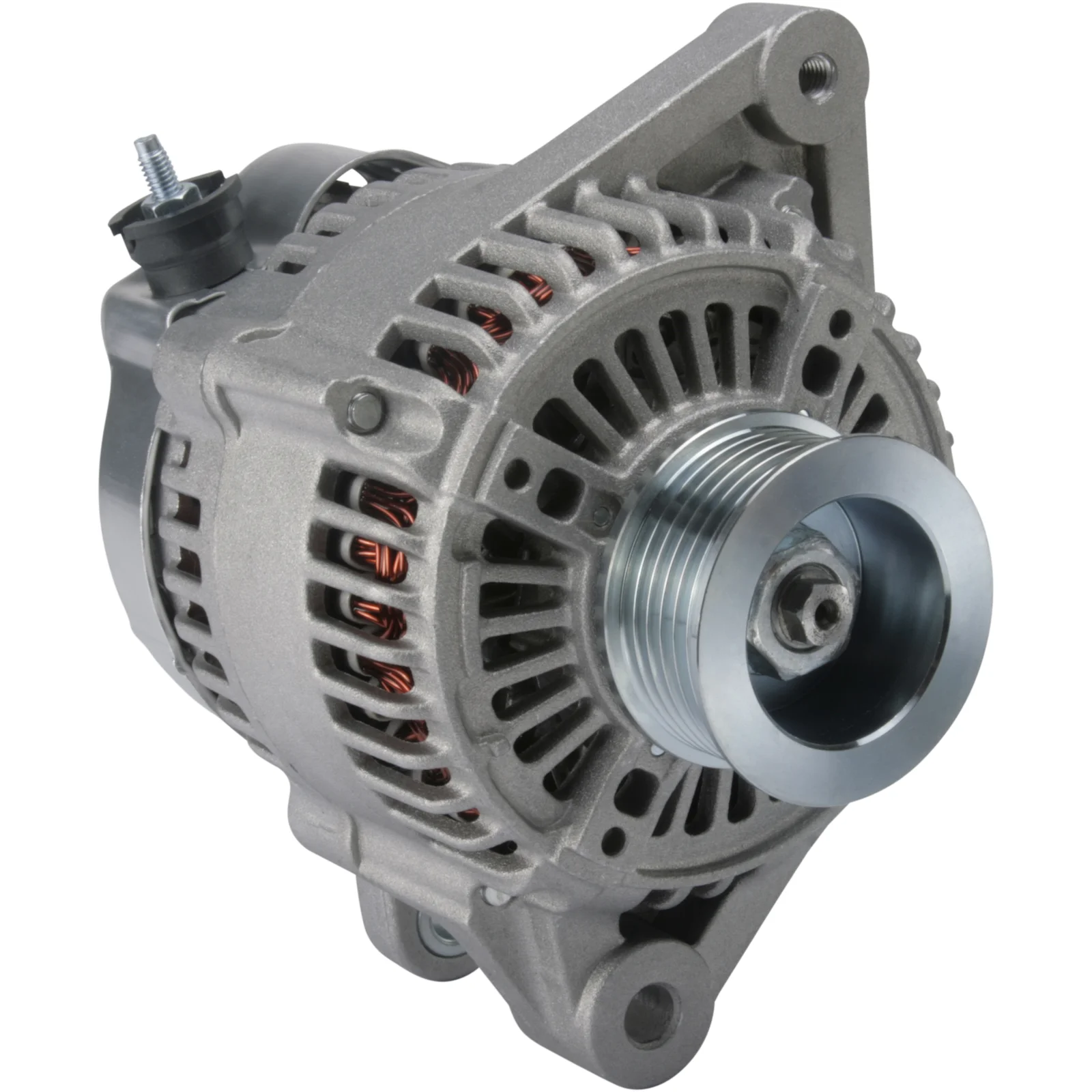

HC-Cargo Generator
HC-Cargo Generator
Artikelnr: F032114005

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 70, Rotation: CW, Mount. bracket dist.: 39.00

Beskrivning

Voltage: 14
Amp: 70
Pulley dist.: 48.00
Width/holder arm: 27.00
Mount. bracket dist.: 39.00
Bracket hole: 10.00
Belt. adj. brackethole pos.: 5
Belt. adj. bracket hole 1: M8
Pulley dia.: 55.00
Grooves/pulley: 6
Radius: 80.00
Radius 2: 90.00
B+: M6
Position/B+ in min.: 5
D+ Size: Plug
Rotation: CW
Plug no.: PL67
Total length mm: 166.00
Pulley: SP
Regulator type: IR
Prod. info: BN

Filer

Specifikation

B+ M6
Mount. bracket dist. 39.00
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 5
Plug no. PL67
Bracket hole 10.00
Position/B+ in min. 5
Prod. info BN
Pulley SP
Pulley dia. 55.00
Pulley dist. 48.00
Radius 80.00
D+ Size Plug
Radius 2 90.00
Regulator type IR
Rotation CW
Grooves/pulley 6
Voltage 14
Total length 166.00 mm
Width/holder arm 27.00
Amp 70

  • OEM
    F032114005, ja1809ir, 27060-0J010, 27060-0J030, 27060-23040, 27060-23070, 102211-5300, 102211-5410, 102211-6150, 102211-6170, 102211-8000, 102211-8190

  • Konkurrentreferens
    A6202, A6202(DENSO), A6202PR, A6657(DENSO), ALT-H183, CAL40287, DAN960, DENDAN960, dra0112, F042A0H183, J5112119, 8EL012426-301, 8EL012429-461, 8EL738211-071, 28-4757, 195.573.070, 195.588.070, 21471R, 23276N, 210727, 210727A, 401809RI, 443039, 9212926, 12060803, 12060909, 063377439, 0986045841, 0986080590, 063377439010

  • Normaliserat artikelnummer
    a6202, a6202denso, a6202pr, a6657denso, alth183, cal40287, dan960, dendan960, dra0112, f032114005, f042a0h183, j5112119, ja1809ir, 8el012426301, 8el012429461, 8el738211071, 21471r, 23276n, 210727, 210727a, 270600j010, 270600j030, 284757, 401809ri, 443039, 9212926, 12060803, 12060909, 063377439, 195573070, 195588070, 0986045841, 0986080590, 1022115300, 1022115410, 1022116150, 1022116170, 1022118000, 1022118190, 2706023040, 2706023070, 063377439010

  • Passar modeller
    Toyota Model: Yaris Model series: Yaris Size of motor: 1.3 Brand of engine: 2SZ-FE Body: Hatchback From date: 01-04-2002 To date: 01-09-2005 Fuel: Gasoline Approved: Yes
    Toyota Model: Yaris Model series: Yaris Type of engine: 16V Size of motor: 1.0 Brand of engine: 1SZ-FE Type description: _CP10_ Body: Hatchback From date: 01-03-2003 To date: 01-09-2005 Fuel: Gasoline Approved: Yes
    Toyota Model: Yaris Model series: Yaris Type of engine: i Size of motor: 1.0 Brand of engine: 1SZ-FE Type description: SCP10 Body: Hatchback From date: 01-04-1999 To date: 01-09-2005 Fuel: Gasoline Approved: Yes
  • Beskrivning
    Voltage: 14
    Amp: 70
    Pulley dist.: 48.00
    Width/holder arm: 27.00
    Mount. bracket dist.: 39.00
    Bracket hole: 10.00
    Belt. adj. brackethole pos.: 5
    Belt. adj. bracket hole 1: M8
    Pulley dia.: 55.00
    Grooves/pulley: 6
    Radius: 80.00
    Radius 2: 90.00
    B+: M6
    Position/B+ in min.: 5
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL67
    Total length mm: 166.00
    Pulley: SP
    Regulator type: IR
    Prod. info: BN

    Filer

  • Specifikation
    B+ M6
    Mount. bracket dist. 39.00
    Belt. adj. bracket hole 1 M8
    Belt. adj. brackethole pos. 5
    Plug no. PL67
    Bracket hole 10.00
    Position/B+ in min. 5
    Prod. info BN
    Pulley SP
    Pulley dia. 55.00
    Pulley dist. 48.00
    Radius 80.00
    D+ Size Plug
    Radius 2 90.00
    Regulator type IR
    Rotation CW
    Grooves/pulley 6
    Voltage 14
    Total length 166.00 mm
    Width/holder arm 27.00
    Amp 70
  • Fordonsmatchning

    • OEM
      F032114005, ja1809ir, 27060-0J010, 27060-0J030, 27060-23040, 27060-23070, 102211-5300, 102211-5410, 102211-6150, 102211-6170, 102211-8000, 102211-8190

    • Konkurrentreferens
      A6202, A6202(DENSO), A6202PR, A6657(DENSO), ALT-H183, CAL40287, DAN960, DENDAN960, dra0112, F042A0H183, J5112119, 8EL012426-301, 8EL012429-461, 8EL738211-071, 28-4757, 195.573.070, 195.588.070, 21471R, 23276N, 210727, 210727A, 401809RI, 443039, 9212926, 12060803, 12060909, 063377439, 0986045841, 0986080590, 063377439010

    • Normaliserat artikelnummer
      a6202, a6202denso, a6202pr, a6657denso, alth183, cal40287, dan960, dendan960, dra0112, f032114005, f042a0h183, j5112119, ja1809ir, 8el012426301, 8el012429461, 8el738211071, 21471r, 23276n, 210727, 210727a, 270600j010, 270600j030, 284757, 401809ri, 443039, 9212926, 12060803, 12060909, 063377439, 195573070, 195588070, 0986045841, 0986080590, 1022115300, 1022115410, 1022116150, 1022116170, 1022118000, 1022118190, 2706023040, 2706023070, 063377439010

    • Passar modeller
      Toyota Model: Yaris Model series: Yaris Size of motor: 1.3 Brand of engine: 2SZ-FE Body: Hatchback From date: 01-04-2002 To date: 01-09-2005 Fuel: Gasoline Approved: Yes
      Toyota Model: Yaris Model series: Yaris Type of engine: 16V Size of motor: 1.0 Brand of engine: 1SZ-FE Type description: _CP10_ Body: Hatchback From date: 01-03-2003 To date: 01-09-2005 Fuel: Gasoline Approved: Yes
      Toyota Model: Yaris Model series: Yaris Type of engine: i Size of motor: 1.0 Brand of engine: 1SZ-FE Type description: SCP10 Body: Hatchback From date: 01-04-1999 To date: 01-09-2005 Fuel: Gasoline Approved: Yes
