Artikelnr: F032116492

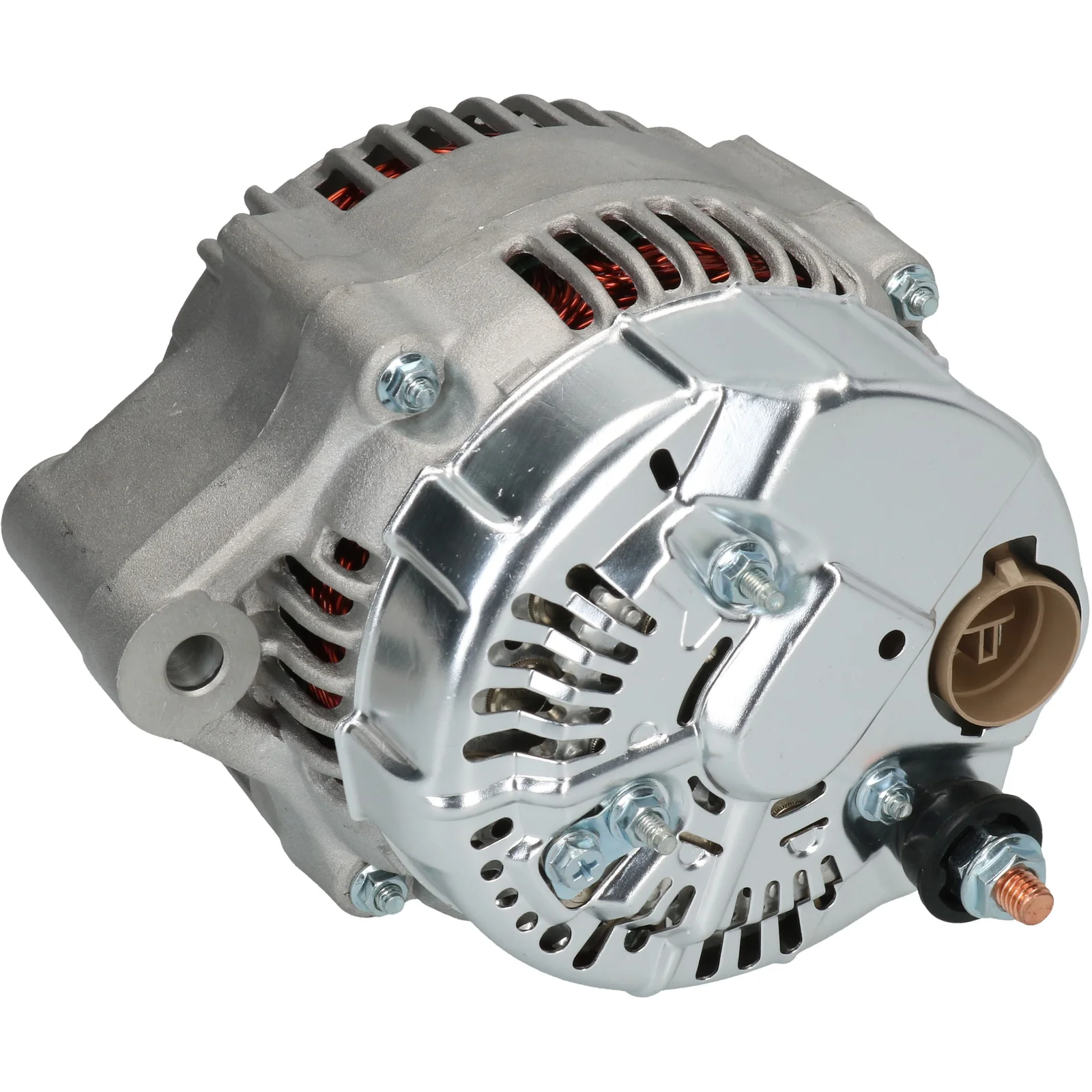

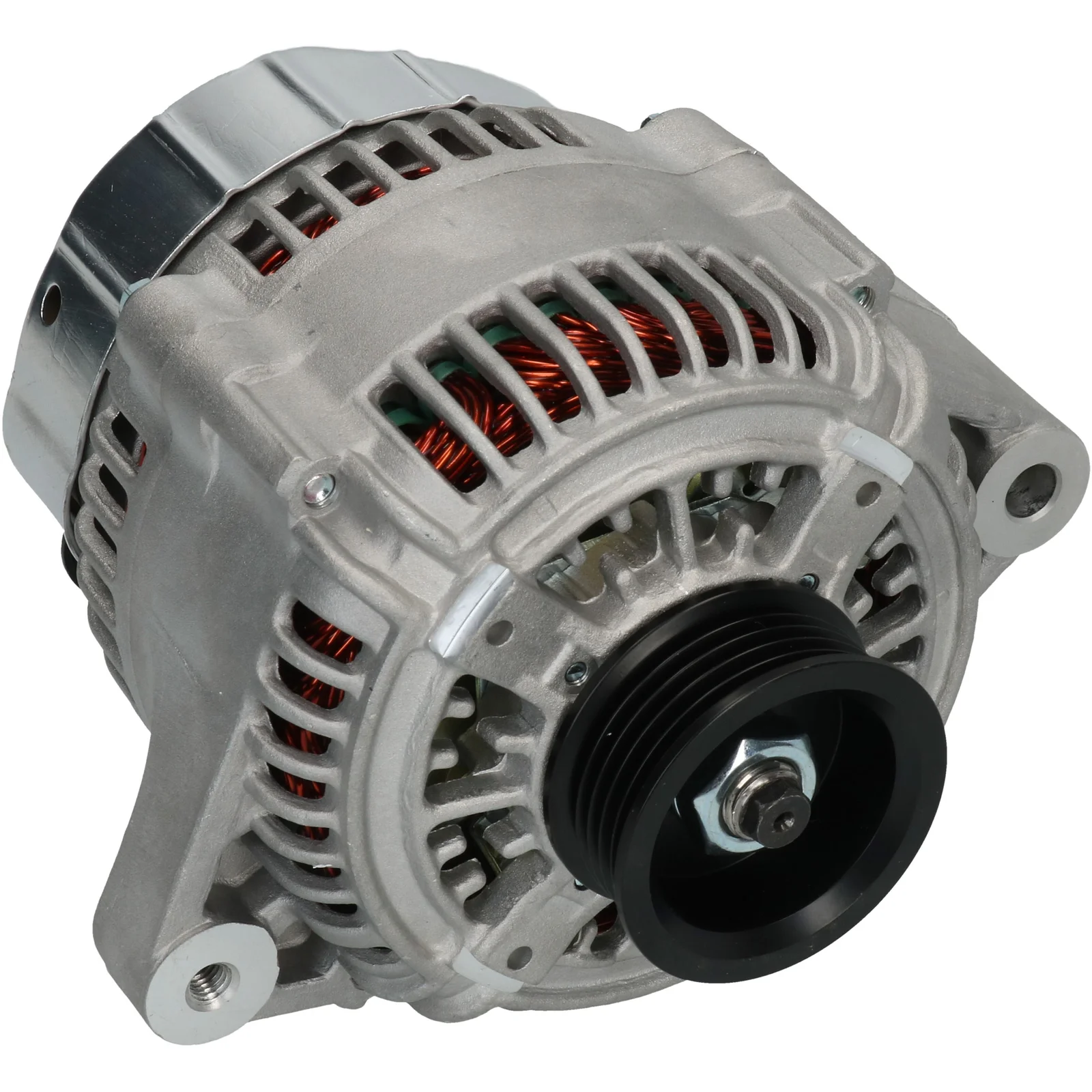

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 120, Rotation: CW, Pulley dia.: 55.00

Beskrivning

Jaguar Generator 12V-120A 12V - 120A, 5gr, (D, IG, L) För Yourex produkt order 90-270-6310

Voltage: 14
Amp: 120
Pulley dist.: 90.00
Width/holder arm: 58.00
Bracket hole: 10.50
Belt. adj. brackethole pos.: 55
Belt. adj. bracket hole 1: M8
Pulley dia.: 55.00
Grooves/pulley: 5
Radius: 83.00
Radius 2: 85.50
B+: M8
Position/B+ in min.: 7
D+ Size: Plug
Rotation: CW
Plug no.: PL11
Total length mm: 187.00
Terminal type: IG-L-S
Pulley: SP
Fan: IF

Specifikation

B+ M8
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 55
Plug no. PL11
Bracket hole 10.50
Position/B+ in min. 7
Pulley SP
Pulley dia. 55.00
Pulley dist. 90.00
Radius 83.00
D+ Size Plug
Radius 2 85.50
Rotation CW
Fan IF
Grooves/pulley 5
Terminal type IG-L-S
Voltage 14
Total length 187.00 mm
Width/holder arm 58.00
Amp 120
  • OEM

    A 18000BA, A 18000DA, A1800AA, A1800BA, A1800DA, DBC 11590, DBC6819, DBC6820, F032116492, NA1800BA, 100211-6310, 100211-6320, 100211-6450, 101211-7191, 101211-7640, 116492
  • Konkurrentreferens

    A6196(DENSO), CAL40249, DAN671, DRA3666, 8EL015637-711, 28-4748, 514.101.1202, 845.502.120, 13260R, 13524N, 111725, 553941RI, 12060669, 12061053, 0986043087
  • Bilmärken

    Jaguar, John Deere - (EU)
  • Normaliserat artikelnummer

    a18000ba, a18000da, a1800aa, a1800ba, a1800da, a6196denso, cal40249, dan671, dbc11590, dbc6819, dbc6820, dra3666, f032116492, na1800ba, 8el015637711, 13260r, 13524n, 111725, 116492, 284748, 553941ri, 12060669, 12061053, 845502120, 0986043087, 1002116310, 1002116320, 1002116450, 1012117191, 1012117640, 5141011202
  • Passar modeller

    Jaguar Model: Vanden Plas Saloon Model series: Vanden Plas Saloon Size of motor: 4.0 Brand of engine: 9EPCNA Body: Saloon Fuel: Petrol Approved: Yes Manufacture type: Saloon
    Jaguar Model: XJ Model series: XJ Model type: 6 Size of motor: 4.0 Brand of engine: 9E Body: Saloon Fuel: Petrol Approved: Yes
    Jaguar Model: XJ Model series: XJ Size of motor: 4.0 Brand of engine: 9JPFRB Type description: X300, X330 Body: Saloon From date: 01-11-1994 To date: 01-07-1997 Fuel: Petrol Approved: Yes
    Jaguar Model: XJ Model series: XJ Size of motor: 4.0 Type description: XJ40, XJ81 From date: 01-10-1989 To date: 01-08-1994 Fuel: Gasoline Approved: Yes
    Jaguar Series: XJ 12 Model: 6.0 Engine volume: 6.0 Year: 11.94-07.97
    Jaguar Series: XJ 6 Model: 4.0 R Super Charged Engine volume: 4.0 Year: 11.94-07.97
    Jaguar Series: XJ 6 Model: 4.0 Sovereign Engine volume: 4.0 Year: 11.94-07.97
    Jaguar Series: XJS Model: 6.0 Coupe Engine volume: 6.0 Year: 05.93-03.96
