- Generator
-
HC-Cargo Generator
- Generator
-
HC-Cargo Generator
Artikelnr: F032114292
HC-Cargo Generator
Voltage: 14, Amp: 180, Rotation: CW, Mount. bracket dist.: 75.00
Beskrivning

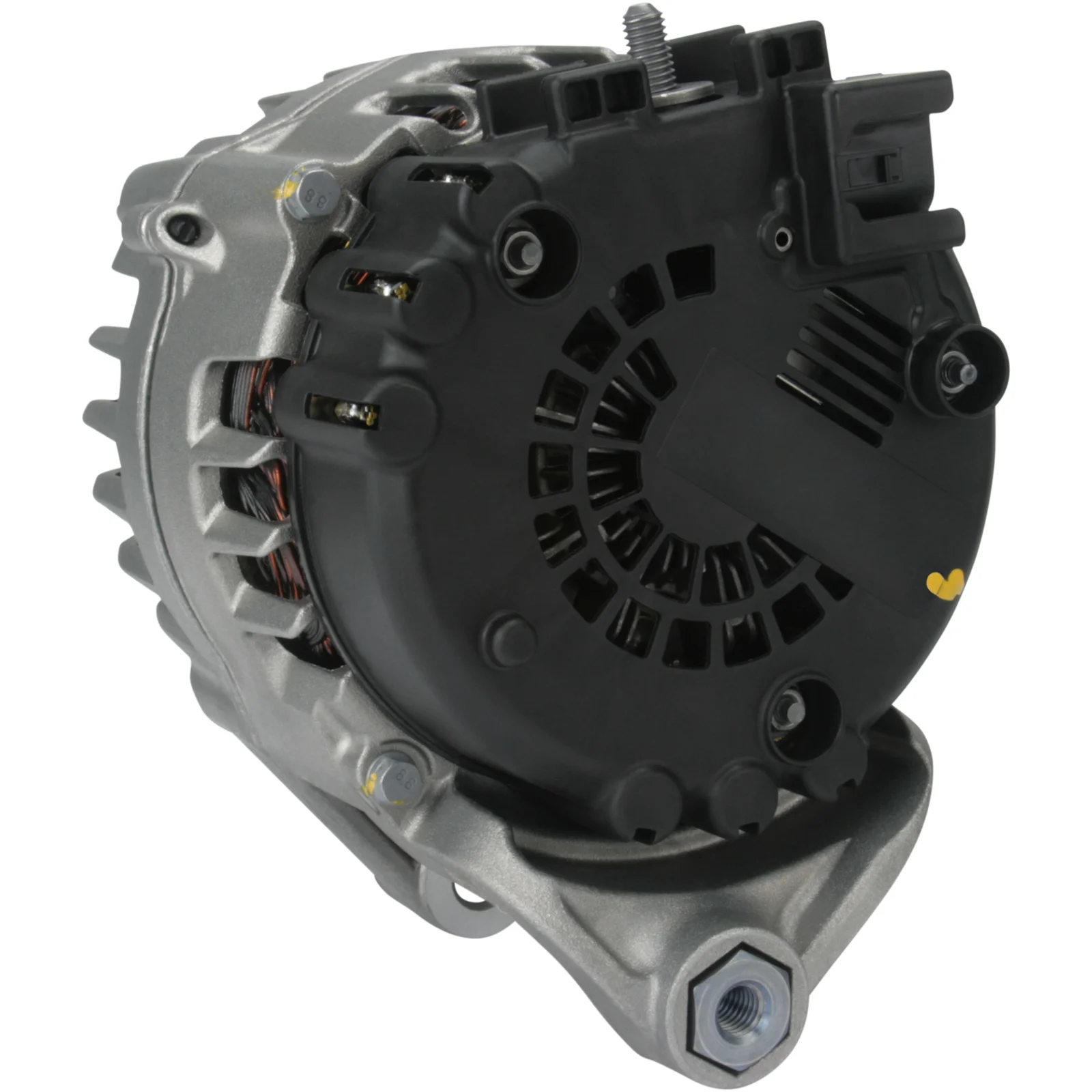

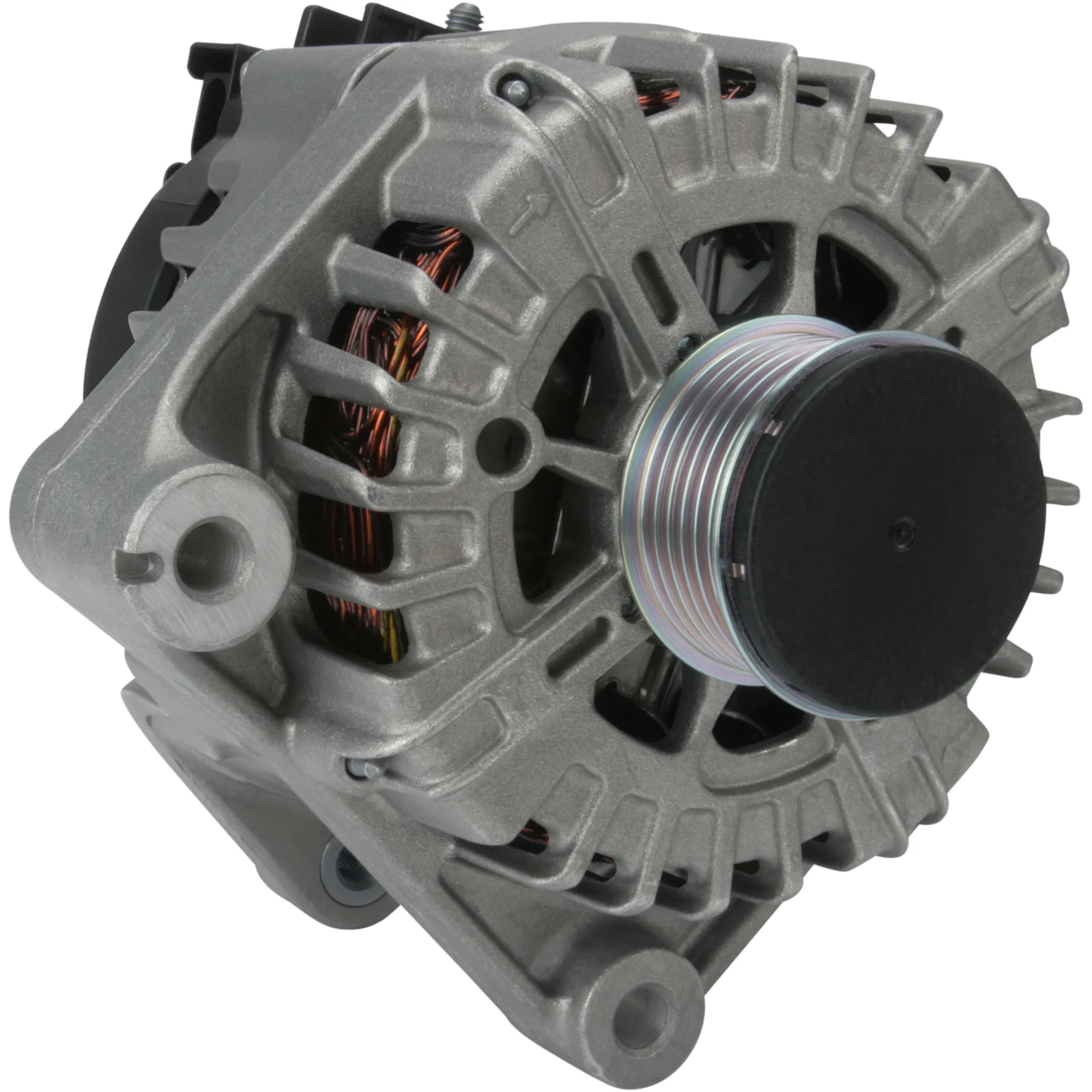

BMW Diesel Generator 12V-180A 12V - 180A, 6gr (BSS) För Yourex produkt order 90-040-8220
Voltage: 14
Amp: 180
Pulley dist.: 57.00
Width/holder arm: 28.00
Mount. bracket dist.: 75.00
Bracket hole: 10.50
Belt. adj. brackethole pos.: 45
Belt. adj. bracket hole 1: 10.30
Pulley dia.: 53.50
Grooves/pulley: 6
Radius: 93.00
Radius 2: 93.00
B+: M8
Position/B+ in min.: 59
Rotation: CW
Plug no.: PL125
Total length mm: 185.00
Terminal type: COM
Communication: BSS
Pulley: SP
Regulator type: IR
Prod. info: BN
Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Voltage: 14
Amp: 180
Pulley dist.: 57.00
Width/holder arm: 28.00
Mount. bracket dist.: 75.00
Bracket hole: 10.50
Belt. adj. brackethole pos.: 45
Belt. adj. bracket hole 1: 10.30
Pulley dia.: 53.50
Grooves/pulley: 6
Radius: 93.00
Radius 2: 93.00
B+: M8
Position/B+ in min.: 59
Rotation: CW
Plug no.: PL125
Total length mm: 185.00
Terminal type: COM
Communication: BSS
Pulley: SP
Regulator type: IR
Prod. info: BN
Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Filer
Specifikation
| B+ | M8 |
|---|---|
| Communication | BSS |
| Mount. bracket dist. | 75.00 |
| Belt. adj. bracket hole 1 | 10.30 |
| Belt. adj. brackethole pos. | 45 |
| Plug no. | PL125 |
| Bracket hole | 10.50 |
| Position/B+ in min. | 59 |
| Prod. info | BN |
| Pulley | SP |
| Pulley dia. | 53.50 |
| Pulley dist. | 57.00 |
| Radius | 93.00 |
| Radius 2 | 93.00 |
| Regulator type | IR |
| Remarks | This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering. |
| Rotation | CW |
| Grooves/pulley | 6 |
| Terminal type | COM |
| Voltage | 14 |
| Total length | 185.00 mm |
| Width/holder arm | 28.00 |
| Amp | 180 |
-
OEM
A3264, A3264(VALEO), A3264PR, A3264S, CAL15368, F032114292, FG18S 019, FGN18S019, LRA03100, TG18S052, 8EL012430-231, 8EL738212-671, 28-5712, 215.538.180, 0986 082 200, 1231 7802261, 1231 7802619, 1986A00560, 4786, 24100, 24100N, 24100R, 114292, 200201, 210771, 210771A, 439613, 440183, 553395RI, 747117, 2543461, 2543461B, 2543461C, 7802261, 7802619, 9945790, 9945792, 12090305, 32082200, 0986082200, 12317802261, 12317802619, 12318507624, 12318509023 -
Konkurrentreferens
A3264, A3264(VALEO), A3264PR, A3264S, CAL15368, dra0311, LRA03100, 8EL012430-231, 8EL738212-671, 28-5712, 215.538.180, 4786, 24100, 24100N, 24100R, 200201, 210771, 210771A, 439613, 440183, 553395RI, 747117, 12090305, 32082200, 0986082200 -
Bilmärken
BMW -
Normaliserat artikelnummer
a3264, a3264pr, a3264s, a3264valeo, cal15368, f032114292, fg18s019, fgn18s019, lra03100, tg18s052, 8el012430231, 8el738212671, 1986a00560, 4786, 24100, 24100n, 24100r, 114292, 200201, 210771, 210771a, 285712, 439613, 440183, 553395ri, 747117, 2543461, 2543461b, 2543461c, 7802261, 7802619, 9945790, 9945792, 12090305, 32082200, 215538180, 0986082200, 12317802261, 12317802619, 12318507624, 12318509023 -
Passar modeller
BMW 1 (E81) 116 d Engine volume: 2.0 Engine type: N47 D20 A, N47 D20 C Year: 01.11-12.11 BMW 1 (E81) 116 d Engine volume: 2.0 Engine type: N47 D20 A, N47 D20 C Year: 11.08-12.11 BMW 1 (E81) 118 d Engine volume: 2.0 Engine type: N47 D20 A, N47 D20 C Year: 09.06-12.11 BMW 1 (E81) 120 d Engine volume: 2.0 Engine type: N47 D20 A, N47 D20 C Year: 03.07-12.11 BMW 1 (E81) 123 d Engine volume: 2.0 Engine type: N47 D20 D, N47 D20 B Year: 03.07-12.11 BMW 1 (E87) 116 d Engine volume: 2.0 Engine type: N47 D20 A, N47 D20 C Year: 01.11-12.11 BMW 1 (E87) 116 d Engine volume: 2.0 Engine type: N47 D20 A, N47 D20 C Year: 03.09-06.11 BMW 1 (E87) 118 d Engine volume: 2.0 Engine type: N47 D20 A, N47 D20 C Year: 03.07-06.11 BMW 1 (E87) 120 d Engine volume: 2.0 Engine type: M47 D20 (204D4), N47 D20 A Year: 06.04-06.11 BMW 1 (E87) 120 d Engine volume: 2.0 Engine type: N47 D20 A, N47 D20 C Year: 03.07-06.11 BMW 1 (E87) 123 d Engine volume: 2.0 Engine type: N47 D20 D, N47 D20 B Year: 03.07-06.11 BMW 1 Cabriolet (E88) 118 d Engine volume: 2.0 Engine type: N47 D20 A, N47 D20 C Year: 09.08-12.13 BMW 1 Cabriolet (E88) 120 d Engine volume: 2.0 Engine type: N47 D20 A, N47 D20 C Year: 03.08-12.13 BMW 1 Cabriolet (E88) 120 d Engine volume: 2.0 Engine type: N47 D20 C Year: 03.08-12.13 BMW 1 Cabriolet (E88) 123 d Engine volume: 2.0 Engine type: N47 D20 D, N47 D20 B Year: 09.08-12.13 BMW 1 Coupé (E82) 118 d Engine volume: 2.0 Engine type: N47 D20 C Year: 09.09-10.13 BMW 1 Coupé (E82) 120 d Engine volume: 2.0 Engine type: N47 D20 A, N47 D20 C Year: 09.07-10.13 BMW 1 Coupé (E82) 123 d Engine volume: 2.0 Engine type: N47 D20 D, N47 D20 B Year: 10.07-09.13 BMW 3 (E90) 316 d Engine volume: 2.0 Engine type: N47 D20 C Year: 07.09-12.11 BMW 3 (E90) 318 d Engine volume: 2.0 Engine type: N47 D20 A, N47 D20 C Year: 02.07-10.11 BMW 3 (E90) 318 d Engine volume: 2.0 Engine type: N47 D20 A, N47 D20 C Year: 09.07-10.11 BMW 3 (E90) 320 d Engine volume: 2.0 Engine type: N47 D20 A, N47 D20 C Year: 09.07-02.10 BMW 3 (E90) 320 d Engine volume: 2.0 Engine type: N47 D20 C Year: 03.10-10.11 BMW 3 (E90) 320 d xDrive Engine volume: 2.0 Engine type: N47 D20 A, N47 D20 C Year: 09.08-02.10 BMW 3 (E90) 320 d xDrive Engine volume: 2.0 Engine type: N47 D20 C Year: 03.10-10.11 BMW 3 (E90) 320 d xDrive Engine volume: 2.0 Engine type: N47 D20 C Year: 09.08-10.11 BMW 3 Cabriolet (E93) 320 d Engine volume: 2.0 Engine type: N47 D20 A, N47 D20 C Year: 03.08-02.10 BMW 3 Cabriolet (E93) 320 d Engine volume: 2.0 Engine type: N47 D20 A, N47 D20 C Year: 09.07-02.10 BMW 3 Cabriolet (E93) 320 d Engine volume: 2.0 Engine type: N47 D20 C Year: 01.08-12.13 BMW 3 Cabriolet (E93) 320 d Engine volume: 2.0 Engine type: N47 D20 C Year: 03.10-10.13 BMW 3 Coupé (E92) 320 d Engine volume: 2.0 Engine type: N47 D20 A, N47 D20 C Year: 03.07-06.13 BMW 3 Coupé (E92) 320 d Engine volume: 2.0 Engine type: N47 D20 A, N47 D20 C Year: 09.06-02.10 BMW 3 Coupé (E92) 320 d Engine volume: 2.0 Engine type: N47 D20 C Year: 03.10-06.13 BMW 3 Coupé (E92) 320 d xDrive Engine volume: 2.0 Engine type: N47 D20 C Year: 03.10-06.13 BMW 3 Coupé (E92) 320 d xDrive Engine volume: 2.0 Engine type: N47 D20 C Year: 09.08-02.10 BMW 3 Coupé (E92) 320 d xDrive Engine volume: 2.0 Engine type: N47 D20 C Year: 09.08-06.13 BMW 3 Touring (E91) 318 d Engine volume: 2.0 Engine type: N47 D20 A, N47 D20 C Year: 07.07-06.12 BMW 3 Touring (E91) 318 d Engine volume: 2.0 Engine type: N47 D20 A, N47 D20 C Year: 09.07-06.12 BMW 3 Touring (E91) 320 d Engine volume: 2.0 Engine type: N47 D20 A, N47 D20 C Year: 02.07-02.10 BMW 3 Touring (E91) 320 d Engine volume: 2.0 Engine type: N47 D20 A, N47 D20 C Year: 02.07-12.10 BMW 3 Touring (E91) 320 d Engine volume: 2.0 Engine type: N47 D20 C Year: 03.10-05.12 BMW 3 Touring (E91) 320 d xDrive Engine volume: 2.0 Engine type: N47 D20 C Year: 02.08-02.10 BMW 3 Touring (E91) 320 d xDrive Engine volume: 2.0 Engine type: N47 D20 C Year: 03.10-05.12 BMW 3 Touring (E91) 320 d xDrive Engine volume: 2.0 Engine type: N47 D20 C Year: 03.10-06.12 BMW 3 Touring (E91) 320 d xDrive Engine volume: 2.0 Engine type: N47 D20 C Year: 07.09-06.12 BMW 3 Touring (E91) 320 d xDrive Engine volume: 2.0 Engine type: N47 D20 C Year: 09.08-02.10 BMW 5 (E60) 520 d Engine volume: 2.0 Engine type: M47 D20 (204D4), N47 D20 A, N47 D20 C Year: 09.05-12.09 BMW 5 (E60) 520 d Engine volume: 2.0 Engine type: N47 D20 A, N47 D20 C Year: 09.07-12.09 BMW 5 Touring (E61) 520 d Engine volume: 2.0 Engine type: M47 D20 (204D4), N47 D20 A, N47 D20 C Year: 04.05-05.10 BMW 5 Touring (E61) 520 d Engine volume: 2.0 Engine type: N47 D20 A, N47 D20 C Year: 09.07-05.10 BMW X1 (E84) sDrive 18 d Engine volume: 2.0 Engine type: N47 D20 C Year: 03.09-06.15 BMW X1 (E84) sDrive 18 d Engine volume: 2.0 Engine type: N47 D20 C Year: 12.09-06.15 BMW X1 (E84) sDrive 20 d Engine volume: 2.0 Engine type: N47 D20 C Year: 03.10-06.15 BMW X1 (E84) sDrive 20 d Engine volume: 2.0 Engine type: N47 D20 C Year: 10.09-06.15 BMW X1 (E84) xDrive 18 d Engine volume: 2.0 Engine type: N47 D20 C Year: 03.09-06.15 BMW X1 (E84) xDrive 18 d Engine volume: 2.0 Engine type: N47 D20 C Year: 10.09-06.15 BMW X1 (E84) xDrive 20 d Engine volume: 2.0 Engine type: N47 D20 C Year: 03.10-06.15 BMW X1 (E84) xDrive 20 d Engine volume: 2.0 Engine type: N47 D20 C Year: 09.09-06.12 BMW X1 (E84) xDrive 23 d Engine volume: 2.0 Engine type: N47 D20 D Year: 10.09-06.15 BMW X3 (E83) 2.0 sd Engine volume: 2.0 Engine type: N47 D20 A Year: 09.07-08.08 BMW X3 (E83) xDrive 18 d Engine volume: 2.0 Engine type: N47 D20 C Year: 09.08-12.11 BMW X3 (E83) xDrive 20 d Engine volume: 2.0 Engine type: N47 D20 A, N47 D20 C Year: 09.08-08.10 1 / 13
-
Beskrivning
BMW Diesel Generator 12V-180A 12V - 180A, 6gr (BSS) För Yourex produkt order 90-040-8220
Voltage: 14
Amp: 180
Pulley dist.: 57.00
Width/holder arm: 28.00
Mount. bracket dist.: 75.00
Bracket hole: 10.50
Belt. adj. brackethole pos.: 45
Belt. adj. bracket hole 1: 10.30
Pulley dia.: 53.50
Grooves/pulley: 6
Radius: 93.00
Radius 2: 93.00
B+: M8
Position/B+ in min.: 59
Rotation: CW
Plug no.: PL125
Total length mm: 185.00
Terminal type: COM
Communication: BSS
Pulley: SP
Regulator type: IR
Prod. info: BN
Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.Filer
-
Specifikation
B+ M8 Communication BSS Mount. bracket dist. 75.00 Belt. adj. bracket hole 1 10.30 Belt. adj. brackethole pos. 45 Plug no. PL125 Bracket hole 10.50 Position/B+ in min. 59 Prod. info BN Pulley SP Pulley dia. 53.50 Pulley dist. 57.00 Radius 93.00 Radius 2 93.00 Regulator type IR Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering. Rotation CW Grooves/pulley 6 Terminal type COM Voltage 14 Total length 185.00 mm Width/holder arm 28.00 Amp 180 -
Fordonsmatchning
-
OEM
A3264, A3264(VALEO), A3264PR, A3264S, CAL15368, F032114292, FG18S 019, FGN18S019, LRA03100, TG18S052, 8EL012430-231, 8EL738212-671, 28-5712, 215.538.180, 0986 082 200, 1231 7802261, 1231 7802619, 1986A00560, 4786, 24100, 24100N, 24100R, 114292, 200201, 210771, 210771A, 439613, 440183, 553395RI, 747117, 2543461, 2543461B, 2543461C, 7802261, 7802619, 9945790, 9945792, 12090305, 32082200, 0986082200, 12317802261, 12317802619, 12318507624, 12318509023 -
Konkurrentreferens
A3264, A3264(VALEO), A3264PR, A3264S, CAL15368, dra0311, LRA03100, 8EL012430-231, 8EL738212-671, 28-5712, 215.538.180, 4786, 24100, 24100N, 24100R, 200201, 210771, 210771A, 439613, 440183, 553395RI, 747117, 12090305, 32082200, 0986082200 -
Bilmärken
BMW -
Normaliserat artikelnummer
a3264, a3264pr, a3264s, a3264valeo, cal15368, f032114292, fg18s019, fgn18s019, lra03100, tg18s052, 8el012430231, 8el738212671, 1986a00560, 4786, 24100, 24100n, 24100r, 114292, 200201, 210771, 210771a, 285712, 439613, 440183, 553395ri, 747117, 2543461, 2543461b, 2543461c, 7802261, 7802619, 9945790, 9945792, 12090305, 32082200, 215538180, 0986082200, 12317802261, 12317802619, 12318507624, 12318509023 -
Passar modeller
BMW 1 (E81) 116 d Engine volume: 2.0 Engine type: N47 D20 A, N47 D20 C Year: 01.11-12.11 BMW 1 (E81) 116 d Engine volume: 2.0 Engine type: N47 D20 A, N47 D20 C Year: 11.08-12.11 BMW 1 (E81) 118 d Engine volume: 2.0 Engine type: N47 D20 A, N47 D20 C Year: 09.06-12.11 BMW 1 (E81) 120 d Engine volume: 2.0 Engine type: N47 D20 A, N47 D20 C Year: 03.07-12.11 BMW 1 (E81) 123 d Engine volume: 2.0 Engine type: N47 D20 D, N47 D20 B Year: 03.07-12.11 BMW 1 (E87) 116 d Engine volume: 2.0 Engine type: N47 D20 A, N47 D20 C Year: 01.11-12.11 BMW 1 (E87) 116 d Engine volume: 2.0 Engine type: N47 D20 A, N47 D20 C Year: 03.09-06.11 BMW 1 (E87) 118 d Engine volume: 2.0 Engine type: N47 D20 A, N47 D20 C Year: 03.07-06.11 BMW 1 (E87) 120 d Engine volume: 2.0 Engine type: M47 D20 (204D4), N47 D20 A Year: 06.04-06.11 BMW 1 (E87) 120 d Engine volume: 2.0 Engine type: N47 D20 A, N47 D20 C Year: 03.07-06.11 BMW 1 (E87) 123 d Engine volume: 2.0 Engine type: N47 D20 D, N47 D20 B Year: 03.07-06.11 BMW 1 Cabriolet (E88) 118 d Engine volume: 2.0 Engine type: N47 D20 A, N47 D20 C Year: 09.08-12.13 BMW 1 Cabriolet (E88) 120 d Engine volume: 2.0 Engine type: N47 D20 A, N47 D20 C Year: 03.08-12.13 BMW 1 Cabriolet (E88) 120 d Engine volume: 2.0 Engine type: N47 D20 C Year: 03.08-12.13 BMW 1 Cabriolet (E88) 123 d Engine volume: 2.0 Engine type: N47 D20 D, N47 D20 B Year: 09.08-12.13 BMW 1 Coupé (E82) 118 d Engine volume: 2.0 Engine type: N47 D20 C Year: 09.09-10.13 BMW 1 Coupé (E82) 120 d Engine volume: 2.0 Engine type: N47 D20 A, N47 D20 C Year: 09.07-10.13 BMW 1 Coupé (E82) 123 d Engine volume: 2.0 Engine type: N47 D20 D, N47 D20 B Year: 10.07-09.13 BMW 3 (E90) 316 d Engine volume: 2.0 Engine type: N47 D20 C Year: 07.09-12.11 BMW 3 (E90) 318 d Engine volume: 2.0 Engine type: N47 D20 A, N47 D20 C Year: 02.07-10.11 BMW 3 (E90) 318 d Engine volume: 2.0 Engine type: N47 D20 A, N47 D20 C Year: 09.07-10.11 BMW 3 (E90) 320 d Engine volume: 2.0 Engine type: N47 D20 A, N47 D20 C Year: 09.07-02.10 BMW 3 (E90) 320 d Engine volume: 2.0 Engine type: N47 D20 C Year: 03.10-10.11 BMW 3 (E90) 320 d xDrive Engine volume: 2.0 Engine type: N47 D20 A, N47 D20 C Year: 09.08-02.10 BMW 3 (E90) 320 d xDrive Engine volume: 2.0 Engine type: N47 D20 C Year: 03.10-10.11 BMW 3 (E90) 320 d xDrive Engine volume: 2.0 Engine type: N47 D20 C Year: 09.08-10.11 BMW 3 Cabriolet (E93) 320 d Engine volume: 2.0 Engine type: N47 D20 A, N47 D20 C Year: 03.08-02.10 BMW 3 Cabriolet (E93) 320 d Engine volume: 2.0 Engine type: N47 D20 A, N47 D20 C Year: 09.07-02.10 BMW 3 Cabriolet (E93) 320 d Engine volume: 2.0 Engine type: N47 D20 C Year: 01.08-12.13 BMW 3 Cabriolet (E93) 320 d Engine volume: 2.0 Engine type: N47 D20 C Year: 03.10-10.13 BMW 3 Coupé (E92) 320 d Engine volume: 2.0 Engine type: N47 D20 A, N47 D20 C Year: 03.07-06.13 BMW 3 Coupé (E92) 320 d Engine volume: 2.0 Engine type: N47 D20 A, N47 D20 C Year: 09.06-02.10 BMW 3 Coupé (E92) 320 d Engine volume: 2.0 Engine type: N47 D20 C Year: 03.10-06.13 BMW 3 Coupé (E92) 320 d xDrive Engine volume: 2.0 Engine type: N47 D20 C Year: 03.10-06.13 BMW 3 Coupé (E92) 320 d xDrive Engine volume: 2.0 Engine type: N47 D20 C Year: 09.08-02.10 BMW 3 Coupé (E92) 320 d xDrive Engine volume: 2.0 Engine type: N47 D20 C Year: 09.08-06.13 BMW 3 Touring (E91) 318 d Engine volume: 2.0 Engine type: N47 D20 A, N47 D20 C Year: 07.07-06.12 BMW 3 Touring (E91) 318 d Engine volume: 2.0 Engine type: N47 D20 A, N47 D20 C Year: 09.07-06.12 BMW 3 Touring (E91) 320 d Engine volume: 2.0 Engine type: N47 D20 A, N47 D20 C Year: 02.07-02.10 BMW 3 Touring (E91) 320 d Engine volume: 2.0 Engine type: N47 D20 A, N47 D20 C Year: 02.07-12.10 BMW 3 Touring (E91) 320 d Engine volume: 2.0 Engine type: N47 D20 C Year: 03.10-05.12 BMW 3 Touring (E91) 320 d xDrive Engine volume: 2.0 Engine type: N47 D20 C Year: 02.08-02.10 BMW 3 Touring (E91) 320 d xDrive Engine volume: 2.0 Engine type: N47 D20 C Year: 03.10-05.12 BMW 3 Touring (E91) 320 d xDrive Engine volume: 2.0 Engine type: N47 D20 C Year: 03.10-06.12 BMW 3 Touring (E91) 320 d xDrive Engine volume: 2.0 Engine type: N47 D20 C Year: 07.09-06.12 BMW 3 Touring (E91) 320 d xDrive Engine volume: 2.0 Engine type: N47 D20 C Year: 09.08-02.10 BMW 5 (E60) 520 d Engine volume: 2.0 Engine type: M47 D20 (204D4), N47 D20 A, N47 D20 C Year: 09.05-12.09 BMW 5 (E60) 520 d Engine volume: 2.0 Engine type: N47 D20 A, N47 D20 C Year: 09.07-12.09 BMW 5 Touring (E61) 520 d Engine volume: 2.0 Engine type: M47 D20 (204D4), N47 D20 A, N47 D20 C Year: 04.05-05.10 BMW 5 Touring (E61) 520 d Engine volume: 2.0 Engine type: N47 D20 A, N47 D20 C Year: 09.07-05.10 BMW X1 (E84) sDrive 18 d Engine volume: 2.0 Engine type: N47 D20 C Year: 03.09-06.15 BMW X1 (E84) sDrive 18 d Engine volume: 2.0 Engine type: N47 D20 C Year: 12.09-06.15 BMW X1 (E84) sDrive 20 d Engine volume: 2.0 Engine type: N47 D20 C Year: 03.10-06.15 BMW X1 (E84) sDrive 20 d Engine volume: 2.0 Engine type: N47 D20 C Year: 10.09-06.15 BMW X1 (E84) xDrive 18 d Engine volume: 2.0 Engine type: N47 D20 C Year: 03.09-06.15 BMW X1 (E84) xDrive 18 d Engine volume: 2.0 Engine type: N47 D20 C Year: 10.09-06.15 BMW X1 (E84) xDrive 20 d Engine volume: 2.0 Engine type: N47 D20 C Year: 03.10-06.15 BMW X1 (E84) xDrive 20 d Engine volume: 2.0 Engine type: N47 D20 C Year: 09.09-06.12 BMW X1 (E84) xDrive 23 d Engine volume: 2.0 Engine type: N47 D20 D Year: 10.09-06.15 BMW X3 (E83) 2.0 sd Engine volume: 2.0 Engine type: N47 D20 A Year: 09.07-08.08 BMW X3 (E83) xDrive 18 d Engine volume: 2.0 Engine type: N47 D20 C Year: 09.08-12.11 BMW X3 (E83) xDrive 20 d Engine volume: 2.0 Engine type: N47 D20 A, N47 D20 C Year: 09.08-08.10 1 / 13
-
