- Generator
-
HC-Cargo Generator
- Generator
-
HC-Cargo Generator
Artikelnr: F032114090
HC-Cargo Generator
Voltage: 14, Amp: 70, Rotation: CW, Mount. bracket dist.: 42.50
Beskrivning

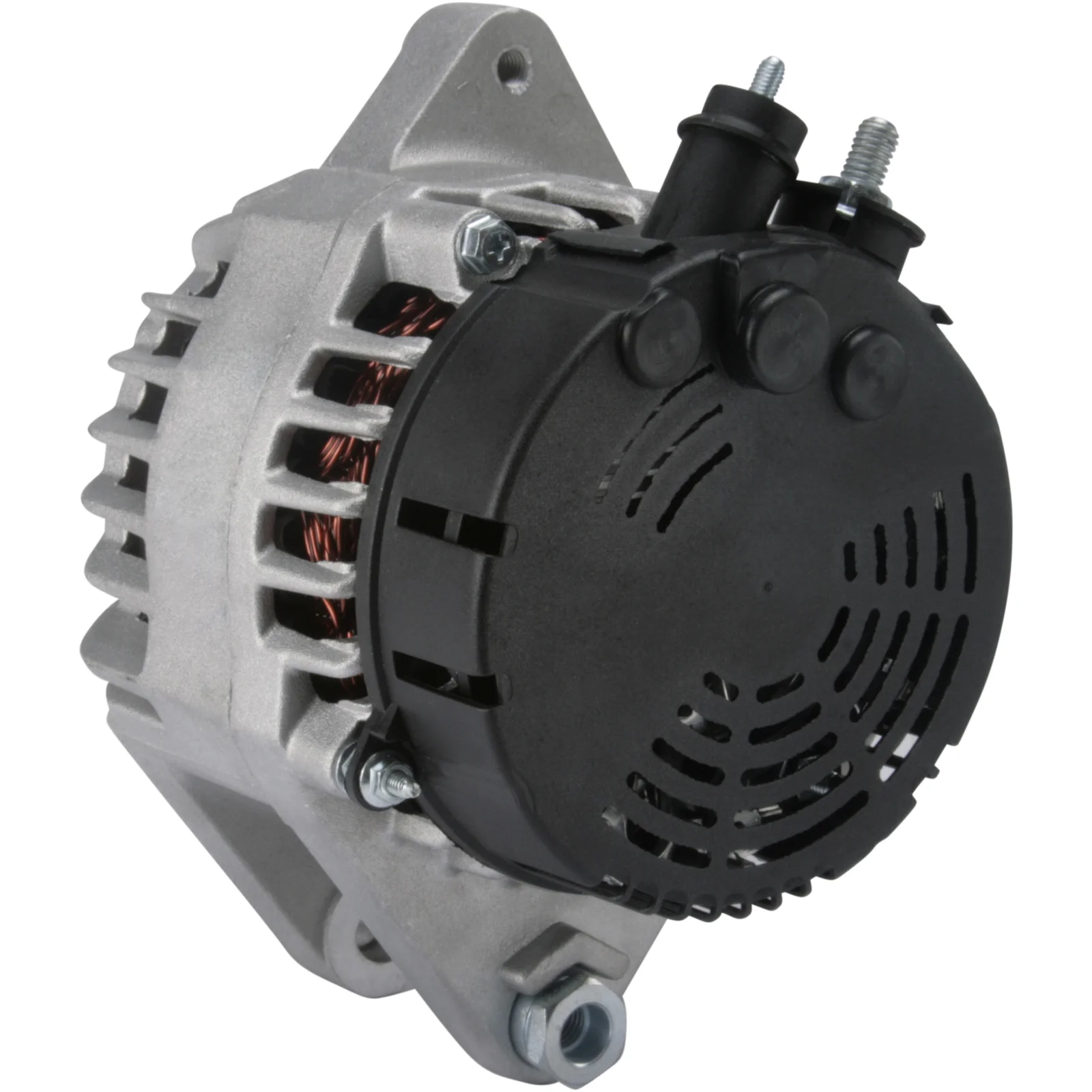

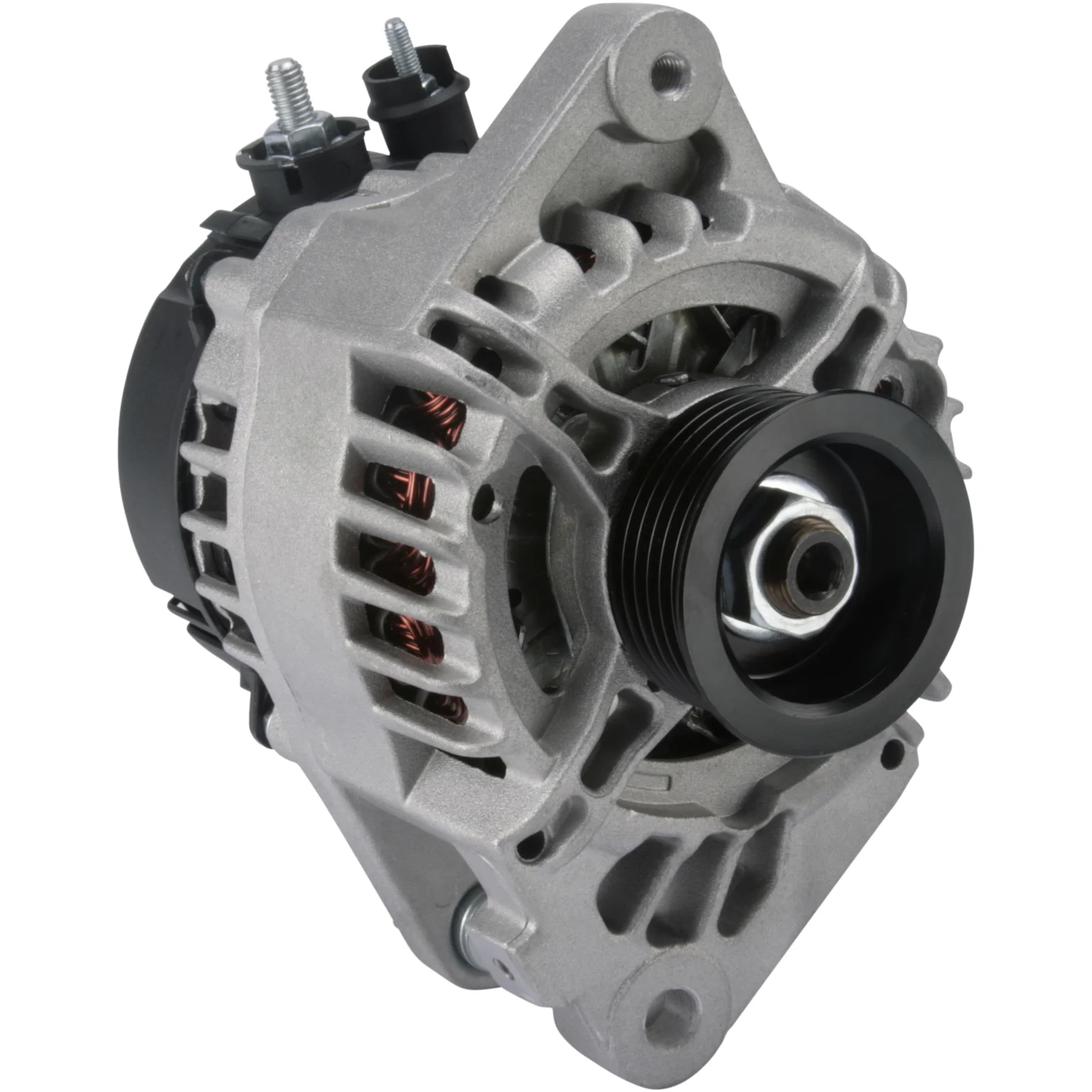

HC Generator 12V-70A 12V - 70A
Voltage: 14
Amp: 70
Pulley dist.: 29.20
Width/holder arm: 22.00
Mount. bracket dist.: 42.50
Bracket hole: 11.00
Belt. adj. brackethole pos.: 60
Belt. adj. bracket hole 1: M8
Pulley dia.: 58.00
Grooves/pulley: 6
Radius: 81.00
Radius 2: 89.00
B+: M8
Position/B+ in min.: 5
D+ Size: M5
Rotation: CW
Total length mm: 170.00
Pulley: SP
Regulator type: IR
Prod. info: BN
Voltage: 14
Amp: 70
Pulley dist.: 29.20
Width/holder arm: 22.00
Mount. bracket dist.: 42.50
Bracket hole: 11.00
Belt. adj. brackethole pos.: 60
Belt. adj. bracket hole 1: M8
Pulley dia.: 58.00
Grooves/pulley: 6
Radius: 81.00
Radius 2: 89.00
B+: M8
Position/B+ in min.: 5
D+ Size: M5
Rotation: CW
Total length mm: 170.00
Pulley: SP
Regulator type: IR
Prod. info: BN
Filer
Specifikation
| B+ | M8 |
|---|---|
| Mount. bracket dist. | 42.50 |
| Belt. adj. bracket hole 1 | M8 |
| Belt. adj. brackethole pos. | 60 |
| Bracket hole | 11.00 |
| Position/B+ in min. | 5 |
| Prod. info | BN |
| Pulley | SP |
| Pulley dia. | 58.00 |
| Pulley dist. | 29.20 |
| Radius | 81.00 |
| D+ Size | M5 |
| Radius 2 | 89.00 |
| Regulator type | IR |
| Rotation | CW |
| Grooves/pulley | 6 |
| Voltage | 14 |
| Total length | 170.00 mm |
| Width/holder arm | 22.00 |
| Amp | 70 |
-
OEM
A4085, A6259(DENSO), ALT-H191, CAL40306, DAN 1035, DAN1035, DENDAN1035, DRA0248, F032114090, F042A0H191, LRA03072, MS1012101400, R1530098, R1530099, 8EL012429-611, 28-5684, 200.144.702, 1978ir, 1986A01195, 5702 J1, 5702 L0, 5702H2, 5702J1, 5702J2, 5702L0, 5702L1, 5705 CR, 5705 KH, 5705 NN, 5705-NP, 5705CP, 5705CR, 5705KH, 5705KJ, 5705nn, 23965R, 27060-0q010, 27060-0Q011, 27060-0Q020, 27060-0Q021, 27060-0Q050, 27060-0Q100, 27060-0q120, 27060-0Q130, 101210-1400, 102211-8730, 102211-8731, 113117, 114090, 200315, 210841, 210841A, 270600Q010, 270600Q120, 270600Q12084, 301978RI, 443070, 443269, 747027, 849209, 1204433, 1204434, 6204187, 6204189, 6204293, 9049960, 9213484, 9562207, 9562208, 9565207, 12049960, 13117236, 13153236, 93169028, 93169029, 93169030, 93169031, 93169257, 93169259, 93180098, 93180104, 95520873, 0986049960, 063377548010 -
Konkurrentreferens
A4085, A6259(DENSO), ALT-H191, CAL40306, DAN1035, DENDAN1035, DRA0248, F042A0H191, LRA03072, 8EL012429-611, 28-5684, 200.144.702, 5702J1, 5702L0, 5705CR, 5705KH, 5705nn, 23965R, 113117, 200315, 210841, 210841A, 301978RI, 443070, 443269, 747027, 849209, 9049960, 9213484, 12049960, 0986049960, 063377548010 -
Bilmärken
CITROËN, OPEL, PEUGEOT, SAAB, TOYOTA -
Normaliserat artikelnummer
a4085, a6259denso, alth191, cal40306, dan1035, dendan1035, dra0248, f032114090, f042a0h191, lra03072, ms1012101400, r1530098, r1530099, 8el012429611, 1978ir, 1986a01195, 5702h2, 5702j1, 5702j2, 5702l0, 5702l1, 5705cp, 5705cr, 5705kh, 5705kj, 5705nn, 5705np, 23965r, 113117, 114090, 200315, 210841, 210841a, 270600q010, 270600q011, 270600q020, 270600q021, 270600q050, 270600q100, 270600q120, 270600q12084, 270600q130, 285684, 301978ri, 443070, 443269, 747027, 849209, 1204433, 1204434, 6204187, 6204189, 6204293, 9049960, 9213484, 9562207, 9562208, 9565207, 12049960, 13117236, 13153236, 93169028, 93169029, 93169030, 93169031, 93169257, 93169259, 93180098, 93180104, 95520873, 200144702, 0986049960, 1012101400, 1022118730, 1022118731, 063377548010 -
Passar modeller
CITROËN C1 (PM_, PN_) 1.0 Engine volume: 1.0 Engine type: CFA (384F), CFB (1KR) Year: 06.05-09.14 OPEL ASTRA H (A04) 1.9 CDTI (L48) Engine volume: 1.9 Engine type: Z 19 DT Year: 06.04-10.10 OPEL ASTRA H (A04) 1.9 CDTI (L48) Engine volume: 1.9 Engine type: Z 19 DTH Year: 09.04-10.10 OPEL ASTRA H (A04) 1.9 CDTI (L48) Engine volume: 1.9 Engine type: Z 19 DTL Year: 09.05-10.10 OPEL ASTRA H (A04) 1.9 CDTI 16V (L48) Engine volume: 1.9 Engine type: Z 19 DTJ Year: 04.04-10.10 OPEL ASTRA H GTC (A04) 1.9 CDTI (L08) Engine volume: 1.9 Engine type: Z 19 DT Year: 09.05-10.10 OPEL ASTRA H GTC (A04) 1.9 CDTi (L08) Engine volume: 1.9 Engine type: Z 19 DTH Year: 03.05-10.10 OPEL ASTRA H GTC (A04) 1.9 CDTI (L08) Engine volume: 1.9 Engine type: Z 19 DTL Year: 01.06-10.10 OPEL ASTRA H GTC (A04) 1.9 CDTi 16V (L08) Engine volume: 1.9 Engine type: Z 19 DTJ Year: 03.05-10.10 OPEL ASTRA H Kombi (A04) 1.9 CDTI (L35) Engine volume: 1.9 Engine type: Z 19 DT Year: 09.05-10.10 OPEL ASTRA H Kombi (A04) 1.9 CDTI (L35) Engine volume: 1.9 Engine type: Z 19 DTH Year: 09.04-10.10 OPEL ASTRA H Kombi (A04) 1.9 CDTI (L35) Engine volume: 1.9 Engine type: Z 19 DTL Year: 09.05-10.10 OPEL ASTRA H Kombi (A04) 1.9 CDTI 16V (L35) Engine volume: 1.9 Engine type: Z 19 DTJ Year: 08.04-10.10 OPEL ASTRA H Skåp / kombi (L70) 1.9 CDTI (L70) Engine volume: 1.9 Engine type: Z 19 DT Year: 09.05-10.10 OPEL ASTRA H Skåp / kombi (L70) 1.9 CDTI (L70) Engine volume: 1.9 Engine type: Z 19 DTH Year: 09.04-10.10 OPEL ASTRA H Skåp / kombi (L70) 1.9 CDTI (L70) Engine volume: 1.9 Engine type: Z 19 DTL Year: 08.05-12.12 OPEL ASTRA H Skåp / kombi (L70) 1.9 CDTI 16V (L70) Engine volume: 1.9 Engine type: Z 19 DTJ Year: 08.04-10.10 OPEL ASTRA H TwinTop (A04) 1.9 CDTi (L67) Engine volume: 1.9 Engine type: Z 19 DTH Year: 09.05-10.10 OPEL SIGNUM Halvkombi (Z03) 1.9 CDTI (F48) Engine volume: 1.9 Engine type: Z 19 DT Year: 04.04-02.08 OPEL SIGNUM Halvkombi (Z03) 1.9 CDTI (F48) Engine volume: 1.9 Engine type: Z 19 DTH Year: 04.04-02.08 OPEL SIGNUM Halvkombi (Z03) 1.9 CDTI (F48) Engine volume: 1.9 Engine type: Z 19 DTL Year: 08.05-02.08 OPEL VECTRA C (Z02) 1.9 CDTI (F69) Engine volume: 1.9 Engine type: Z 19 DT Year: 04.04-01.09 OPEL VECTRA C (Z02) 1.9 CDTI (F69) Engine volume: 1.9 Engine type: Z 19 DTH Year: 04.04-08.08 OPEL VECTRA C (Z02) 1.9 CDTI (F69) Engine volume: 1.9 Engine type: Z 19 DTL Year: 10.05-08.08 OPEL VECTRA C GTS (Z02) 1.9 CDTI (F68) Engine volume: 1.9 Engine type: Z 19 DT Year: 04.04-01.09 OPEL VECTRA C GTS (Z02) 1.9 CDTI (F68) Engine volume: 1.9 Engine type: Z 19 DTH Year: 04.04-08.08 OPEL VECTRA C GTS (Z02) 1.9 CDTI (F68) Engine volume: 1.9 Engine type: Z 19 DTL Year: 06.05-08.08 OPEL VECTRA C Kombi (Z02) 1.9 CDTI (F35) Engine volume: 1.9 Engine type: Z 19 DT Year: 04.04-01.09 OPEL VECTRA C Kombi (Z02) 1.9 CDTI (F35) Engine volume: 1.9 Engine type: Z 19 DTH Year: 04.04-08.08 OPEL VECTRA C Kombi (Z02) 1.9 CDTI (F35) Engine volume: 1.9 Engine type: Z 19 DTL Year: 06.05-08.08 OPEL ZAFIRA / ZAFIRA FAMILY B (A05) 1.9 CDTI (M75) Engine volume: 1.9 Engine type: Z 19 DT Year: 07.05-04.15 OPEL ZAFIRA / ZAFIRA FAMILY B (A05) 1.9 CDTI (M75) Engine volume: 1.9 Engine type: Z 19 DTH Year: 07.05-04.15 OPEL ZAFIRA / ZAFIRA FAMILY B (A05) 1.9 CDTI (M75) Engine volume: 1.9 Engine type: Z 19 DTL Year: 07.05-12.10 OPEL ZAFIRA B Skåp/stor limousine (A05) 1.9 CDTI VAN (M75) Engine volume: 1.9 Engine type: Z 19 DT Year: 07.05-04.15 OPEL ZAFIRA B Skåp/stor limousine (A05) 1.9 CDTI VAN (M75) Engine volume: 1.9 Engine type: Z 19 DTH Year: 07.05-04.15 PEUGEOT 107 (PM_, PN_) 1.0 Engine volume: 1.0 Engine type: CFA (384F), CFB (1KR) Year: 06.05-05.14 PEUGEOT 207 SW (WK_) 1.4 LPG Engine volume: 1.4 Engine type: KFV (TU3A) Year: 08.07-12.12 SAAB 9-3 (YS3F, E79, D79, D75) 1.9 TiD Engine volume: 1.9 Engine type: Z 19 DT Year: 09.04-02.15 SAAB 9-3 (YS3F, E79, D79, D75) 1.9 TiD Engine volume: 1.9 Engine type: Z 19 DTH Year: 09.04-02.15 SAAB 9-3 Cabriolet (YS3F) 1.9 TiD Engine volume: 1.9 Engine type: Z 19 DT Year: 09.04-02.15 SAAB 9-3 Kombi (E50) 1.9 TiD Engine volume: 1.9 Engine type: Z 19 DT Year: 03.05-02.15 SAAB 9-3 Kombi (E50) 1.9 TiD Engine volume: 1.9 Engine type: Z 19 DTH Year: 03.05-02.15 TOYOTA AYGO (_B1_) 1.0 (KGB10_, KGB10R) Engine volume: 1.0 Engine type: 1KR-FE Year: 07.05-05.14 TOYOTA AYGO Skåp/halvkombi (_B1_) 1.0 VVTi (KGB10) Engine volume: 1.0 Engine type: 1KR-FE Year: 07.05-05.14 1 / 9
-
Beskrivning
HC Generator 12V-70A 12V - 70A
Voltage: 14
Amp: 70
Pulley dist.: 29.20
Width/holder arm: 22.00
Mount. bracket dist.: 42.50
Bracket hole: 11.00
Belt. adj. brackethole pos.: 60
Belt. adj. bracket hole 1: M8
Pulley dia.: 58.00
Grooves/pulley: 6
Radius: 81.00
Radius 2: 89.00
B+: M8
Position/B+ in min.: 5
D+ Size: M5
Rotation: CW
Total length mm: 170.00
Pulley: SP
Regulator type: IR
Prod. info: BNFiler
-
Specifikation
B+ M8 Mount. bracket dist. 42.50 Belt. adj. bracket hole 1 M8 Belt. adj. brackethole pos. 60 Bracket hole 11.00 Position/B+ in min. 5 Prod. info BN Pulley SP Pulley dia. 58.00 Pulley dist. 29.20 Radius 81.00 D+ Size M5 Radius 2 89.00 Regulator type IR Rotation CW Grooves/pulley 6 Voltage 14 Total length 170.00 mm Width/holder arm 22.00 Amp 70 -
Fordonsmatchning
-
OEM
A4085, A6259(DENSO), ALT-H191, CAL40306, DAN 1035, DAN1035, DENDAN1035, DRA0248, F032114090, F042A0H191, LRA03072, MS1012101400, R1530098, R1530099, 8EL012429-611, 28-5684, 200.144.702, 1978ir, 1986A01195, 5702 J1, 5702 L0, 5702H2, 5702J1, 5702J2, 5702L0, 5702L1, 5705 CR, 5705 KH, 5705 NN, 5705-NP, 5705CP, 5705CR, 5705KH, 5705KJ, 5705nn, 23965R, 27060-0q010, 27060-0Q011, 27060-0Q020, 27060-0Q021, 27060-0Q050, 27060-0Q100, 27060-0q120, 27060-0Q130, 101210-1400, 102211-8730, 102211-8731, 113117, 114090, 200315, 210841, 210841A, 270600Q010, 270600Q120, 270600Q12084, 301978RI, 443070, 443269, 747027, 849209, 1204433, 1204434, 6204187, 6204189, 6204293, 9049960, 9213484, 9562207, 9562208, 9565207, 12049960, 13117236, 13153236, 93169028, 93169029, 93169030, 93169031, 93169257, 93169259, 93180098, 93180104, 95520873, 0986049960, 063377548010 -
Konkurrentreferens
A4085, A6259(DENSO), ALT-H191, CAL40306, DAN1035, DENDAN1035, DRA0248, F042A0H191, LRA03072, 8EL012429-611, 28-5684, 200.144.702, 5702J1, 5702L0, 5705CR, 5705KH, 5705nn, 23965R, 113117, 200315, 210841, 210841A, 301978RI, 443070, 443269, 747027, 849209, 9049960, 9213484, 12049960, 0986049960, 063377548010 -
Bilmärken
CITROËN, OPEL, PEUGEOT, SAAB, TOYOTA -
Normaliserat artikelnummer
a4085, a6259denso, alth191, cal40306, dan1035, dendan1035, dra0248, f032114090, f042a0h191, lra03072, ms1012101400, r1530098, r1530099, 8el012429611, 1978ir, 1986a01195, 5702h2, 5702j1, 5702j2, 5702l0, 5702l1, 5705cp, 5705cr, 5705kh, 5705kj, 5705nn, 5705np, 23965r, 113117, 114090, 200315, 210841, 210841a, 270600q010, 270600q011, 270600q020, 270600q021, 270600q050, 270600q100, 270600q120, 270600q12084, 270600q130, 285684, 301978ri, 443070, 443269, 747027, 849209, 1204433, 1204434, 6204187, 6204189, 6204293, 9049960, 9213484, 9562207, 9562208, 9565207, 12049960, 13117236, 13153236, 93169028, 93169029, 93169030, 93169031, 93169257, 93169259, 93180098, 93180104, 95520873, 200144702, 0986049960, 1012101400, 1022118730, 1022118731, 063377548010 -
Passar modeller
CITROËN C1 (PM_, PN_) 1.0 Engine volume: 1.0 Engine type: CFA (384F), CFB (1KR) Year: 06.05-09.14 OPEL ASTRA H (A04) 1.9 CDTI (L48) Engine volume: 1.9 Engine type: Z 19 DT Year: 06.04-10.10 OPEL ASTRA H (A04) 1.9 CDTI (L48) Engine volume: 1.9 Engine type: Z 19 DTH Year: 09.04-10.10 OPEL ASTRA H (A04) 1.9 CDTI (L48) Engine volume: 1.9 Engine type: Z 19 DTL Year: 09.05-10.10 OPEL ASTRA H (A04) 1.9 CDTI 16V (L48) Engine volume: 1.9 Engine type: Z 19 DTJ Year: 04.04-10.10 OPEL ASTRA H GTC (A04) 1.9 CDTI (L08) Engine volume: 1.9 Engine type: Z 19 DT Year: 09.05-10.10 OPEL ASTRA H GTC (A04) 1.9 CDTi (L08) Engine volume: 1.9 Engine type: Z 19 DTH Year: 03.05-10.10 OPEL ASTRA H GTC (A04) 1.9 CDTI (L08) Engine volume: 1.9 Engine type: Z 19 DTL Year: 01.06-10.10 OPEL ASTRA H GTC (A04) 1.9 CDTi 16V (L08) Engine volume: 1.9 Engine type: Z 19 DTJ Year: 03.05-10.10 OPEL ASTRA H Kombi (A04) 1.9 CDTI (L35) Engine volume: 1.9 Engine type: Z 19 DT Year: 09.05-10.10 OPEL ASTRA H Kombi (A04) 1.9 CDTI (L35) Engine volume: 1.9 Engine type: Z 19 DTH Year: 09.04-10.10 OPEL ASTRA H Kombi (A04) 1.9 CDTI (L35) Engine volume: 1.9 Engine type: Z 19 DTL Year: 09.05-10.10 OPEL ASTRA H Kombi (A04) 1.9 CDTI 16V (L35) Engine volume: 1.9 Engine type: Z 19 DTJ Year: 08.04-10.10 OPEL ASTRA H Skåp / kombi (L70) 1.9 CDTI (L70) Engine volume: 1.9 Engine type: Z 19 DT Year: 09.05-10.10 OPEL ASTRA H Skåp / kombi (L70) 1.9 CDTI (L70) Engine volume: 1.9 Engine type: Z 19 DTH Year: 09.04-10.10 OPEL ASTRA H Skåp / kombi (L70) 1.9 CDTI (L70) Engine volume: 1.9 Engine type: Z 19 DTL Year: 08.05-12.12 OPEL ASTRA H Skåp / kombi (L70) 1.9 CDTI 16V (L70) Engine volume: 1.9 Engine type: Z 19 DTJ Year: 08.04-10.10 OPEL ASTRA H TwinTop (A04) 1.9 CDTi (L67) Engine volume: 1.9 Engine type: Z 19 DTH Year: 09.05-10.10 OPEL SIGNUM Halvkombi (Z03) 1.9 CDTI (F48) Engine volume: 1.9 Engine type: Z 19 DT Year: 04.04-02.08 OPEL SIGNUM Halvkombi (Z03) 1.9 CDTI (F48) Engine volume: 1.9 Engine type: Z 19 DTH Year: 04.04-02.08 OPEL SIGNUM Halvkombi (Z03) 1.9 CDTI (F48) Engine volume: 1.9 Engine type: Z 19 DTL Year: 08.05-02.08 OPEL VECTRA C (Z02) 1.9 CDTI (F69) Engine volume: 1.9 Engine type: Z 19 DT Year: 04.04-01.09 OPEL VECTRA C (Z02) 1.9 CDTI (F69) Engine volume: 1.9 Engine type: Z 19 DTH Year: 04.04-08.08 OPEL VECTRA C (Z02) 1.9 CDTI (F69) Engine volume: 1.9 Engine type: Z 19 DTL Year: 10.05-08.08 OPEL VECTRA C GTS (Z02) 1.9 CDTI (F68) Engine volume: 1.9 Engine type: Z 19 DT Year: 04.04-01.09 OPEL VECTRA C GTS (Z02) 1.9 CDTI (F68) Engine volume: 1.9 Engine type: Z 19 DTH Year: 04.04-08.08 OPEL VECTRA C GTS (Z02) 1.9 CDTI (F68) Engine volume: 1.9 Engine type: Z 19 DTL Year: 06.05-08.08 OPEL VECTRA C Kombi (Z02) 1.9 CDTI (F35) Engine volume: 1.9 Engine type: Z 19 DT Year: 04.04-01.09 OPEL VECTRA C Kombi (Z02) 1.9 CDTI (F35) Engine volume: 1.9 Engine type: Z 19 DTH Year: 04.04-08.08 OPEL VECTRA C Kombi (Z02) 1.9 CDTI (F35) Engine volume: 1.9 Engine type: Z 19 DTL Year: 06.05-08.08 OPEL ZAFIRA / ZAFIRA FAMILY B (A05) 1.9 CDTI (M75) Engine volume: 1.9 Engine type: Z 19 DT Year: 07.05-04.15 OPEL ZAFIRA / ZAFIRA FAMILY B (A05) 1.9 CDTI (M75) Engine volume: 1.9 Engine type: Z 19 DTH Year: 07.05-04.15 OPEL ZAFIRA / ZAFIRA FAMILY B (A05) 1.9 CDTI (M75) Engine volume: 1.9 Engine type: Z 19 DTL Year: 07.05-12.10 OPEL ZAFIRA B Skåp/stor limousine (A05) 1.9 CDTI VAN (M75) Engine volume: 1.9 Engine type: Z 19 DT Year: 07.05-04.15 OPEL ZAFIRA B Skåp/stor limousine (A05) 1.9 CDTI VAN (M75) Engine volume: 1.9 Engine type: Z 19 DTH Year: 07.05-04.15 PEUGEOT 107 (PM_, PN_) 1.0 Engine volume: 1.0 Engine type: CFA (384F), CFB (1KR) Year: 06.05-05.14 PEUGEOT 207 SW (WK_) 1.4 LPG Engine volume: 1.4 Engine type: KFV (TU3A) Year: 08.07-12.12 SAAB 9-3 (YS3F, E79, D79, D75) 1.9 TiD Engine volume: 1.9 Engine type: Z 19 DT Year: 09.04-02.15 SAAB 9-3 (YS3F, E79, D79, D75) 1.9 TiD Engine volume: 1.9 Engine type: Z 19 DTH Year: 09.04-02.15 SAAB 9-3 Cabriolet (YS3F) 1.9 TiD Engine volume: 1.9 Engine type: Z 19 DT Year: 09.04-02.15 SAAB 9-3 Kombi (E50) 1.9 TiD Engine volume: 1.9 Engine type: Z 19 DT Year: 03.05-02.15 SAAB 9-3 Kombi (E50) 1.9 TiD Engine volume: 1.9 Engine type: Z 19 DTH Year: 03.05-02.15 TOYOTA AYGO (_B1_) 1.0 (KGB10_, KGB10R) Engine volume: 1.0 Engine type: 1KR-FE Year: 07.05-05.14 TOYOTA AYGO Skåp/halvkombi (_B1_) 1.0 VVTi (KGB10) Engine volume: 1.0 Engine type: 1KR-FE Year: 07.05-05.14 1 / 9
-
