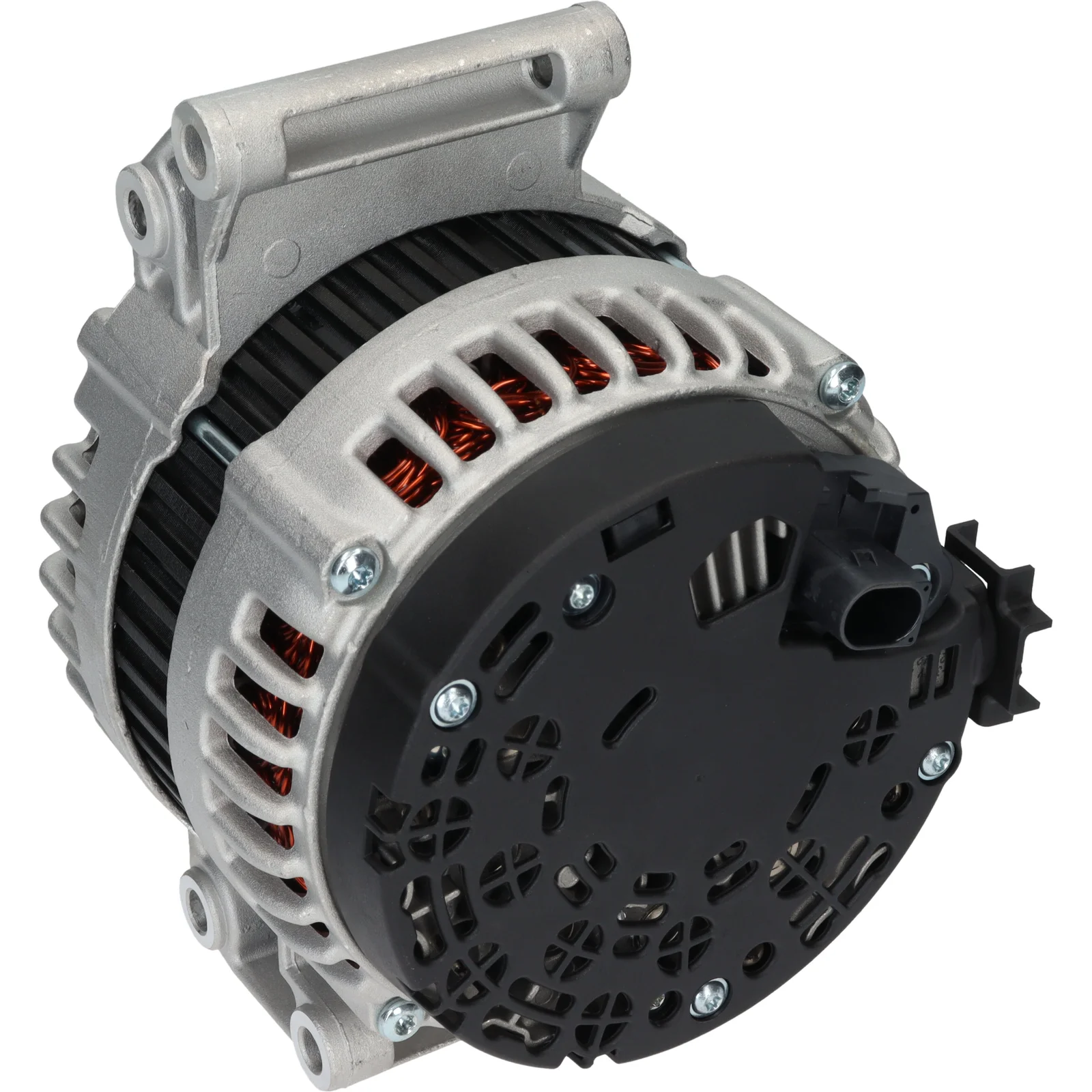

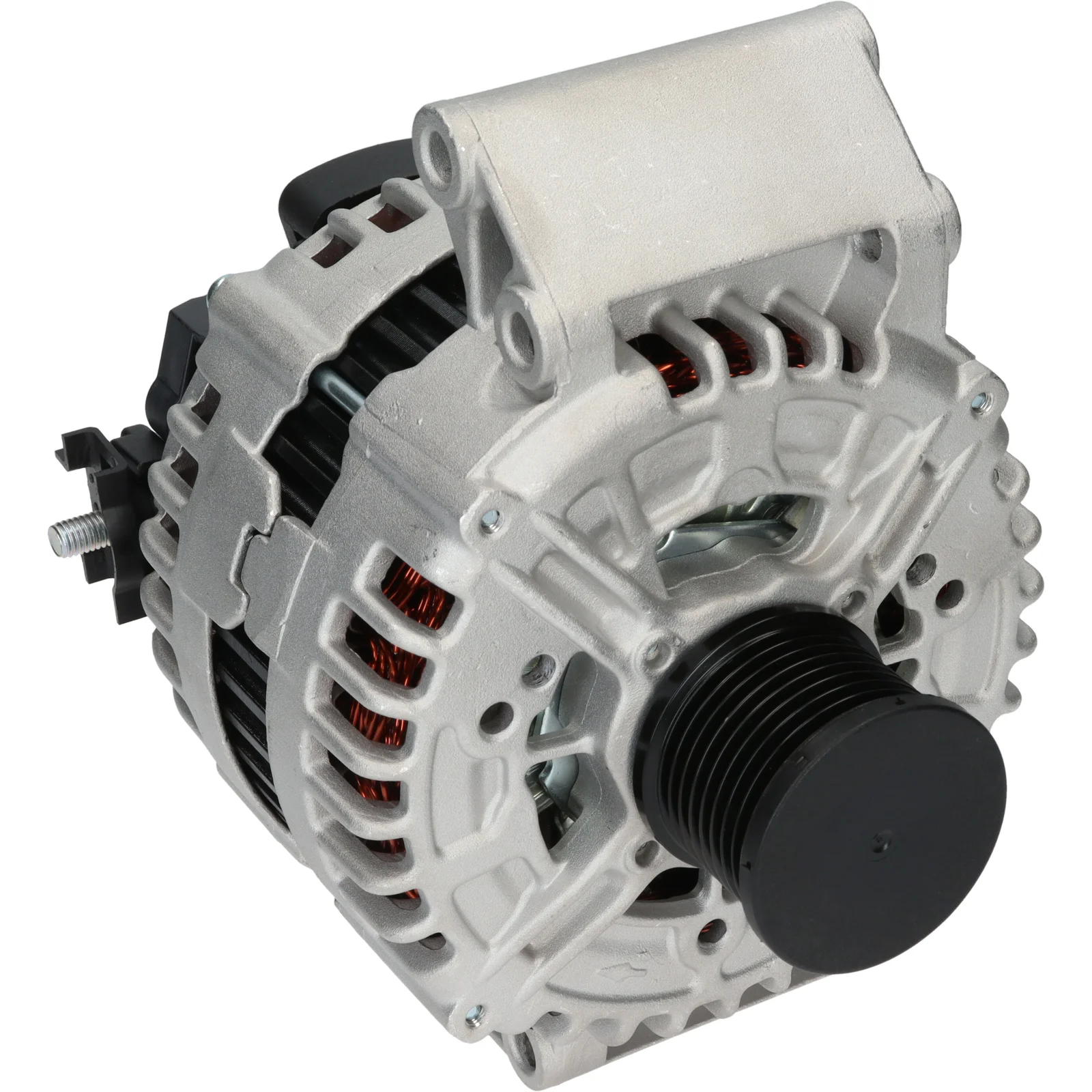

HC-Cargo Generator
HC-Cargo Generator
Artikelnr: F032116143

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 220, Rotation: CW, Mount. bracket dist.: 52.00

Beskrivning

Voltage: 14
Amp: 220
Pulley dist.: 40.00
Width/holder arm: 90.00
Mount. bracket dist.: 52.00
Bracket hole: 8.10x9.70
Bracket hole 2: 9.00
Belt. adj. bracket hole 1: 8.00
Belt. adj. bracket hole 2: 9.00
Pulley dia.: 50.00
Grooves/pulley: 8
Radius: 83.00
Radius 2: 82.00
B+: M8
Position/B+ in min.: 15
Rotation: CW
Plug no.: PL166
Total length mm: 184.00
Terminal type: COM
Communication: LIN
Pulley: SP/FW
Regulator type: IR
Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

Filer

Specifikation

B+ M8
Communication LIN
Mount. bracket dist. 52.00
Belt. adj. bracket hole 1 8.00
Belt. adj. bracket hole 2 9.00
Plug no. PL166
Bracket hole 8.10x9.70
Bracket hole 2 9.00
Position/B+ in min. 15
Pulley SP/FW
Pulley dia. 50.00
Pulley dist. 40.00
Radius 83.00
Radius 2 82.00
Regulator type IR
Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Grooves/pulley 8
Terminal type COM
Voltage 14
Total length 184.00 mm
Width/holder arm 90.00
Amp 220

  • OEM
    a6291500050, A629150005080, F032116143, 0121813004, 0121813104, 6291500050, 629150005080

  • Konkurrentreferens
    CAL10407, DRB7620, 28-5901, 555.520.220, 12047620, 0986047620, 0986047623

  • Normaliserat artikelnummer
    a6291500050, a629150005080, cal10407, drb7620, f032116143, 285901, 12047620, 0121813004, 0121813104, 555520220, 0986047620, 0986047623, 6291500050, 629150005080

  • Passar modeller
    Mercedes-Benz Model: 420 Model series: E 420 Type of engine: CDi Size of motor: 4.0 Brand of engine: OM629.910 Type description: 211 From date: 01-01-2006 To date: 01-12-2008 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: 420 Model series: S 420 Type of engine: CDi Size of motor: 4.0 Brand of engine: OM629.911 Type description: 221 From date: 01-10-2006 To date: 01-12-2009 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: 450 Model series: S 450 Type of engine: CDI Size of motor: 4.0 Brand of engine: OM629.911 Type description: W221 From date: 01-01-2009 To date: 01-12-2013 Fuel: Diesel Approved: Yes
  • Beskrivning
    Voltage: 14
    Amp: 220
    Pulley dist.: 40.00
    Width/holder arm: 90.00
    Mount. bracket dist.: 52.00
    Bracket hole: 8.10x9.70
    Bracket hole 2: 9.00
    Belt. adj. bracket hole 1: 8.00
    Belt. adj. bracket hole 2: 9.00
    Pulley dia.: 50.00
    Grooves/pulley: 8
    Radius: 83.00
    Radius 2: 82.00
    B+: M8
    Position/B+ in min.: 15
    Rotation: CW
    Plug no.: PL166
    Total length mm: 184.00
    Terminal type: COM
    Communication: LIN
    Pulley: SP/FW
    Regulator type: IR
    Remarks: This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.

    Filer

  • Specifikation
    B+ M8
    Communication LIN
    Mount. bracket dist. 52.00
    Belt. adj. bracket hole 1 8.00
    Belt. adj. bracket hole 2 9.00
    Plug no. PL166
    Bracket hole 8.10x9.70
    Bracket hole 2 9.00
    Position/B+ in min. 15
    Pulley SP/FW
    Pulley dia. 50.00
    Pulley dist. 40.00
    Radius 83.00
    Radius 2 82.00
    Regulator type IR
    Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
    Rotation CW
    Grooves/pulley 8
    Terminal type COM
    Voltage 14
    Total length 184.00 mm
    Width/holder arm 90.00
    Amp 220
  • Fordonsmatchning

    • OEM
      a6291500050, A629150005080, F032116143, 0121813004, 0121813104, 6291500050, 629150005080

    • Konkurrentreferens
      CAL10407, DRB7620, 28-5901, 555.520.220, 12047620, 0986047620, 0986047623

    • Normaliserat artikelnummer
      a6291500050, a629150005080, cal10407, drb7620, f032116143, 285901, 12047620, 0121813004, 0121813104, 555520220, 0986047620, 0986047623, 6291500050, 629150005080

    • Passar modeller
      Mercedes-Benz Model: 420 Model series: E 420 Type of engine: CDi Size of motor: 4.0 Brand of engine: OM629.910 Type description: 211 From date: 01-01-2006 To date: 01-12-2008 Fuel: Diesel Approved: Yes
      Mercedes-Benz Model: 420 Model series: S 420 Type of engine: CDi Size of motor: 4.0 Brand of engine: OM629.911 Type description: 221 From date: 01-10-2006 To date: 01-12-2009 Fuel: Diesel Approved: Yes
      Mercedes-Benz Model: 450 Model series: S 450 Type of engine: CDI Size of motor: 4.0 Brand of engine: OM629.911 Type description: W221 From date: 01-01-2009 To date: 01-12-2013 Fuel: Diesel Approved: Yes
