Artikelnr: F032112332

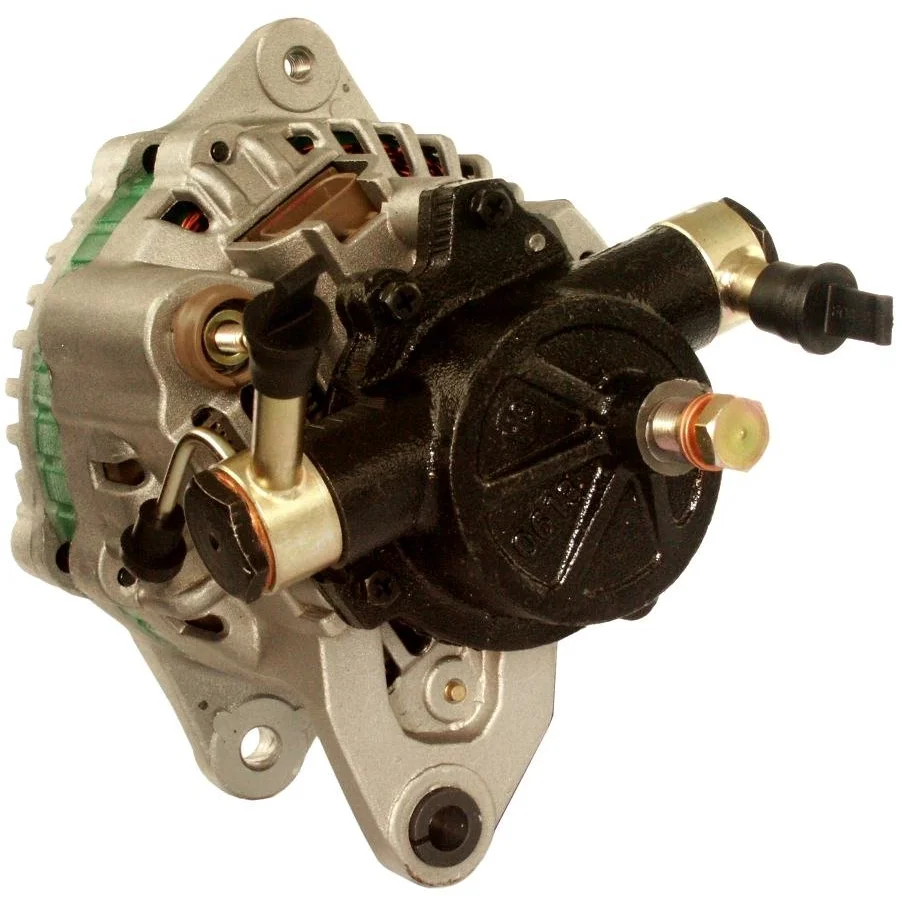

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 70, Rotation: CW, Mount. bracket dist.: 80.70

Beskrivning

Voltage: 14
Amp: 70
Pulley dist.: 50.00
Width/holder arm: 13.00
Mount. bracket dist.: 80.70
Bracket hole: 10.30
Belt. adj. brackethole pos.: 60
Belt. adj. bracket hole 1: M8
Pulley dia.: 82.50
Grooves/pulley: 1
Radius: 90.00
Radius 2: 85.00
B+: M6
Position/B+ in min.: 50
Rotation: CW
Plug no.: PL07
Total length mm: 238.00
Terminal type: L-S
Pulley: P
Regulator type: IR
Vac. pump: Yes
Prod. info: BN
Servicing: Suzuki

Filer

Specifikation

B+ M6
Mount. bracket dist. 80.70
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 60
Plug no. PL07
Bracket hole 10.30
Position/B+ in min. 50
Prod. info BN
Pulley P
Pulley dia. 82.50
Pulley dist. 50.00
Radius 90.00
Radius 2 85.00
Regulator type IR
Rotation CW
Servicing Suzuki
Grooves/pulley 1
Terminal type L-S
Vac. pump Yes
Voltage 14
Total length 238.00 mm
Width/holder arm 13.00
Amp 70

  • OEM
    A002T82378, a2t82378, F032112332, ja1430ir, RFJ5-18-300, RFJ5-18-300A, RFJ5-18-300B, 31400-77e90

  • Konkurrentreferens
    A5101, CAL35157, DRA3929, J5118015, LRA01818, 8EL012429-711, 8EL737726-001, 28-3638, 245.110.702, 22818R, 119935, 210962, 210962A, 401430RI, 437822, 9051815, 9213030, 12060744, 20130184, 944390518150

  • Normaliserat artikelnummer
    a002t82378, a2t82378, a5101, cal35157, dra3929, f032112332, j5118015, ja1430ir, lra01818, rfj518300, rfj518300a, rfj518300b, 8el012429711, 8el737726001, 22818r, 119935, 210962, 210962a, 283638, 401430ri, 437822, 3140077e90, 9051815, 9213030, 12060744, 20130184, 245110702, 944390518150

  • Passar modeller
    Suzuki Model: Grand Vitara Model series: Grand Vitara Model type: Intercooler Type of engine: TD Size of motor: 2.0 Brand of engine: RF From date: 01-03-1998 To date: 01-07-2003 Fuel: Diesel Approved: Yes
    Suzuki Model: Grand Vitara Model series: Grand Vitara Model type: TD 4x4 (SQ 420D) Type of engine: TD Size of motor: 2.0 Brand of engine: RF Type description: FT, HT Body: Closed Off-Road Vehicle From date: 01-10-1998 To date: 01-03-2003 Fuel: Diesel Approved: Yes
    Suzuki Model: Vitara Model series: Vitara Model type: 4WD Type of engine: Diesel Size of motor: 2.0 Brand of engine: RF From date: 01-12-1994 To date: 01-03-1998 Fuel: Diesel Approved: Yes
    Suzuki Model: Vitara Model series: Vitara Model type: Intercooler 4WD Type of engine: TD Size of motor: 2.0 Brand of engine: RF From date: 01-12-1995 To date: 01-03-1998 Fuel: Diesel Approved: Yes
  • Beskrivning
    Voltage: 14
    Amp: 70
    Pulley dist.: 50.00
    Width/holder arm: 13.00
    Mount. bracket dist.: 80.70
    Bracket hole: 10.30
    Belt. adj. brackethole pos.: 60
    Belt. adj. bracket hole 1: M8
    Pulley dia.: 82.50
    Grooves/pulley: 1
    Radius: 90.00
    Radius 2: 85.00
    B+: M6
    Position/B+ in min.: 50
    Rotation: CW
    Plug no.: PL07
    Total length mm: 238.00
    Terminal type: L-S
    Pulley: P
    Regulator type: IR
    Vac. pump: Yes
    Prod. info: BN
    Servicing: Suzuki

    Filer

  • Specifikation
    B+ M6
    Mount. bracket dist. 80.70
    Belt. adj. bracket hole 1 M8
    Belt. adj. brackethole pos. 60
    Plug no. PL07
    Bracket hole 10.30
    Position/B+ in min. 50
    Prod. info BN
    Pulley P
    Pulley dia. 82.50
    Pulley dist. 50.00
    Radius 90.00
    Radius 2 85.00
    Regulator type IR
    Rotation CW
    Servicing Suzuki
    Grooves/pulley 1
    Terminal type L-S
    Vac. pump Yes
    Voltage 14
    Total length 238.00 mm
    Width/holder arm 13.00
    Amp 70
  • Fordonsmatchning

    • OEM
      A002T82378, a2t82378, F032112332, ja1430ir, RFJ5-18-300, RFJ5-18-300A, RFJ5-18-300B, 31400-77e90

    • Konkurrentreferens
      A5101, CAL35157, DRA3929, J5118015, LRA01818, 8EL012429-711, 8EL737726-001, 28-3638, 245.110.702, 22818R, 119935, 210962, 210962A, 401430RI, 437822, 9051815, 9213030, 12060744, 20130184, 944390518150

    • Normaliserat artikelnummer
      a002t82378, a2t82378, a5101, cal35157, dra3929, f032112332, j5118015, ja1430ir, lra01818, rfj518300, rfj518300a, rfj518300b, 8el012429711, 8el737726001, 22818r, 119935, 210962, 210962a, 283638, 401430ri, 437822, 3140077e90, 9051815, 9213030, 12060744, 20130184, 245110702, 944390518150

    • Passar modeller
      Suzuki Model: Grand Vitara Model series: Grand Vitara Model type: Intercooler Type of engine: TD Size of motor: 2.0 Brand of engine: RF From date: 01-03-1998 To date: 01-07-2003 Fuel: Diesel Approved: Yes
      Suzuki Model: Grand Vitara Model series: Grand Vitara Model type: TD 4x4 (SQ 420D) Type of engine: TD Size of motor: 2.0 Brand of engine: RF Type description: FT, HT Body: Closed Off-Road Vehicle From date: 01-10-1998 To date: 01-03-2003 Fuel: Diesel Approved: Yes
      Suzuki Model: Vitara Model series: Vitara Model type: 4WD Type of engine: Diesel Size of motor: 2.0 Brand of engine: RF From date: 01-12-1994 To date: 01-03-1998 Fuel: Diesel Approved: Yes
      Suzuki Model: Vitara Model series: Vitara Model type: Intercooler 4WD Type of engine: TD Size of motor: 2.0 Brand of engine: RF From date: 01-12-1995 To date: 01-03-1998 Fuel: Diesel Approved: Yes
