Artikelnr: F032113350

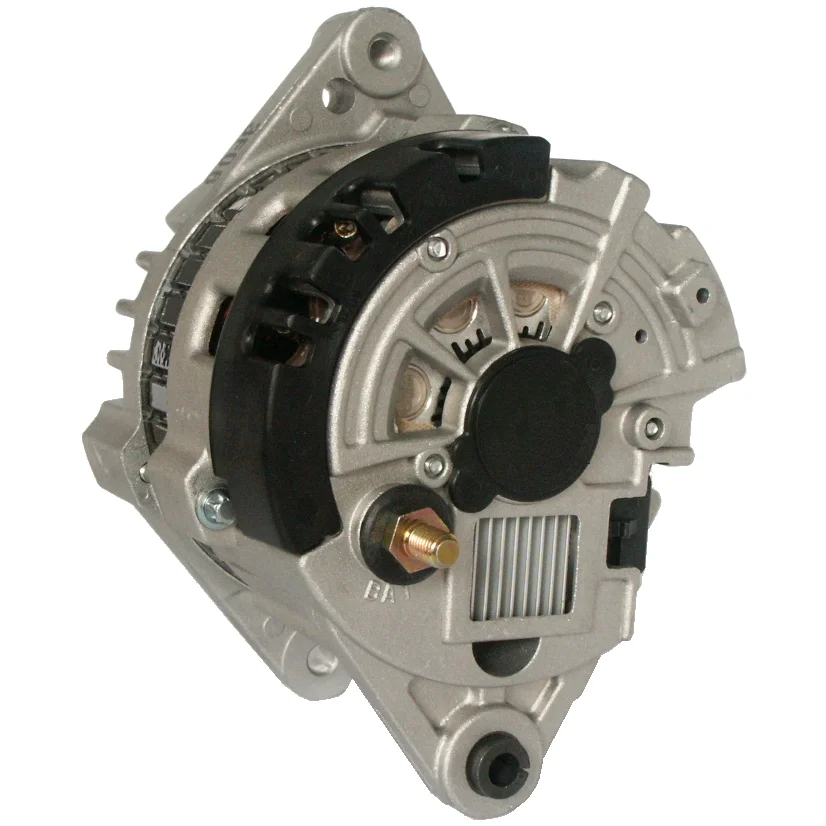

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 85, Rotation: CW, Mount. bracket dist.: 81.30

Beskrivning

Voltage: 14
Amp: 85
Pulley dist.: 36.00
Width/holder arm: 13.20
Mount. bracket dist.: 81.30
Bracket hole: 8.30
Belt. adj. brackethole pos.: 60
Belt. adj. bracket hole 1: M8
Pulley dia.: 47.80
Grooves/pulley: 5
Radius: 80.00
Radius 2: 86.00
B+: M8
Position/B+ in min.: 40
D+ Size: Plug
Rotation: CW
Plug no.: PL62
Total length mm: 179.00
Pulley: SP
Regulator type: IR
Prod. info: BN
Servicing: Daewoo

Filer

Specifikation

B+ M8
Mount. bracket dist. 81.30
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 60
Plug no. PL62
Bracket hole 8.30
Position/B+ in min. 40
Prod. info BN
Pulley SP
Pulley dia. 47.80
Pulley dist. 36.00
Radius 80.00
D+ Size Plug
Radius 2 86.00
Regulator type IR
Rotation CW
Servicing Daewoo
Grooves/pulley 5
Voltage 14
Total length 179.00 mm
Width/holder arm 13.20
Amp 85

  • OEM
    F032113350, 1671ir, 219139, 96300550, 96303556, 96404012

  • Konkurrentreferens
    A1004, ALT-1210, ALT1210, ALT45204, BAO3289, CAL46103, dra3638, DRA3638N, F042300071, F042A00071, J5110907, LRB00433, 1-2403-01DR, 8EL012428-291, 8EL737997-001, 28-3502, 547.106.852, 8280N, 8280R, 210389, 210389A, 437666, 440715, 9212569, 12060796, 063532636, 0986049600, 063532636010, 944390901570

  • Normaliserat artikelnummer
    a1004, alt1210, alt45204, bao3289, cal46103, dra3638, dra3638n, f032113350, f042300071, f042a00071, j5110907, lrb00433, 8el012428291, 8el737997001, 1671ir, 8280n, 8280r, 210389, 210389a, 219139, 283502, 437666, 440715, 1240301dr, 9212569, 12060796, 063532636, 96300550, 96303556, 96404012, 547106852, 0986049600, 063532636010, 944390901570

  • Passar modeller
    Chevrolet Model: Lanos Model series: Lanos Size of motor: 1.5 Brand of engine: LX6 From date: 01-11-2005 To date: 01-12-2010 Fuel: Gasoline Approved: Yes
    Chevrolet Model: Rezzo/Tacuma Model series: Rezzo/Tacuma Size of motor: 1.6 Brand of engine: A16DMS Body: MPV From date: 01-03-2005 Fuel: Gasoline Approved: Yes
    Daewoo Model: Lanos Model series: Lanos Size of motor: 1.4 Brand of engine: A14SMS Type description: KLAT Body: Hatchback From date: 01-05-1997 Fuel: Gasoline Approved: Yes
    Daewoo Model: Lanos Model series: Lanos Size of motor: 1.4 Brand of engine: A14SMS Type description: KLAT From date: 01-05-1997 Fuel: Gasoline Approved: Yes
    Daewoo Model: Lanos Model series: Lanos Size of motor: 1.5 Brand of engine: A15SMS Type description: KLAT Body: Hatchback From date: 01-05-1997 Fuel: Gasoline Approved: Yes
    Daewoo Model: Lanos Model series: Lanos Size of motor: 1.5 Brand of engine: A15SMS Type description: KLAT From date: 01-05-1997 Fuel: Gasoline Approved: Yes
    Daewoo Model: Lanos Model series: Lanos Type of engine: 16V Size of motor: 1.6 Brand of engine: A16DMS Type description: KLAT Body: Hatchback From date: 01-05-1997 Fuel: Gasoline Approved: Yes
    Daewoo Model: Lanos Model series: Lanos Type of engine: 16V Size of motor: 1.6 Brand of engine: A16DMS Type description: KLAT From date: 01-02-1997 Fuel: Gasoline Approved: Yes
    1 / 2
  • Beskrivning
    Voltage: 14
    Amp: 85
    Pulley dist.: 36.00
    Width/holder arm: 13.20
    Mount. bracket dist.: 81.30
    Bracket hole: 8.30
    Belt. adj. brackethole pos.: 60
    Belt. adj. bracket hole 1: M8
    Pulley dia.: 47.80
    Grooves/pulley: 5
    Radius: 80.00
    Radius 2: 86.00
    B+: M8
    Position/B+ in min.: 40
    D+ Size: Plug
    Rotation: CW
    Plug no.: PL62
    Total length mm: 179.00
    Pulley: SP
    Regulator type: IR
    Prod. info: BN
    Servicing: Daewoo

    Filer

  • Specifikation
    B+ M8
    Mount. bracket dist. 81.30
    Belt. adj. bracket hole 1 M8
    Belt. adj. brackethole pos. 60
    Plug no. PL62
    Bracket hole 8.30
    Position/B+ in min. 40
    Prod. info BN
    Pulley SP
    Pulley dia. 47.80
    Pulley dist. 36.00
    Radius 80.00
    D+ Size Plug
    Radius 2 86.00
    Regulator type IR
    Rotation CW
    Servicing Daewoo
    Grooves/pulley 5
    Voltage 14
    Total length 179.00 mm
    Width/holder arm 13.20
    Amp 85
  • Fordonsmatchning

    • OEM
      F032113350, 1671ir, 219139, 96300550, 96303556, 96404012

    • Konkurrentreferens
      A1004, ALT-1210, ALT1210, ALT45204, BAO3289, CAL46103, dra3638, DRA3638N, F042300071, F042A00071, J5110907, LRB00433, 1-2403-01DR, 8EL012428-291, 8EL737997-001, 28-3502, 547.106.852, 8280N, 8280R, 210389, 210389A, 437666, 440715, 9212569, 12060796, 063532636, 0986049600, 063532636010, 944390901570

    • Normaliserat artikelnummer
      a1004, alt1210, alt45204, bao3289, cal46103, dra3638, dra3638n, f032113350, f042300071, f042a00071, j5110907, lrb00433, 8el012428291, 8el737997001, 1671ir, 8280n, 8280r, 210389, 210389a, 219139, 283502, 437666, 440715, 1240301dr, 9212569, 12060796, 063532636, 96300550, 96303556, 96404012, 547106852, 0986049600, 063532636010, 944390901570

    • Passar modeller
      Chevrolet Model: Lanos Model series: Lanos Size of motor: 1.5 Brand of engine: LX6 From date: 01-11-2005 To date: 01-12-2010 Fuel: Gasoline Approved: Yes
      Chevrolet Model: Rezzo/Tacuma Model series: Rezzo/Tacuma Size of motor: 1.6 Brand of engine: A16DMS Body: MPV From date: 01-03-2005 Fuel: Gasoline Approved: Yes
      Daewoo Model: Lanos Model series: Lanos Size of motor: 1.4 Brand of engine: A14SMS Type description: KLAT Body: Hatchback From date: 01-05-1997 Fuel: Gasoline Approved: Yes
      Daewoo Model: Lanos Model series: Lanos Size of motor: 1.4 Brand of engine: A14SMS Type description: KLAT From date: 01-05-1997 Fuel: Gasoline Approved: Yes
      Daewoo Model: Lanos Model series: Lanos Size of motor: 1.5 Brand of engine: A15SMS Type description: KLAT Body: Hatchback From date: 01-05-1997 Fuel: Gasoline Approved: Yes
      Daewoo Model: Lanos Model series: Lanos Size of motor: 1.5 Brand of engine: A15SMS Type description: KLAT From date: 01-05-1997 Fuel: Gasoline Approved: Yes
      Daewoo Model: Lanos Model series: Lanos Type of engine: 16V Size of motor: 1.6 Brand of engine: A16DMS Type description: KLAT Body: Hatchback From date: 01-05-1997 Fuel: Gasoline Approved: Yes
      Daewoo Model: Lanos Model series: Lanos Type of engine: 16V Size of motor: 1.6 Brand of engine: A16DMS Type description: KLAT From date: 01-02-1997 Fuel: Gasoline Approved: Yes
