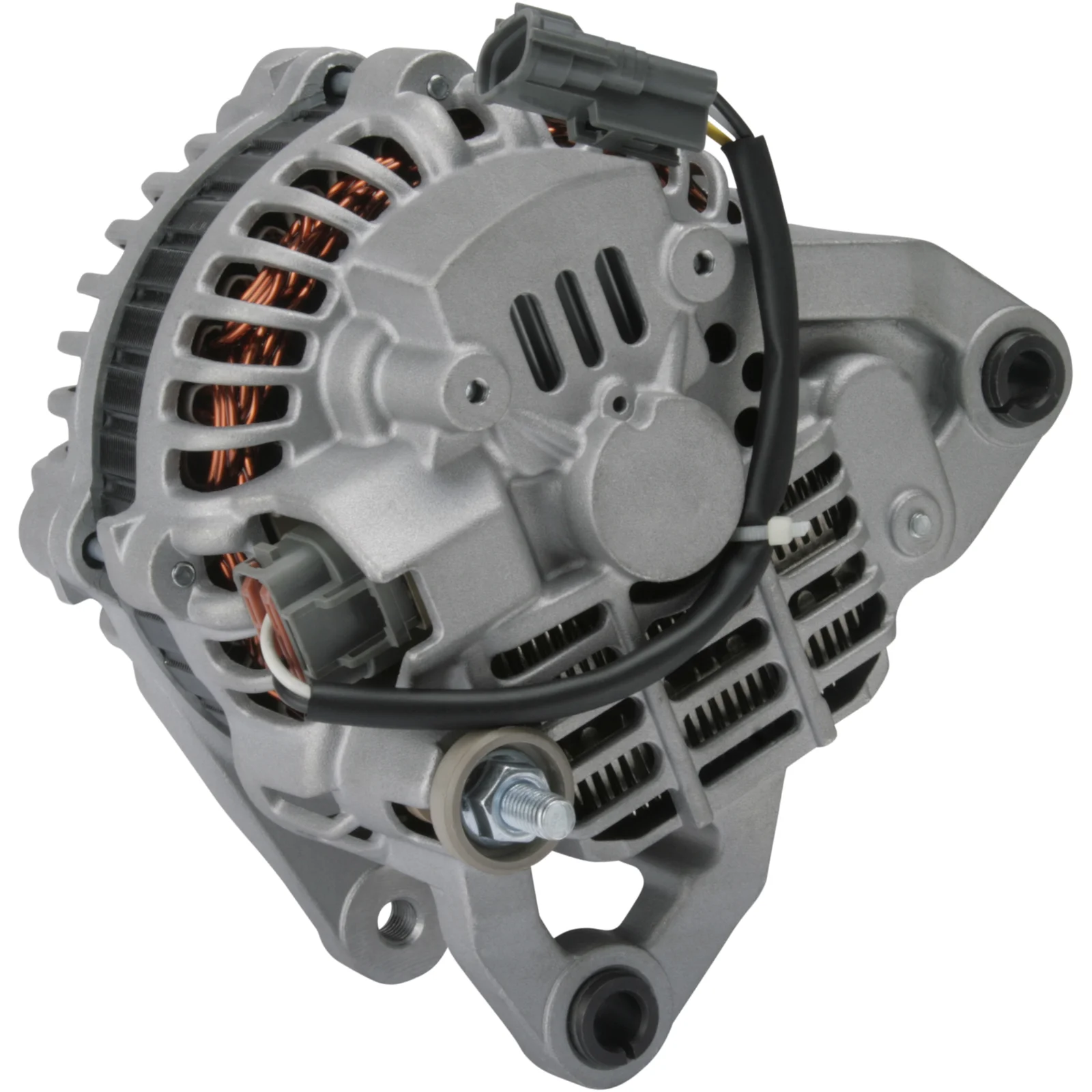

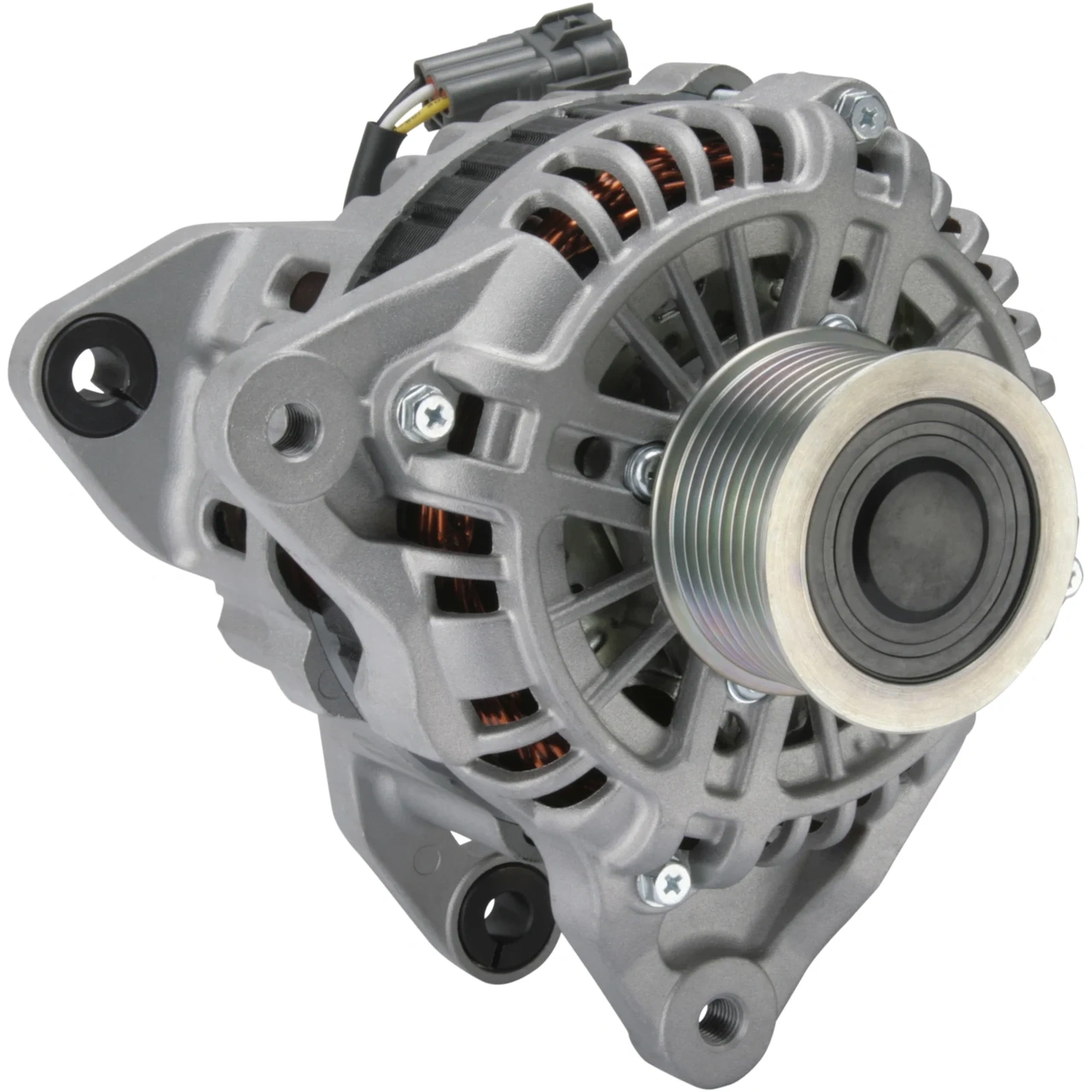

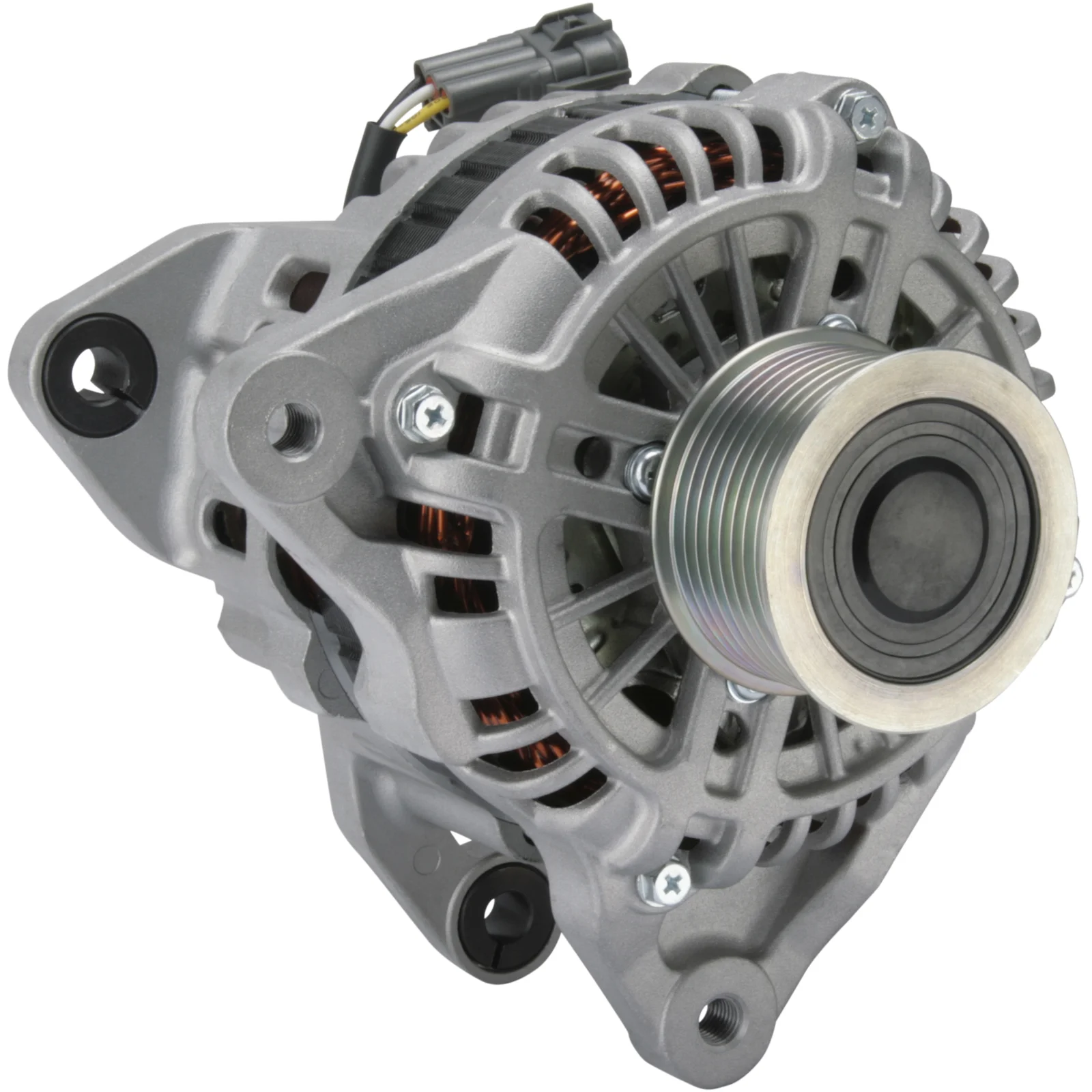

HC-Cargo Generator
HC-Cargo Generator
Artikelnr: F032114111

HC-Cargo Generator

Teknisk info:

Voltage: 14, Amp: 90, Rotation: CW, Mount. bracket dist.: 66.50

Beskrivning

Voltage: 14
Amp: 90
Pulley dist.: 39.00
Width/holder arm: 13.00
Mount. bracket dist.: 66.50
Bracket hole: M10
Belt. adj. brackethole pos.: 45
Belt. adj. bracket hole 1: M10
Pulley dia.: 59.50
Grooves/pulley: 8
Radius: 91.00
Radius 2: 100.00
B+: M8
Position/B+ in min.: 40
Rotation: CW
Plug no.: PL139
Total length mm: 164.00
Pulley: SP/FW
Regulator: w/o
Prod. info: BN

Filer

Specifikation

B+ M8
Mount. bracket dist. 66.50
Belt. adj. bracket hole 1 M10
Belt. adj. brackethole pos. 45
Plug no. PL139
Bracket hole M10
Position/B+ in min. 40
Prod. info BN
Pulley SP/FW
Pulley dia. 59.50
Pulley dist. 39.00
Radius 91.00
Radius 2 100.00
Regulator w/o
Rotation CW
Grooves/pulley 8
Voltage 14
Total length 164.00 mm
Width/holder arm 13.00
Amp 90

  • OEM
    A003TB6581, A3TB6581, F032114111, RF7J-18-300A, 1972

  • Konkurrentreferens
    A5058, A5058(P), ALT-H195, CAL35209, dra0195, F042A0H195, J5113068, LRA02945, 8EL012429-681, 8EL738212-241, 27-5559, 224.188.902, 9332, 23945R, 113027, 210954, 210954A, 301972, 444250, 9090666, 12060913, 0986081130

  • Normaliserat artikelnummer
    a003tb6581, a3tb6581, a5058, a5058p, alth195, cal35209, dra0195, f032114111, f042a0h195, j5113068, lra02945, rf7j18300a, 8el012429681, 8el738212241, 1972, 9332, 23945r, 113027, 210954, 210954a, 275559, 301972, 444250, 9090666, 12060913, 224188902, 0986081130

  • Passar modeller
    Mazda Model: 3 Model series: 3 Model type: MRZ Type of engine: CD Size of motor: 2.0 Brand of engine: RF7J Type description: BK12 From date: 01-12-2006 To date: 01-06-2009 Fuel: Diesel Approved: Yes
    Mazda Model: 3 Model series: 3 Model type: MRZ Type of engine: CD Size of motor: 2.0 Brand of engine: RF7J Type description: BK14 Body: Hatchback From date: 01-07-2006 To date: 01-06-2009 Fuel: Diesel Approved: Yes
    Mazda Model: 5 Model series: 5 Model type: RF7J Type of engine: Diesel Di Size of motor: 2.0 Brand of engine: RF7J Body: MPV From date: 01-02-2005 To date: 01-05-2010 Fuel: Diesel Approved: Yes
    Mazda Model: 5 Model series: 5 Type of engine: Diesel Di Size of motor: 2.0 Brand of engine: RF7J Body: MPV From date: 01-02-2005 To date: 01-05-2010 Fuel: Diesel Approved: Yes
    Mazda Model: 6 Model series: 6 Type of engine: Diesel Di Size of motor: 2.0 Brand of engine: RF7J Type description: GG Body: Hatchback From date: 01-06-2005 To date: 01-08-2007 Fuel: Diesel Approved: Yes
    Mazda Model: 6 Model series: 6 Type of engine: Diesel Di Size of motor: 2.0 Brand of engine: RF7J Type description: GG From date: 01-06-2005 To date: 01-08-2007 Fuel: Diesel Approved: Yes
    Mazda Model: 6 Model series: 6 Type of engine: Diesel Di Size of motor: 2.0 Brand of engine: RF7J Type description: GY Body: Estate From date: 01-06-2005 To date: 01-08-2007 Fuel: Diesel Approved: Yes
    1 / 2
  • Beskrivning
    Voltage: 14
    Amp: 90
    Pulley dist.: 39.00
    Width/holder arm: 13.00
    Mount. bracket dist.: 66.50
    Bracket hole: M10
    Belt. adj. brackethole pos.: 45
    Belt. adj. bracket hole 1: M10
    Pulley dia.: 59.50
    Grooves/pulley: 8
    Radius: 91.00
    Radius 2: 100.00
    B+: M8
    Position/B+ in min.: 40
    Rotation: CW
    Plug no.: PL139
    Total length mm: 164.00
    Pulley: SP/FW
    Regulator: w/o
    Prod. info: BN

    Filer

  • Specifikation
    B+ M8
    Mount. bracket dist. 66.50
    Belt. adj. bracket hole 1 M10
    Belt. adj. brackethole pos. 45
    Plug no. PL139
    Bracket hole M10
    Position/B+ in min. 40
    Prod. info BN
    Pulley SP/FW
    Pulley dia. 59.50
    Pulley dist. 39.00
    Radius 91.00
    Radius 2 100.00
    Regulator w/o
    Rotation CW
    Grooves/pulley 8
    Voltage 14
    Total length 164.00 mm
    Width/holder arm 13.00
    Amp 90
  • Fordonsmatchning

    • OEM
      A003TB6581, A3TB6581, F032114111, RF7J-18-300A, 1972

    • Konkurrentreferens
      A5058, A5058(P), ALT-H195, CAL35209, dra0195, F042A0H195, J5113068, LRA02945, 8EL012429-681, 8EL738212-241, 27-5559, 224.188.902, 9332, 23945R, 113027, 210954, 210954A, 301972, 444250, 9090666, 12060913, 0986081130

    • Normaliserat artikelnummer
      a003tb6581, a3tb6581, a5058, a5058p, alth195, cal35209, dra0195, f032114111, f042a0h195, j5113068, lra02945, rf7j18300a, 8el012429681, 8el738212241, 1972, 9332, 23945r, 113027, 210954, 210954a, 275559, 301972, 444250, 9090666, 12060913, 224188902, 0986081130

    • Passar modeller
      Mazda Model: 3 Model series: 3 Model type: MRZ Type of engine: CD Size of motor: 2.0 Brand of engine: RF7J Type description: BK12 From date: 01-12-2006 To date: 01-06-2009 Fuel: Diesel Approved: Yes
      Mazda Model: 3 Model series: 3 Model type: MRZ Type of engine: CD Size of motor: 2.0 Brand of engine: RF7J Type description: BK14 Body: Hatchback From date: 01-07-2006 To date: 01-06-2009 Fuel: Diesel Approved: Yes
      Mazda Model: 5 Model series: 5 Model type: RF7J Type of engine: Diesel Di Size of motor: 2.0 Brand of engine: RF7J Body: MPV From date: 01-02-2005 To date: 01-05-2010 Fuel: Diesel Approved: Yes
      Mazda Model: 5 Model series: 5 Type of engine: Diesel Di Size of motor: 2.0 Brand of engine: RF7J Body: MPV From date: 01-02-2005 To date: 01-05-2010 Fuel: Diesel Approved: Yes
      Mazda Model: 6 Model series: 6 Type of engine: Diesel Di Size of motor: 2.0 Brand of engine: RF7J Type description: GG Body: Hatchback From date: 01-06-2005 To date: 01-08-2007 Fuel: Diesel Approved: Yes
      Mazda Model: 6 Model series: 6 Type of engine: Diesel Di Size of motor: 2.0 Brand of engine: RF7J Type description: GG From date: 01-06-2005 To date: 01-08-2007 Fuel: Diesel Approved: Yes
      Mazda Model: 6 Model series: 6 Type of engine: Diesel Di Size of motor: 2.0 Brand of engine: RF7J Type description: GY Body: Estate From date: 01-06-2005 To date: 01-08-2007 Fuel: Diesel Approved: Yes
