Artikelnr: F032231795

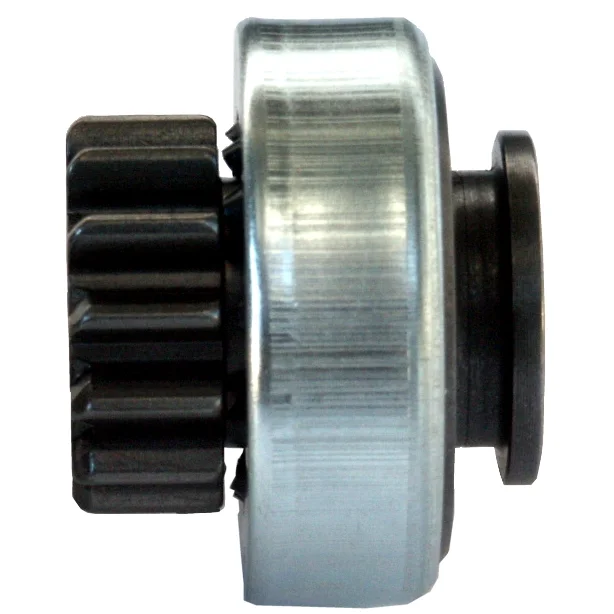

Drev

Name: Drev
SKU: F032231795
Price: 145 SEK
Availability: OutOfStock

Teknisk info:

No./teeth: 13, Rotation: CW, OD mm: 33.30, Total length mm: 38.60

Beskrivning

OD mm: 33.30
Total length mm: 38.60
ID mm: 12.55
No./teeth: 13
Splines internal: 10
Splines b: N/A
OD/housing mm: 48.50
Rotation: CW
Remarks: Shaft assy: HC-CARGO 233436.

Filer

Ladda ner produktblad

Specifikation

No./teeth	13
Remarks	Shaft assy: HC-CARGO 233436.
Rotation	CW
Splines b	N/A
Splines internal	10
Total length	38.60 mm
ID	12.55 mm
OD/housing	48.50 mm
OD	33.30 mm

OEM

F032231795, 231795
Konkurrentreferens

F042030231, F042S30231, SD-4161, SD2021
Normaliserat artikelnummer

f032231795, f042030231, f042s30231, sd2021, sd4161, 231795

Beskrivning
OD mm: 33.30
Total length mm: 38.60
ID mm: 12.55
No./teeth: 13
Splines internal: 10
Splines b: N/A
OD/housing mm: 48.50
Rotation: CW
Remarks: Shaft assy: HC-CARGO 233436.
Filer

Ladda ner produktblad

Specifikation

No./teeth	13
Remarks	Shaft assy: HC-CARGO 233436.
Rotation	CW
Splines b	N/A
Splines internal	10
Total length	38.60 mm
ID	12.55 mm
OD/housing	48.50 mm
OD	33.30 mm

Fordonsmatchning
- OEM

  F032231795, 231795
- Konkurrentreferens

  F042030231, F042S30231, SD-4161, SD2021
- Normaliserat artikelnummer

  f032231795, f042030231, f042s30231, sd2021, sd4161, 231795
