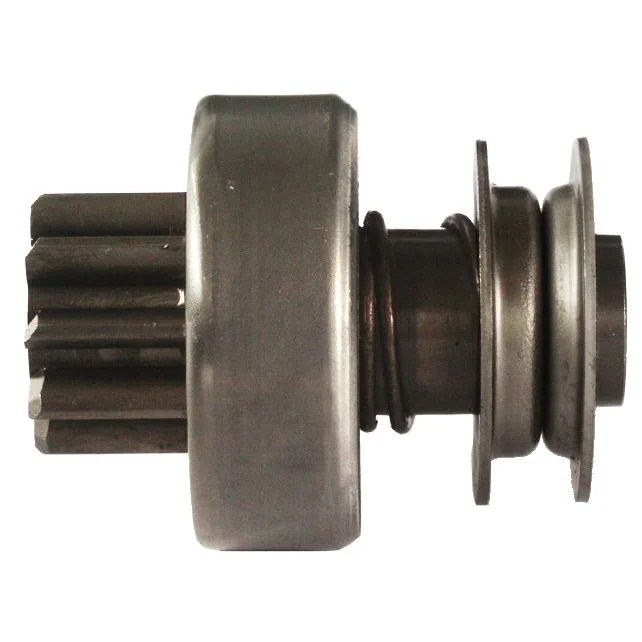

Drev

Artikelnr: F032231330

Drev

Teknisk info:

No./teeth: 9, Rotation: CW, OD mm: 34.40, Total length mm: 77.20

Beskrivning

OD mm: 34.40
Total length mm: 77.20
ID mm: 14.00
No./teeth: 9
Splines internal: 6
Splines b: N/A
OD/housing mm: 60.00
Rotation: CW
Shaft dist.: 5.40

Filer

Ladda ner produktblad

Specifikation

No./teeth	9
Rotation	CW
Shaft dist.	5.40
Splines b	N/A
Splines internal	6
Total length	77.20 mm
ID	14.00 mm
OD/housing	60.00 mm
OD	34.40 mm

OEM

F032231330, 1.01.0561.0, 0561, 231330, 4988518
Konkurrentreferens

SD9093, SDV3724, 4-830
Normaliserat artikelnummer

f032231330, sd9093, sdv3724, 0561, 4830, 231330, 4988518, 10105610

Beskrivning
OD mm: 34.40
Total length mm: 77.20
ID mm: 14.00
No./teeth: 9
Splines internal: 6
Splines b: N/A
OD/housing mm: 60.00
Rotation: CW
Shaft dist.: 5.40
Filer

Ladda ner produktblad

No./teeth	9
Rotation	CW
Shaft dist.	5.40
Splines b	N/A
Splines internal	6
Total length	77.20 mm
ID	14.00 mm
OD/housing	60.00 mm
OD	34.40 mm

Fordonsmatchning
- OEM

  F032231330, 1.01.0561.0, 0561, 231330, 4988518
- Konkurrentreferens

  SD9093, SDV3724, 4-830
- Normaliserat artikelnummer

  f032231330, sd9093, sdv3724, 0561, 4830, 231330, 4988518, 10105610
