Artikelnr: F032231272

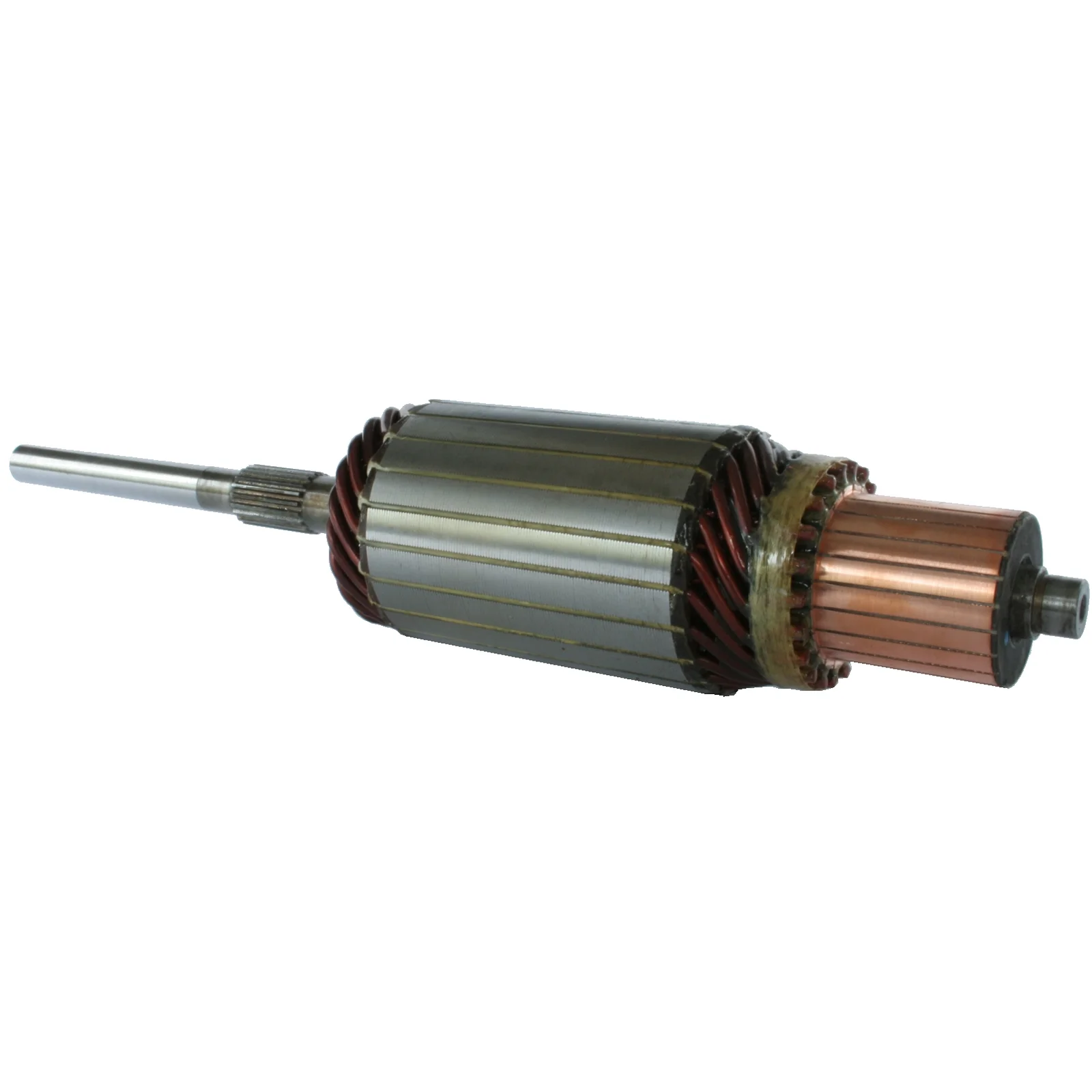

Ankare/Rotor

Teknisk info:

Voltage: 24, kW: 6.7, Rotation: CW, Core dia.: 75.00

Beskrivning

Voltage: 24
kW: 6.7
Core dia.: 75.00
Shaft dia./C.E.: 15.00
Shaft dia./D.E. inside: 15.20
Shaft dia./D.E. outside: 15.90
Shaft dia.: 22.00
Shaft length: 394.00
No./splines: 19
Rotation: CW
Dist./commutator: 14.50
Commutator dia./bar lane: 46.20
Bar dist.: 4.30
Bar cross dist.: 50.60
Height/bar lane: 45.00
No./bars: 21

Filer

Specifikation

Commutator dia./bar lane 46.20
No./splines 19
Bar cross dist. 50.60
Bar dist. 4.30
No./bars 21
Core dia. 75.00
Rotation CW
Shaft dia. 22.00
Shaft dia./C.E. 15.00
Shaft dia./D.E. inside 15.20
Shaft dia./D.E. outside 15.90
Shaft length 394.00
Height/bar lane 45.00
kW 6.7
Voltage 24
Dist./commutator 14.50 mm
  • Beskrivning
    Voltage: 24
    kW: 6.7
    Core dia.: 75.00
    Shaft dia./C.E.: 15.00
    Shaft dia./D.E. inside: 15.20
    Shaft dia./D.E. outside: 15.90
    Shaft dia.: 22.00
    Shaft length: 394.00
    No./splines: 19
    Rotation: CW
    Dist./commutator: 14.50
    Commutator dia./bar lane: 46.20
    Bar dist.: 4.30
    Bar cross dist.: 50.60
    Height/bar lane: 45.00
    No./bars: 21

    Filer

  • Specifikation
    Commutator dia./bar lane 46.20
    No./splines 19
    Bar cross dist. 50.60
    Bar dist. 4.30
    No./bars 21
    Core dia. 75.00
    Rotation CW
    Shaft dia. 22.00
    Shaft dia./C.E. 15.00
    Shaft dia./D.E. inside 15.20
    Shaft dia./D.E. outside 15.90
    Shaft length 394.00
    Height/bar lane 45.00
    kW 6.7
    Voltage 24
    Dist./commutator 14.50 mm
