Artikelnr: F032230518

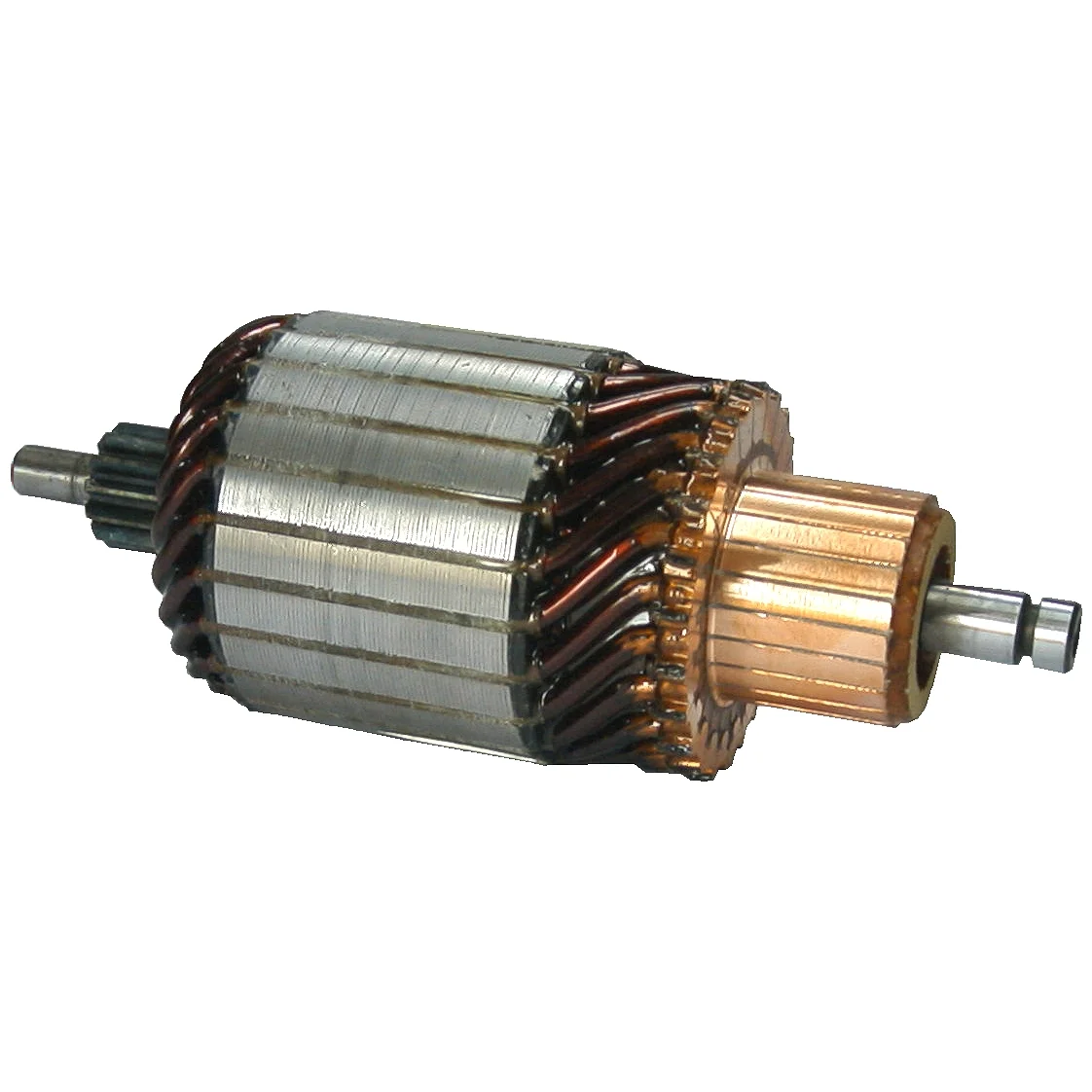

Ankare/Rotor

Teknisk info:

Voltage: 12, kW: 1.7/1.8, No./teeth: 13, Rotation: CW

Beskrivning

Voltage: 12
kW: 1.7/1.8
Core dia.: 59.00
Shaft dia./C.E.: 10.00
Shaft dia./D.E. outside: 8.00
Shaft dia.: 18.20
Shaft length: 160.00
Rotation: CW
No./teeth: 13
Dist./commutator: 18.00
Commutator dia./bar lane: 33.00
Bar dist.: 3.45
Bar cross dist.: 41.20
Height/bar lane: 22.00
No./bars: 23
Remarks: 15 teeth: HC-CARGO 132814.

Specifikation

Commutator dia./bar lane 33.00
No./teeth 13
Bar cross dist. 41.20
Bar dist. 3.45
No./bars 23
Core dia. 59.00
Remarks 15 teeth: HC-CARGO 132814.
Rotation CW
Shaft dia. 18.20
Shaft dia./C.E. 10.00
Shaft dia./D.E. outside 8.00
Shaft length 160.00
Height/bar lane 22.00
kW 1.7/1.8
Voltage 12
Dist./commutator 18.00 mm
