Artikelnr: F032134736

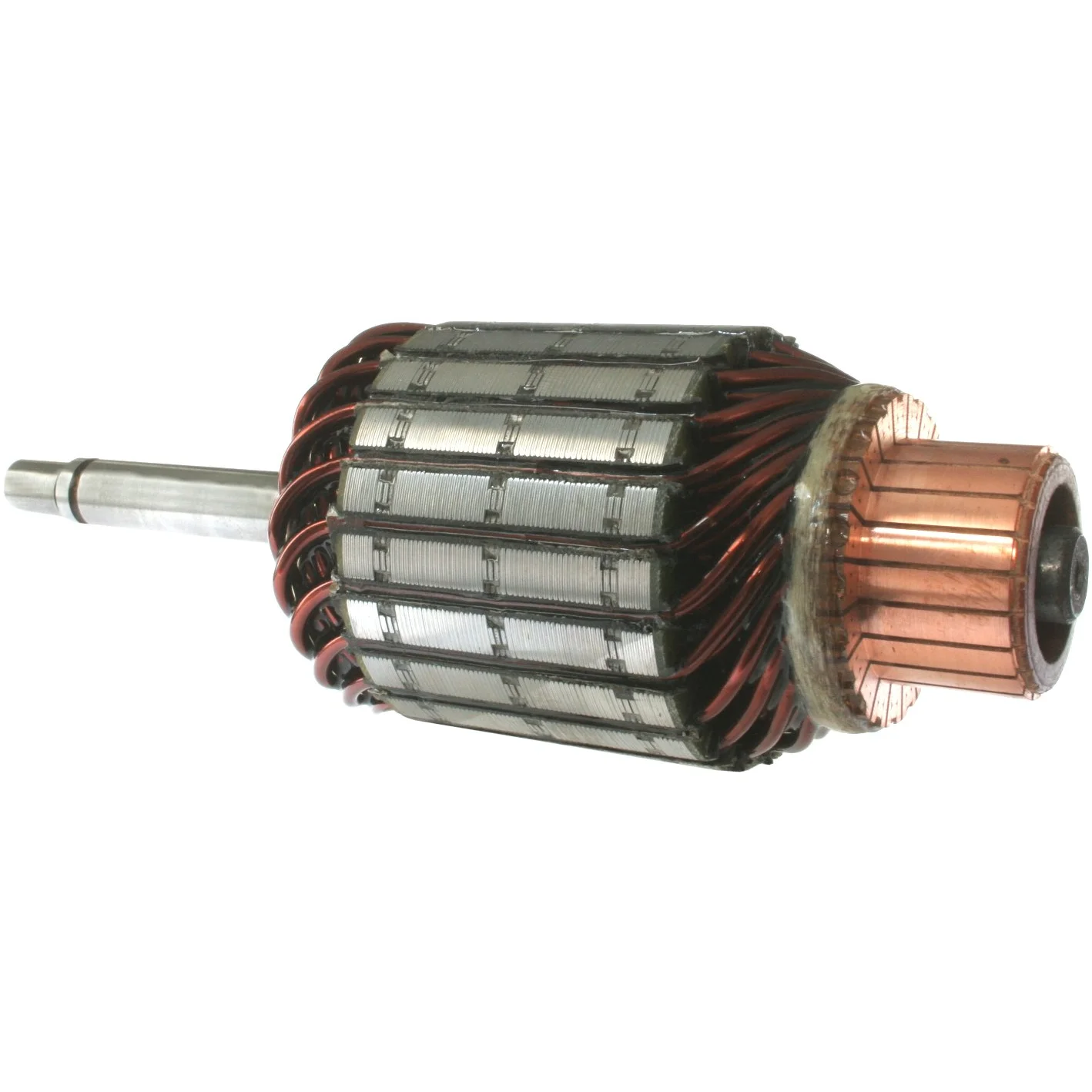

Ankare/Rotor

Teknisk info:

Voltage: 12, kW: 0.8, Rotation: CW, Core dia.: 60.00

Beskrivning

Voltage: 12
kW: 0.8
Core dia.: 60.00
Shaft dia./C.E.: 12.00
Shaft dia./D.E. inside: 12.00
Shaft dia./D.E. outside: 10.00
Shaft length: 183.10
No./splines: 8
Rotation: CW
Dist./commutator: 3.00
Commutator dia./bar lane: 32.60
Bar dist.: 2.30
Bar cross dist.: 32.20
Height/bar lane: 18.50
No./bars: 21

Filer

Specifikation

Commutator dia./bar lane 32.60
No./splines 8
Bar cross dist. 32.20
Bar dist. 2.30
No./bars 21
Core dia. 60.00
Rotation CW
Shaft dia./C.E. 12.00
Shaft dia./D.E. inside 12.00
Shaft dia./D.E. outside 10.00
Shaft length 183.10
Height/bar lane 18.50
kW 0.8
Voltage 12
Dist./commutator 3.00 mm

  • OEM
    e356-18-x60, F032134736, f8b1-18-x60, lth107, m106t05770, m106t05771, m106t07472, m106t07771, m106t50271, m106t52571, m106x50271, m106x50871, m106x52571, m106x52771, m106x52871, md607924, md618443, SAAR6000, 2EM0689H, 23310-42l10, 36150-11150

  • Konkurrentreferens
    SA5009, WSA19903

  • Normaliserat artikelnummer
    e35618x60, f032134736, f8b118x60, lth107, m106t05770, m106t05771, m106t07472, m106t07771, m106t50271, m106t52571, m106x50271, m106x50871, m106x52571, m106x52771, m106x52871, md607924, md618443, sa5009, saar6000, wsa19903, 2em0689h, 2331042l10, 3615011150
  • Beskrivning
    Voltage: 12
    kW: 0.8
    Core dia.: 60.00
    Shaft dia./C.E.: 12.00
    Shaft dia./D.E. inside: 12.00
    Shaft dia./D.E. outside: 10.00
    Shaft length: 183.10
    No./splines: 8
    Rotation: CW
    Dist./commutator: 3.00
    Commutator dia./bar lane: 32.60
    Bar dist.: 2.30
    Bar cross dist.: 32.20
    Height/bar lane: 18.50
    No./bars: 21

    Filer

  • Specifikation
    Commutator dia./bar lane 32.60
    No./splines 8
    Bar cross dist. 32.20
    Bar dist. 2.30
    No./bars 21
    Core dia. 60.00
    Rotation CW
    Shaft dia./C.E. 12.00
    Shaft dia./D.E. inside 12.00
    Shaft dia./D.E. outside 10.00
    Shaft length 183.10
    Height/bar lane 18.50
    kW 0.8
    Voltage 12
    Dist./commutator 3.00 mm
  • Fordonsmatchning

    • OEM
      e356-18-x60, F032134736, f8b1-18-x60, lth107, m106t05770, m106t05771, m106t07472, m106t07771, m106t50271, m106t52571, m106x50271, m106x50871, m106x52571, m106x52771, m106x52871, md607924, md618443, SAAR6000, 2EM0689H, 23310-42l10, 36150-11150

    • Konkurrentreferens
      SA5009, WSA19903

    • Normaliserat artikelnummer
      e35618x60, f032134736, f8b118x60, lth107, m106t05770, m106t05771, m106t07472, m106t07771, m106t50271, m106t52571, m106x50271, m106x50871, m106x52571, m106x52771, m106x52871, md607924, md618443, sa5009, saar6000, wsa19903, 2em0689h, 2331042l10, 3615011150
