Artikelnr: F032132158

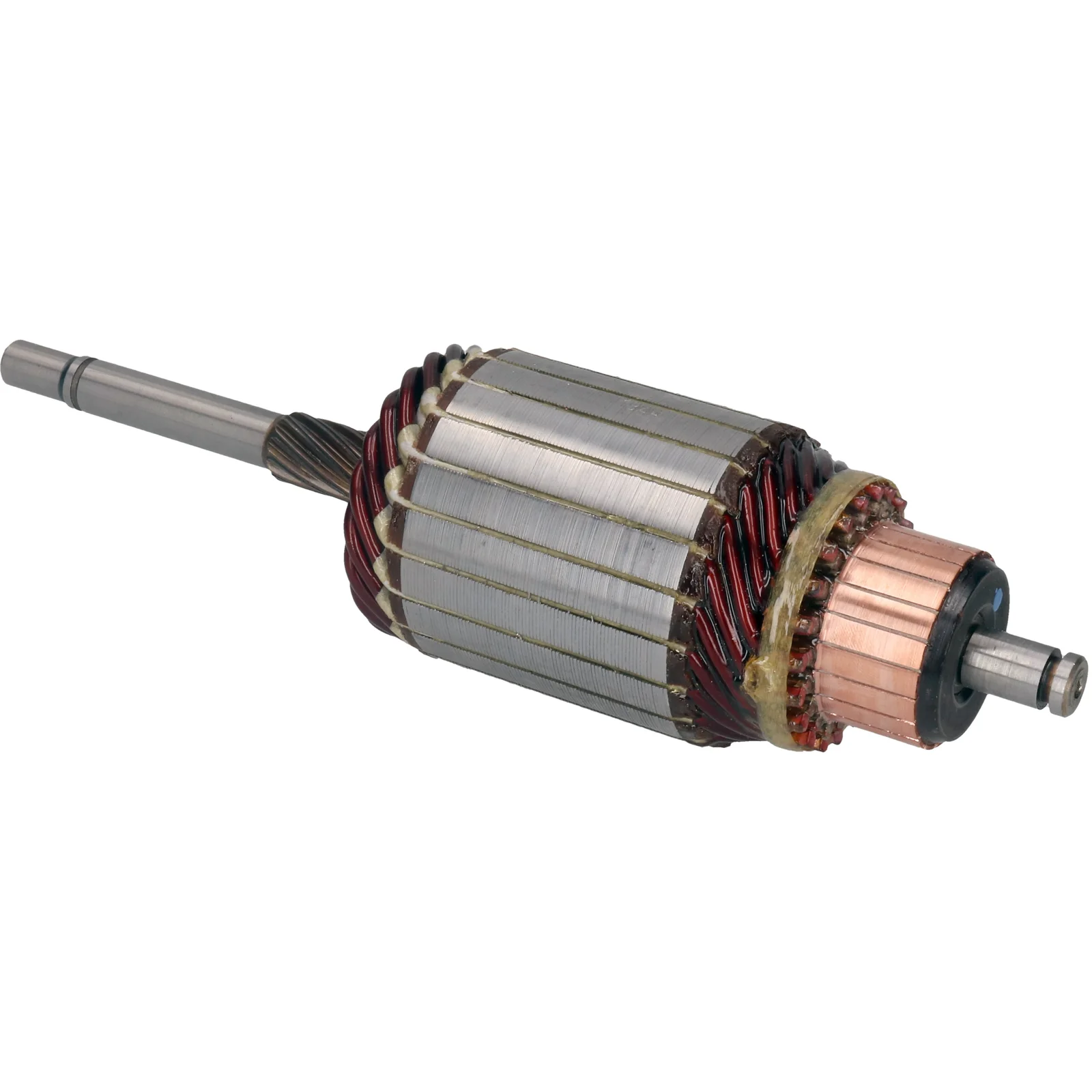

Ankare/Rotor

Teknisk info:

Voltage: 12, kW: 1.9-2.7, Rotation: CW, Core dia.: 75.00

Beskrivning

Voltage: 12
kW: 1.9-2.7
Core dia.: 75.00
Shaft dia./C.E.: 14.00
Shaft dia./D.E. inside: 14.15
Shaft dia./D.E. outside: 12.50
Shaft dia.: 18.75
Shaft length: 290.50
No./splines: 10
Rotation: CW
Dist./commutator: 26.00
Commutator dia./bar lane: 45.00
Bar dist.: 2.60
Bar cross dist.: 49.70
Height/bar lane: 21.50
No./bars: 21
Remarks: 9 V: HC-CARGO 133098.

Filer

Specifikation

Commutator dia./bar lane 45.00
No./splines 10
Bar cross dist. 49.70
Bar dist. 2.60
No./bars 21
Core dia. 75.00
Remarks 9 V: HC-CARGO 133098.
Rotation CW
Shaft dia. 18.75
Shaft dia./C.E. 14.00
Shaft dia./D.E. inside 14.15
Shaft dia./D.E. outside 12.50
Shaft length 290.50
Height/bar lane 21.50
kW 1.9-2.7
Voltage 12
Dist./commutator 26.00 mm
  • Beskrivning
    Voltage: 12
    kW: 1.9-2.7
    Core dia.: 75.00
    Shaft dia./C.E.: 14.00
    Shaft dia./D.E. inside: 14.15
    Shaft dia./D.E. outside: 12.50
    Shaft dia.: 18.75
    Shaft length: 290.50
    No./splines: 10
    Rotation: CW
    Dist./commutator: 26.00
    Commutator dia./bar lane: 45.00
    Bar dist.: 2.60
    Bar cross dist.: 49.70
    Height/bar lane: 21.50
    No./bars: 21
    Remarks: 9 V: HC-CARGO 133098.

    Filer

  • Specifikation
    Commutator dia./bar lane 45.00
    No./splines 10
    Bar cross dist. 49.70
    Bar dist. 2.60
    No./bars 21
    Core dia. 75.00
    Remarks 9 V: HC-CARGO 133098.
    Rotation CW
    Shaft dia. 18.75
    Shaft dia./C.E. 14.00
    Shaft dia./D.E. inside 14.15
    Shaft dia./D.E. outside 12.50
    Shaft length 290.50
    Height/bar lane 21.50
    kW 1.9-2.7
    Voltage 12
    Dist./commutator 26.00 mm
