Artikelnr: F032131400

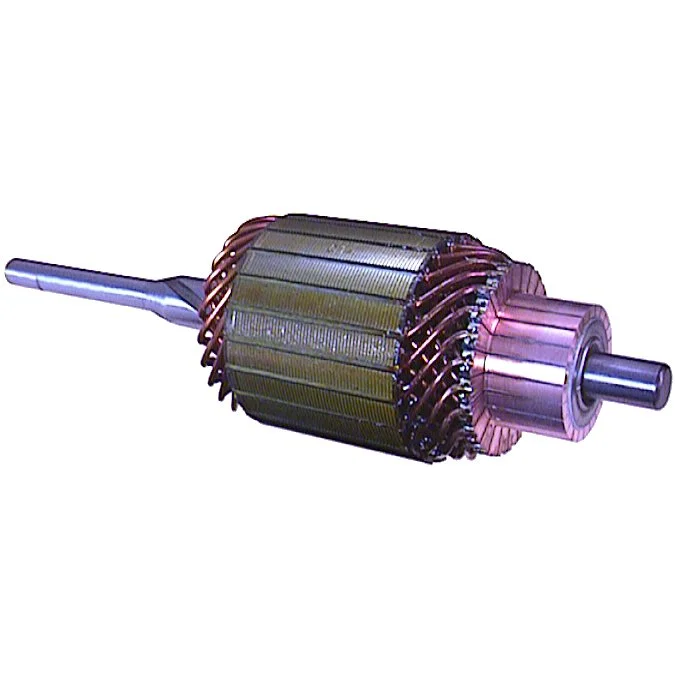

Ankare/Rotor

Teknisk info:

Voltage: 12, Rotation: CW, Core dia.: 74.50, Shaft dia./C.E.: 14.20

Beskrivning

Voltage: 12
Core dia.: 74.50
Shaft dia./C.E.: 14.20
Shaft dia./D.E. inside: 12.00
Shaft dia./D.E. outside: 12.00
Shaft dia.: 19.00
Shaft length: 281.50
No./splines: 3
Rotation: CW
Dist./commutator: 23.10
Commutator dia./bar lane: 43.00
Bar dist.: 2.60
Bar cross dist.: 43.20
Height/bar lane: 25.50
No./bars: 23
Servicing: 10MT
Remarks: High torque.

Filer

Specifikation

Commutator dia./bar lane 43.00
No./splines 3
Bar cross dist. 43.20
Bar dist. 2.60
No./bars 23
Core dia. 74.50
Remarks High torque.
Rotation CW
Servicing 10MT
Shaft dia. 19.00
Shaft dia./C.E. 14.20
Shaft dia./D.E. inside 12.00
Shaft dia./D.E. outside 12.00
Shaft length 281.50
Height/bar lane 25.50
Voltage 12
Dist./commutator 23.10 mm

  • OEM
    d4111, d4121, d4124, d4143, d4159, F032131400, 1877361, 1940548, 1940624, 1965724, 1970538, 1970548, 1978517, 1979792, 10470773, 10496043, 10498863

  • Konkurrentreferens
    WSA1581, 61-107, 61-107-1, 61-107-25, 1759, 2280

  • Normaliserat artikelnummer
    d4111, d4121, d4124, d4143, d4159, f032131400, wsa1581, 1759, 2280, 61107, 611071, 1877361, 1940548, 1940624, 1965724, 1970538, 1970548, 1978517, 1979792, 6110725, 10470773, 10496043, 10498863
  • Beskrivning
    Voltage: 12
    Core dia.: 74.50
    Shaft dia./C.E.: 14.20
    Shaft dia./D.E. inside: 12.00
    Shaft dia./D.E. outside: 12.00
    Shaft dia.: 19.00
    Shaft length: 281.50
    No./splines: 3
    Rotation: CW
    Dist./commutator: 23.10
    Commutator dia./bar lane: 43.00
    Bar dist.: 2.60
    Bar cross dist.: 43.20
    Height/bar lane: 25.50
    No./bars: 23
    Servicing: 10MT
    Remarks: High torque.

    Filer

  • Specifikation
    Commutator dia./bar lane 43.00
    No./splines 3
    Bar cross dist. 43.20
    Bar dist. 2.60
    No./bars 23
    Core dia. 74.50
    Remarks High torque.
    Rotation CW
    Servicing 10MT
    Shaft dia. 19.00
    Shaft dia./C.E. 14.20
    Shaft dia./D.E. inside 12.00
    Shaft dia./D.E. outside 12.00
    Shaft length 281.50
    Height/bar lane 25.50
    Voltage 12
    Dist./commutator 23.10 mm
  • Fordonsmatchning

    • OEM
      d4111, d4121, d4124, d4143, d4159, F032131400, 1877361, 1940548, 1940624, 1965724, 1970538, 1970548, 1978517, 1979792, 10470773, 10496043, 10498863

    • Konkurrentreferens
      WSA1581, 61-107, 61-107-1, 61-107-25, 1759, 2280

    • Normaliserat artikelnummer
      d4111, d4121, d4124, d4143, d4159, f032131400, wsa1581, 1759, 2280, 61107, 611071, 1877361, 1940548, 1940624, 1965724, 1970538, 1970548, 1978517, 1979792, 6110725, 10470773, 10496043, 10498863
