Artikelnr: F032131116

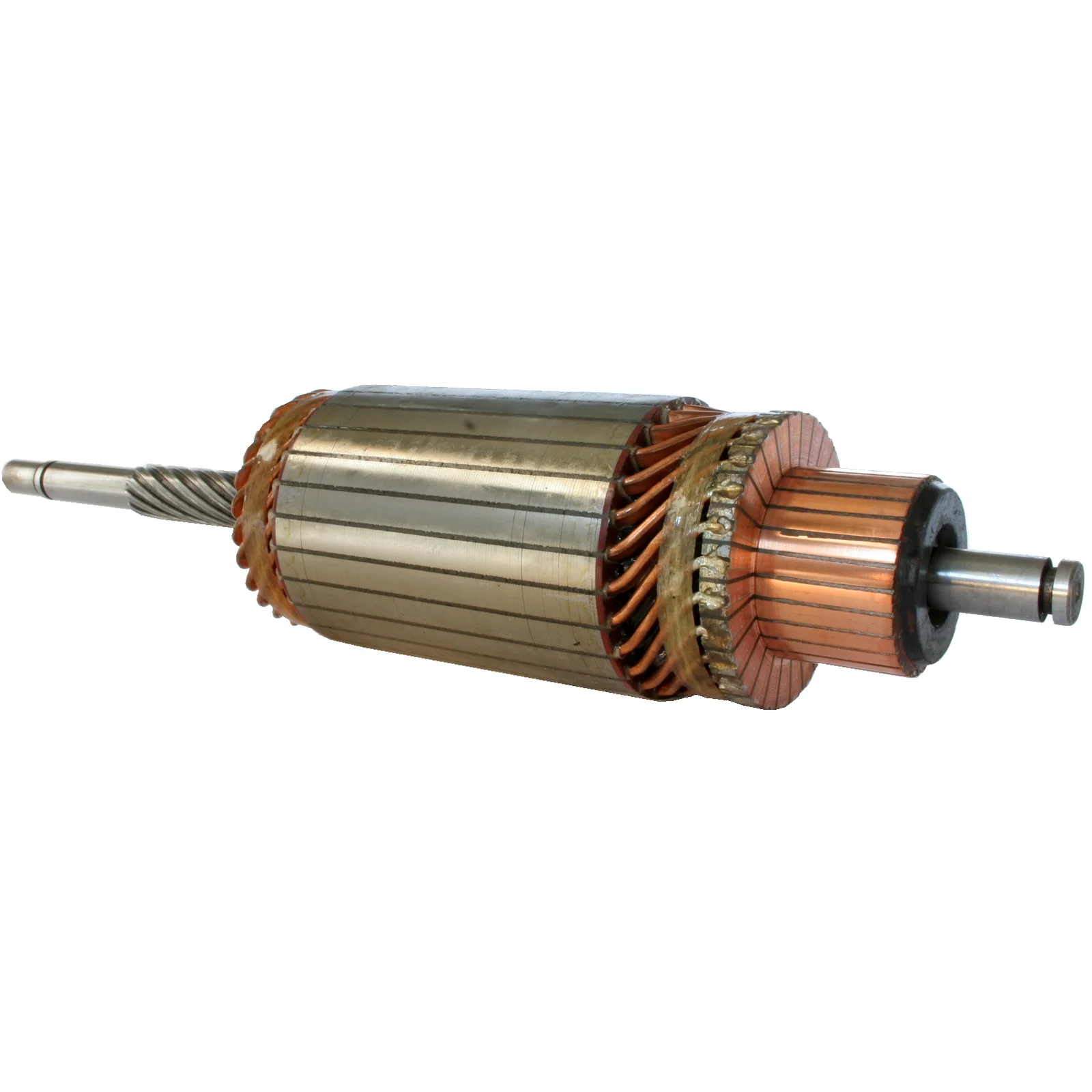

Ankare/Rotor

Teknisk info:

Voltage: 24, kW: 4.8, Rotation: CW, Core dia.: 75.00

Beskrivning

Voltage: 24
kW: 4.8
Core dia.: 75.00
Shaft dia./C.E.: 14.00
Shaft dia./D.E. inside: 14.15
Shaft dia./D.E. outside: 12.50
Shaft dia.: 18.80
Shaft length: 366.00
No./splines: 10
Rotation: CW
Dist./commutator: 28.20
Commutator dia./bar lane: 45.60
Bar dist.: 2.60
Bar cross dist.: 44.80
Height/bar lane: 31.00
No./bars: 27

Filer

Specifikation

Commutator dia./bar lane 45.60
No./splines 10
Bar cross dist. 44.80
Bar dist. 2.60
No./bars 27
Core dia. 75.00
Rotation CW
Shaft dia. 18.80
Shaft dia./C.E. 14.00
Shaft dia./D.E. inside 14.15
Shaft dia./D.E. outside 12.50
Shaft length 366.00
Height/bar lane 31.00
kW 4.8
Voltage 24
Dist./commutator 28.20 mm
  • Beskrivning
    Voltage: 24
    kW: 4.8
    Core dia.: 75.00
    Shaft dia./C.E.: 14.00
    Shaft dia./D.E. inside: 14.15
    Shaft dia./D.E. outside: 12.50
    Shaft dia.: 18.80
    Shaft length: 366.00
    No./splines: 10
    Rotation: CW
    Dist./commutator: 28.20
    Commutator dia./bar lane: 45.60
    Bar dist.: 2.60
    Bar cross dist.: 44.80
    Height/bar lane: 31.00
    No./bars: 27

    Filer

  • Specifikation
    Commutator dia./bar lane 45.60
    No./splines 10
    Bar cross dist. 44.80
    Bar dist. 2.60
    No./bars 27
    Core dia. 75.00
    Rotation CW
    Shaft dia. 18.80
    Shaft dia./C.E. 14.00
    Shaft dia./D.E. inside 14.15
    Shaft dia./D.E. outside 12.50
    Shaft length 366.00
    Height/bar lane 31.00
    kW 4.8
    Voltage 24
    Dist./commutator 28.20 mm
