Artikelnr: F032130554

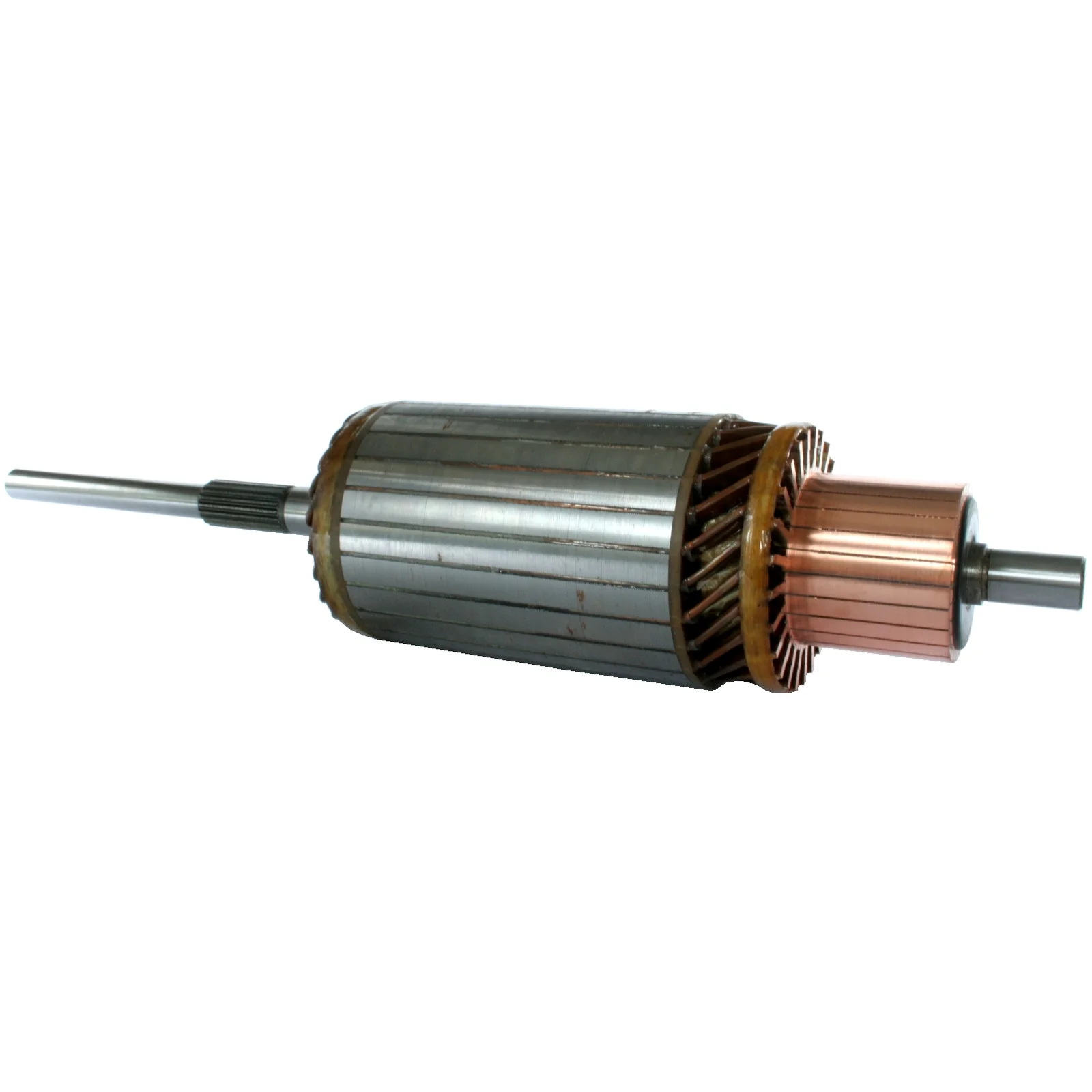

Ankare/Rotor

Teknisk info:

Voltage: 24, Rotation: CW, Core dia.: 96.00, Shaft dia./C.E.: 17.40

Beskrivning

Voltage: 24
Core dia.: 96.00
Shaft dia./C.E.: 17.40
Shaft dia./D.E. inside: 15.90
Shaft dia./D.E. outside: 15.80
Shaft dia.: 20.90
Shaft length: 482.60
No./splines: 19
Rotation: CW
Dist./commutator: 36.00
Commutator dia./bar lane: 58.70
Bar dist.: 3.40
Bar cross dist.: 64.30
Height/bar lane: 50.00
No./bars: 25
Servicing: 50MT
Remarks: Short shaft.

Filer

Specifikation

Commutator dia./bar lane 58.70
No./splines 19
Bar cross dist. 64.30
Bar dist. 3.40
No./bars 25
Core dia. 96.00
Remarks Short shaft.
Rotation CW
Servicing 50MT
Shaft dia. 20.90
Shaft dia./C.E. 17.40
Shaft dia./D.E. inside 15.90
Shaft dia./D.E. outside 15.80
Shaft length 482.60
Height/bar lane 50.00
Voltage 24
Dist./commutator 36.00 mm
  • Beskrivning
    Voltage: 24
    Core dia.: 96.00
    Shaft dia./C.E.: 17.40
    Shaft dia./D.E. inside: 15.90
    Shaft dia./D.E. outside: 15.80
    Shaft dia.: 20.90
    Shaft length: 482.60
    No./splines: 19
    Rotation: CW
    Dist./commutator: 36.00
    Commutator dia./bar lane: 58.70
    Bar dist.: 3.40
    Bar cross dist.: 64.30
    Height/bar lane: 50.00
    No./bars: 25
    Servicing: 50MT
    Remarks: Short shaft.

    Filer

  • Specifikation
    Commutator dia./bar lane 58.70
    No./splines 19
    Bar cross dist. 64.30
    Bar dist. 3.40
    No./bars 25
    Core dia. 96.00
    Remarks Short shaft.
    Rotation CW
    Servicing 50MT
    Shaft dia. 20.90
    Shaft dia./C.E. 17.40
    Shaft dia./D.E. inside 15.90
    Shaft dia./D.E. outside 15.80
    Shaft length 482.60
    Height/bar lane 50.00
    Voltage 24
    Dist./commutator 36.00 mm
