Artikelnr: F032130200

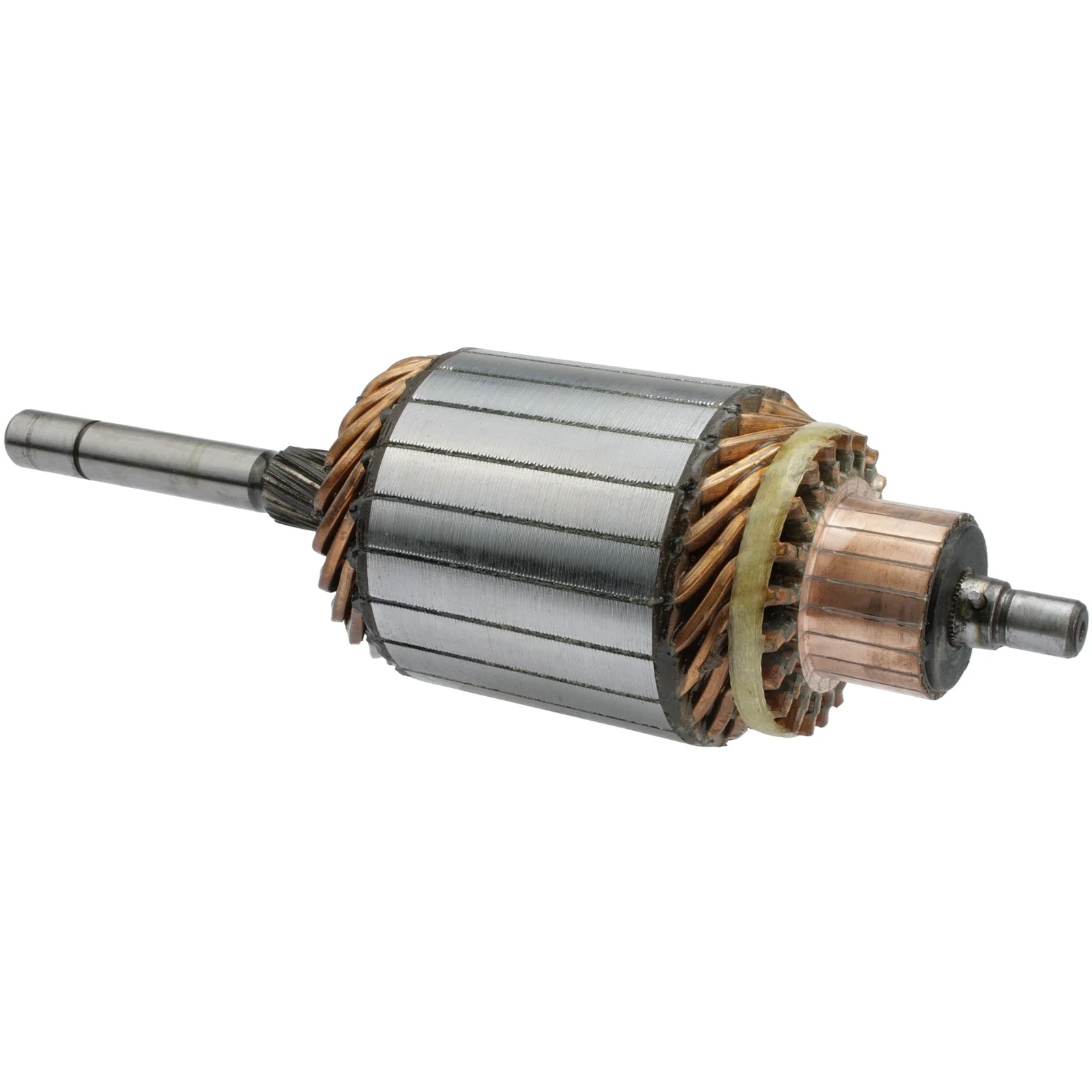

Ankare/Rotor

Teknisk info:

Voltage: 12, kW: 2.8, Rotation: CW, Core dia.: 84.00

Beskrivning

Voltage: 12
kW: 2.8
Core dia.: 84.00
Shaft dia./C.E.: 12.70
Shaft dia./D.E. inside: 17.00
Shaft dia./D.E. outside: 17.00
Shaft length: 303.40
No./splines: 12
Rotation: CW
Dist./commutator: 25.30
Commutator dia./bar lane: 42.80
Bar dist.: 3.65
Bar cross dist.: 54.20
Height/bar lane: 25.00
No./bars: 21
Servicing: M50G
Remarks: Drive: HC-CARGO 130453.

Filer

Specifikation

Commutator dia./bar lane 42.80
No./splines 12
Bar cross dist. 54.20
Bar dist. 3.65
No./bars 21
Core dia. 84.00
Remarks Drive: HC-CARGO 130453.
Rotation CW
Servicing M50G
Shaft dia./C.E. 12.70
Shaft dia./D.E. inside 17.00
Shaft dia./D.E. outside 17.00
Shaft length 303.40
Height/bar lane 25.00
kW 2.8
Voltage 12
Dist./commutator 25.30 mm
  • Beskrivning
    Voltage: 12
    kW: 2.8
    Core dia.: 84.00
    Shaft dia./C.E.: 12.70
    Shaft dia./D.E. inside: 17.00
    Shaft dia./D.E. outside: 17.00
    Shaft length: 303.40
    No./splines: 12
    Rotation: CW
    Dist./commutator: 25.30
    Commutator dia./bar lane: 42.80
    Bar dist.: 3.65
    Bar cross dist.: 54.20
    Height/bar lane: 25.00
    No./bars: 21
    Servicing: M50G
    Remarks: Drive: HC-CARGO 130453.

    Filer

  • Specifikation
    Commutator dia./bar lane 42.80
    No./splines 12
    Bar cross dist. 54.20
    Bar dist. 3.65
    No./bars 21
    Core dia. 84.00
    Remarks Drive: HC-CARGO 130453.
    Rotation CW
    Servicing M50G
    Shaft dia./C.E. 12.70
    Shaft dia./D.E. inside 17.00
    Shaft dia./D.E. outside 17.00
    Shaft length 303.40
    Height/bar lane 25.00
    kW 2.8
    Voltage 12
    Dist./commutator 25.30 mm
