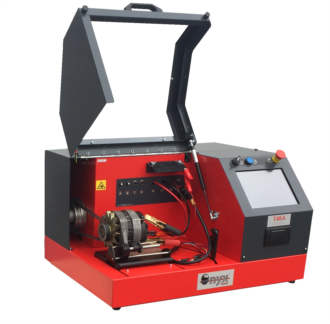

ONYX2.0 - Alternator Testing Machine - TMA Intitek France - Specialverktyg Testinstrument

Artikelinformation

Yourex nr	Benämning	Pris exkl. moms
ONYX2.0	Alternator Testing Machine	69990 kr

Tillfälligt slut

69990 kr

Mer artikelinfo
Fabrikat	TMA, Intitek, France
Teknisk info	Automated Testing Machine Alternators 12/24V
Dimension	800 x 520 x 450 mm, 220V, 2.24kW
including :The ONYX Tester, All the specific connectors, Regular updates of the Software. Tested products : any kind of 12V or 24V alternators (no power limit), any kind of 12V or 24V starters Measured parameters : Leakage current - Charging lamp - CPU Control - Tachometer output - Ripple voltage - Regulation voltage - Load current - Field current DF/DFM - Sensing Communication Protocols : LIN (1.3, 2.0, 2.1), BSD/BSS (1, 2), RVC, C Terminal, PCM Database : More than 200 000 alternator references Automatic Mode : Automated Exhaustive electrical test Simple Manual Mode : Adjustable parameters, & Life time test Starter Test : Complete electrical test & free rotation run Printing results : Detailed test reports with a Pass or Fail stamp Operating System : Windows CE with graphic Touchscreen including :

Ersätter originalnr bl.a.

ONYX20, ONYX2.0

Passar bl.a.
